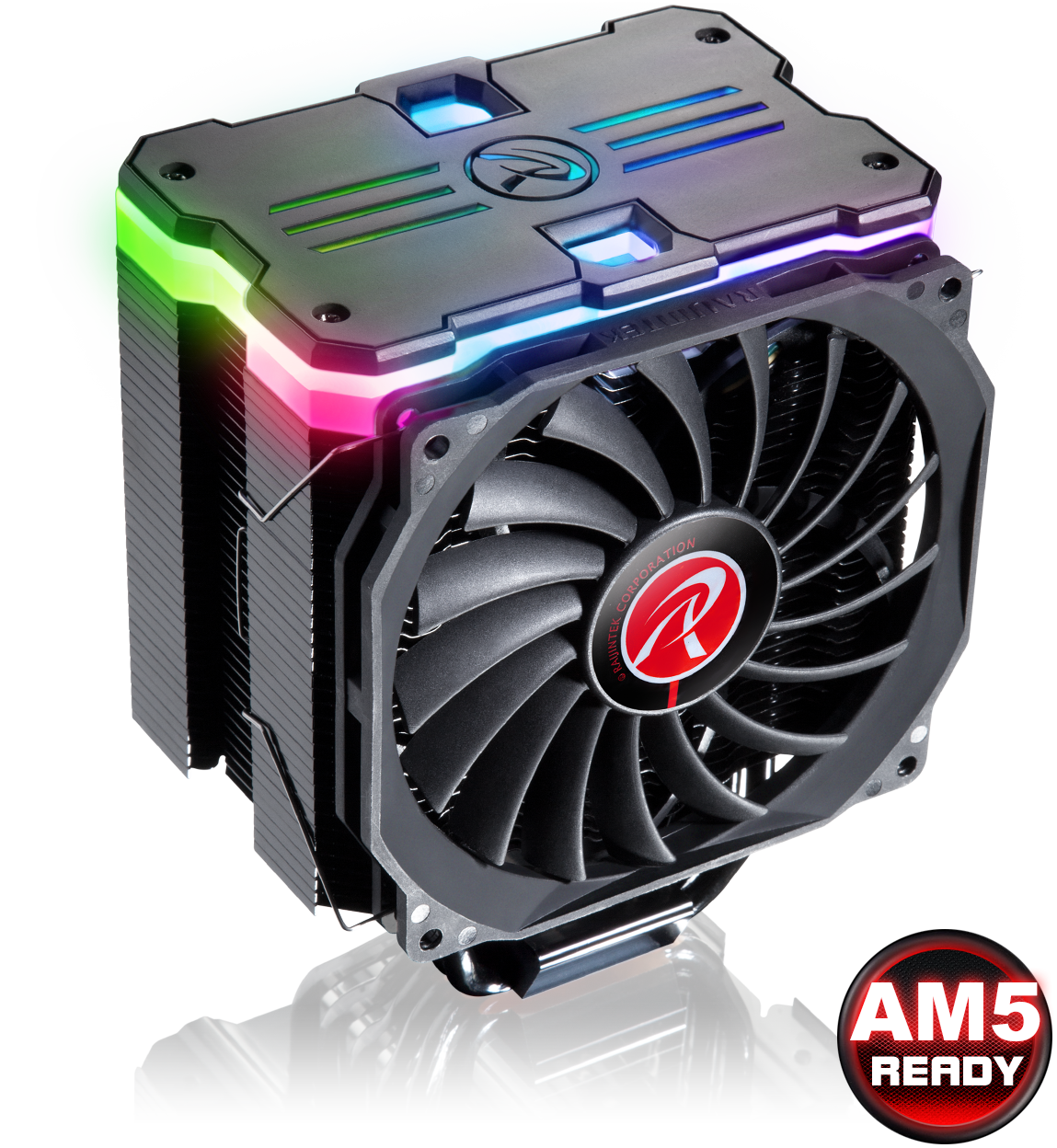

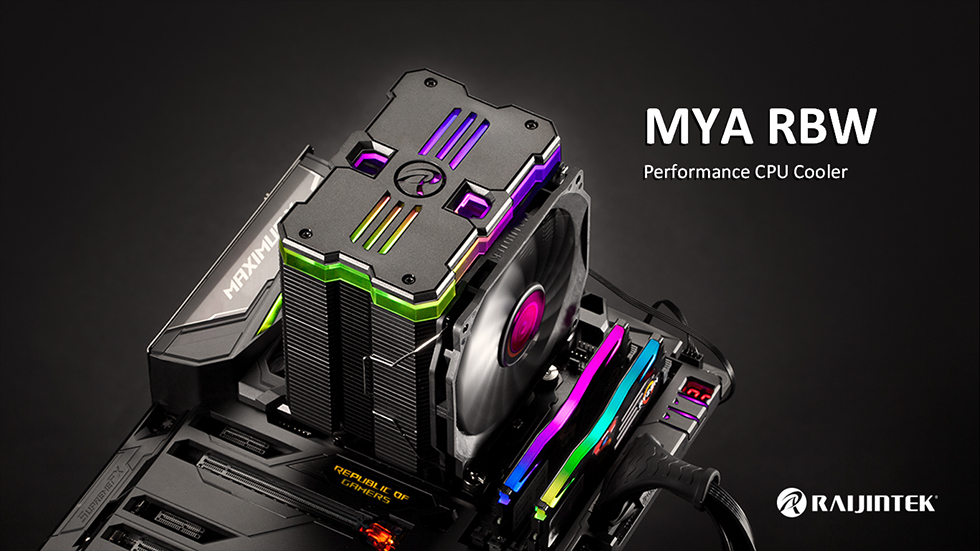

MYA RBW

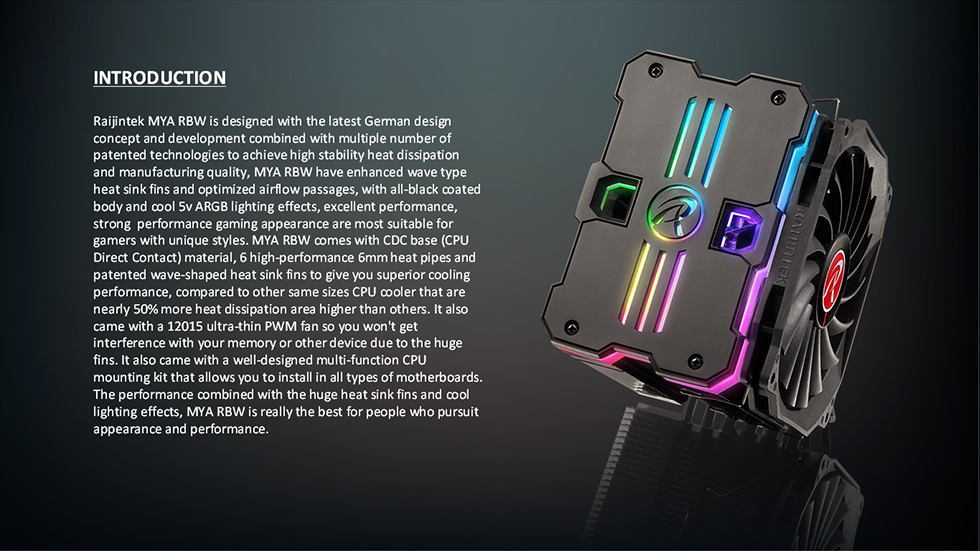

Raijintek MYA RBW is designed with the latest German design concept and development combined with multiple number of patented technologies to achieve high stability heat dissipation and manufacturing quality, MYA RBW have enhanced wave type heat sink fins and optimized airflow passages, with all-black coated body and cool 5v ARGB lighting effects, excellent performance, strong gaming appearance are most suitable for gamers with unique styles. MYA RBW comes with CDC base (CPU Direct Contact) material, 6 high-performance 6mm heat pipes and patented wave-shaped heat sink fins to give you superior cooling performance, compared to other same sizes CPU cooler that are nearly 50% more heat dissipation area higher than others. It also came with a 12013 ultra-thin PWM fan so you won't get interference with your memory or other device due to the huge fins. It also came with a well-designed multi-function CPU mounting kit that allows you to install in all types of motherboards. The performance combined with the huge heat sink fins and cool lighting effects, MYA RBW is really the best for people who pursuit appearance and performance.

MYA RBW






  •

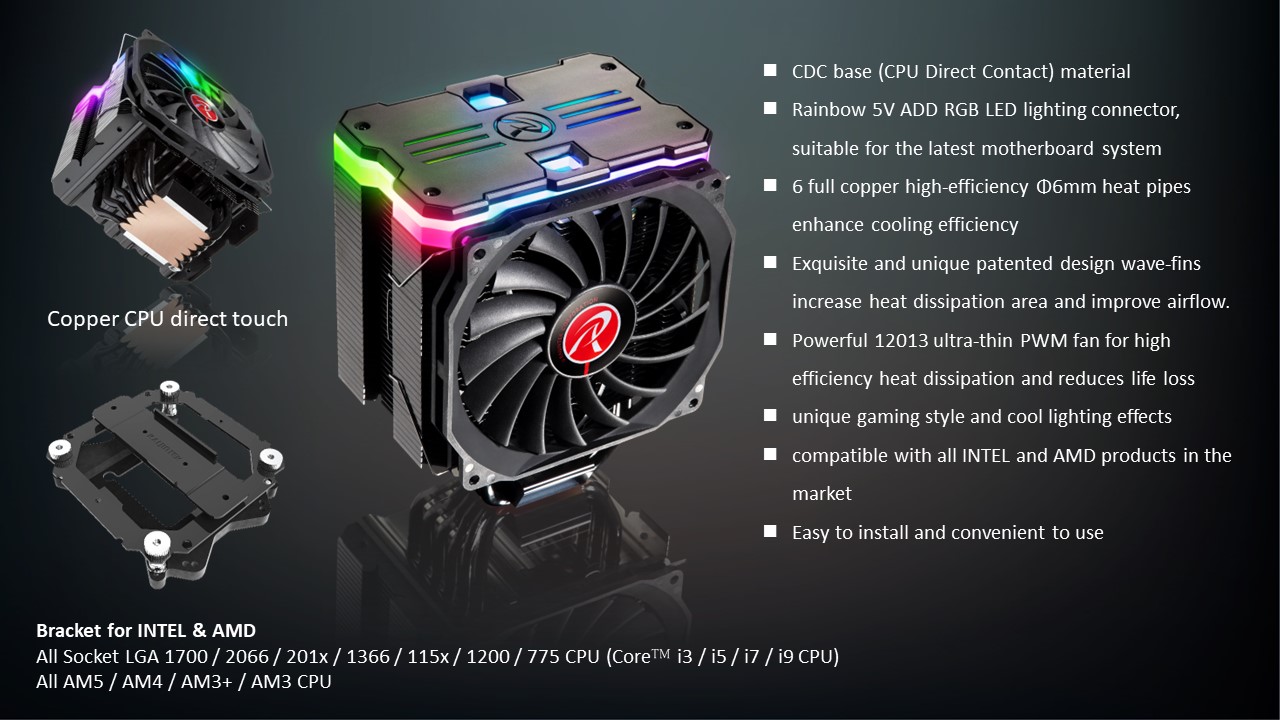

  • CPU Direct Contact [C.D.C.]
  • Rainbow 5V ADD RGB LED lighting connector, suitable for the latest motherboard system
  • 6 full copper high-efficiency Φ6mm heat pipes enhance cooling efficiency

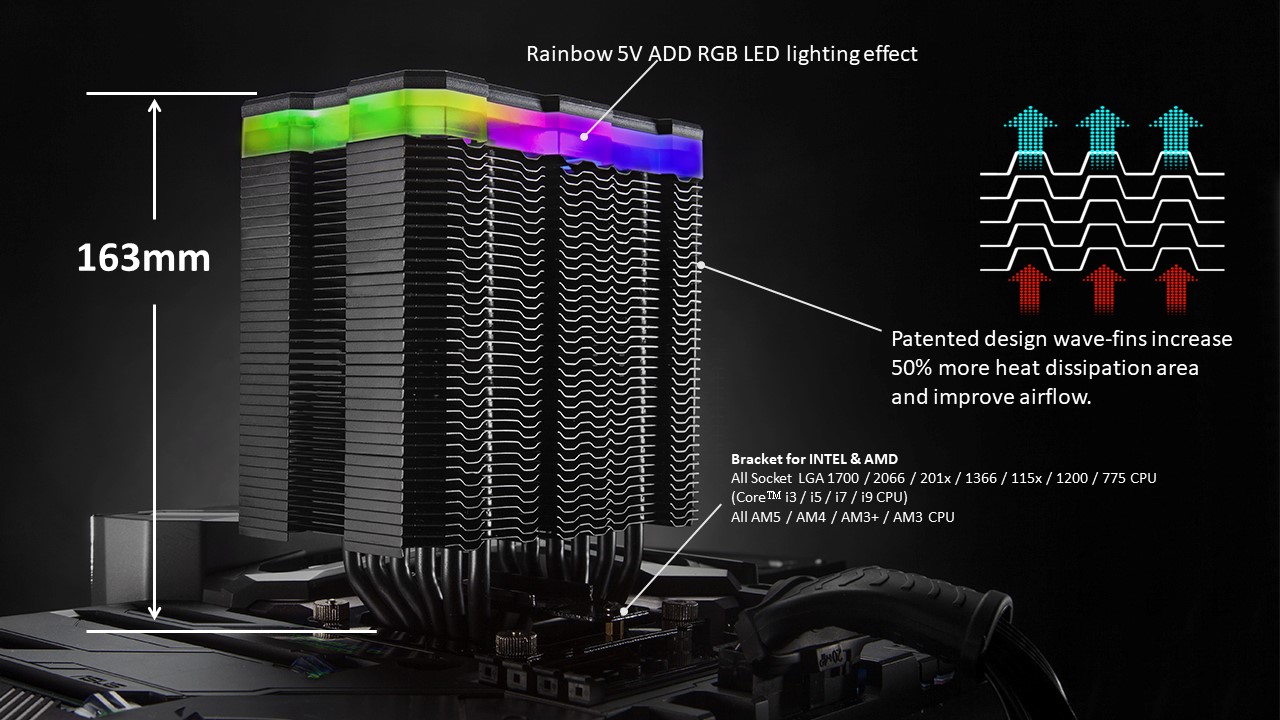

  • Exquisite and unique patented design wave-fins increase heat dissipation area and improve airflow
  • Powerful 12013 ultra-thin PWM fan for high efficiency heat dissipation and reduces life loss
  • unique gaming style and cool lighting effects
  • compatible with all INTEL and AMD products in the market
  • Easy to install and convenient to use
SPECIFICATION
Product Name MYA RBW
Product Number 0R10B00094
Dimension [W×D×H] 130×86×163 mm
Weight 925 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 1 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 6 pcs

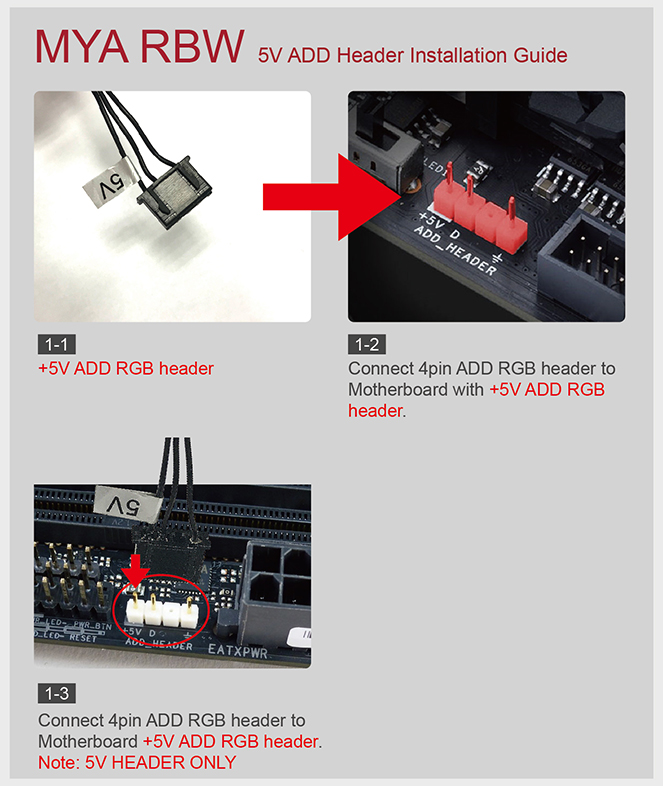

Addressable LED ADD header [Gnd/NA/D/+5V], 2.5 Crimp
LED Q'ty 16 pcs LED, 5V, 0.6A, 3W
est. TDP 210W
FAN
Dimension [W×H×D] 120×120×13 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 200~1400 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 41.71 CFM [Max.]
Air Pressure 0.67 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28.43 dBA [Max.]

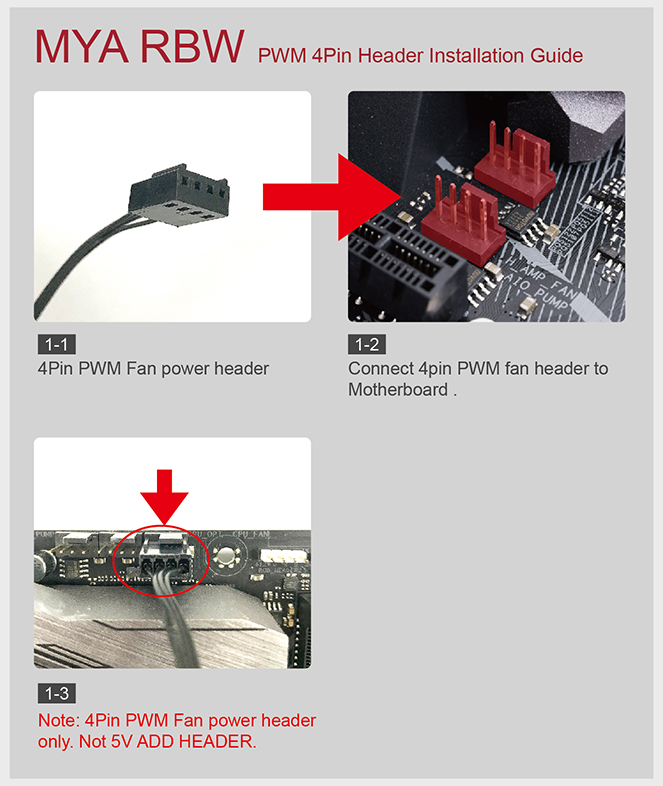

Connector PWM 4 pin header
Rated Current 0.2A
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU
  • MYA RBW Installation Guide  [ 6.16 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.


MYA RBW × 1
Back Plate

Back Plate × 1
Crossbar
Crossbar × 1
Back Plate

Mounting Clip × 1

Fan Clip × 2
LGA2011 Screws
LGA2011 Screw × 4
Knurled Threaded Screws
Knurled Threaded Screw × 4
M3 Screws
M3 Screw × 2
Metal Nuts
Metal Nut × 4
Plastic Nuts
Metal Nut × 4
Thermal Grease
Thermal Grease × 1

Plastic Myla × 4

Stand-off × 2

Installation Guide × 1
Package

Package × 1
