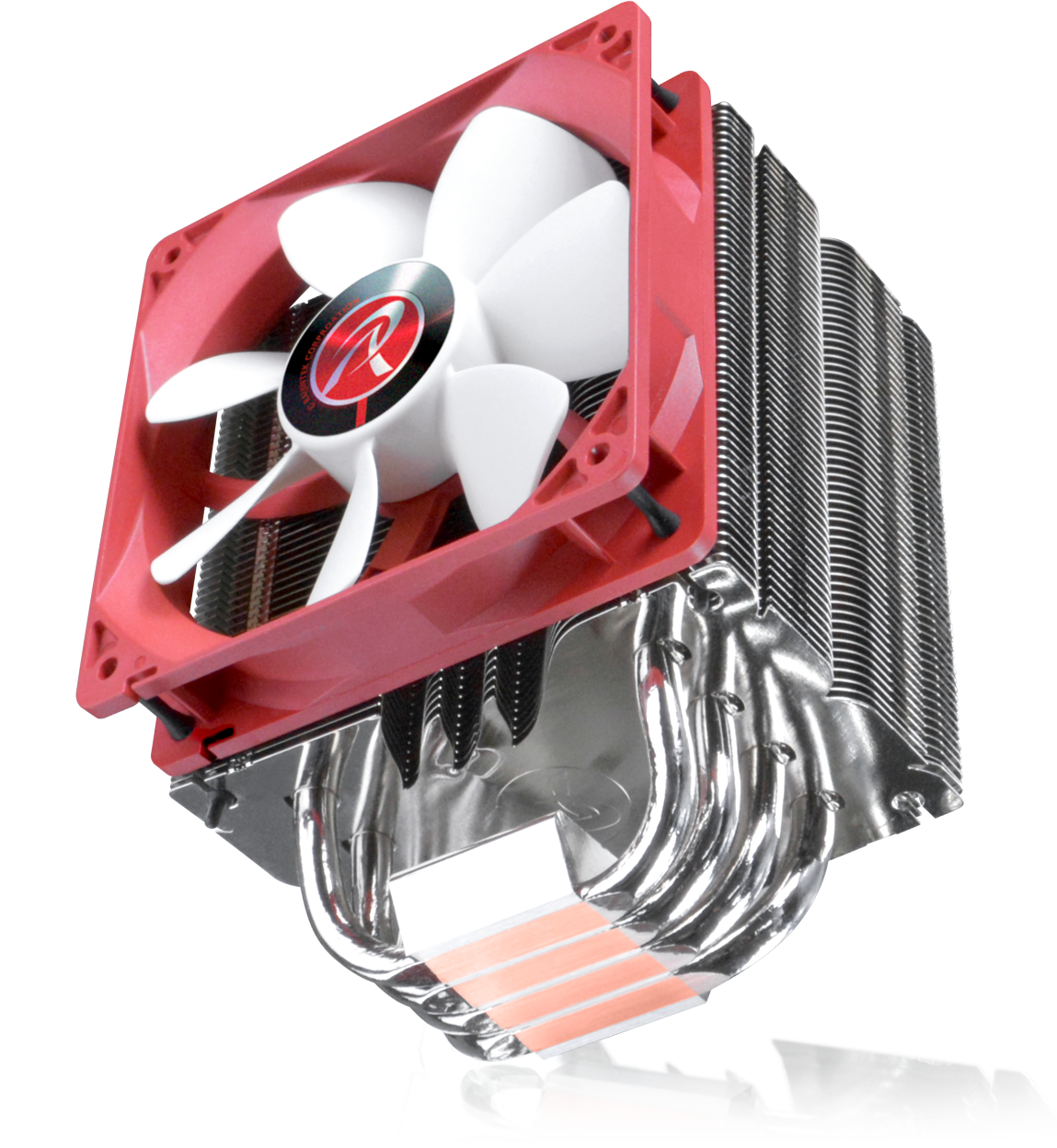

THEMIS Evo

THEMIS Evo, "Designed in Germany", is manufactured by several patents to reach advanced performance, high quality & workmanship, environmental protection and ease of use. With Anti-vibration rubbers and supporting all modern sockets, THEMIS Evo is your professional choice of cooling.

THEMIS Evo
  • Non-Copper base design (C.D.C. - CPU Direct Contact)
  • Patented pressing heat-pipe/fin technology to prevent the risk of heat-pipe damage
  • Patented solder-less louver fin assembly to increase heat-pipe ventilation
  • 100% Nickel heat-sink design
  • Compatible with all modern sockets of INTEL & AMD at market
  • Anti-Vibration rubber used to minimize movement and noise
  • Large dissipating area & elegant fin design
  • Easy installation and user friendly
SPECIFICATION
Product Name THEMIS Evo
Product Number 0P105245 [0R10A00076]
Dimension [W×D×H] 122×82×165 mm
Weight 614 g [Heat Sink Only]
Thermal Resistance 0.11 °C/W
Heat Sink
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-less fins assembly; Nickel
Heat-pipe
SPEC Φ8mm
Q'ty 4 pcs
Fan
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 1000~1500 RPM [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 43.8~65.68 CFM
Air Pressure 1.0~2.24 mmH2O
Life Expectance 40,000 hrs
Noise Level 24.53 dBA [Max.]
Connector 4 pin with PWM
est. TDP 180W
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 CPU
  • THEMIS Evo Installation Guide  [ 7.45 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink X 1

12025 PWM Fan X 1

Back Plate X 1

Crossbar X 1

Intel Mounting Clip X 2

AMD Mounting Clip X 2

Fan Clip X 2

Anti-vibration Rubber X 5

LGA2011 Screw X 4

Knurled Threaded Screw X 4

M3 Screw X 2

Metal Nut X 4

Plastic Nut X 4

Thermal Grease X 1

Installation Guide X 1

Package X 1
