TISIS

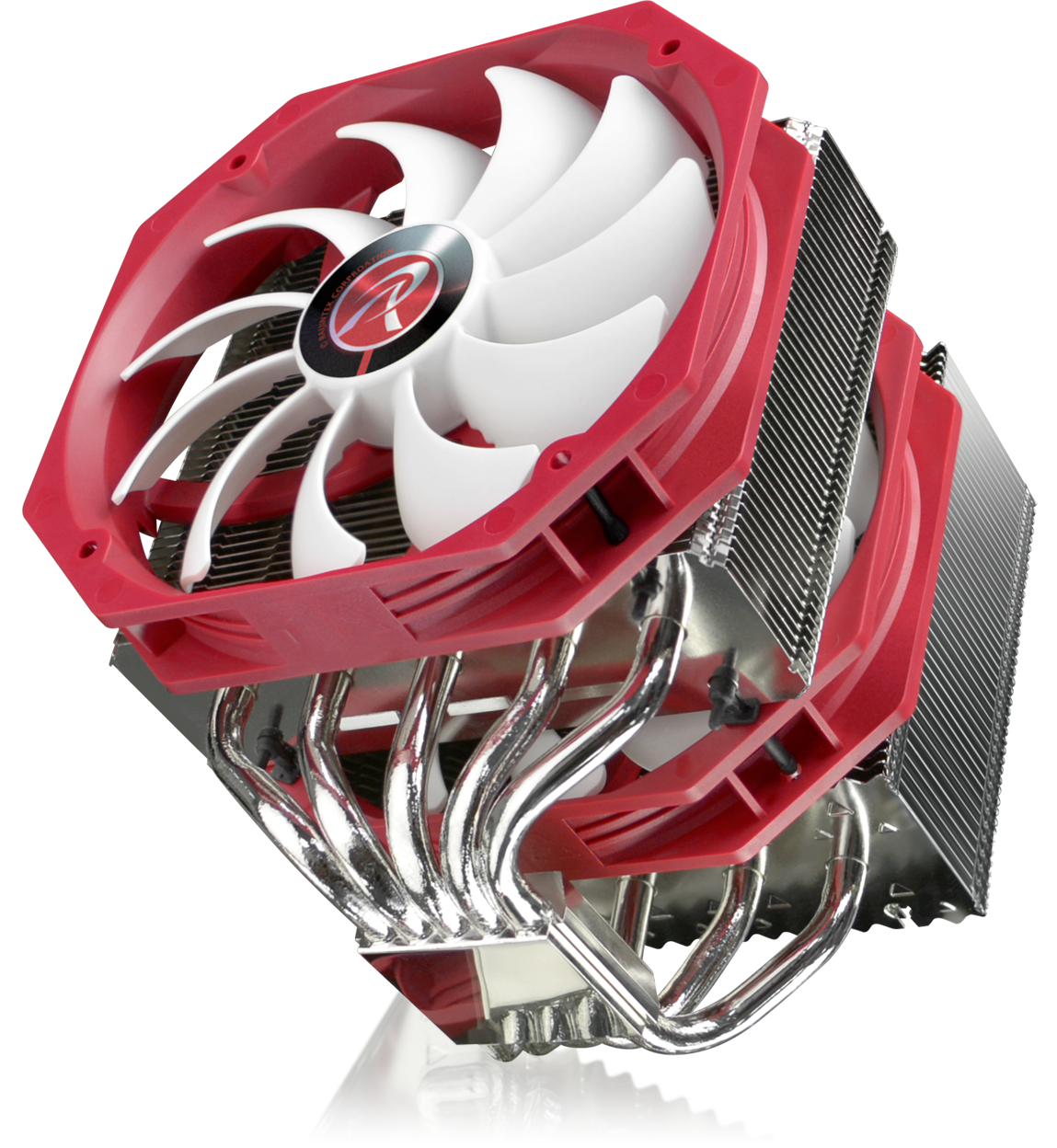

TISIS, angel of Revenge, a Dual-tower heat-sink with extremely performing 14025 fans, top high-end CPU cooler for people who are seeking the best cooling partner for super over-clocking. TISIS, designed in Germany and provides users an awesome perfor- mance. The gorgeous combination design for Dual– towers, 2*14025 fans pre-installed, patented copper base. TISIS can dissipate over 350W easily. With multiple mounting kits, giant dissipating fin area and 100% heat-sink nickel; TISIS - your awesome Cooler for your CPU and extreme over-clocking.

TISIS
  • 100% Nickel heat-sink, efficient 8mm Heat-pipes×5 & extreme large dissipating area
  • 2 × 14025 fans pre-installed
  • 14025 PWM fan - Low noise & outstanding air flow as well pressure
  • Compatible with all modern sockets of Intel & AMD at market
  • Special hole design on fins to provide excellent air flow and cooling efficiency
  • Triple fan installation option, anti-vibration rubbers and fan clips attached
  • User friendly design - Multiple socket compatibility
SPECIFICATION
Product Name TISIS / TISIS BLACK
Product Number 0R100001 [0R10A00001] / 0R100013 [0R10A00013]
Dimension [W×D×H] 140×130×166.5 mm
Weight 1050 g [Heat Sink Only]
Thermal Resistance 0.10 °C/W
Heat Sink
Base Material Patented Nickel Copper Base
Fin Material Aluminum Alloy; Soldering
Heat-pipe
SPEC Φ8mm
Q'ty 5 pcs
Fan
Dimension [W×H×D] 140×150×25 mm
Voltage Rating 12V [0.13 Amp]
Starting Voltage 10V
Speed 600~1000 R.P.M. [PWM controlled]
1000 R.P.M. [w/o PWM]
Bearing Type Sleeve Bearing
Air Flow 70.2 CFM [Max.], 1 Fan
Air Pressure 0.9 mmH2O [Max.], 1 Fan
Life Expectance 50,000 hrs
Noise Level 23.0 dBA
Q'ty 2 pcs
est. TDP 250W
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 CPU
  • TISIS Installation Guide  [ 7.38 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink × 1

14025 PWM Fan × 1

14025 Fan × 1

Back Plate × 1

Crossbar × 1
Intel Mounting Clips
Intel Mounting Clip × 2

AMD Mounting Clip × 2

Anti-vibration Rubber × 8

Fan Clip × 2

LGA2011 Screw × 4

Knurled Threaded Screw × 4

M3 Screw × 2

Metal Nut × 4

Plastic Nut × 4

Thermal Grease × 1

Installation Guide × 1

Screwdriver × 1 [Option]

Package × 1
