DELOS RBW

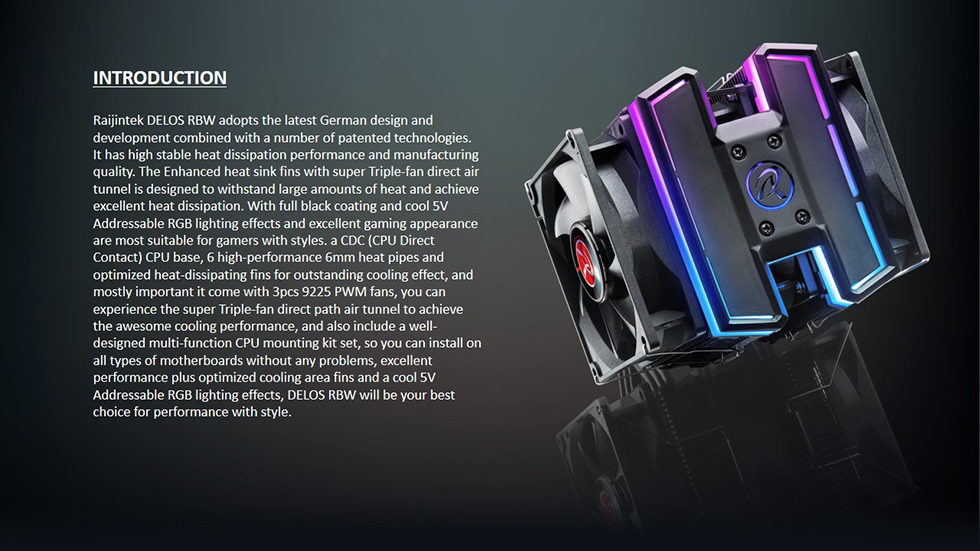

Raijintek DELOS RBW adopts the latest German design and development combined with a number of patented technologies. It has high stable heat dissipation performance and manufacturing quality. The Enhanced heat sink fins with super Triple-fan direct path air tunnel is designed to withstand large amounts of heat and achieve excellent heat dissipation. With full black coating and cool 5V Addressable RGB lighting effects and excellent gaming appearance are most suitable for gamers with styles. a CDC (CPU Direct Contact) CPU base, 6 high-performance 6mm heat pipes and optimized heat-dissipating fins for outstanding cooling effect, and mostly important it come with 3pcs 9225 PWM fans, you can experience the super Triple-fan direct path air tunnel to achieve the awesome cooling performance, and also include a well-designed multi-function CPU mounting kit set, so you can install on all types of motherboards without any problems, excellent performance plus optimized cooling area fins and a cool 5V Addressable RGB lighting effects, DELOS RBW will be your best choice for performance with style.

DELOS RBW






  •
  • CPU Direct Contact [C.D.C.]
  • Addressable RGB lighting connector (5V ADD), suitable for the latest motherboard system
  • 6 full copper high-efficiency Φ6mm heat pipes enhance cooling efficiency
  • Highly stable heat dissipation performance and enhanced heat sink fin design

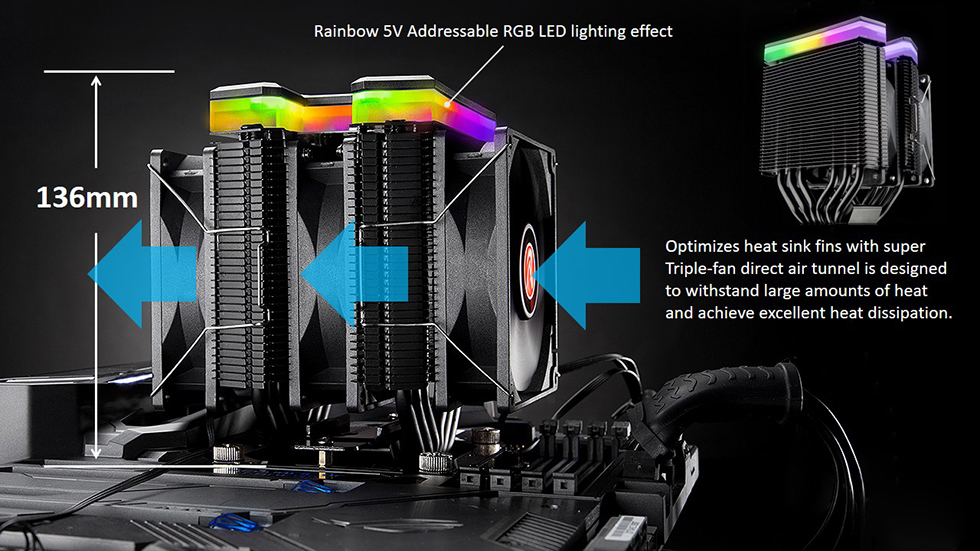

  • Triple-fan super-flow channel design for outstanding cooling effect
  • Unique gaming style and cool 5v ARGB lighting effects
  • Compatible with all INTEL and AMD products in the market
  • Easy to install and convenient to use

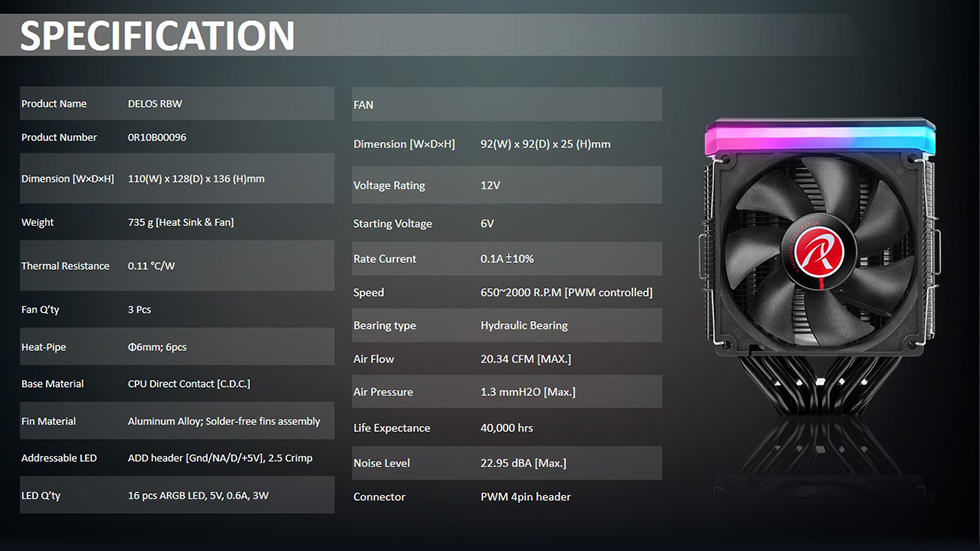

SPECIFICATION
Product Name DELOS RBW
Product Number 0R10B00096
Dimension [W×D×H] 110×128×136 mm
Weight 735 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 3 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy Black; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 6 pcs
Addressable LED ADD header [Gnd/NA/D/+5V], 2.5 Crimp
LED Q'ty 16 pcs LED, 5V, 0.6A, 3W
est. TDP 200W
FAN
Dimension [W×H×D] 92×92×25 mm
Voltage Rating 12V
Starting Voltage 6V [Max.]
Speed 650~2000 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 20.34 CFM [Max.]
Air Pressure 1.3 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22.95 dBA [Max.]
Connector PWM 4 pin header
Rated Current 0.10A ±10%
APPLICATION
Intel® All Sockel LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU
  • DELOS RBW Installation Guide  [ 6.51 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.


DELOS RBW × 1
Back Plate

Back Plate × 1
Crossbar
Crossbar × 1
Back Plate

Mounting Clip × 1

Fan Clip × 4
LGA2011 Screws
LGA2011 Screw × 4
Knurled Threaded Screws
Knurled Threaded Screw × 4
M3 Screws
M3 Screw × 2
Metal Nuts
Metal Nut × 4
Plastic Nuts
Metal Nut × 4
Thermal Grease
Thermal Grease × 1

Plastic Myla × 4

Stand-off × 2

Installation Guide × 1
Package

Package × 1
