AGOS

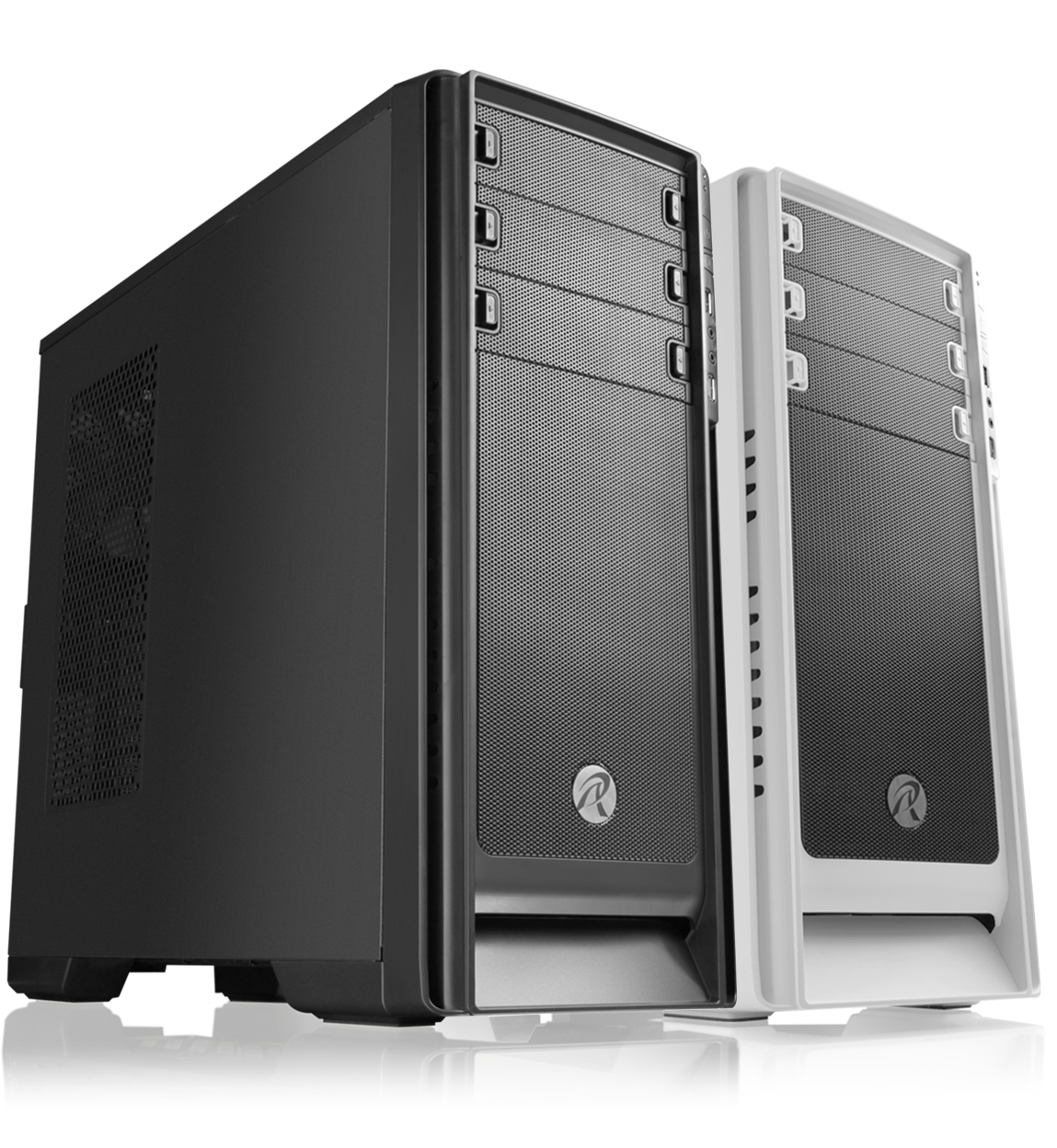

AGOS – RAIJINTEK's new Midi Tower Chassis. RAIJINTEK proudly presents the first chassis with latest development in cooperation with German Designers and engineers. Pure Innovation meets classic black design, combined with high airflow through big mesh intake (dust filters available) in the front panel and water cooling support (on the top panel). Elegance in combination of special technical features, such as complete tool free designs, extreme expansion, moveable HDD Cages, complete black and white coating, an unbelievable price and a rigid chassis quality.

AGOS
  • Elegant and classic design with efficient and massive airflow
  • Removable 3.5"HDD cage, provides enthusiasts more convenient installation and opportunities
  • Special Automotive Intake Air Design for Superior Airflow
  • Enlarged front mesh
  • USB 3.0 super speed port (internal)
  • Whole black coated and white coated interior
  • Dust-Control filters for all mesh area

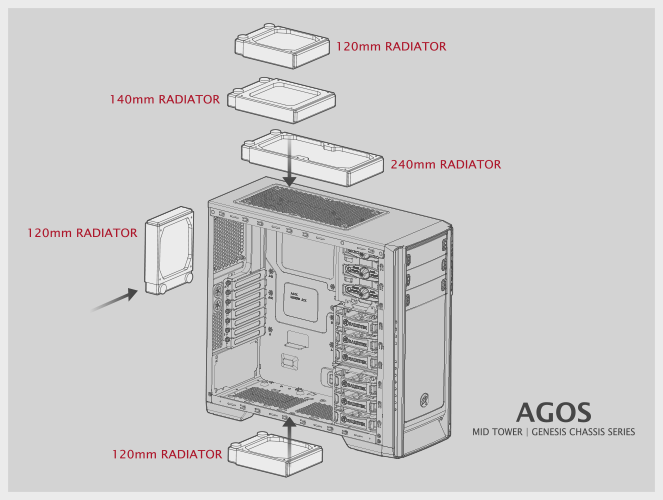

  • Accommodate an internal 240 mm radiator at the top
  • Rear tubing holes for water cooling
  • Supports 160mm height cooler, RAIJINTEK all coolers except NEMESIS
  • Supports up to six fans (two 140mm and four 120mm) and six HDD (3.5" or 2.5")
  • Tool-free system for ODDs and HDDs
  • Supports VGA card up 410mm (remove HDD cage) and CPU cooler up to 165mm
SPECIFICATION
Product Name AGOS / AGOS WHITE
Product Number 0R200001 / 0R200003
Dimension [WxDxH] 200x460x490 mm
Weight 5.9 kg [N.W.] 7.8 kg [G.W.]
Material SPCC 0.55mm
Color Matt Black / White
M/B Support ATX, MicroATX
Drive Bay External 5.25" [Tool-Free] *3
Internal 3.5" [Removable, Tool-Free] or 2.5" *6 [Removable]
Expansion Slot PCI Slots [Tool-Free] *7
I/O Panel USB3.0*1, USB2.0*1, HD Audio*1
Power Supply PS/2 [Internal Bottom-mount]
CoolingSystem
Water Pipe Holes *2
Front Fan: 120mm*1pcs [pre-installed] ; 2pcs [option]
Rear Fan: 120mm*1pcs [pre-installed]
Top Fan: 140mm*2 or 240mm radiator [option]
Bottom Fan: 120mm*1 [option]
Left and right side Fan: 120mm*2 or 140mm*2 [option]
CPU Cooler Height 160mm [Max.]
Graphic Card Length 290mm [with HDD cage]; 410mm [without HDD cage]
Side Panel Style Flat
  • AGOS Installation Guide  [ 4.29 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

Midi Tower X 1

12025 Fan X 2

Screw M3- 28mm X 4
Front Fan

Screw #6-32 X 5
Power Supply

Screw M3 – 5mm X 34
Motherboard/ODD/FDD/2.5"HDD

Alarm X 1
Motherboard Alarm

Cable Tie X 9

Installation Guide X 1

AGOS

AGOS

Foot Design

Foot Design

AGOS

AGOS

AGOS

AGOS

AGOS

AGOS

HDD Tray

HDD Tray

ODD Tool-free Clips

ODD Tool-free Clips

Removable HDD cage; Able to install long VGA card-340mm

Removable HDD cage; Able to install long VGA card-340mm

Cable Management


Cable Management


7 CPCI Slots; Tool-free Thumb


7 CPCI Slots; Tool-free Thumb


Dust filter on bottom
Able to install 2*120mm fan

Dust filter on bottom
Able to install 2*120mm fan

Mesh on ODD; USB 3.0


Mesh on ODD; USB 3.0


Dust Filter on top (by magnet)

Side Panel with Handle

Side Panel with Handle
