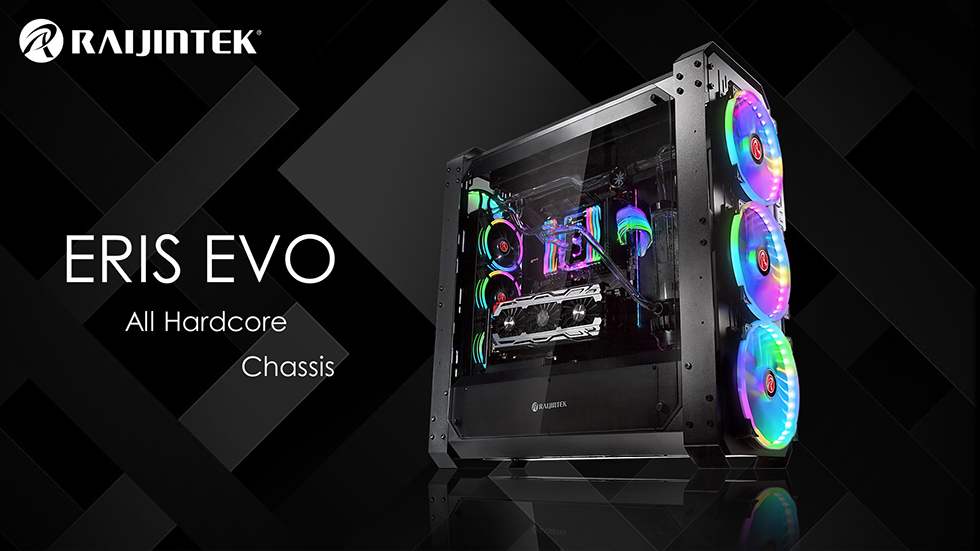

ERIS EVO

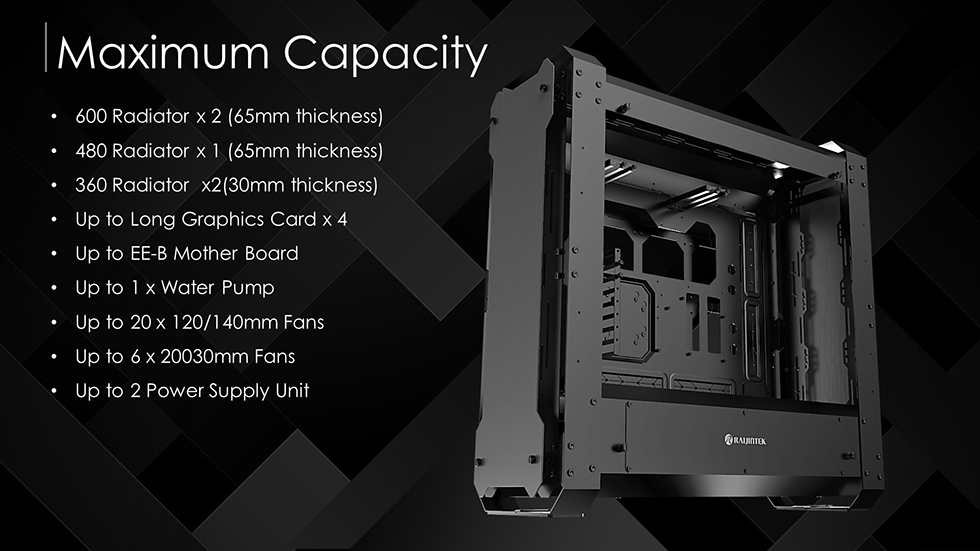

Design Art in its best by RAIJINTEK – The All Hardcore Cases – ERIS EVO. The ERIS EVO series case with strengthen structural design is made for the Modder and high end enthusiast in terms of Water Cooling or Air Cooling with the most powerful components on the market, such as Intel i9/i7, AMD AM4/TR4/ Xeon CPU, and especially powerful full – length VGA cards (up to 4 pcs in Quad SLI), the current extreme powerful RTX2080Ti or 5700XT. ERIS EVO case supports from Mini-ITX, DUAL Mini-ITX to Micro ATX, Standard ATX, E-ATX and even EEB workstations motherboards, a maximum of 20 fans from 120 mm , 16 fans from 140mm 6 fans from 200mm and a total of up to three of radiators on the dedicated spaces from 120 – 600mm with a max depth of 65mm, two of 120-360mm with a max depth of 30mm at back, we also offer a dual Mini-ITX support for up to 2 different motherboard system , as well as dual PSU Support you can power up your QUAD SLI VGA’s and two system without any issue. Four pass through tunnel for your DIY Soft or Hard Tubes, including the option for hiding all cables in the space between back cover. ERIS EVO also came with dust filter on four sides, aluminum cover for both front and rare, two removable HDD cage to give you better space management and install up to 5×3.5” HDD’s or SSD’S as well as full-length VGA Card’s (up to 4 pcs in Quad SLI), even came with a vertical SLI bracket, two dual MINI-ITX VGA bracket, two detachable power supply compartment cover, 10 IO-BOX placement plus tool-free & easy installation it just got better and better. Looking for the super hard cord chassis, ERIS EVO is the one for all hardcore Hardware enthusiasts.

ERIS EVO

























  •

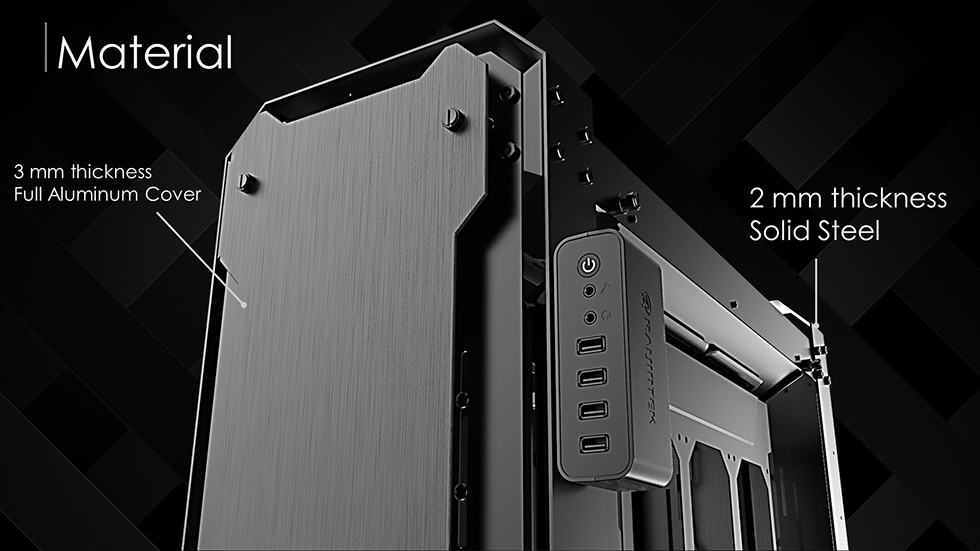

  • 3mm Full Aluminum & 2mm Solid steel design
  • Entire Coating black design

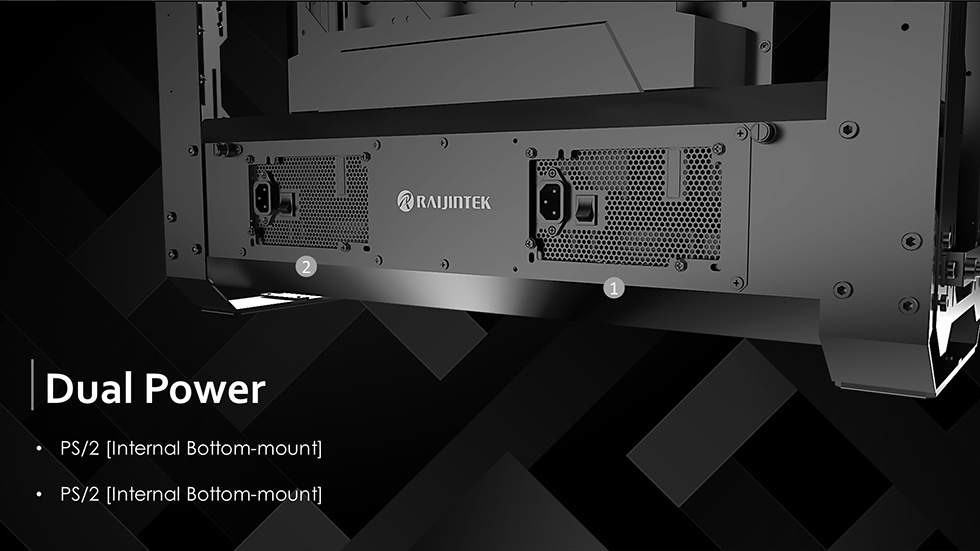

  • Dual ATX POWER SUPPLY support

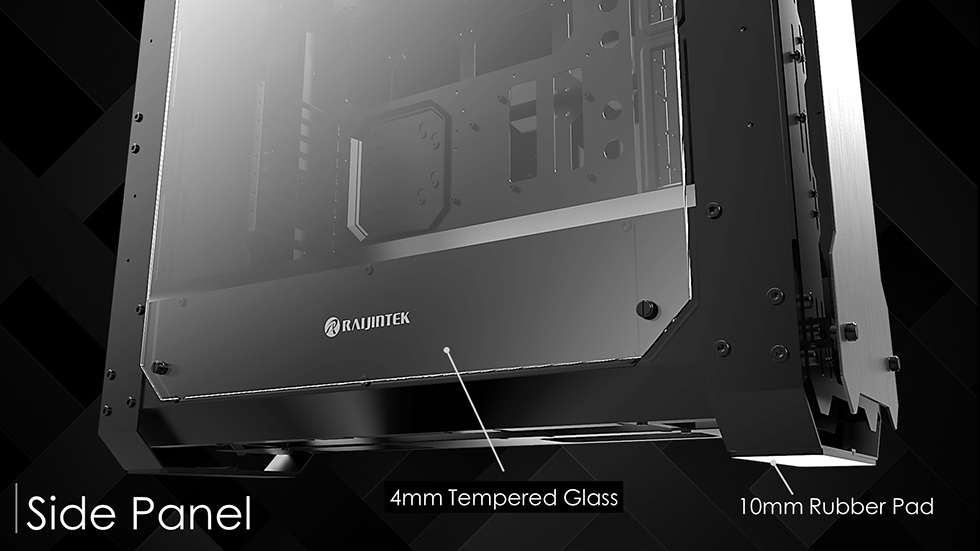

  • 4mm Tempered Glass

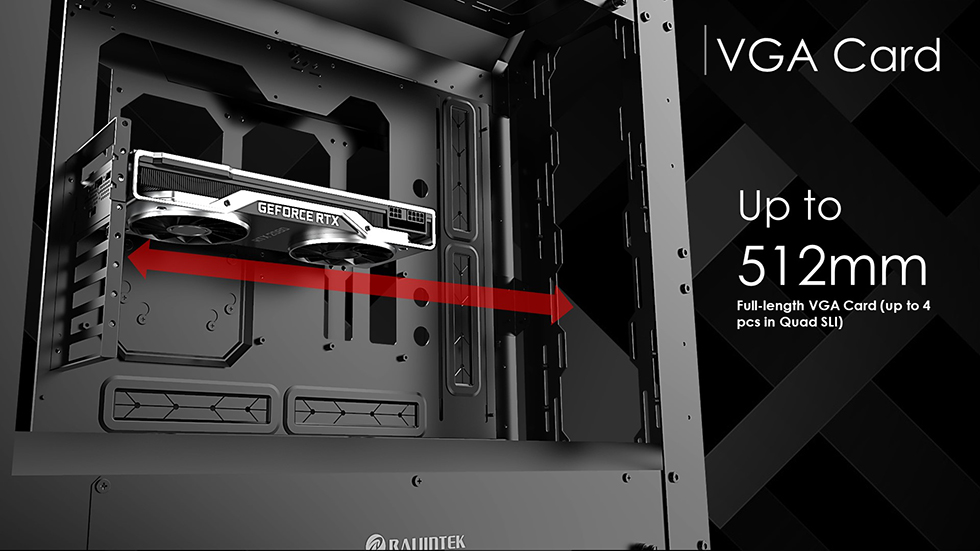

  • Support up to 512mm Full-length VGA Card [up to 4 pcs in Quad SLI]
  • Maximum CPU cooler height up to 170 mm

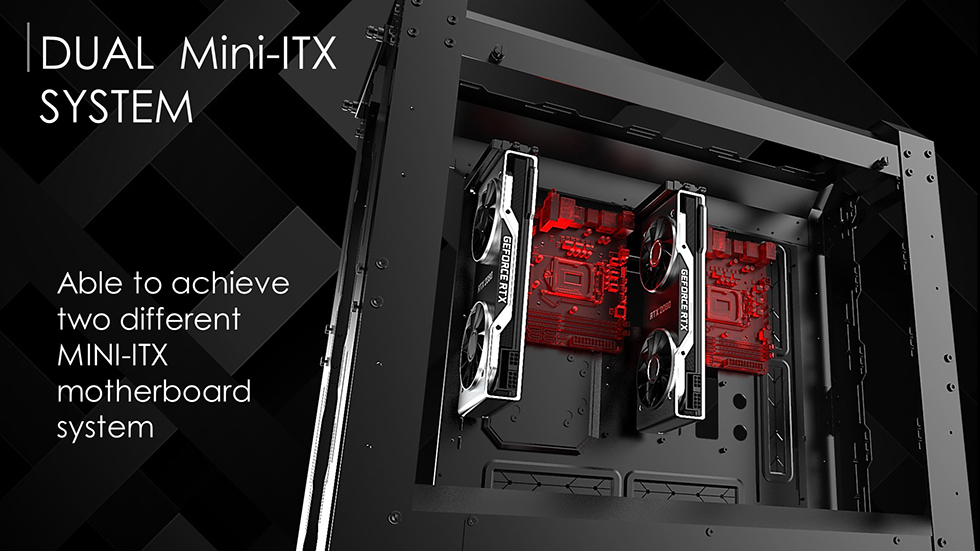

  • Dual MINI-ITX System support

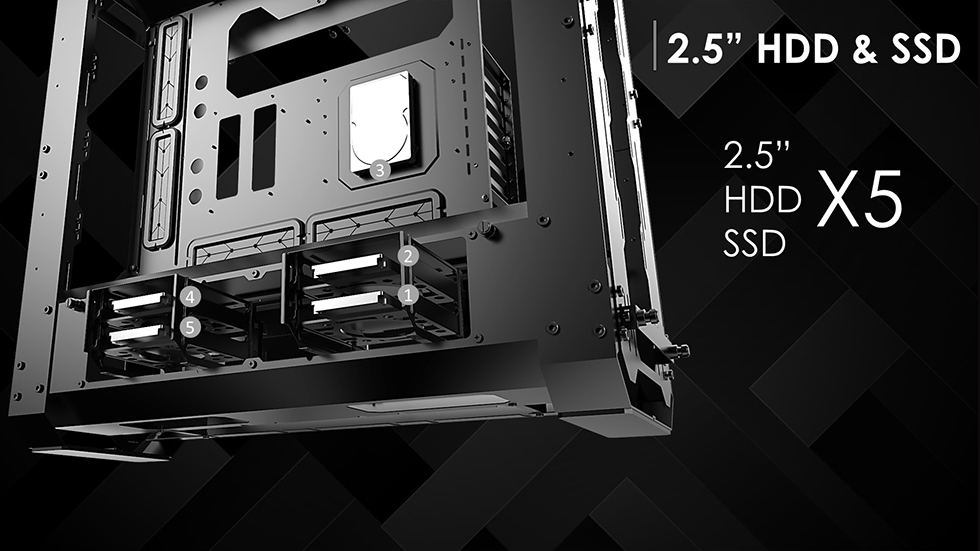

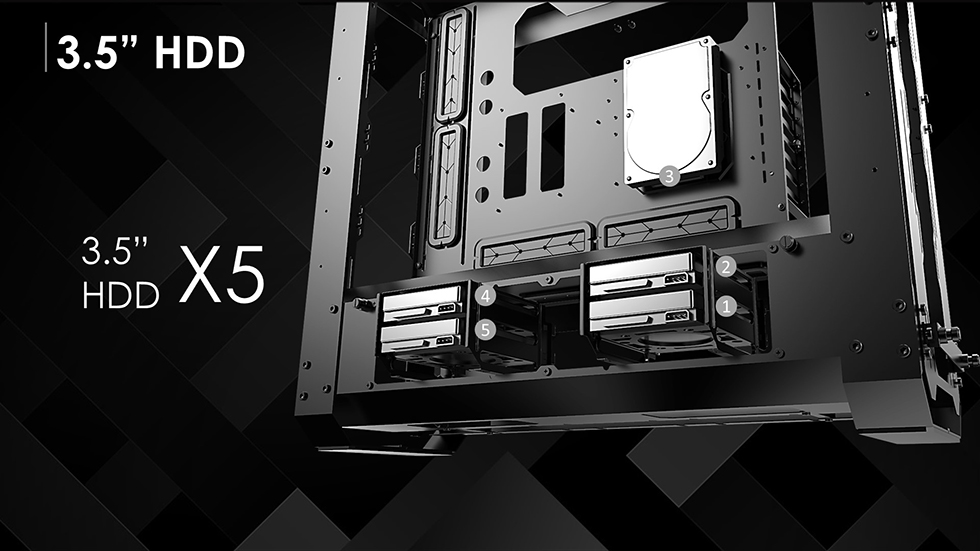

  • Supports up to 5×2.5"HDD or 5×2.5"HDD/SSD

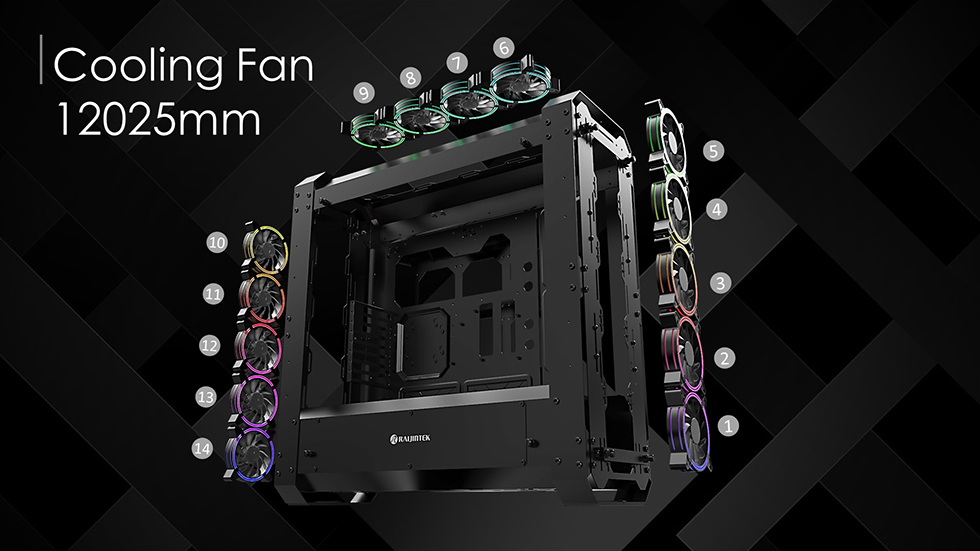

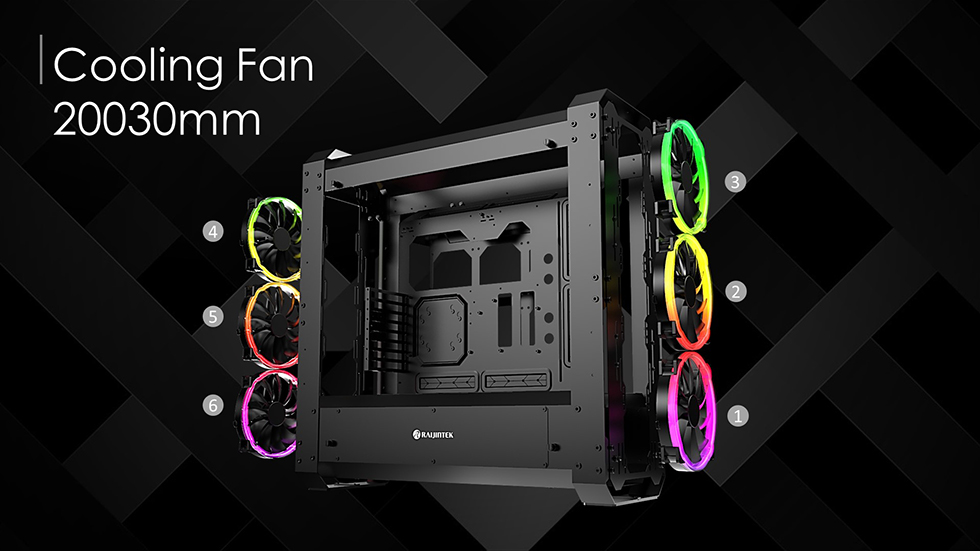

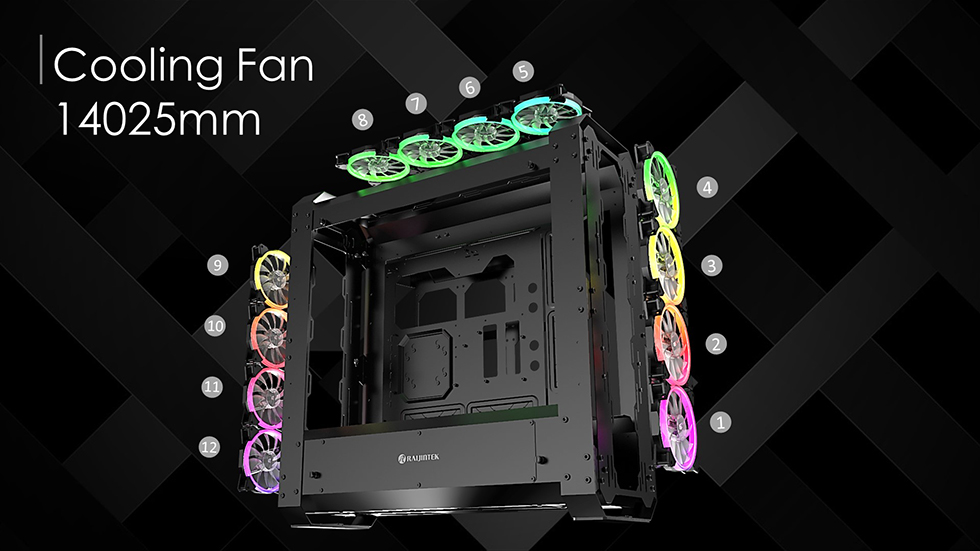

  • Option to install 4×12025 or 4×14025 fan on top; 5×12025 or 4×14025 or 3×20030 fan at front; 5×12025 or 4×14025 or 3×20030 fan at rear; 6×12025 fans at back

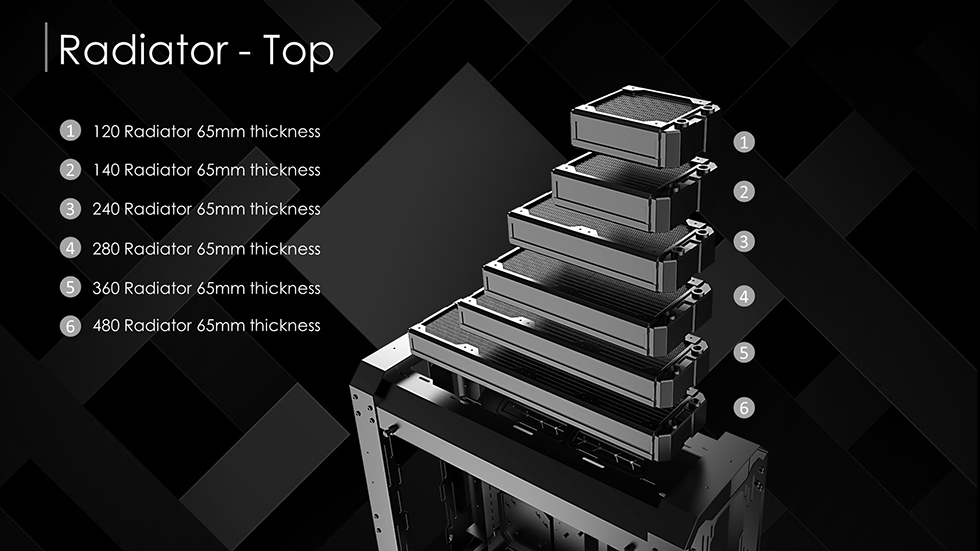

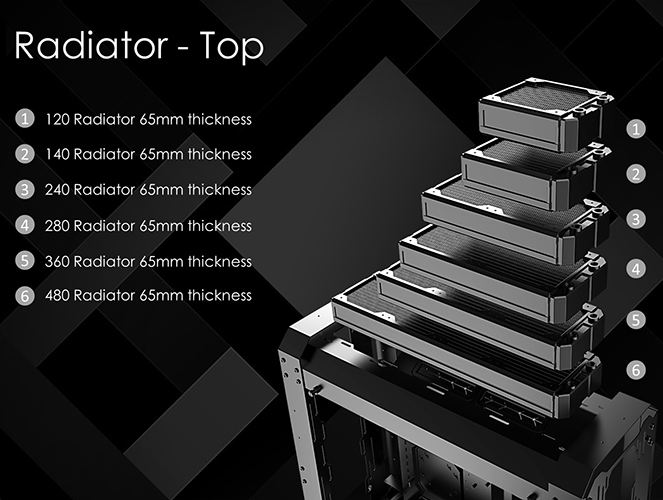

  • Top: 120/240/280/360/480mm 65mm thick radiator [option]

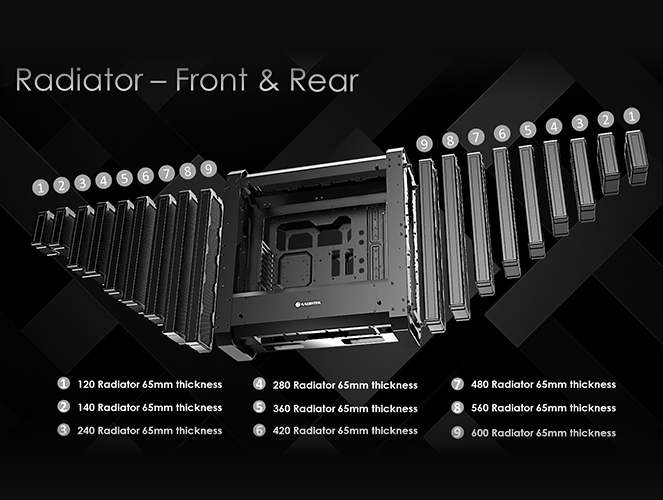

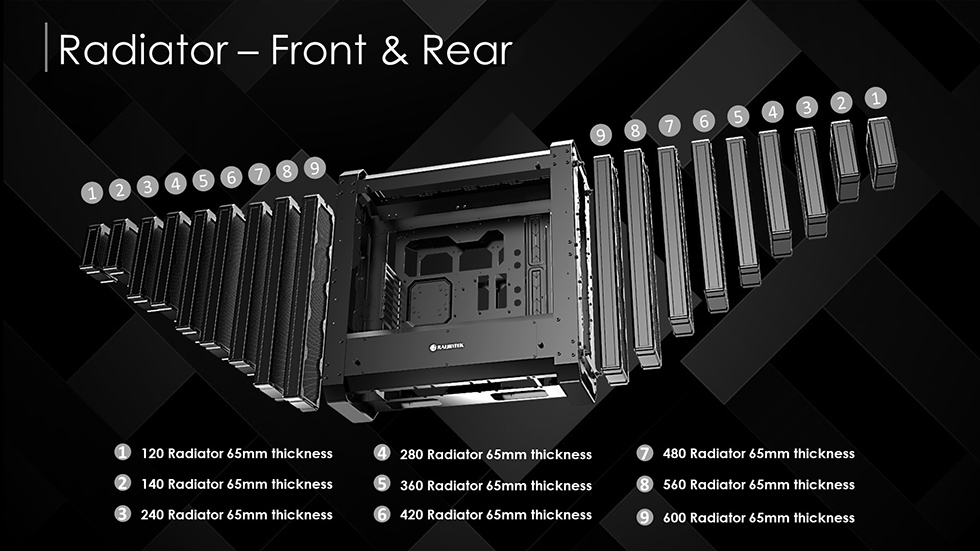

  • Front: 120/140/240/280/360/420/480/560/600mm 65mm thick radiator [option]
  • Rear: 120/140/240/280/360/420/480/560/600mm 65mm thick radiator [option]

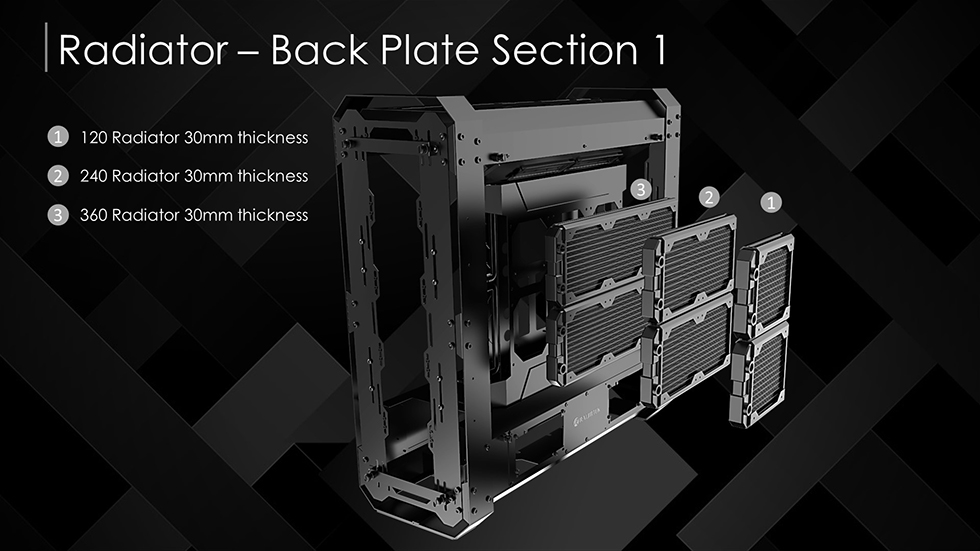

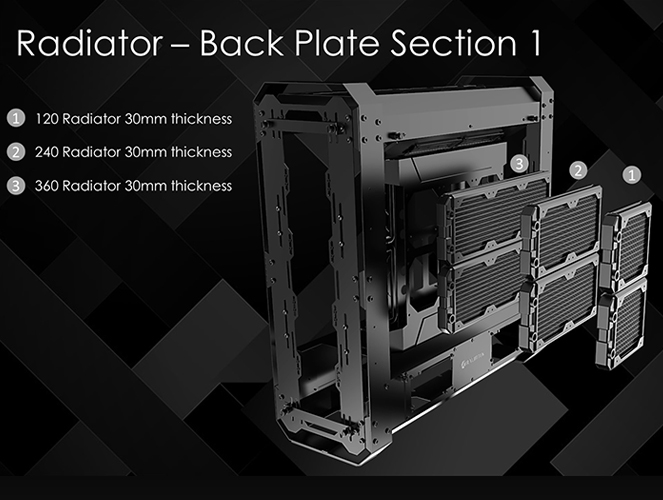

  • Back :2×120/240/360mm 30mm thick radiator [option]

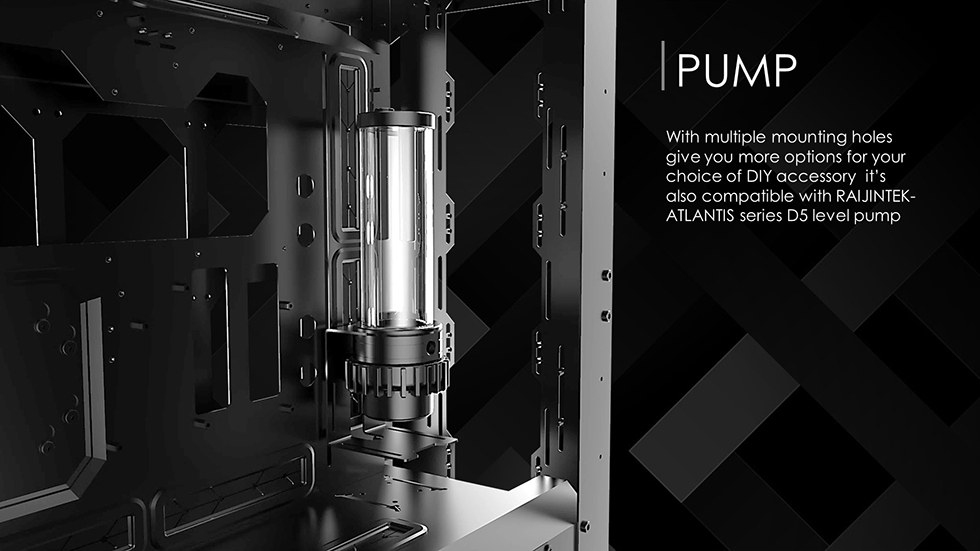

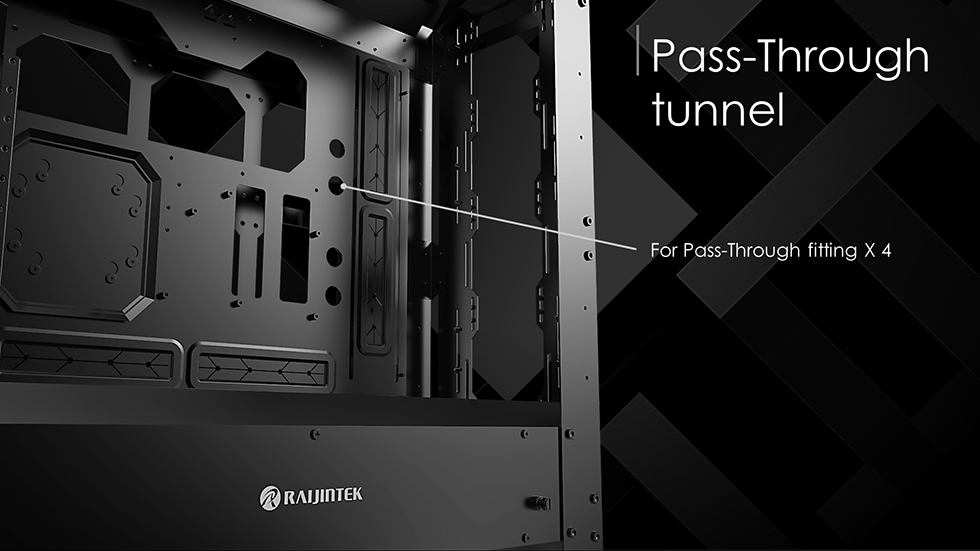

  • Reserved pass-through tunnel for your hard/soft DIY water tube
  • Tool free installation
  • Suitable for all kinds of hardcore player, Modder and high-end workstations
SPECIFICATION
Product Name ERIS EVO
Product Number 0R20B00172
Dimension [W×D×H] 269×722.4×708 mm
Weight 21.8 kg [N.W.] 25.4 kg [G.W.]
Material Aluminum 3.0mm; SPCC 2.0mm
Color Coating Black

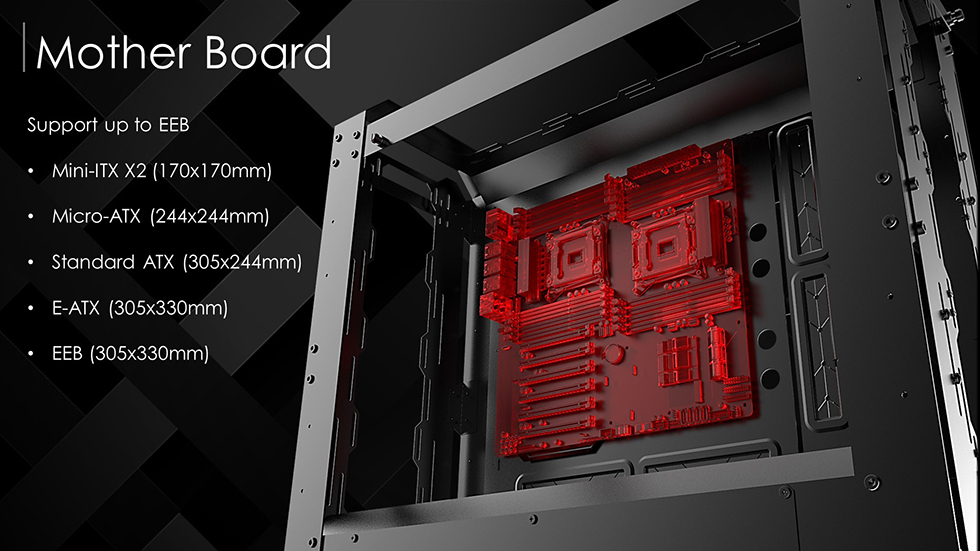

M/B Support EEB/E-ATX/ATX/MICRO ATX/Dual MINI-ITX
Drive Bay Internal 3.5"HDD×5 or 2.5"SSD×5
Expansion Slot PCI Slots × 8
I/O Panel USB3.0×4, HD Audio×1

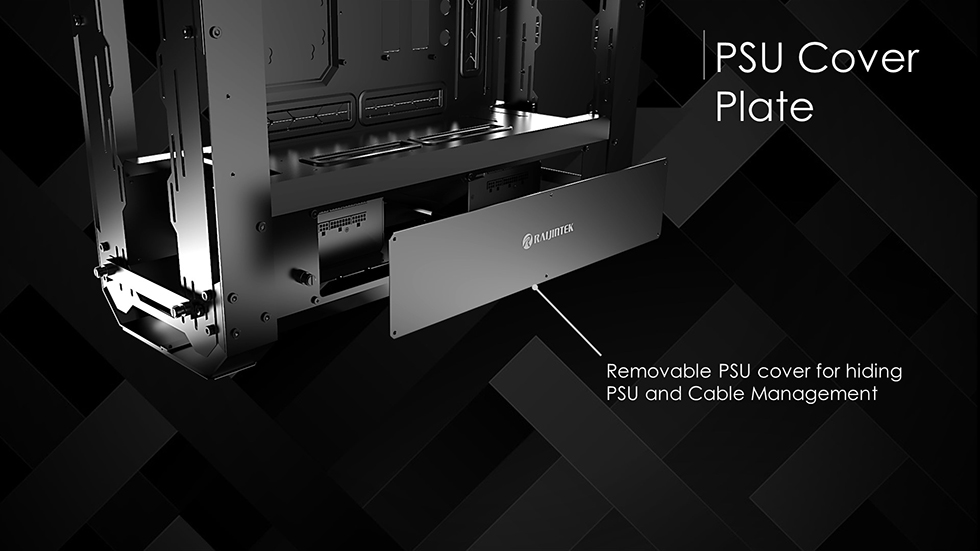

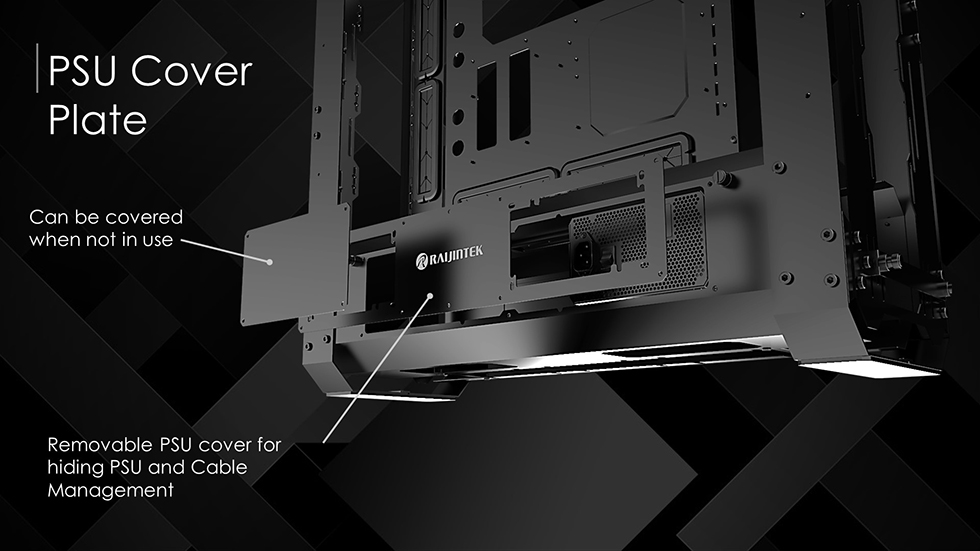

Power Supply Dual PS/2 [Bottom]
Fan Q'ty Top: 120/140mm×4 [option]
Front: 120mm×5 or 140mm×4 or 200mm×3 [option]
Rear: 120mm×5 or 140mm×4 or 200mm×3 [option]

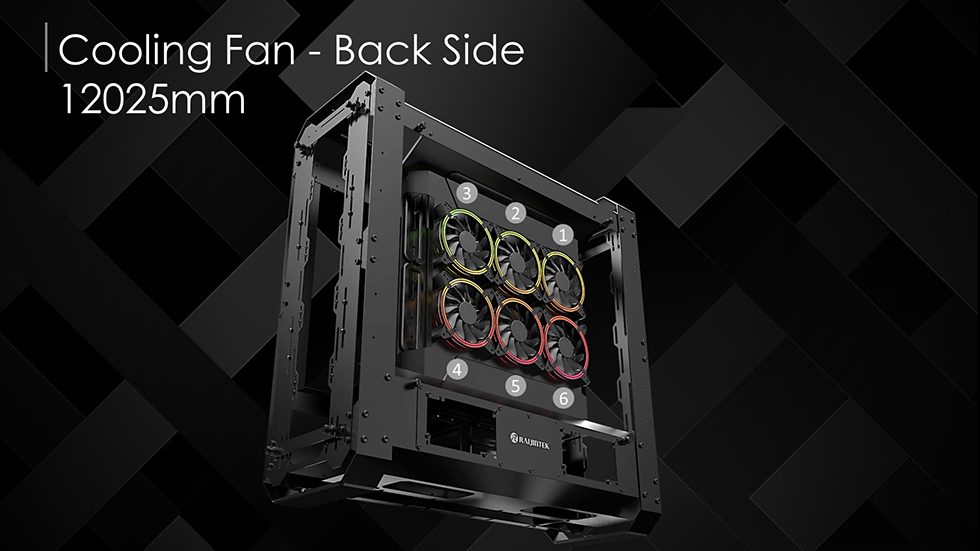

Back: 120mm×6 [option]
Radiator Q'ty Top: 120/140/240/280/360/480mm 65mm thick radiator [option]
Front: 120/140/240/280/360/480mm 65mm thick radiator [option]
Rear: 120/140/240/280/360/480mm 65mm thick radiator [option]
Back: 2×120/140/240/280/360mm 30mm thick radiator [option]
CPU Cooler Height 170mm [Max.]
Graphic Card Length 512mm [Max.]
Side Panel Style 4mm Tempered Glass

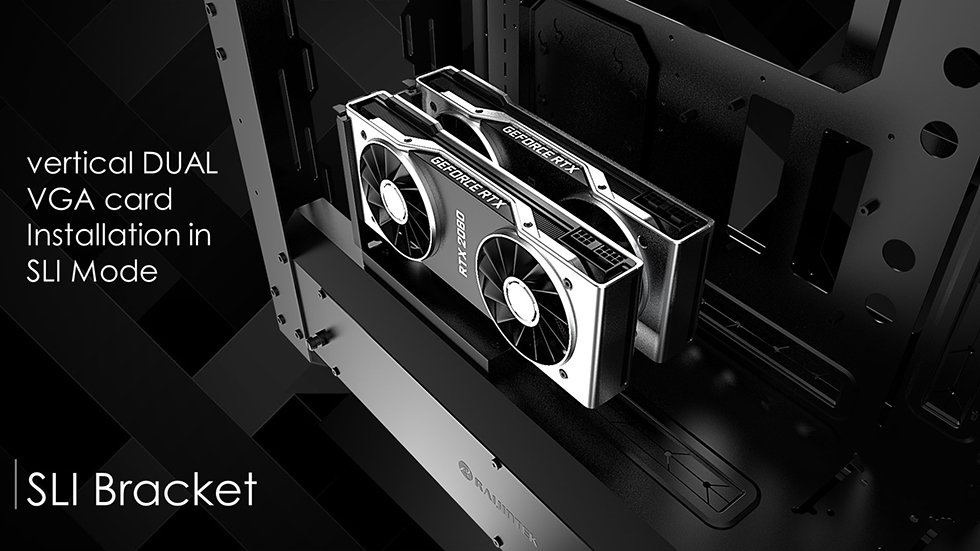

Accessories 5 slot vertical PCI-E bracket×1 [for vertical SLI]
2 slot mini-ITX PCI-E bracket×2 [for dual mini system]

ERIS EVO × 1

Hexagon Screw × 24
Panels/Fan Tray

Screw L13.6 × 8
Front/Rear Cover

Screw #6-32 L6 × 6
VGA Cards

Screw #6-32 L8.5 × 4
3.5"HDD

Screw M3 L9.5 × 4
2.5"SSD

Rubber Pad × 8
Cover Bracket

Stand-off L6 × 3
Motherboard

Screw M3 L6 × 16
2.5"SSD

Screw #6-32 L6 × 8
PSU

Screw M3 L10 × 2
I/O Box Modue

Screw #6-32 L6 × 46
MB/PCI/PCB/3.5"HDD

Cable tie × 10
Settle Cable

Allen Key × 1
Panels/Fan Tray

Stand-off L15 × 4
PCI Bracket

Stand-off L9 × 8
Cover Bracket

Rubber Pad × 8
Cover Backside

Installation Guide × 1
