| ARCADIA |
|
ARCADIA, Midi Tower chassis, pure innovation meets classic black design, combined with high airflow through big mesh intake (with Dust filters) in the front panel and water cooling support (on the top panel). Elegance in combination of special technical features, such as tool free designs, extreme expansion, complete black coating, an unbelievable price and a rigid chassis quality. |

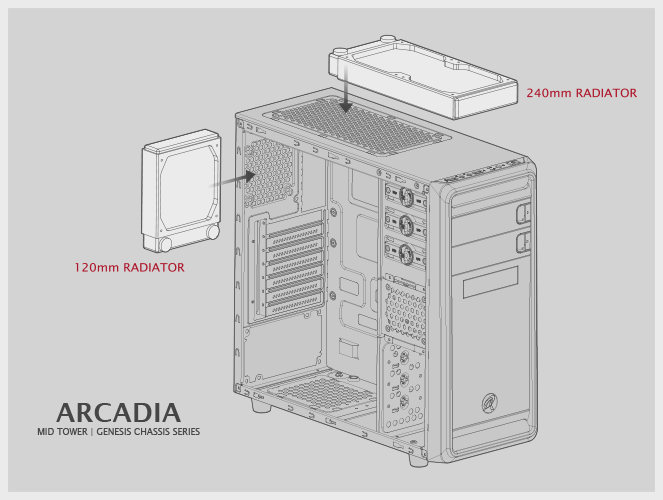

Internal USB 3.0 super speed portDust-control filters for all mesh areaSupports VGA card up to 400mmElegant and classic design with airflow efficiently and massivelyTool-free system for ODDs and HDDsSupports up to 4 fans (four 120mm) and 6 HDDs (3.5" or 2.5")Whole black coated interiorAccommodate an external 240mm radiator on the topRear tubing holes for water coolingSupports 160mm height cooler, Raijintek all coolers except NEMESIS and THEMIS EvoSPECIFICATION |
|||||||
| Product Name | ARCADIA / ARCADIA WHITE | ||||||
| Product Number | 0R200004 / 0R200005 | ||||||
| Dimension [WxDxH] | 200x455x430 mm | ||||||
| Weight | 3.85 kg [N.W.] 4.71 kg [G.W.] | ||||||
| Material | SPCC 0.5mm | ||||||
| Color | Matt Black / White | ||||||
| M/B Support | ATX, MicroATX | ||||||
| Drive Bay | External 5.25" ODD [Tool-Free] *2 Internal 3.5" HDD [Tool-Free, 1 Exposed + 3 Hidden ] *4 or 2.5" HDD *2 |
||||||
| Expansion Slot | PCI Slots *7 | ||||||
| I/O Panel | USB3.0*1, USB2.0*1, HD Audio*1 | ||||||
| Power Supply | PS/2 [Internal Bottom-mount] | ||||||
|
|||||||
| CPU Cooler Height | 160mm [Max.] |
| Graphic Card Length | 400mm [Max.] |
| Dust Filter | Bottom Filter *1, Top Filter *1 |
ARCADIA Installation Guide [ 8.87 MB ]
 |
)
)
)
)
)
)
)
)
)
