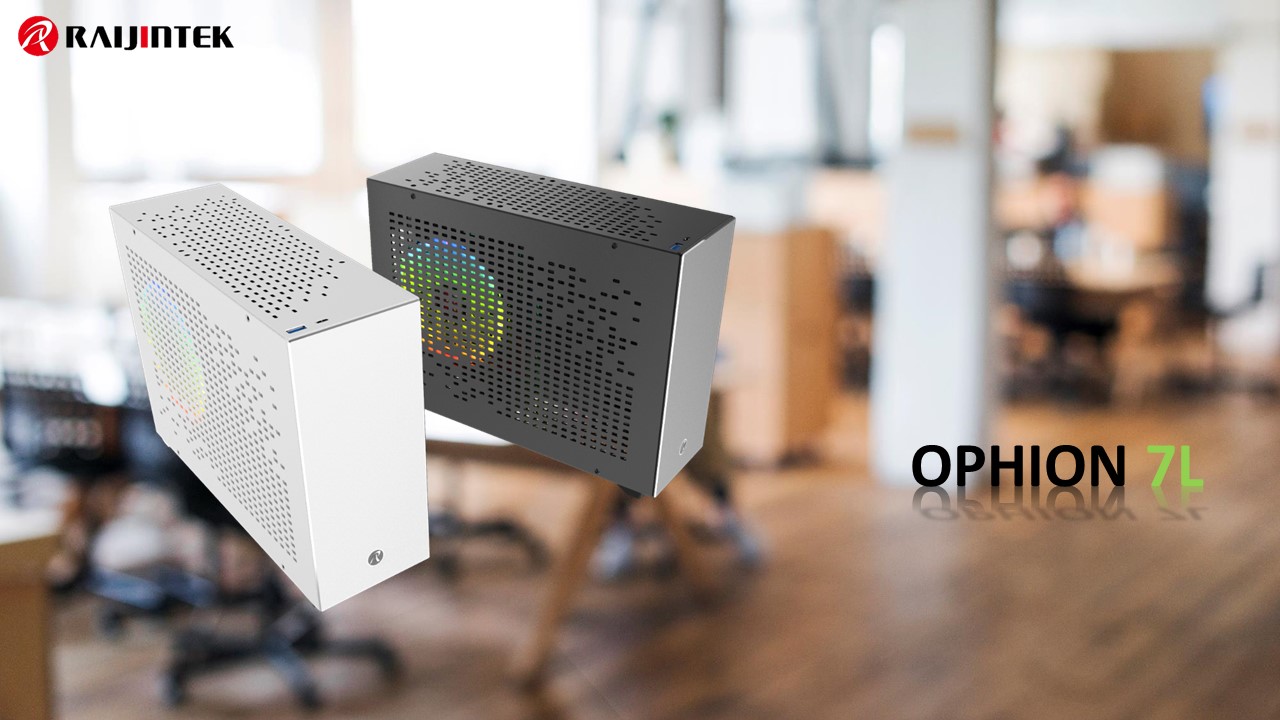

OPHION 7L
Design Art in its best by RAIJINTEK – New Mini-ITX chassis of OPHION series. OPHION 7L supports up to Mini-ITX motherboards, Amazing compatibility of maximum three fans including 2×9025 on top, 1×9025 fan at bottom. OPHION 7L Superior features includes elegant Alu. Black/White coated appearance design front and side panel, 2×2.5“HDD, low profile VGA card compatibility, tool-free for an easy installation, SFX PSU compatibility. Looking for the best of best.
OPHION 7L









  •

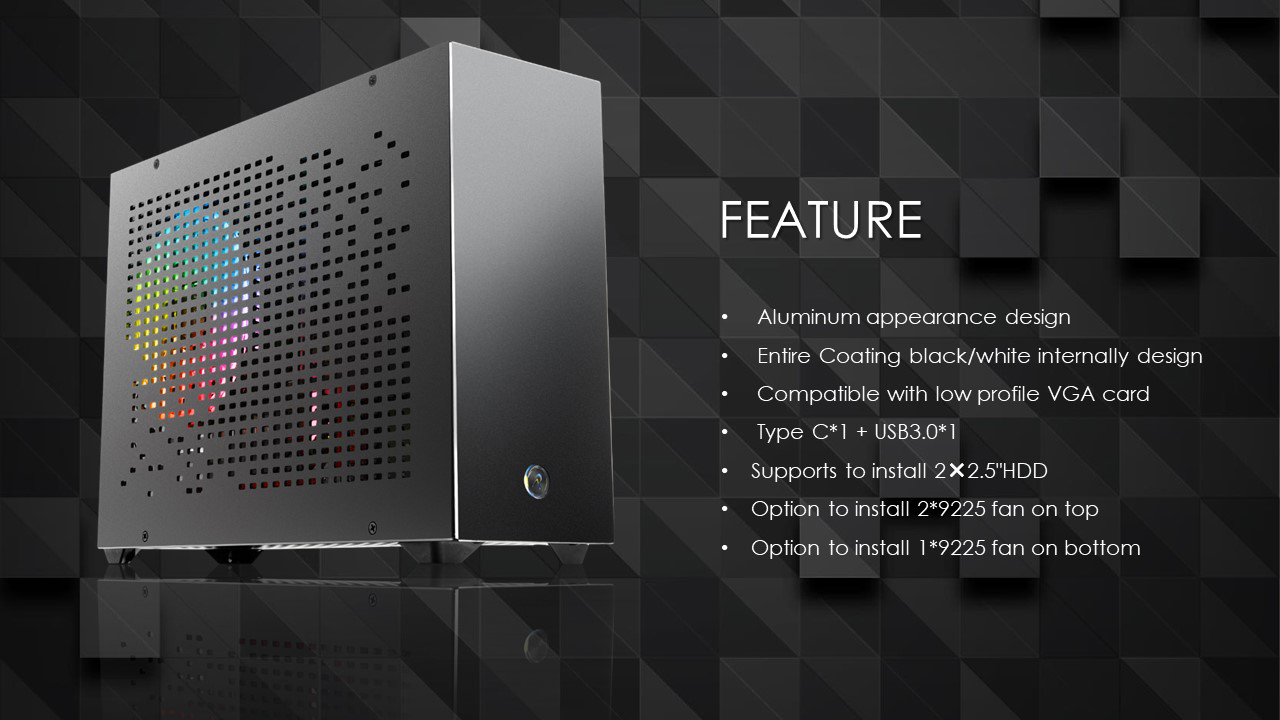

  • Aluminum appearance design
  • Entire Coating black/white internally design

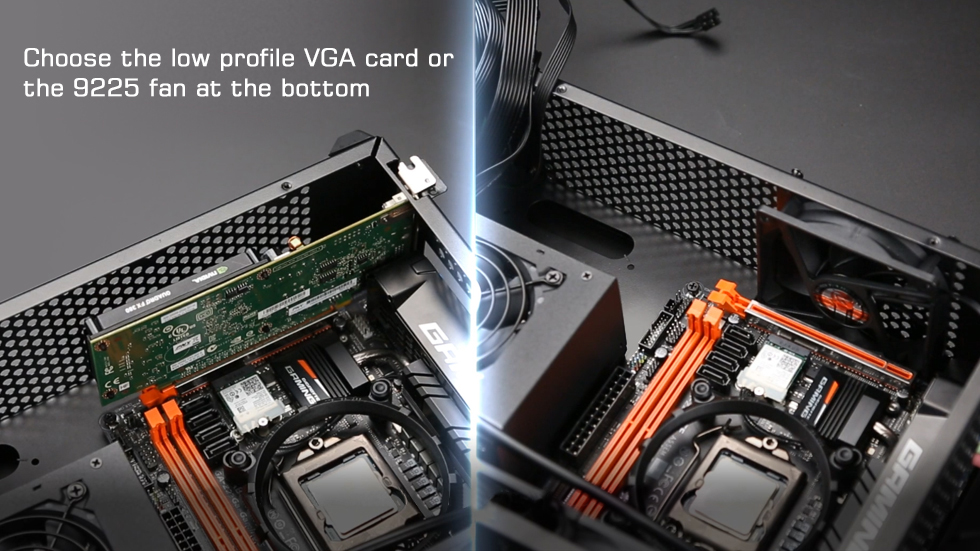

  • Compatible with low profile VGA card

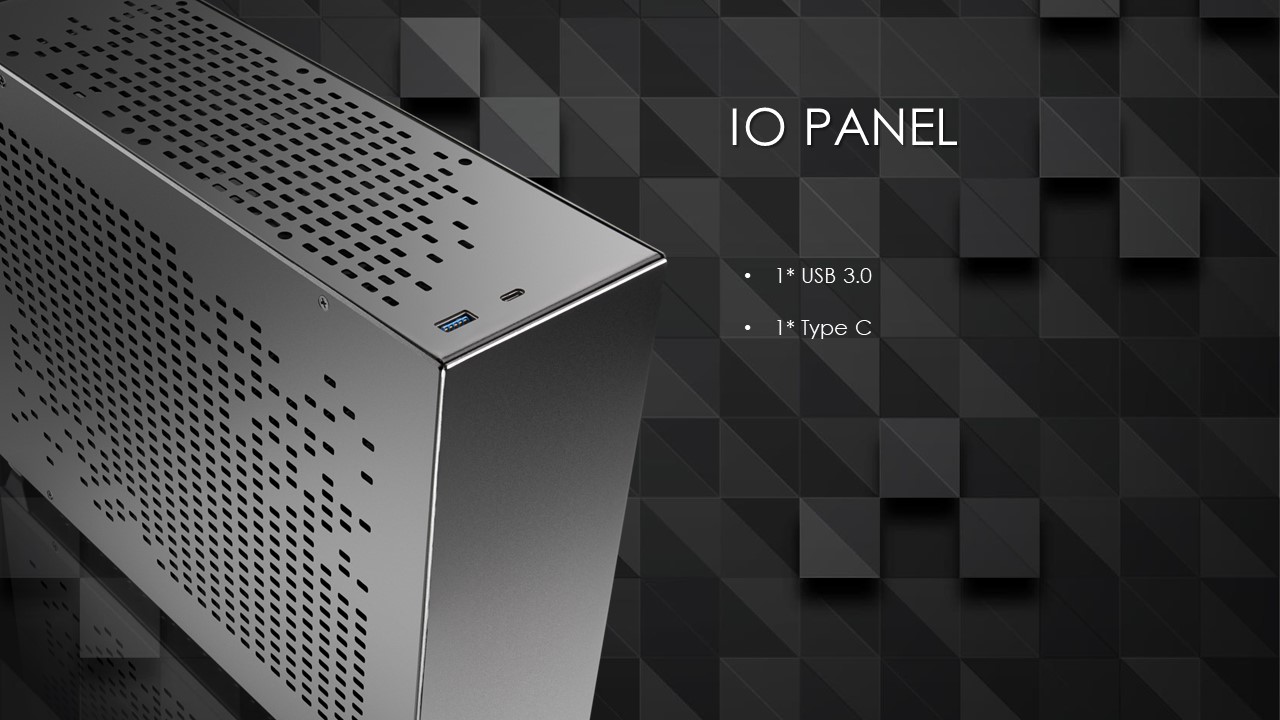

  • Type C×1 + USB3.0×1

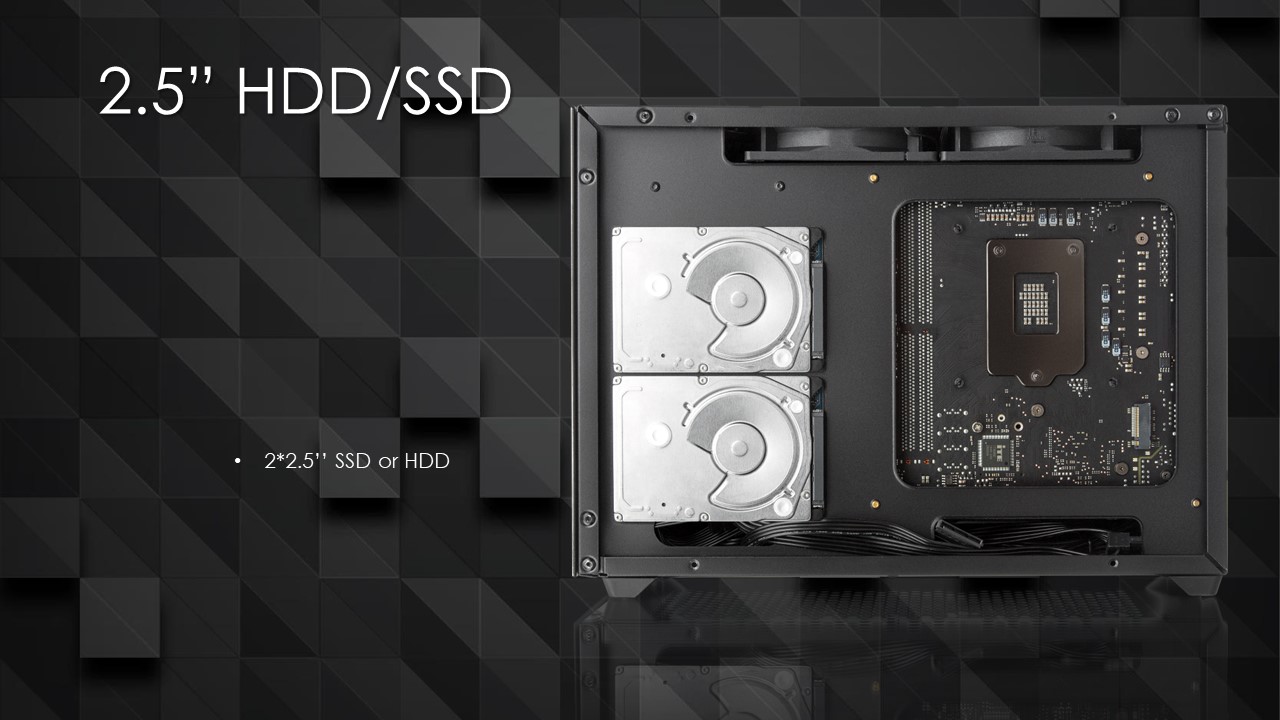

  • Supports to install 2×2.5"HDD

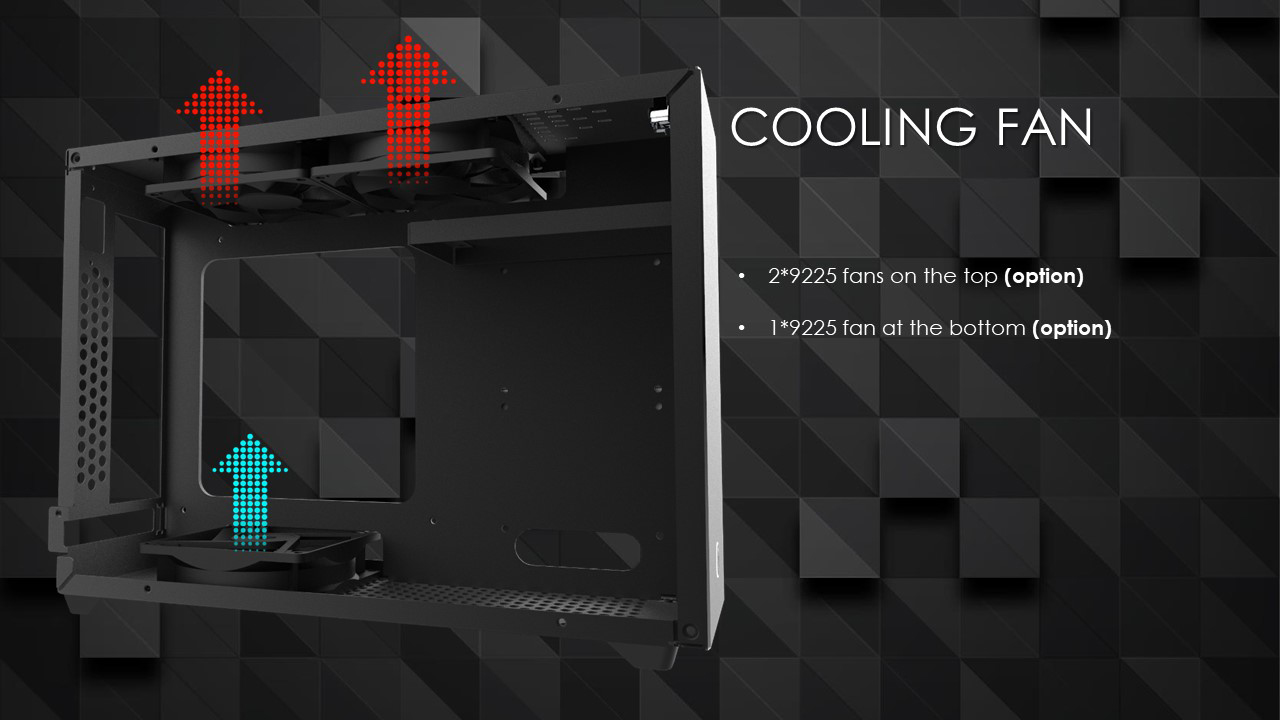

  • Option to install 2×9025 fan on top
  • Option to install 1×9025 fan on bottom
SPECIFICATION
Product Name OPHION 7L BLACK OPHION 7L WHITE
Product Number 0R20B00202 0R20B00203

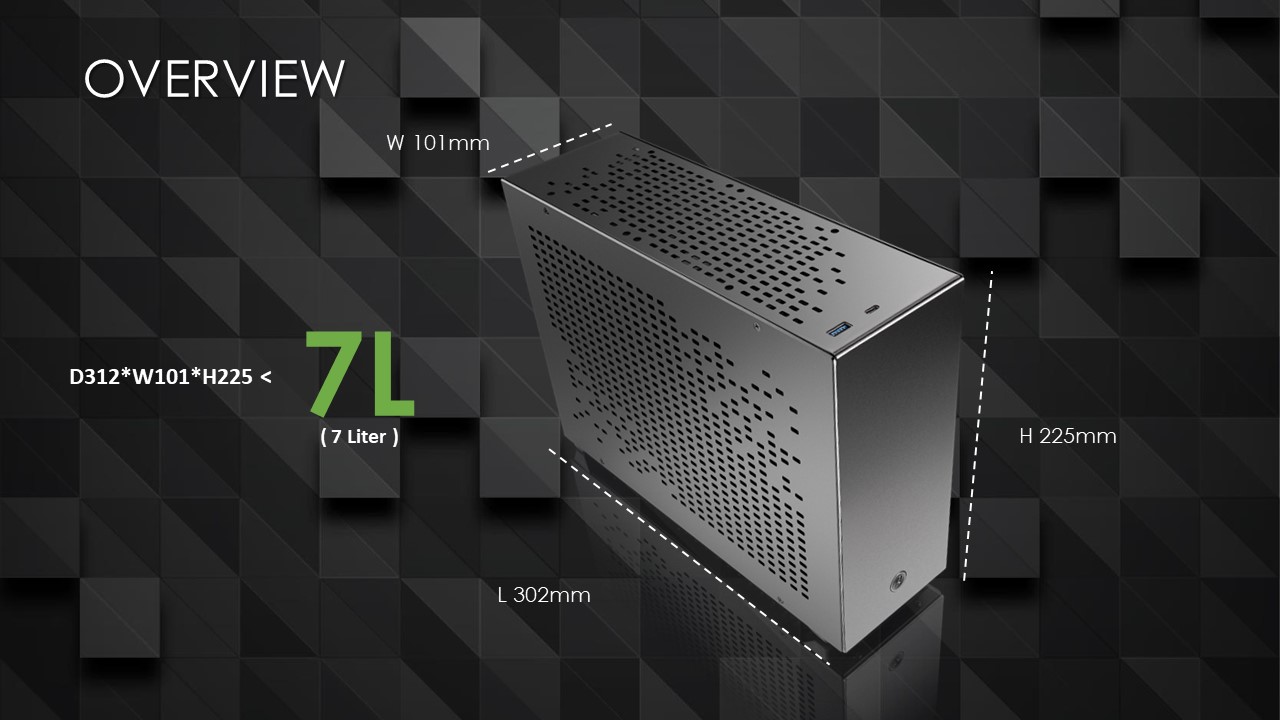

Dimension [W×D×H] 101×312×225 mm 101×312×225 mm
Weight 2.0 kg [N.W.] 2.43 kg [G.W.] 2.0 kg [N.W.] 2.43 kg [G.W.]
Material Aluminum 2.0mm ; SPCC 0.8mm Aluminum 2.0mm ; SPCC 0.8mm
Color Coating Black Coating White

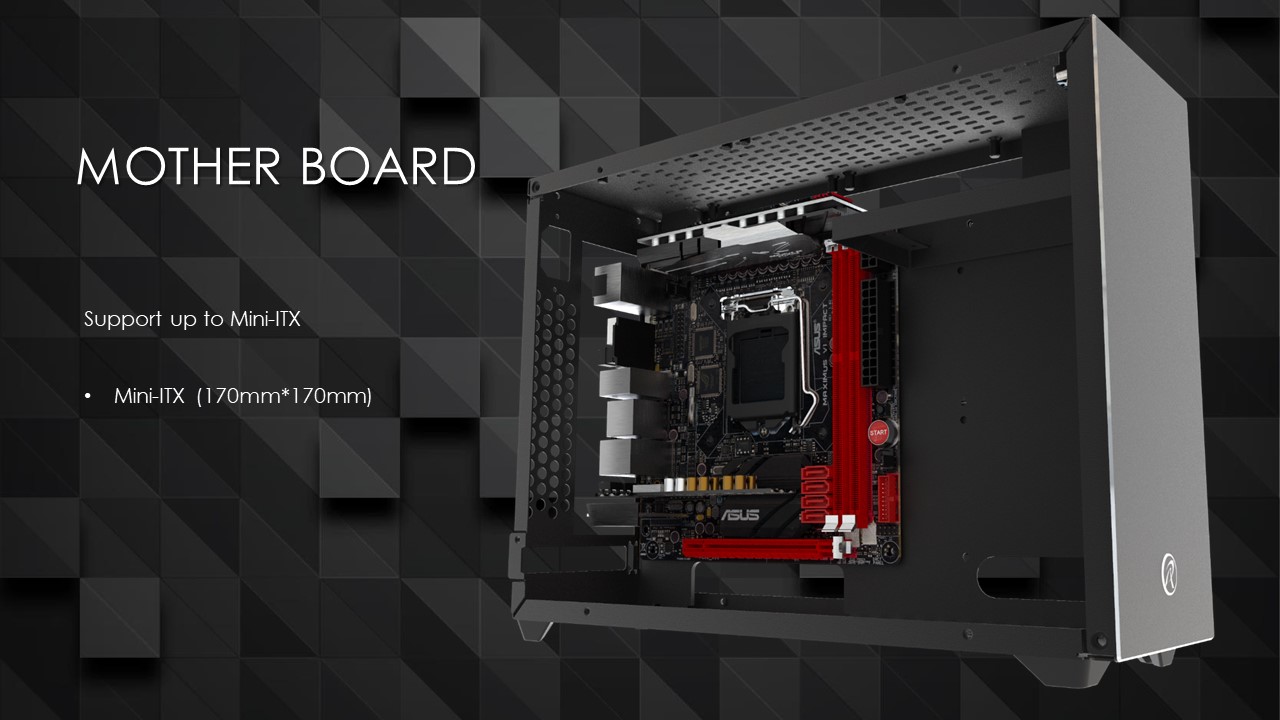

M/B Support Mini-ITX Mini-ITX
Drive Bay 2.5" SSD/HDD × 2 2.5" SSD/HDD × 2
Expansion Slot PCI Slot ×1 PCI Slot ×1
I/O Panel USB3.0×1, Type C×1 USB3.0×1, Type C×1
Power Supply SFX SFX
Fan Q’ty Top Fan: 2×9025mm [Option]
Bottom Fan: 2×9025mm [Option]
Top Fan: 2×9025mm [Option]
Bottom Fan: 2×9025mm [Option]
CPU Cooler Height 70mm [Max.] 70mm [Max.]
VGA Card Low profile VGA Low profile VGA
Side Panel Aluminum 2.0mm Aluminum 2.0mm

OPHION 7L × 1

Screw #6-32 L6 × 4
Motherboard

Screw #6-32 L6 × 4
PSU

Screw M3 L5 × 8
2.5"SSD

Screw #6-32 L6 × 1
VGA Card

Cable Tie × 5

Installation Guide × 1
