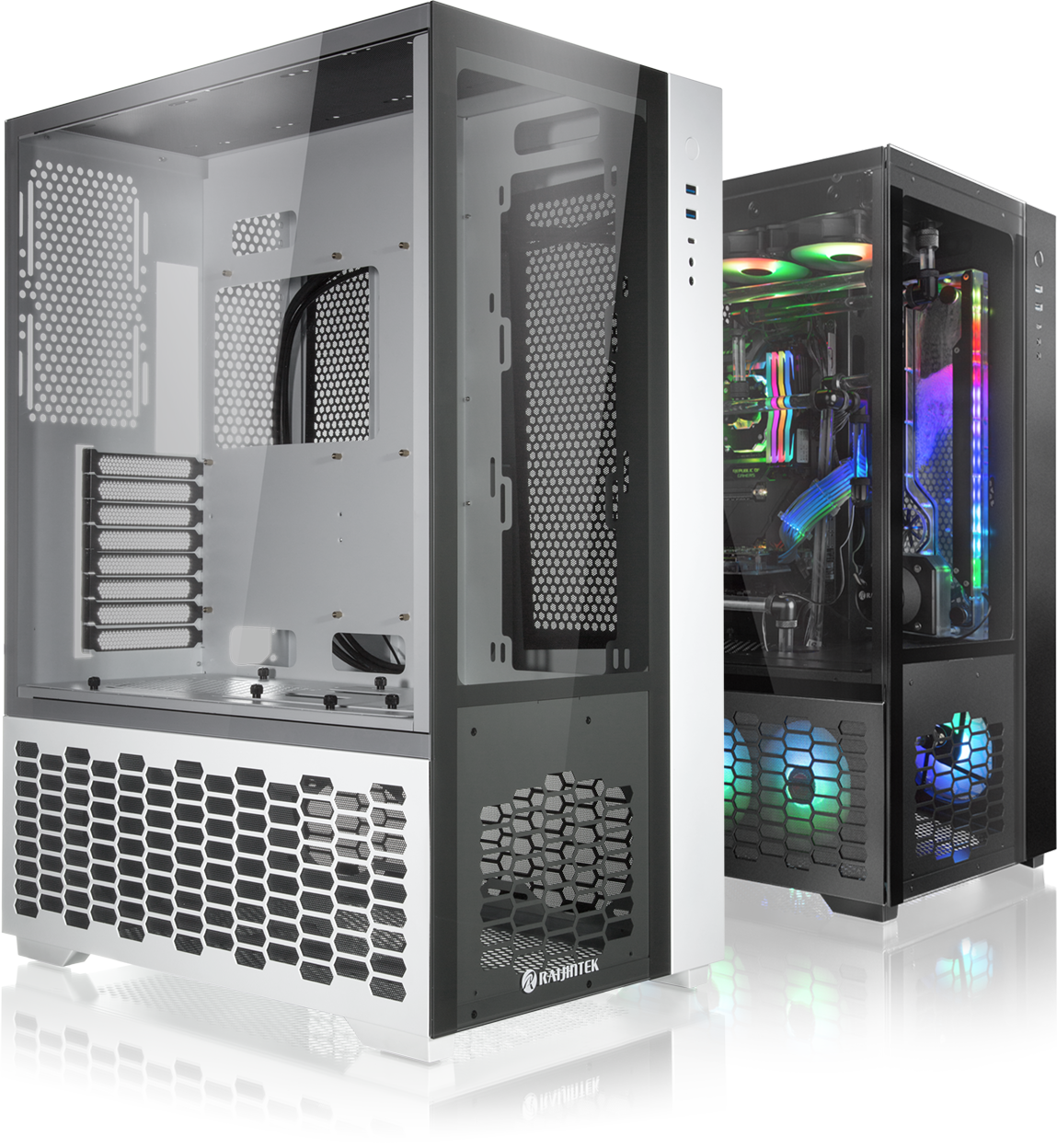

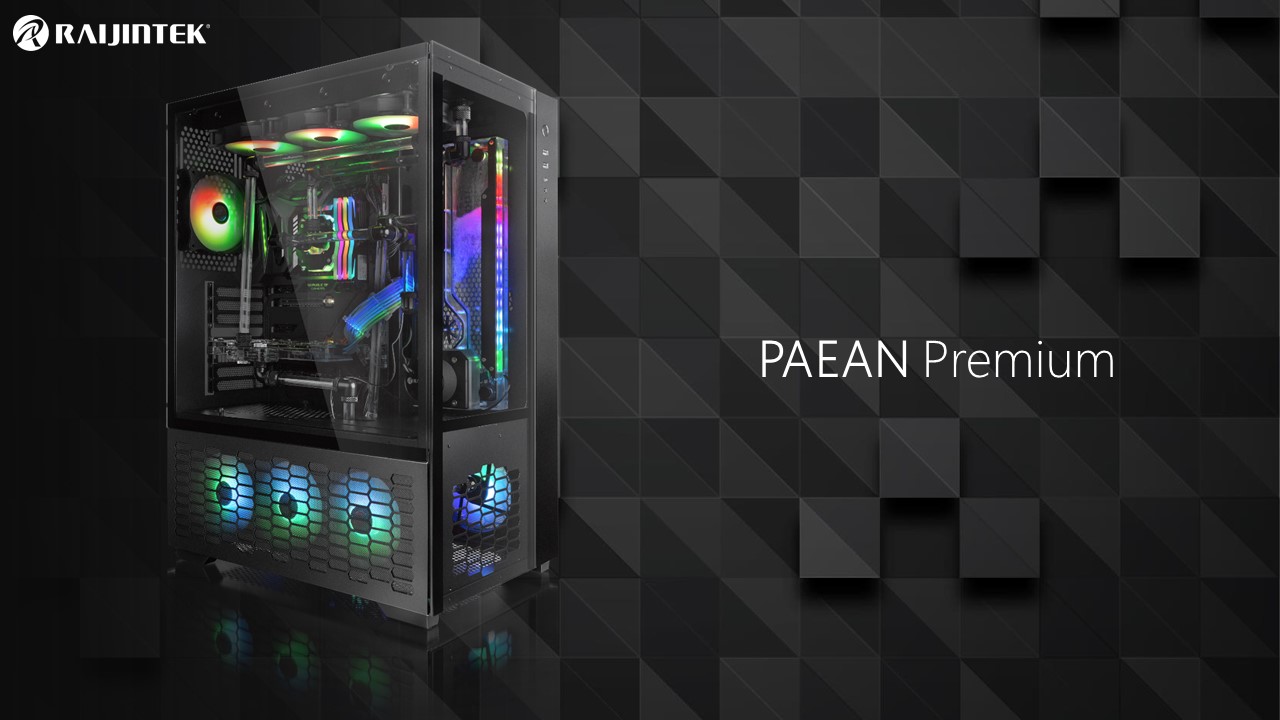

PAEAN PREMIUM

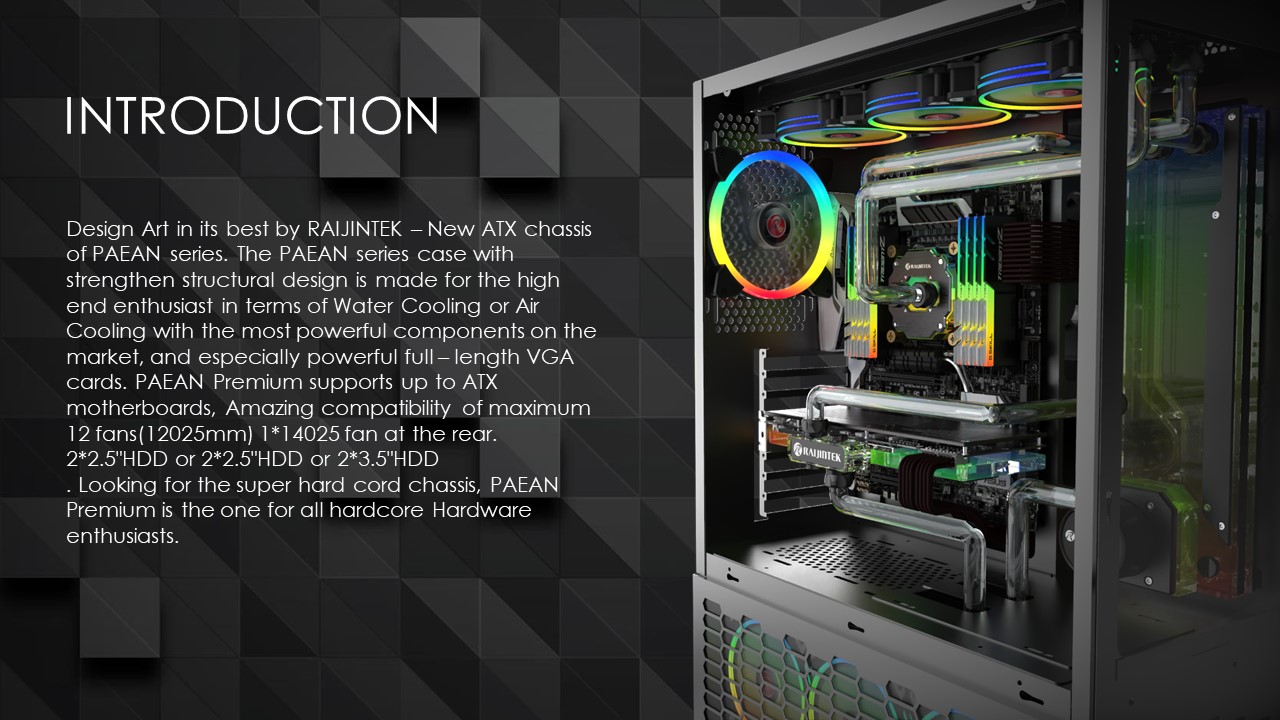

Design Art in its best by RAIJINTEK – New ATX chassis of PAEAN series. The PAEAN series case with strengthen structural design is made for the high end enthusiast in terms of Water Cooling or Air Cooling with the most powerful components on the market, and especially powerful full – length VGA cards. PAEAN Premium supports up to ATX motherboards, Amazing compatibility of maximum 12 fans(12025mm) 1×14025 fan at the rear. 2×2.5" SSD or 2×2.5" HDD or 2×3.5" HDD. Looking for the super hard cord chassis, PAEAN Premium is the one for all hardcore Hardware enthusiasts.

PAEAN PREMIUM













  •

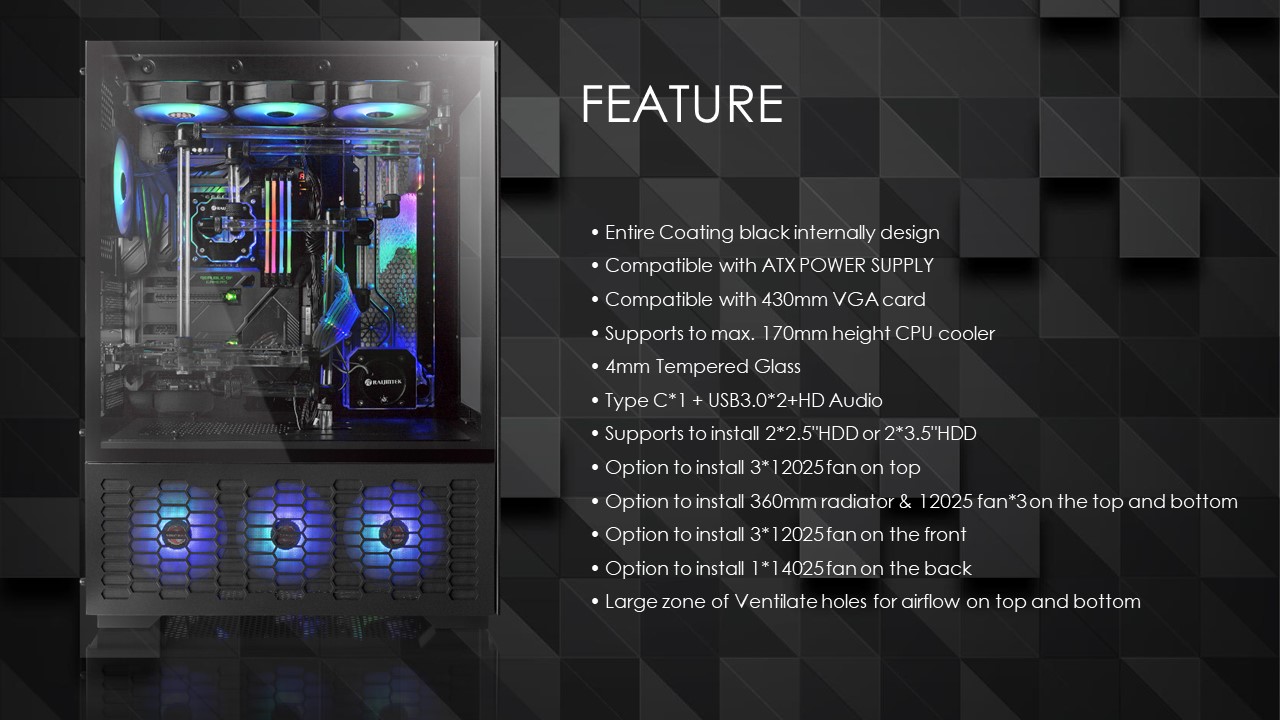

  • Entire Coating black internally design
  • Compatible with ATX POWER SUPPLY
  • Compatible with 430mm VGA card
  • Supports to max. 170mm height CPU cooler
  • 4mm Tempered Glass
  • Type C×1 + USB3.0×2 + HD Audio
  • Supports to install 2×2.5" HDD or 2×3.5" HDD
  • Option to install 3×12025 fan on top

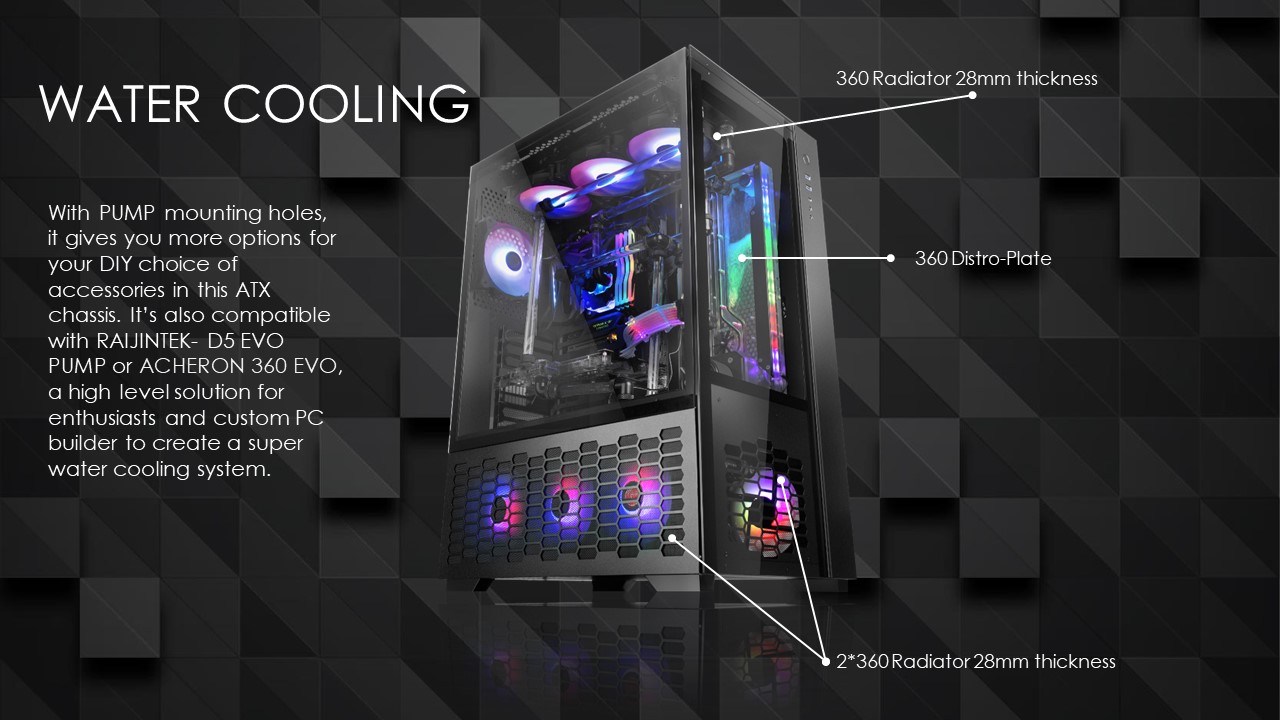

  • Option to install 360mm radiator & 12025 fan×3 on the top and bottom
  • Option to install 3×12025 fan on the front
  • Option to install 1×14025 fan on the back
  • Large zone of Ventilate holes for airflow on top and bottom
SPECIFICATION
Product Name PAEAN PREMIUM
Product Number 0R20A00208
Dimension [W×D×H] 310×451×648 mm
Weight 13.1 kg [N.W.] 15.0 kg [G.W.]

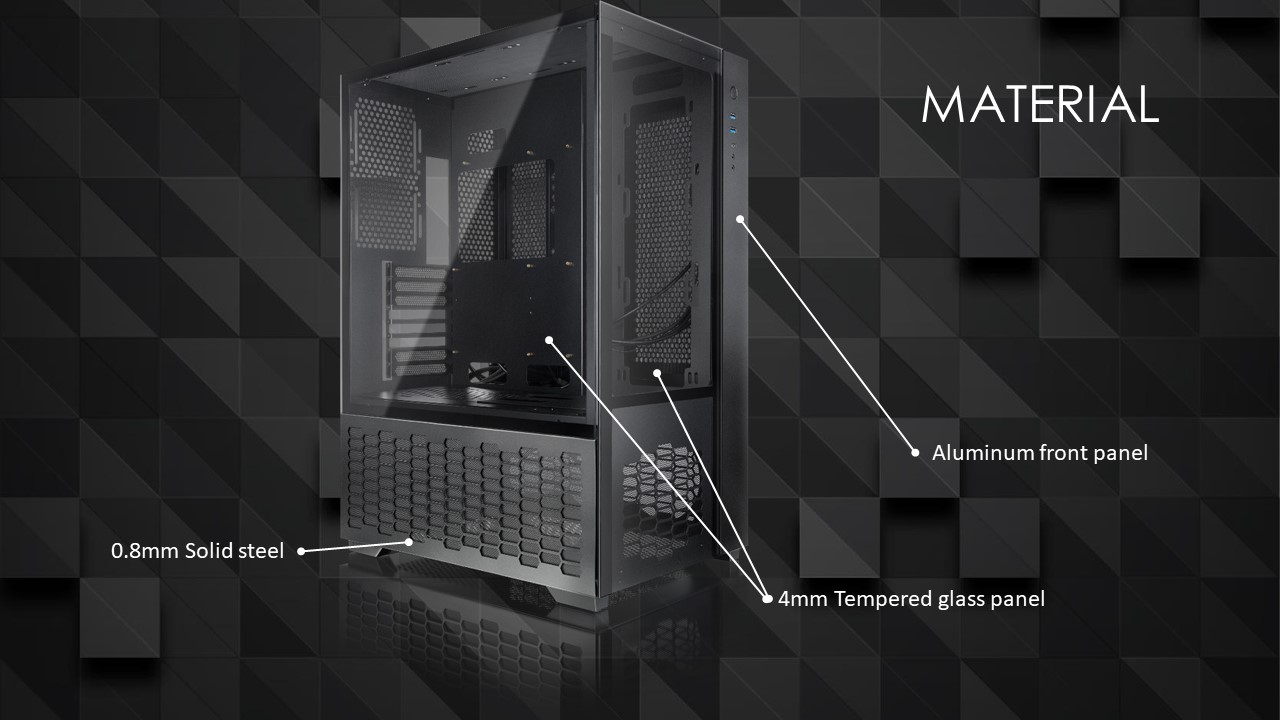

Material Aluminum 2.0mm; SPCC 0.8mm
Color Black Coated

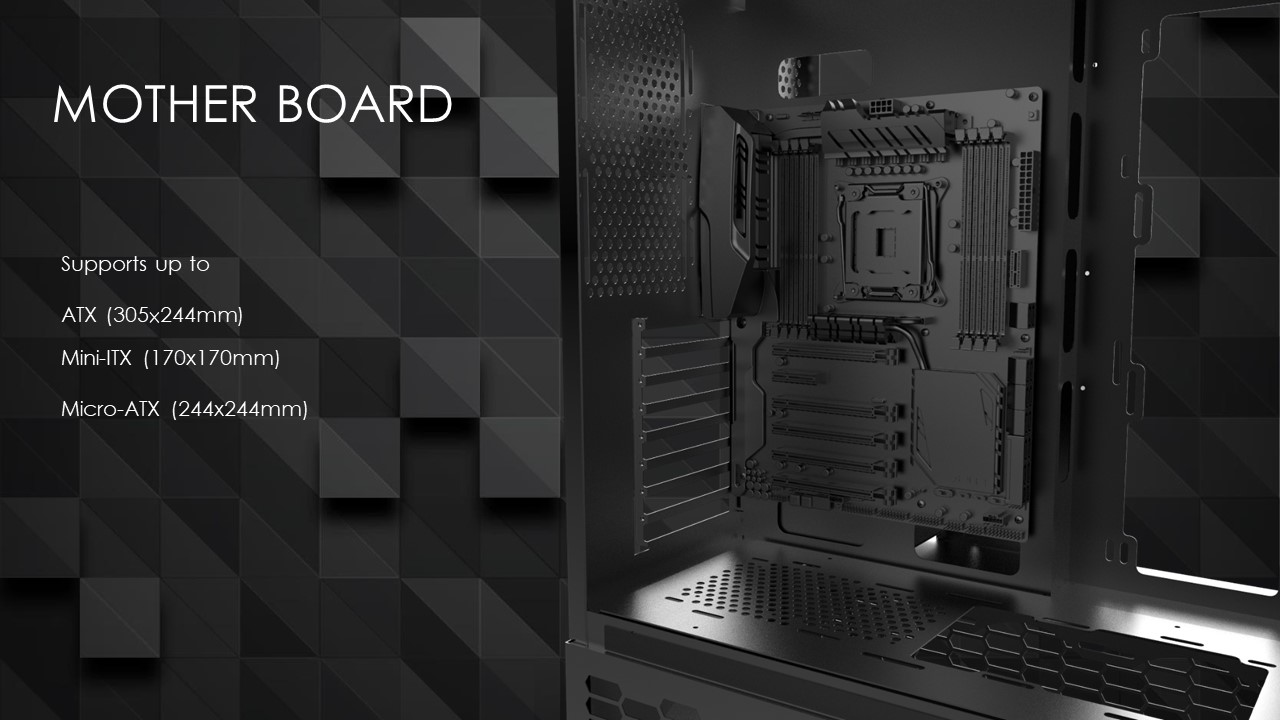

M/B Support ATX/MICRO ATX/MINI-ITX

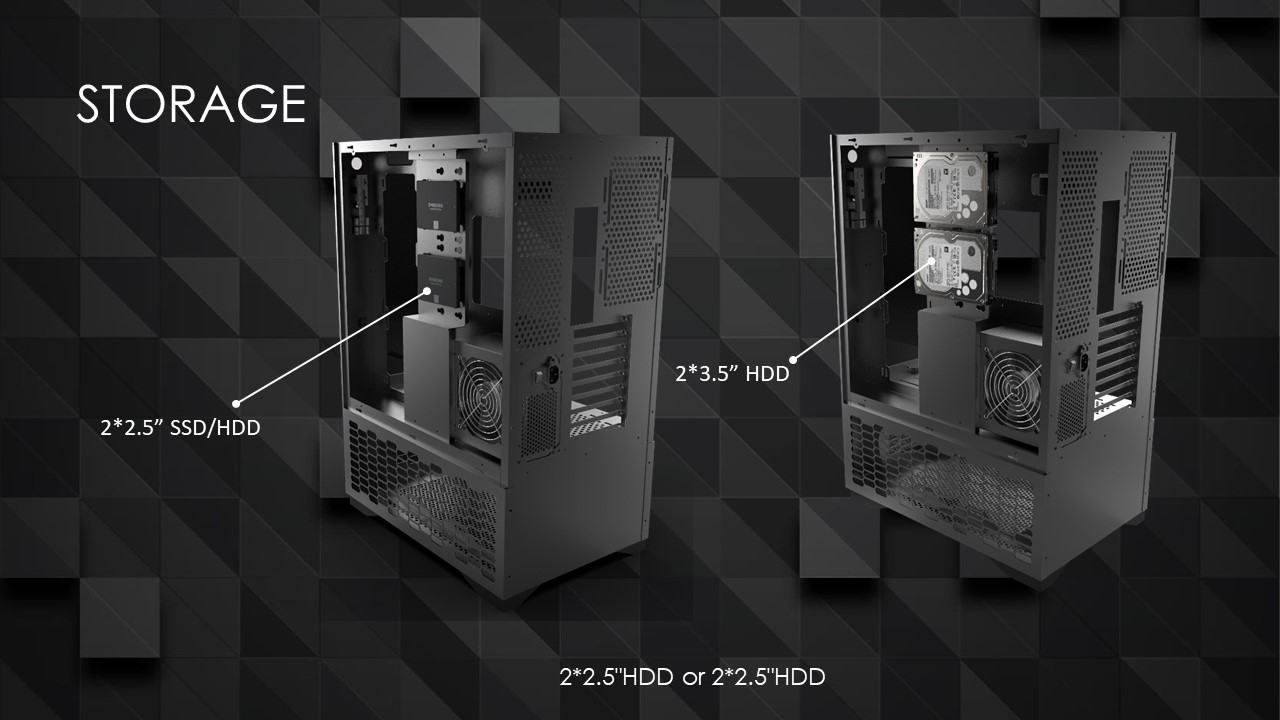

Drive Bay 3.5"HDD×2 or 2.5"SSD×2
Expansion Slot PCI Slots × 8

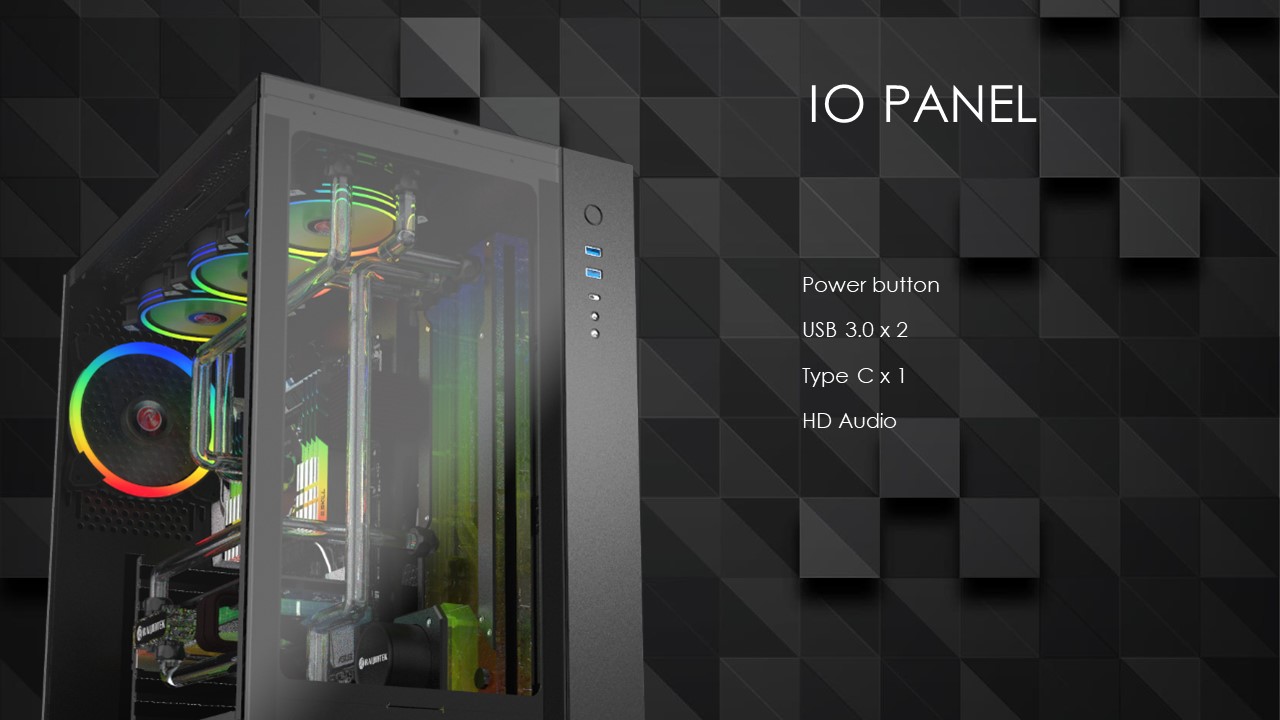

I/O Panel USB3.0×2, Type C×1, HD Audio×1
Power Supply PS/2 [Bottom]

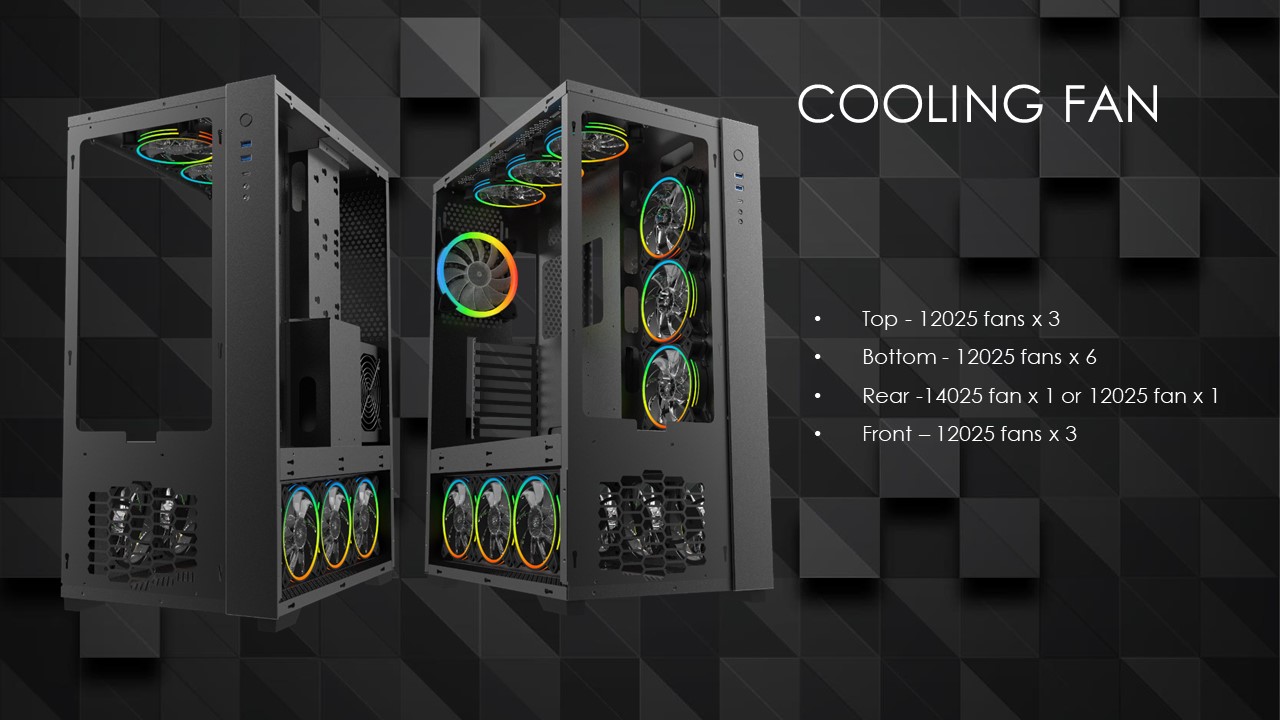

Fan Q'ty Top: 120mm×3 [option]
Bottom: 120mm×6 [option]
Front: 120mm×3 [option]
Rear: 120mm×1 or 140mm×1 [option]
Radiator Q'ty Top: 120/240/280/360mm radiator [option]

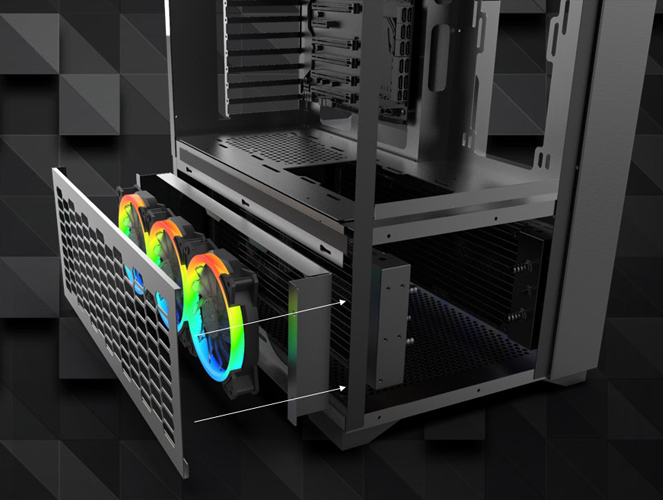

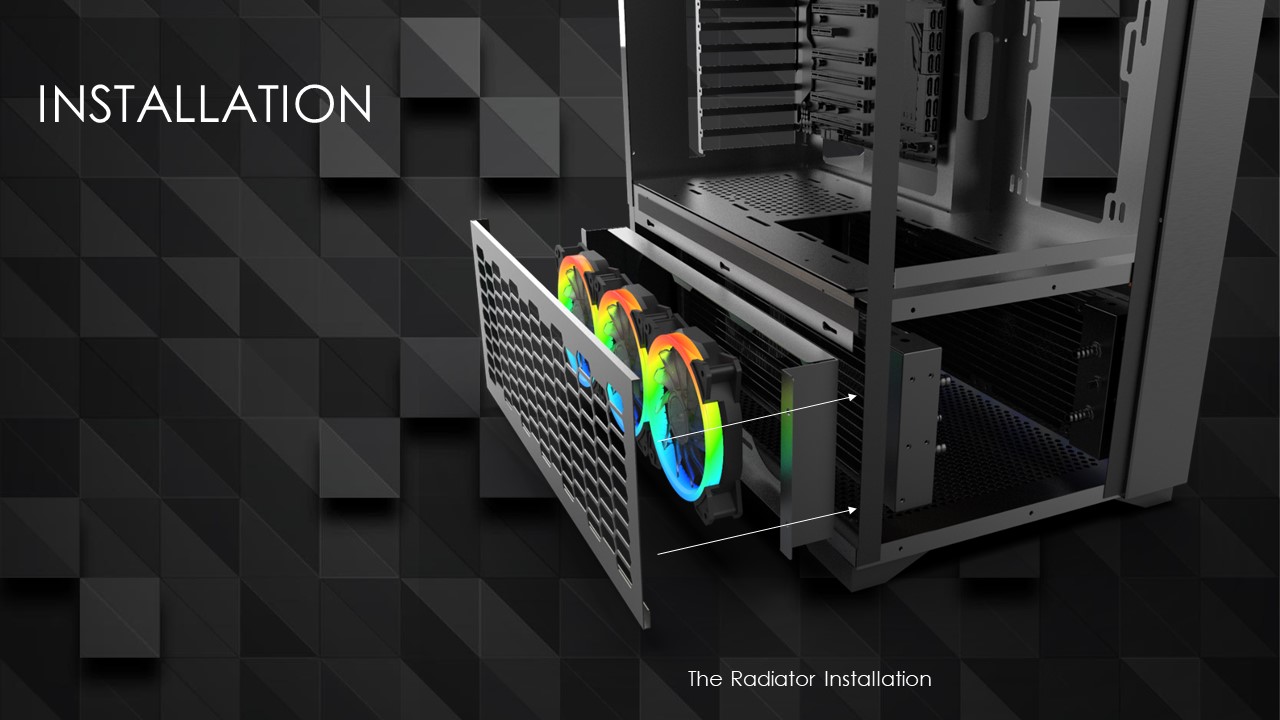

Bottom: 120/240/280/360mm radiator [option]
CPU Cooler Height 170mm [Max.]

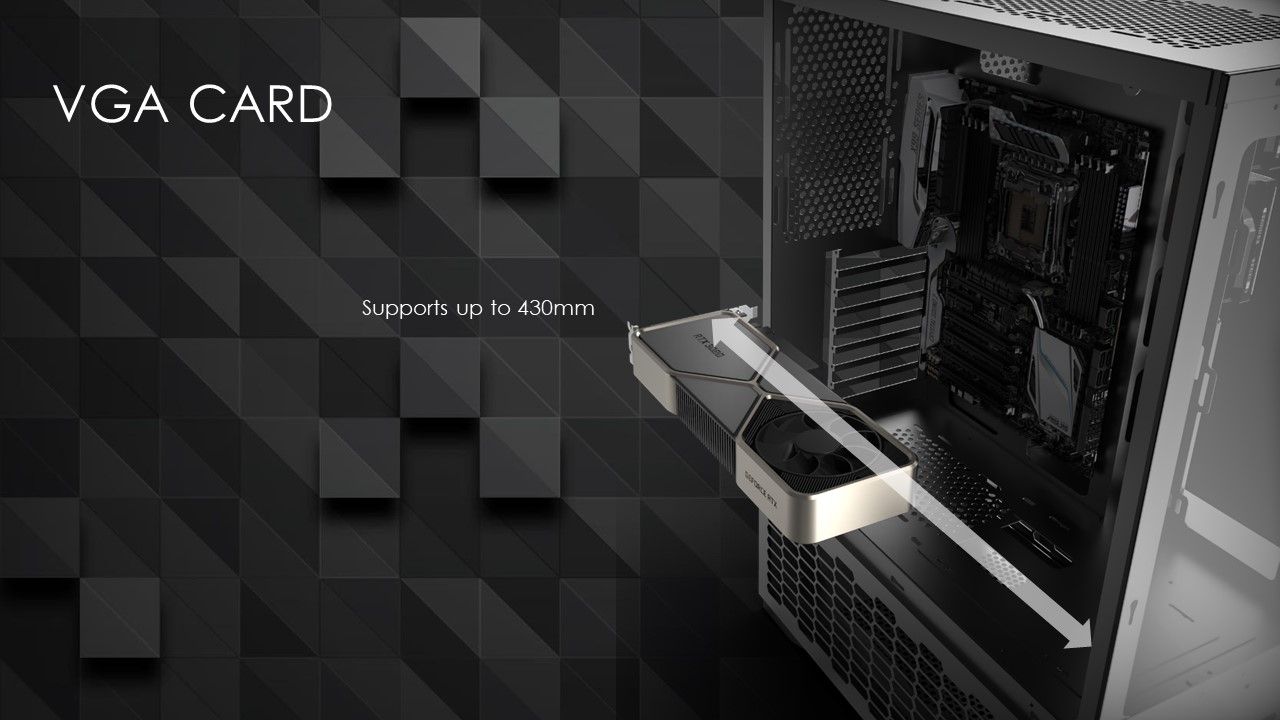

Graphic Card Length 430mm [Max.]
Side Panel Style 4mm Tempered Glass

PAEAN PREMIUM × 1

Screw #6-32 L6 × 21
Motherboard/PSU/3.5"HDD

Screw M3 L9.5 × 8
2.5"SSD/HDD

Screw #6-32 L8.5 × 8
3.5"HDD

Screw #6-32 L6 × 2
VGA Card

Screw M3 L5 × 8
2.5"SSD

Cable Tie × 10

Installation Guide × 1
