SILENOS MS

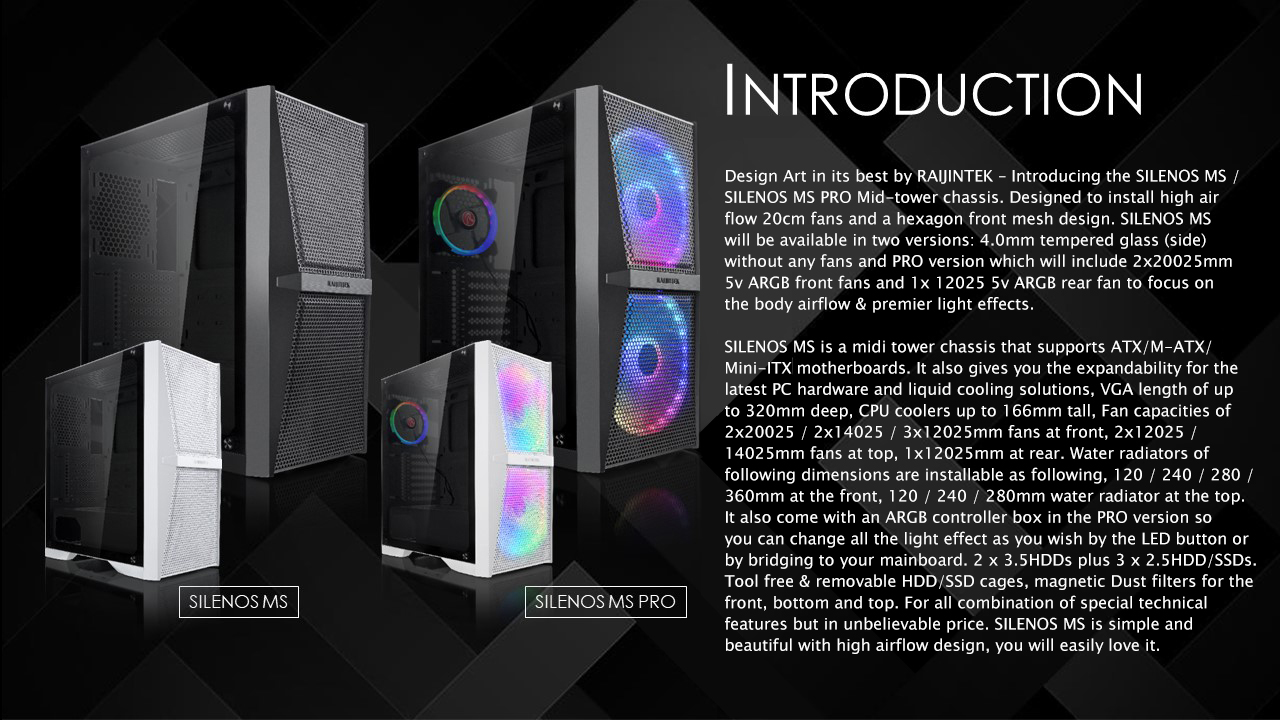

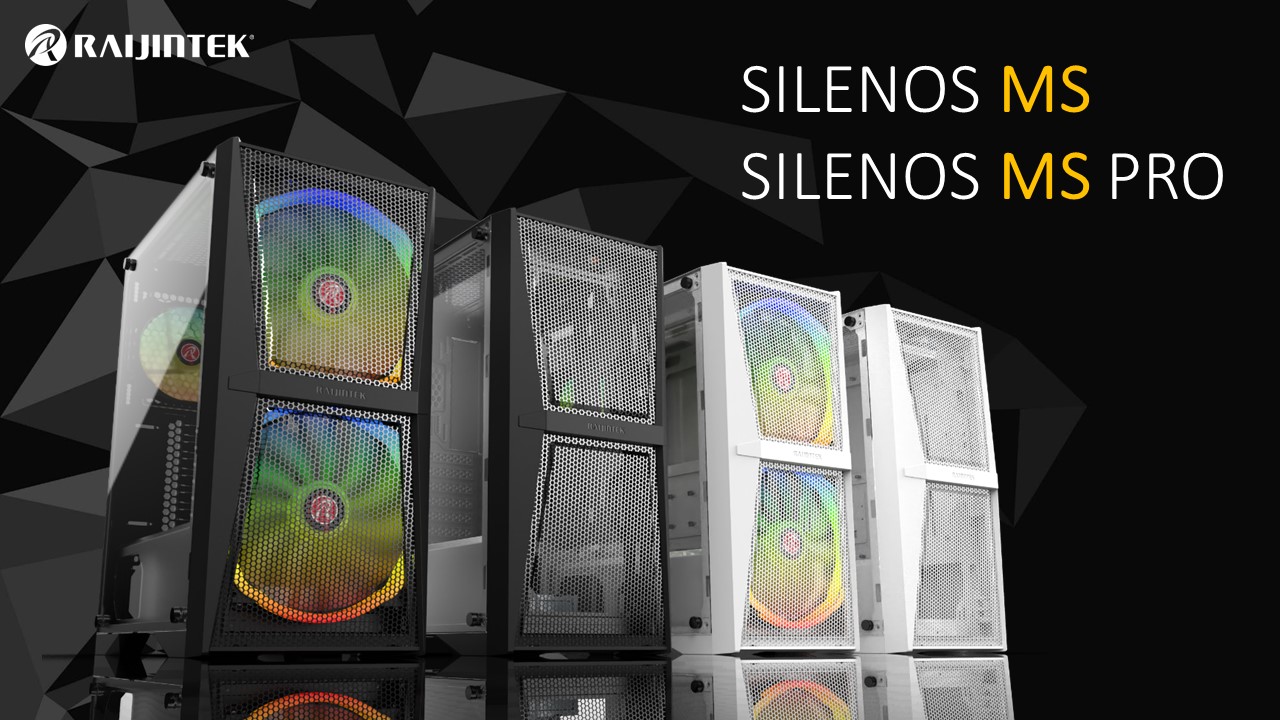

Design Art in its best by RAIJINTEK – Introducing the SILENOS MS / SILENOS MS PRO Mid-tower chassis. Designed to install high air flow 20cm fans and a hexagon front mesh design. SILENOS MS will be available in two versions: 4.0mm tempered glass (side) without any fans and PRO version which will include 2x20025mm 5v ARGB front fans and 1x 12025 5v ARGB rear fan to focus on the body airflow & premier light effects. SILENOS MS is a midi tower chassis that supports ATX/M-ATX/Mini-ITX motherboards. It also gives you the expandability for the latest PC hardware and liquid cooling solutions, VGA length of up to 320mm deep, CPU coolers up to 166mm tall, Fan capacities of 2x20025 / 2x14025 / 3x12025mm fans at front, 2x12025 / 14025mm fans at top, 1x12025mm at rear. Water radiators of following dimensions are installable as following, 120 / 240 / 280 / 360mm at the front, 120 / 240 / 280mm water radiator at the top. It also come with an ARGB controller box in the PRO version so you can change all the light effect as you wish by the LED button or by bridging to your mainboard. 2 x 3.5HDDs plus 3 x 2.5HDD/SSDs. Tool free & removable HDD/SSD cages, magnetic Dust filters for the front, bottom and top. For all combination of special technical features but in unbelievable price. SILENOS MS is simple and beautiful with high airflow design, you will easily love it.

SILENOS MS














  •
  • Two 20cm Fans at front design to provide High airflow
  • Entire Coating black(white) internally design

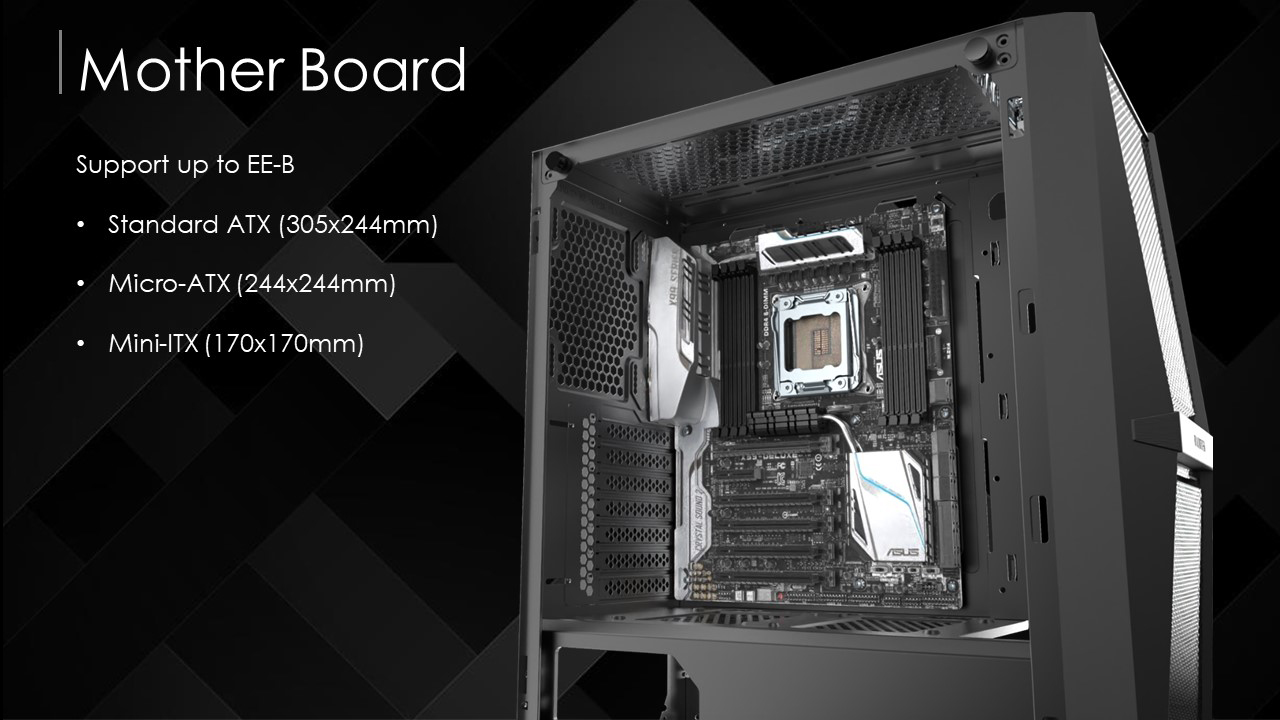

  • Support up to ATX/M-ATX/Mini-ITX
  • Compatible with ATX POWER SUPPLY

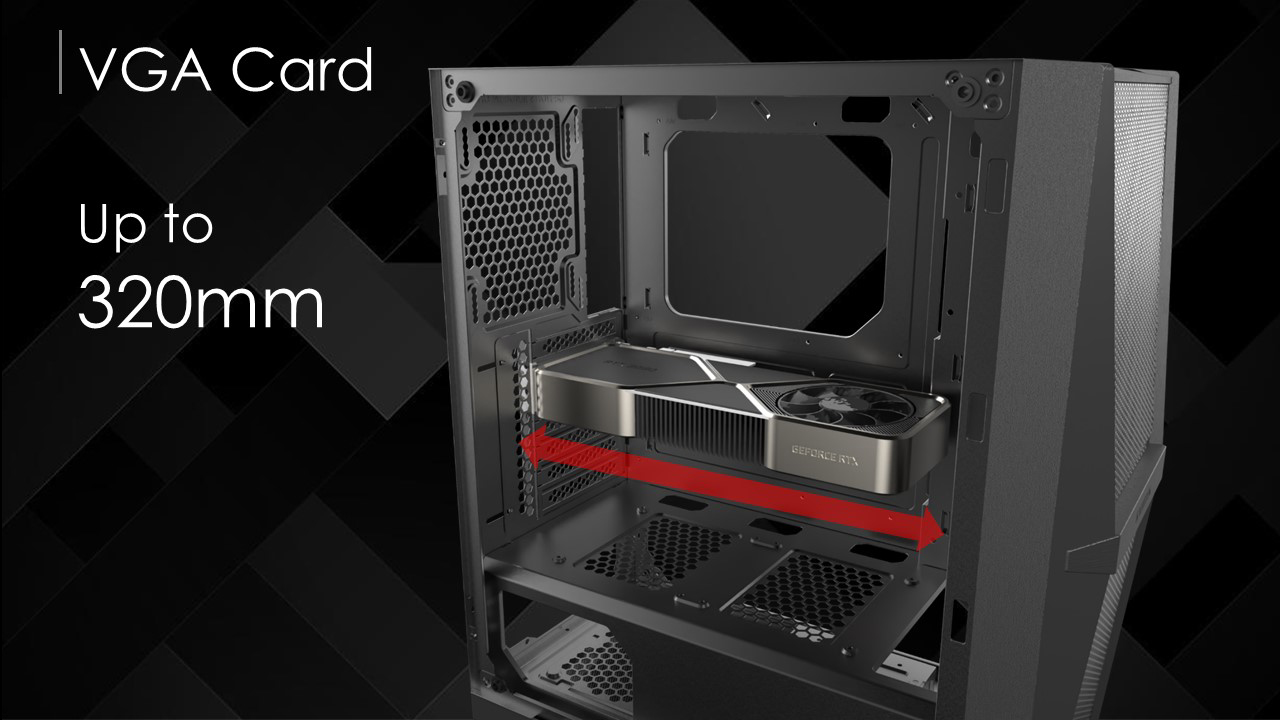

  • Support up to 320mm length VGA card
  • Supports to max. 166mm height CPU cooler

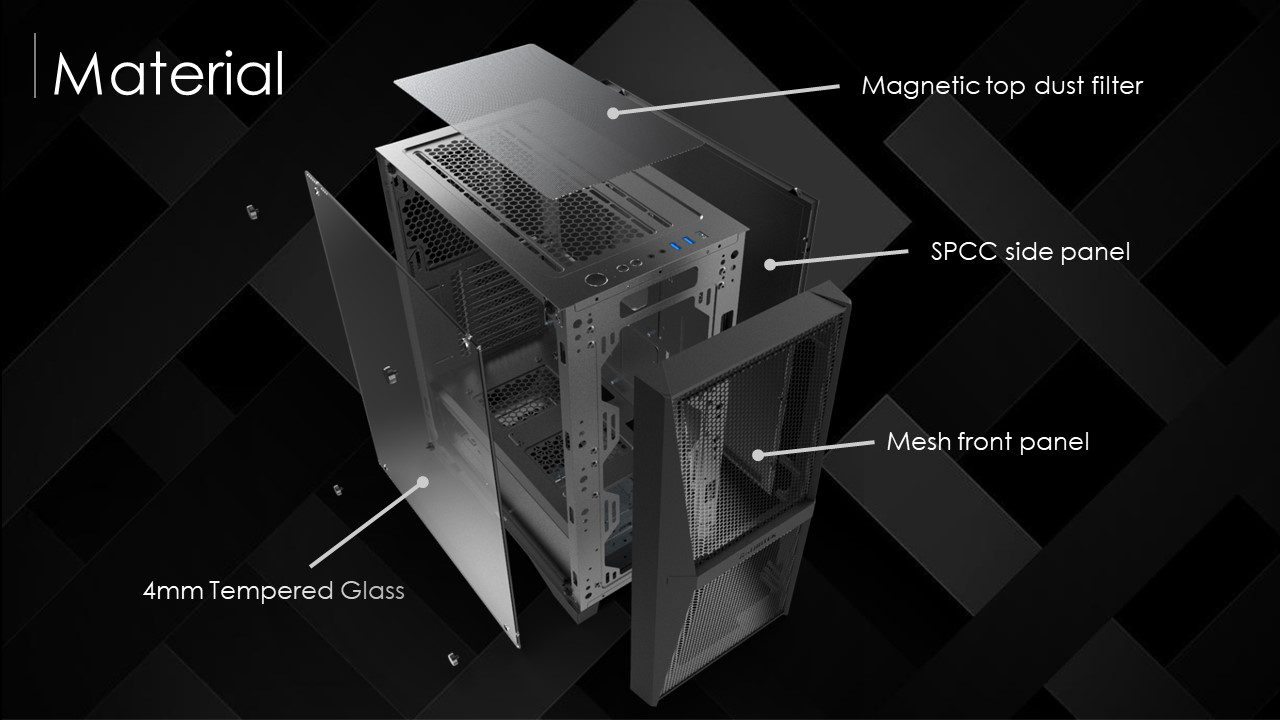

  • 4mm Tempered Glass

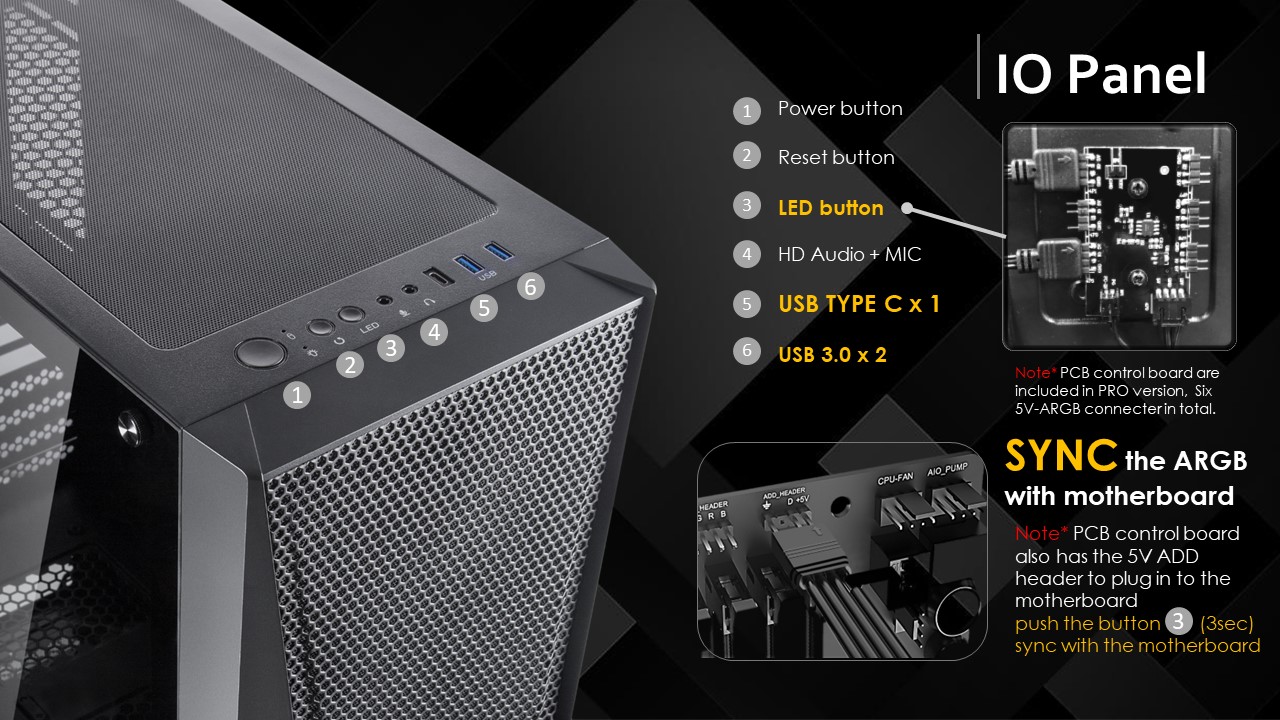

  • USB3.0×2 + TYPE-C×1 +HD AUDIO
  • Top & bottom magnetic dust filters

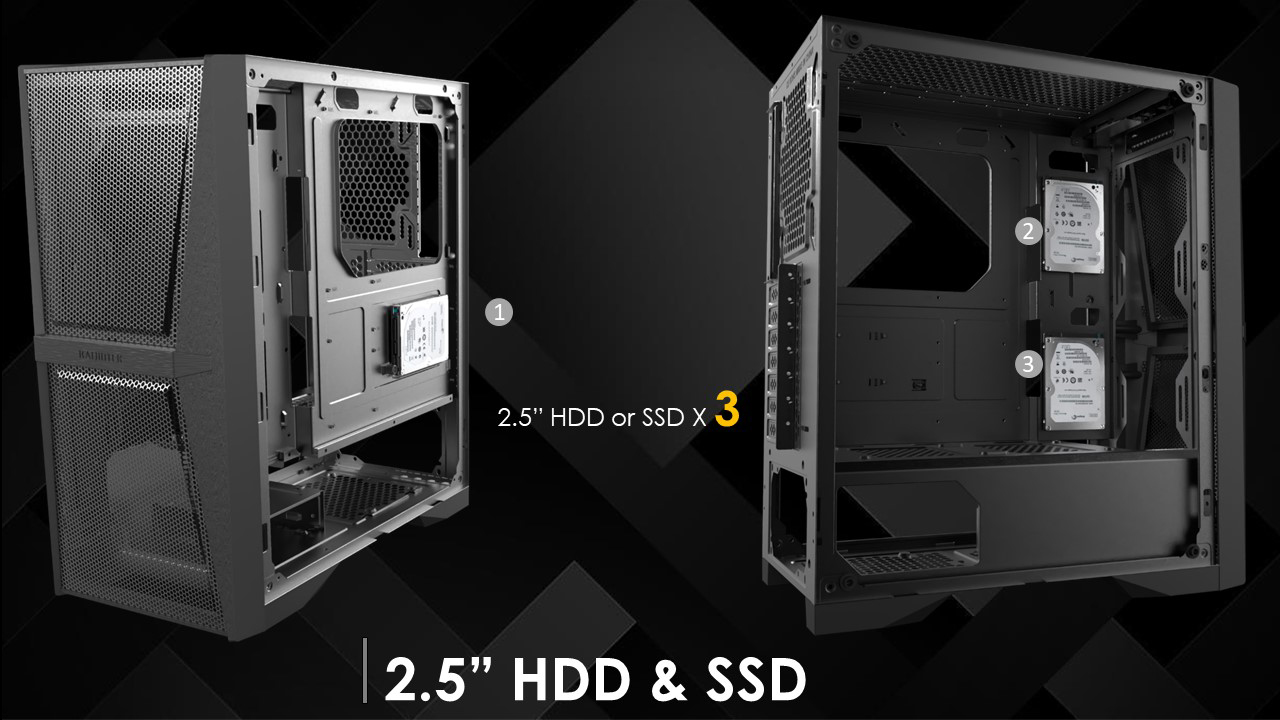

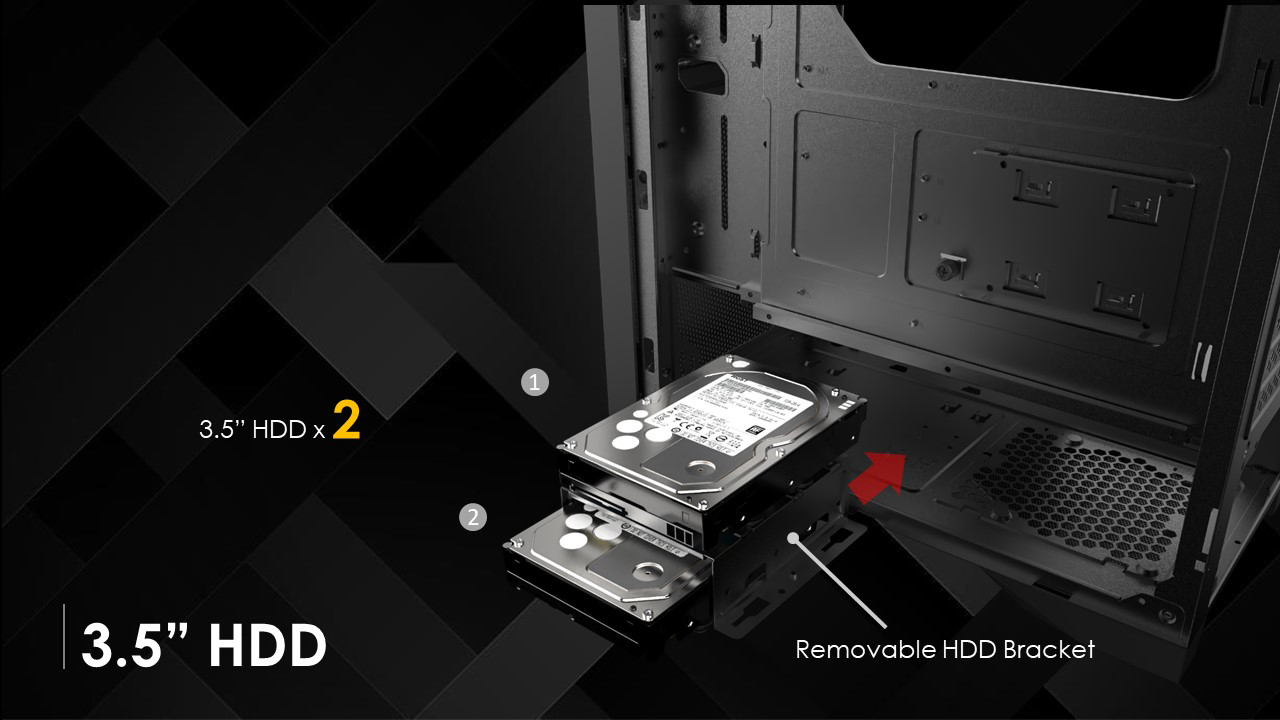

  • Supports up to 3×2.5"HDD + 2×3.5"HDD
  • Option to install 2×12025 or 2×14025 fans on top 2×20025/2×14025/3×12025mm at front

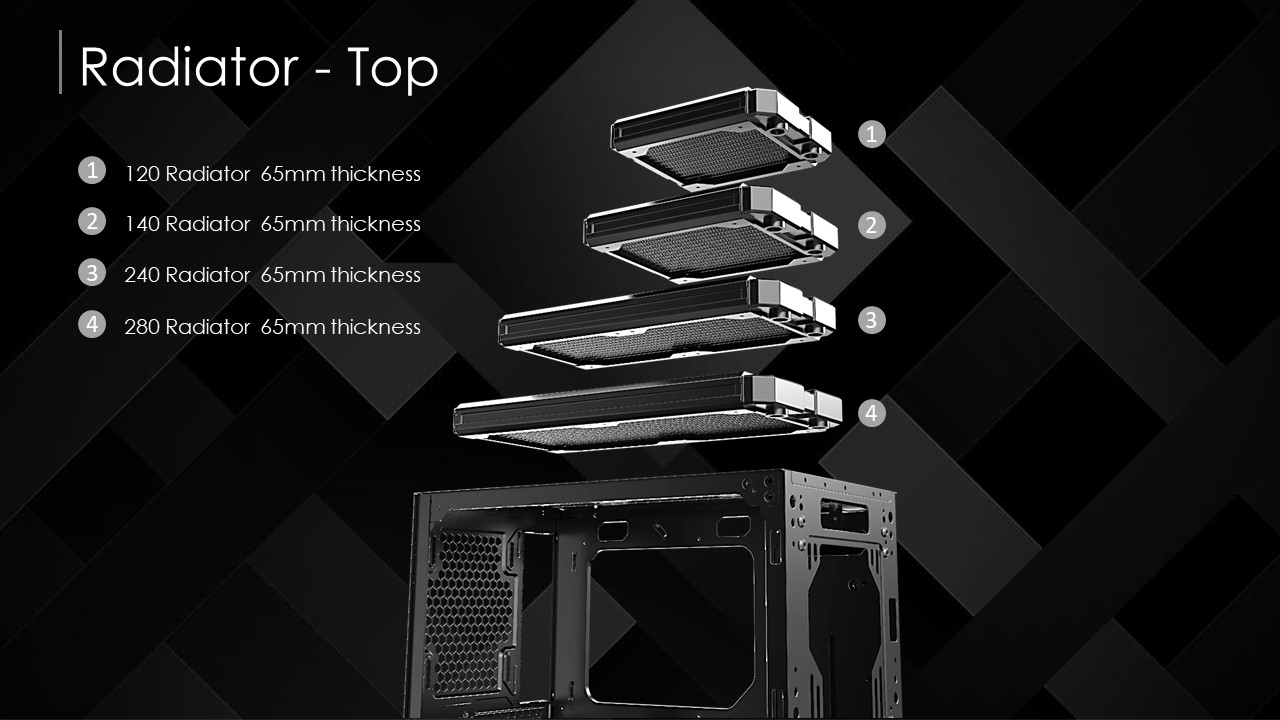

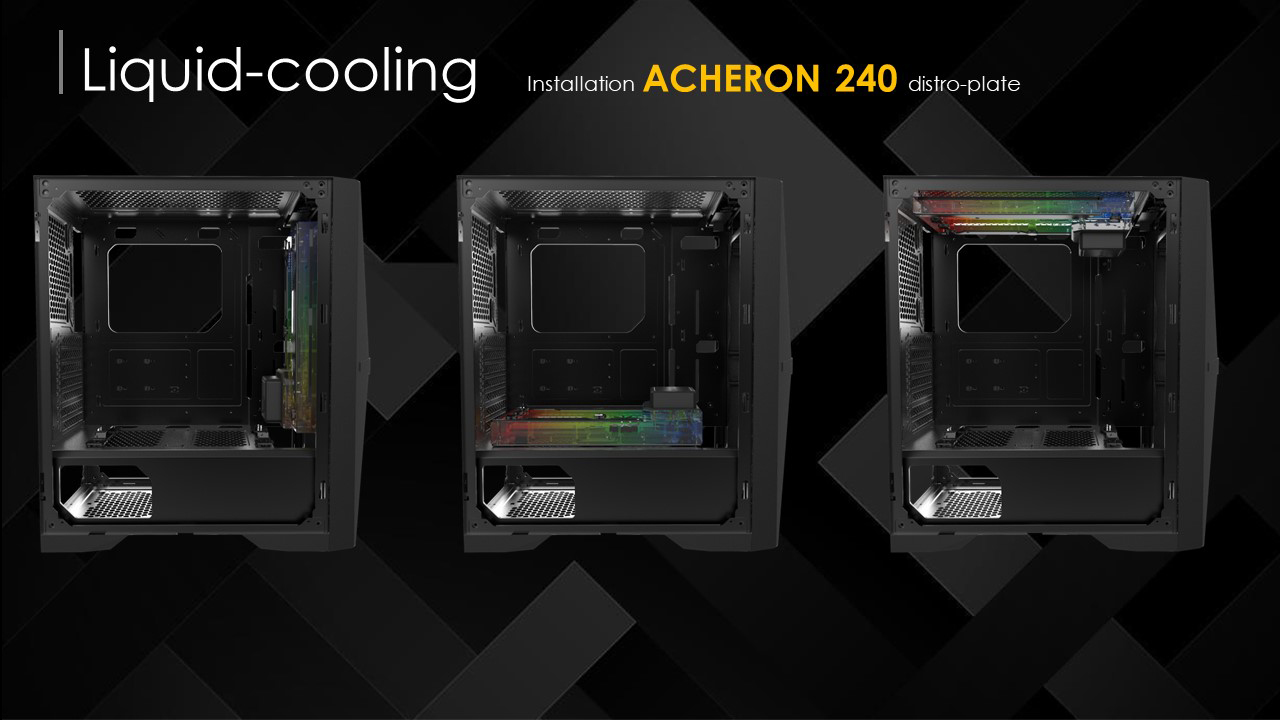

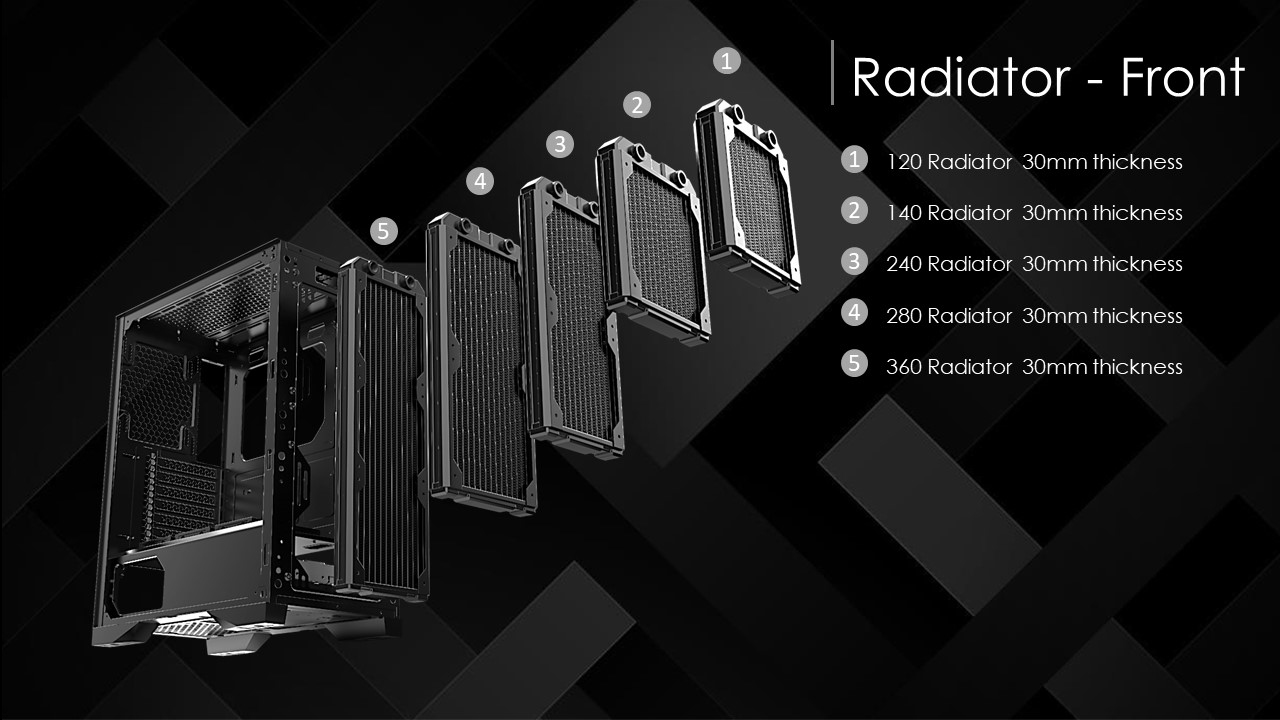

  • Support up to 120/240/280/360mm radiator at front; 120/240/280 mm radiator on the top
SPECIFICATION
Product Name SILENOS MS SILENOS MS PRO
Product Number 0R20B00204/0R20B00206 0R20B00205/0R20B00207
Dimension [W×D×H] 215×420×459 mm 215×420×459 mm
Weight 7.05 kg [N.W.] 8.14 kg [G.W.] 7.78 kg [N.W.] 8.87 kg [G.W.]
Material SPCC 0.6mm SPCC 0.6mm
Color Coating Black / White Coating Black / White
M/B Support ATX; M-ATX; Mini-ITX ATX; M-ATX; Mini-ITX
Drive Bay 3.5" × 2 + 2.5" × 3 3.5" × 2 + 2.5" × 3
Expansion Slot PCI Slots ×7 PCI Slots ×7
I/O Panel USB3.0×2, Type C×1, HD Audio×1 USB3.0×2, Type C×1, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount] PS/2 [Internal Bottom-mount]

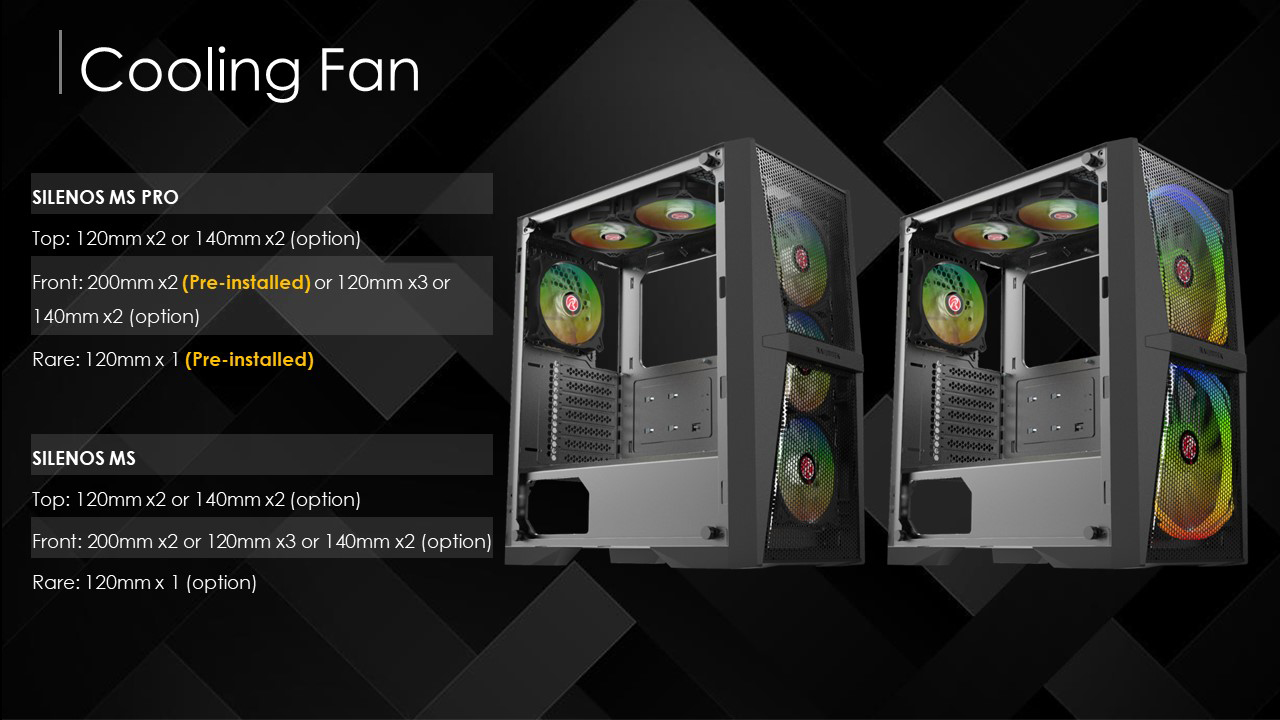

Cooling System Top: 120mm×2 or 140mm×2 [option]
Front: 200mm×2 or 140mm×2 or 120mm×3 [option]
Rear: 120mm×1 [option]
Top: 120mm×2 or 140mm×2 [option]
Front: 20025mm ARGB fan × 2 [Pre-installed]
Rear: 12025mm ARGB fan × 1 [Pre-installed]

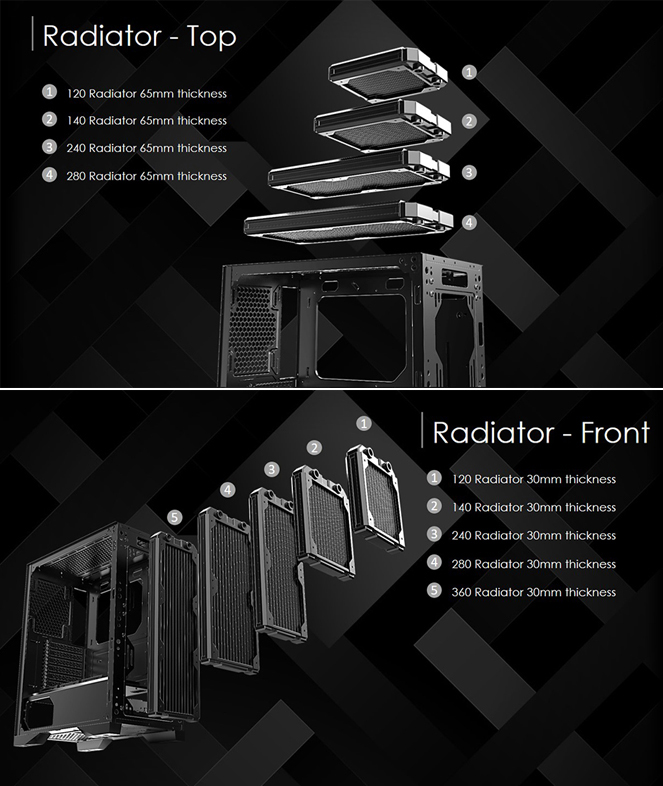

Radiator Q’ty Top: 120/140/280mm [option]
Front: 120/140/280/360mm [option]
Rear: 120mm [option]
Top: 120/140/280mm [option]
Front: 120/140/280/360mm [option]
Rear: 120mm [option]
CPU Cooler Height 166mm [Max.] 166mm [Max.]
Graphic Card Length 320mm [Max.] 320mm [Max.]
Side Panel 4.0mm Tempered Glass 4.0mm Tempered Glass
Front Panel Mesh Mesh
Pre-installed Fan Q'ty N/A 20025mm ARGB fan × 2, 12025mm ARGB fan × 1
SILENOS MS PRO / SILENOS MS PRO WHITE 20025 FAN
Dimension [W×H×D] 200×200×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 750 R.P.M.±10%
Bearing Type Hydraulic Bearing
Air Flow 38 CFM [ft /min]
Air Pressure 1.75 mmH2O [Max.]
Life Expectance 25,000 hrs
Noise Level 18 dBA [Max.]
Connector 5V ADD 4 pin header
LED Rated Current 1.49A ±10%
Power Consumption 9.6W ±10%
Fan Q'ty 2 pcs
SILENOS MS PRO / SILENOS MS PRO WHITE 12025 FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 1200 ±10% R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 41.3 CFM [Max.]
Air Pressure 0.98 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 18.5 dBA [Max.]
Connector 5V ADD 4 pin header
LED Rated Current 0.12A ±0.02A
Power Consumption 1.44W
Fan Q'ty 1 pcs

SILENOS MS (PRO) × 1

Screw M3 L6.5 × 18
2.5"SSD

Screw #6-32 L6 × 6
PSU

Screw M3 L5 × 8
3.5"HDD/2.5"SSD

Stand-off × 3
MB

Cable Tie × 5

Installation Guide × 1
