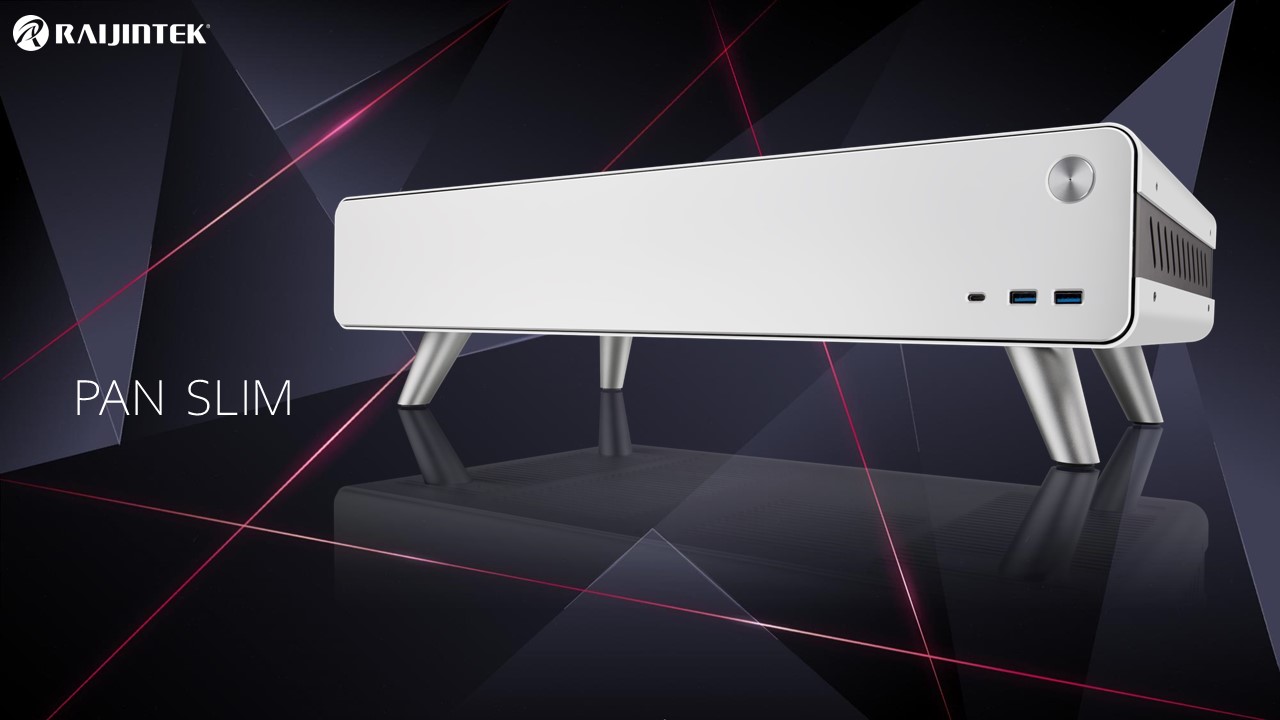

PAN SLIM

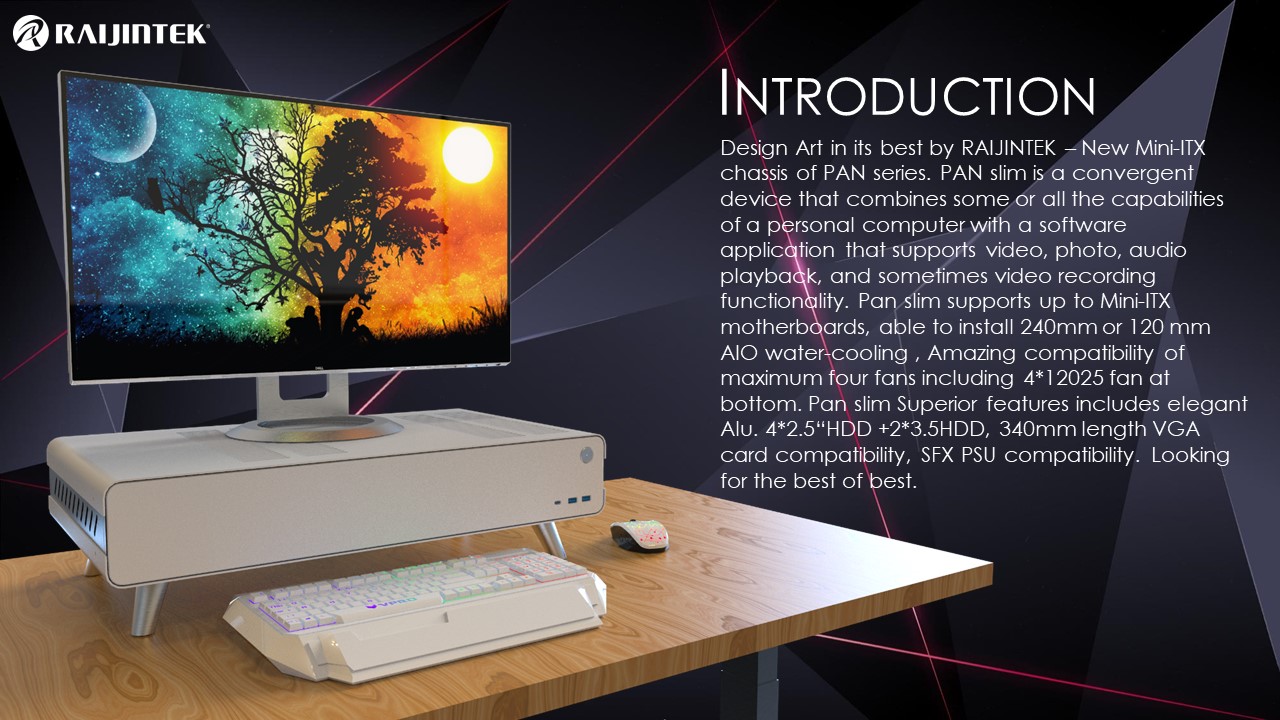

Design Art in its best by RAIJINTEK – New Mini-ITX chassis of PAN series. PAN Slim is a convergent device that combines some or all the capabilities of a personal computer with a software application that supports video, photo, audio playback, and sometimes video recording functionality. Pan slim supports up to Mini-ITX motherboards and is able to house a 240mm or 120 mm AIO Water Cooler, an amazing compatibility of maximum four fans including 4×12025 fans at the bottom. Pan slim Superior features include elegant Aluminum Design, 4×2.5“HDD +2×3.5HDD Support, 340mm length VGA card Support and a SFX PSU compatibility. Looking for the best of best with stylish Design, then only Pan Slim can be your choice.

PAN SLIM









  •

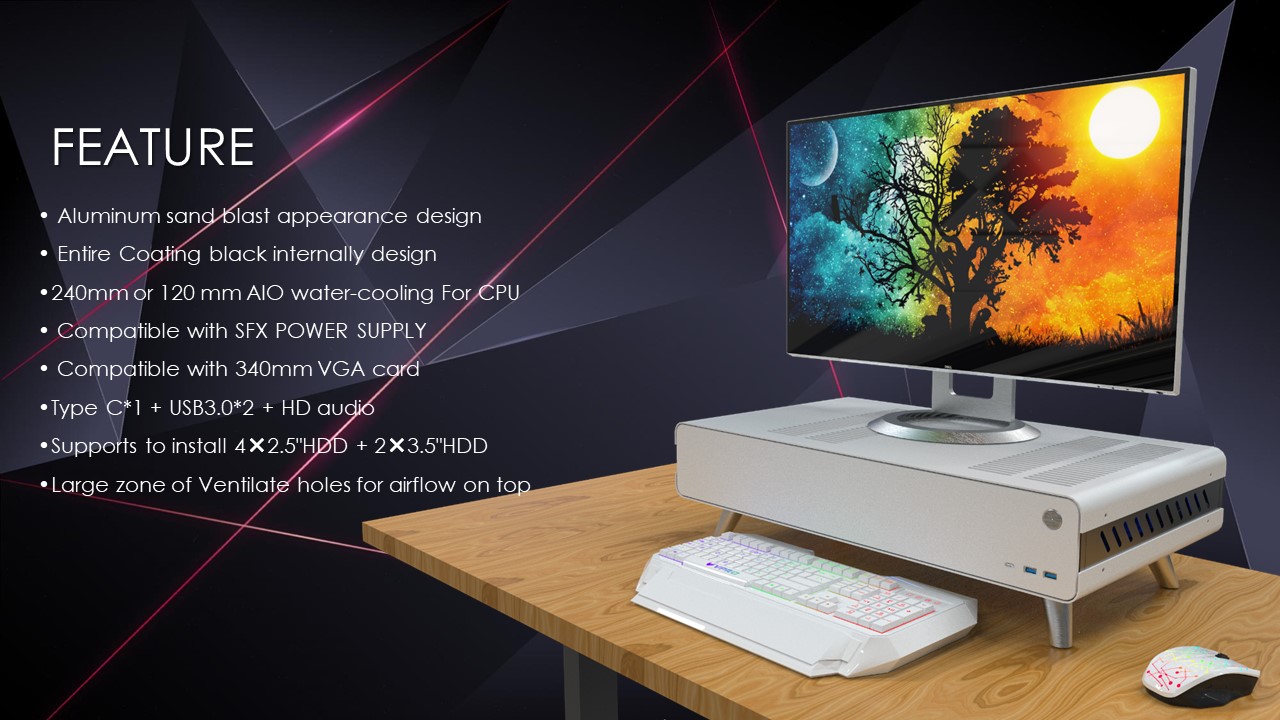

  • Aluminum appearance design
  • Entire Coating black internally design
  • 240mm or 120 mm AIO water-cooling For CPU
  • Compatible with SFX POWER SUPPLY
  • Compatible with 340mm VGA card
  • Type C×1 + USB3.0×2 + HD audio
  • Supports to install 4×2.5" HDD + 2×3.5" HDD
  • Large zone of Ventilate holes for airflow on top
SPECIFICATION
Product Name PAN SLIM Black | Silver | White
Product Number 0R20B00210[Black] | 0R20B00211[Silver] | 0R20B00212[White]
Dimension [W×D×H] 629×354×174 mm
Weight 6.2 kg [N.W.] 8.41 kg [G.W.]
Material Aluminum 2.0mm; SPCC 0.8mm

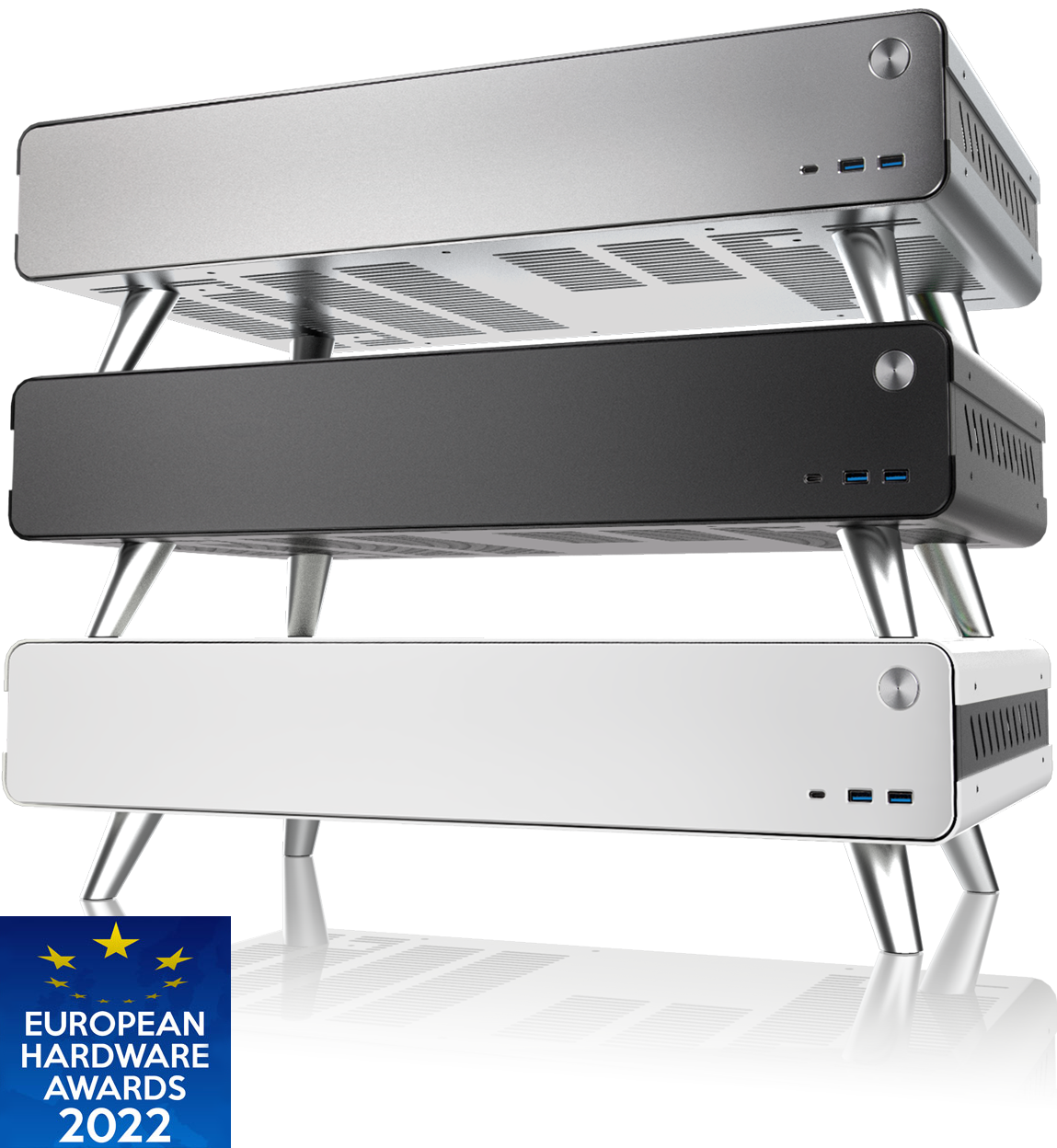

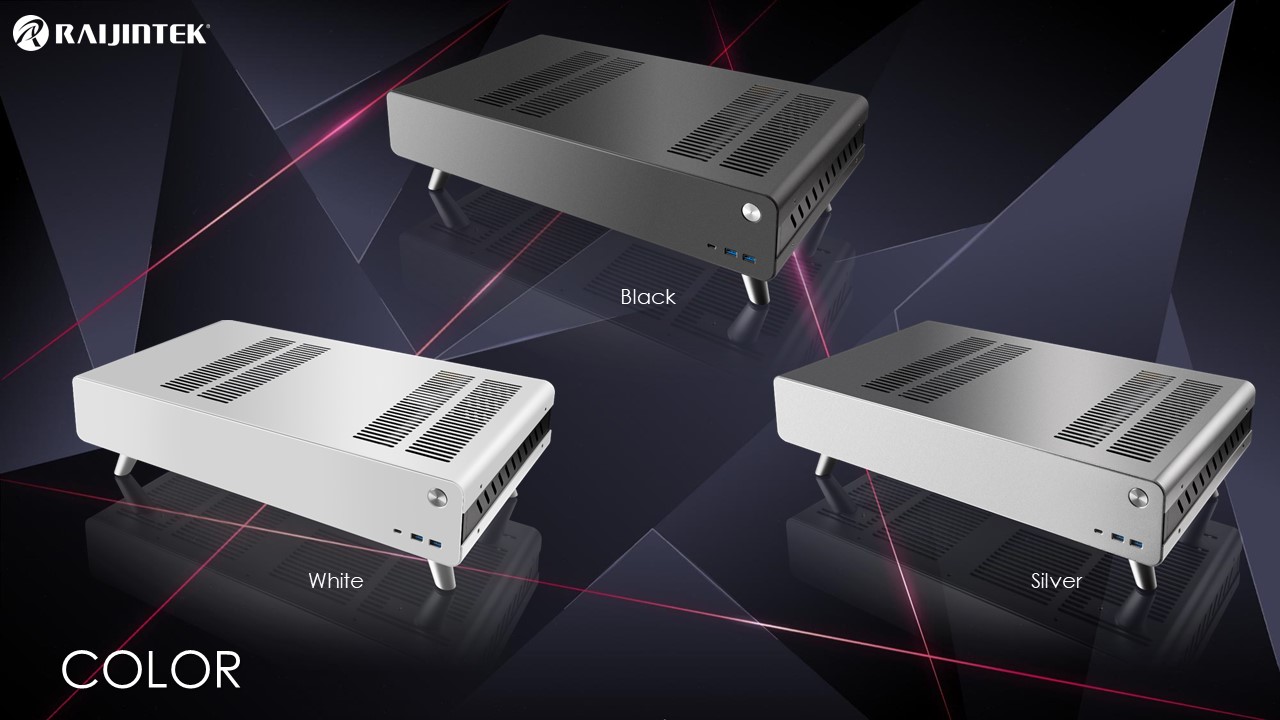

Color Black | Silver | White
M/B Support MINI-ITX

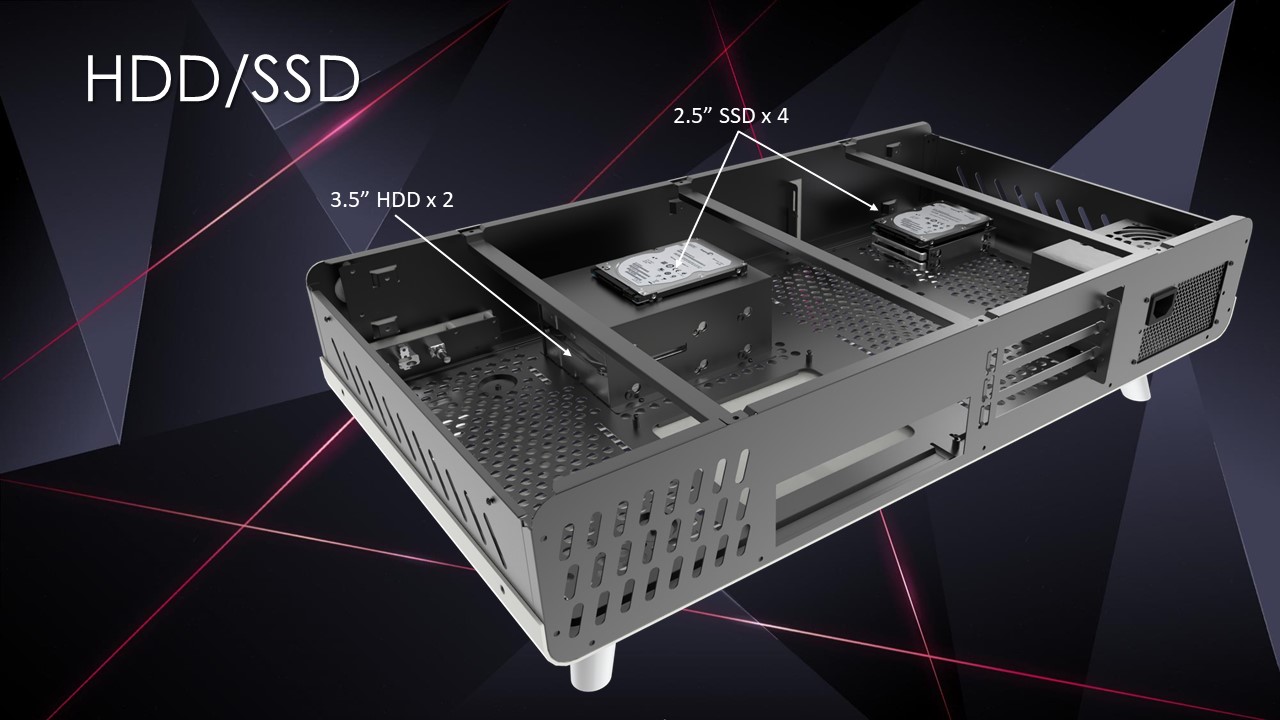

Drive Bay Internal 3.5"HDD×2 or 2.5"SSD×4
Expansion Slot PCI Slots × 3

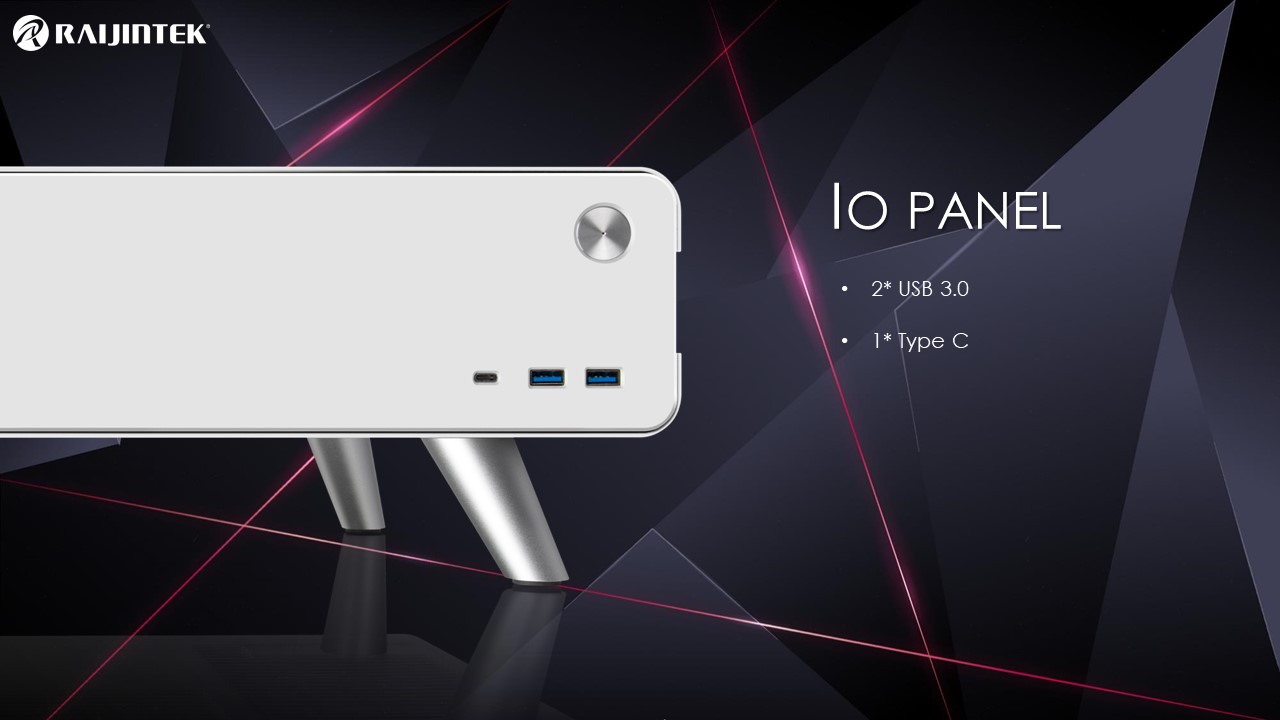

I/O Panel USB3.0×2 + Type C×1
Power Supply SFX [Bottom]

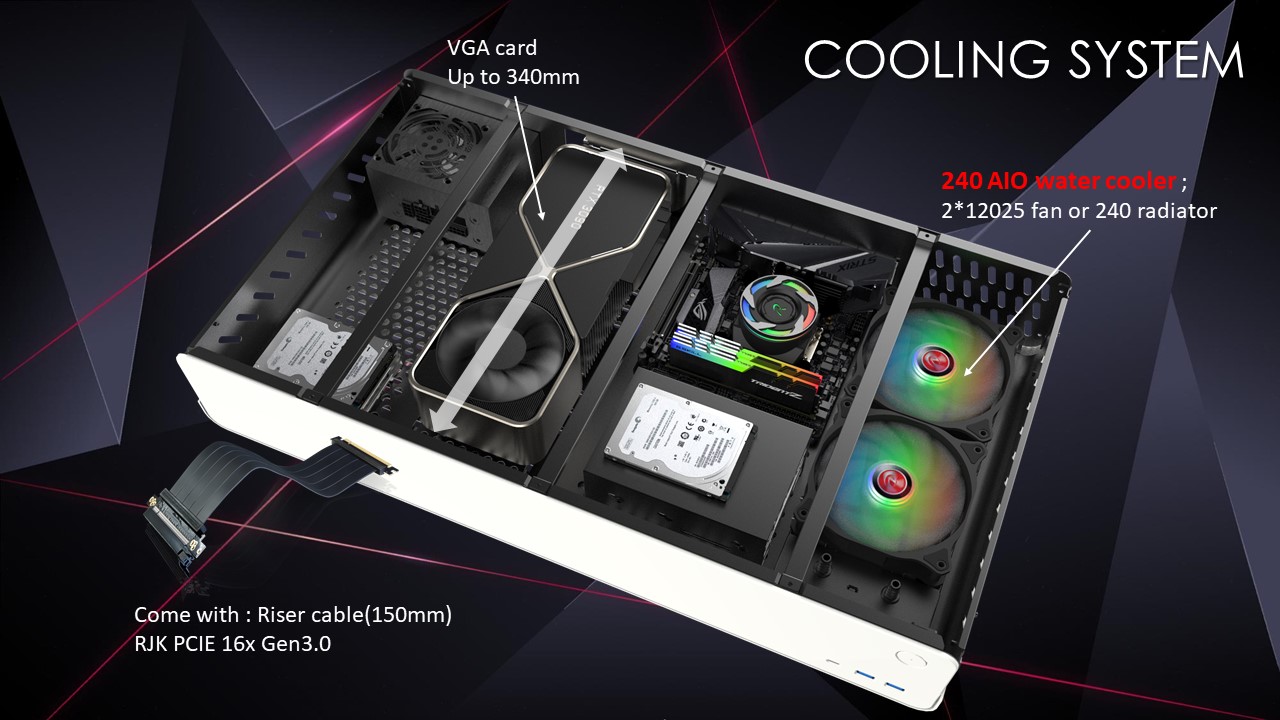

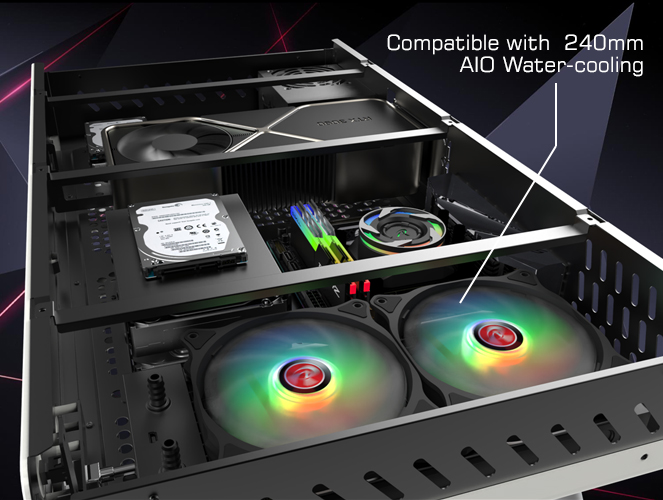

Cooling System 240mm or 120mm AIO water-cooling [option] For CPU
Radiator 1 × 120/240mm 28mm thick radiator [option]
Graphic Card Length 340mm [Max.]
CPU Cooler Height 85mm [Max.]
Riser Card Adapter PCI Express 16X Gen3.0 150mm

PAN SLIM × 1

Screw #6-32 L6 × 14
MB/3.5"HDD

Screw M3 L5 × 10
2.5"SSD

Screw #6-32 L8 × 6
PSU

Screw M5 L10 × 8
Fan

Accessory box × 1

Cable Tie × 6

PCIe-Riser Cable 150mm × 1


Installation Guide × 1
