ELEOS RBW

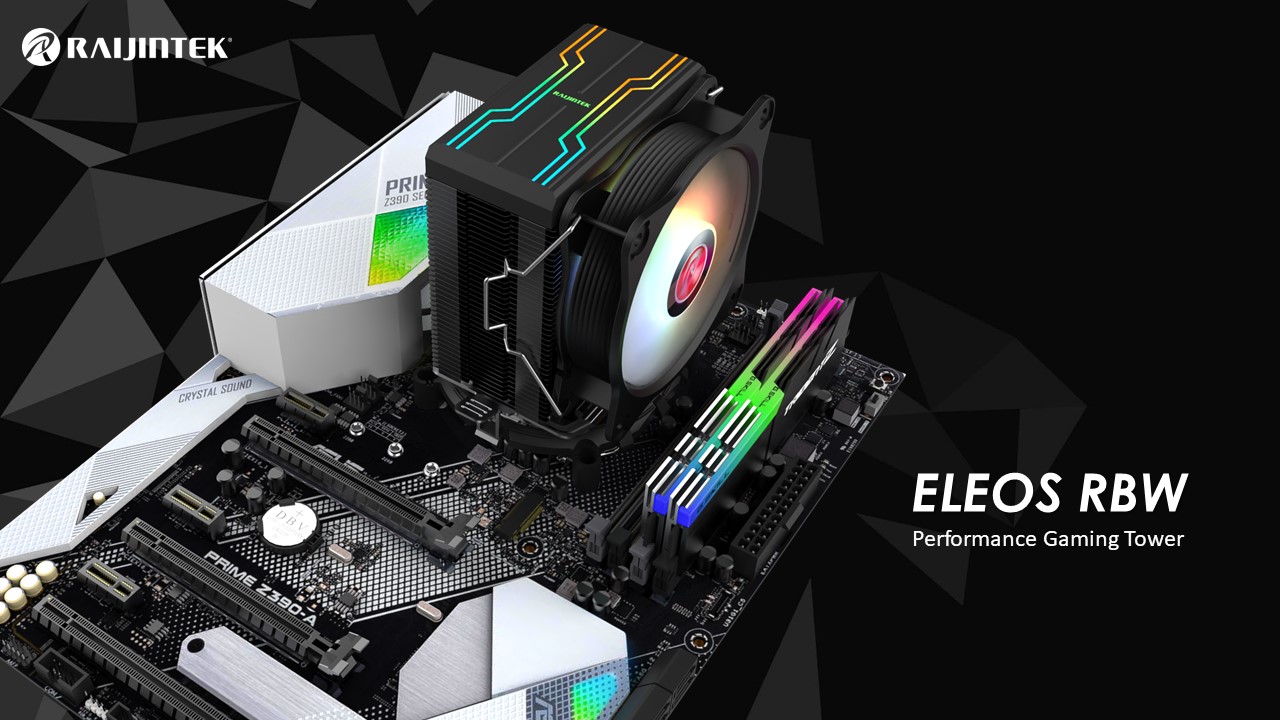

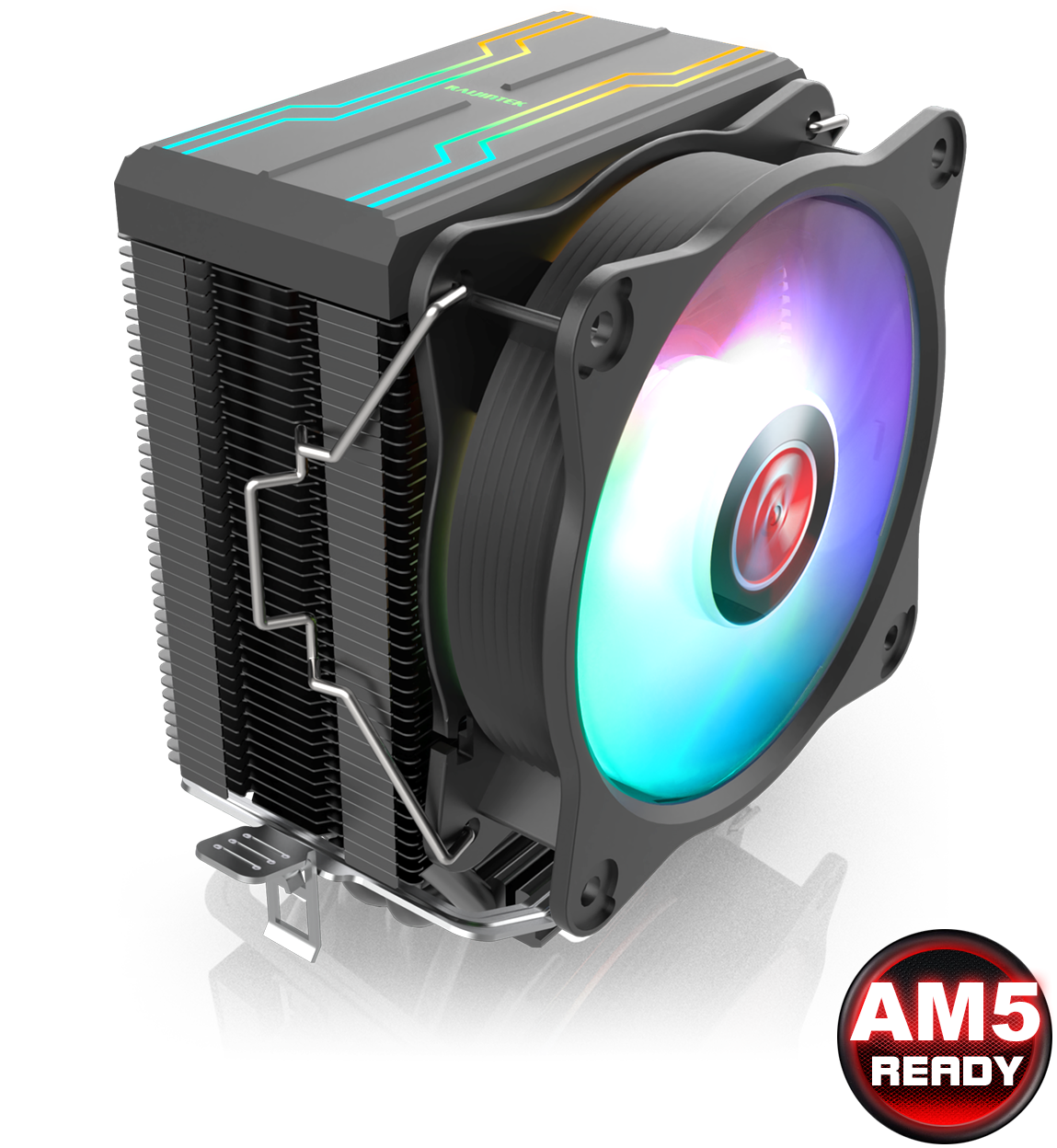

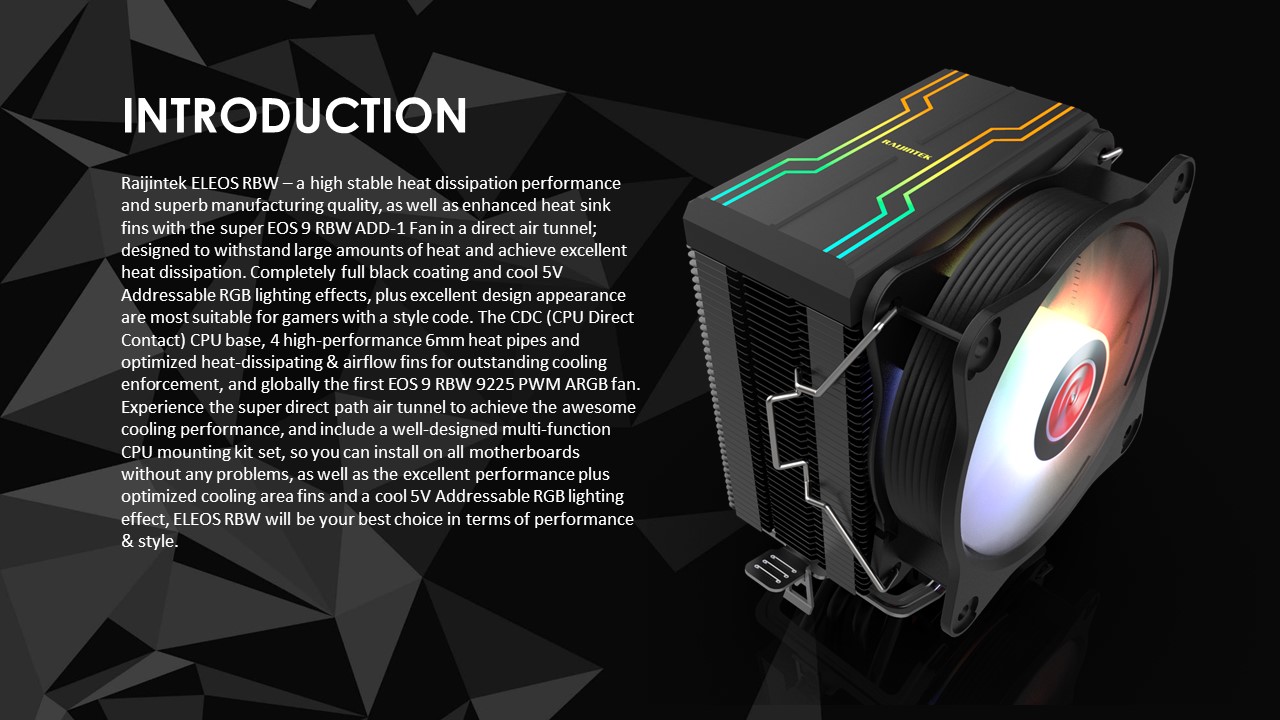

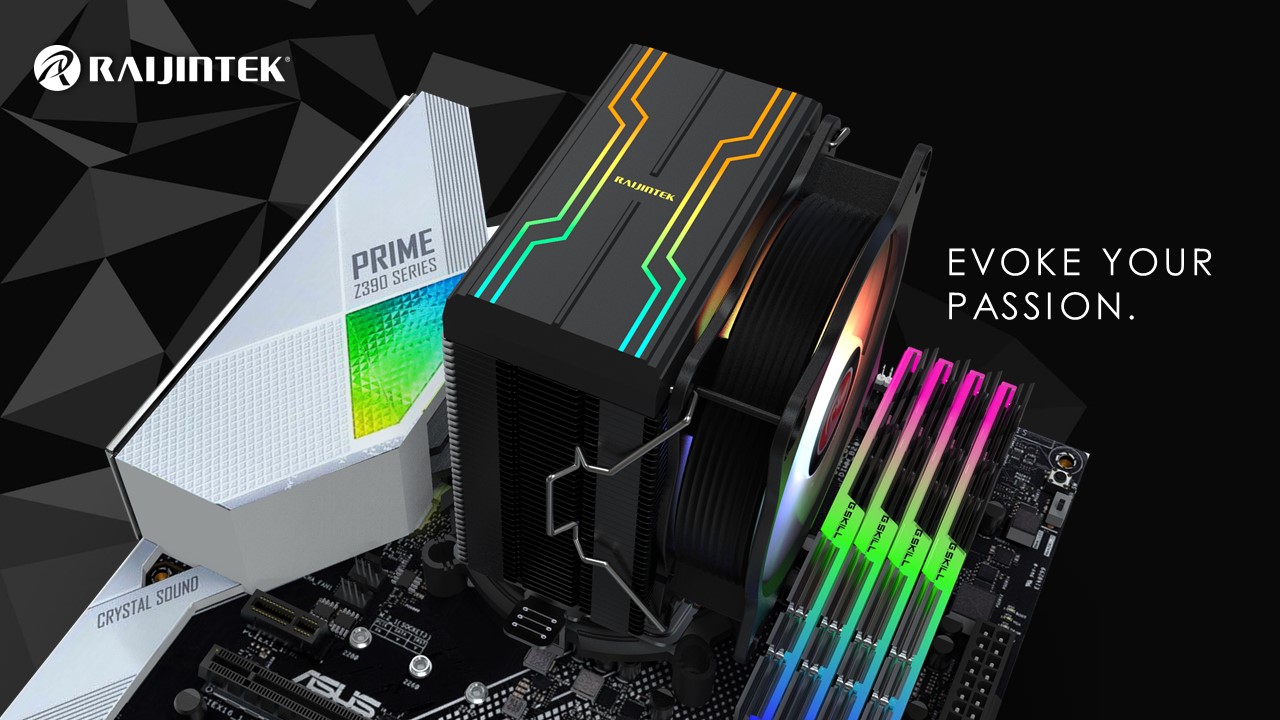

Raijintek ELEOS RBW – a high stable heat dissipation performance and superb manufacturing quality, as well as enhanced heat sink fins with the super EOS 9 RBW ADD-1 Fan in a direct air tunnel; designed to withstand large amounts of heat and achieve excellent heat dissipation. Completely full black coating and cool 5V Addressable RGB lighting effects, plus excellent design appearance are most suitable for gamers with a style code. The CDC (CPU Direct Contact) CPU base, 4 high-performance 6mm heat pipes and optimized heat-dissipating & airflow fins for outstanding cooling enforcement, and globally the first EOS 9 RBW 9225 PWM ARGB fan. Experience the super direct path air tunnel to achieve the awesome cooling performance, and include a well-designed multi-function CPU mounting kit set, so you can install on all motherboards without any problems, as well as the excellent performance plus optimized cooling area fins and a cool 5V Addressable RGB lighting effect, ELEOS RBW will be your best choice in terms of performance & style.

ELEOS RBW





  •

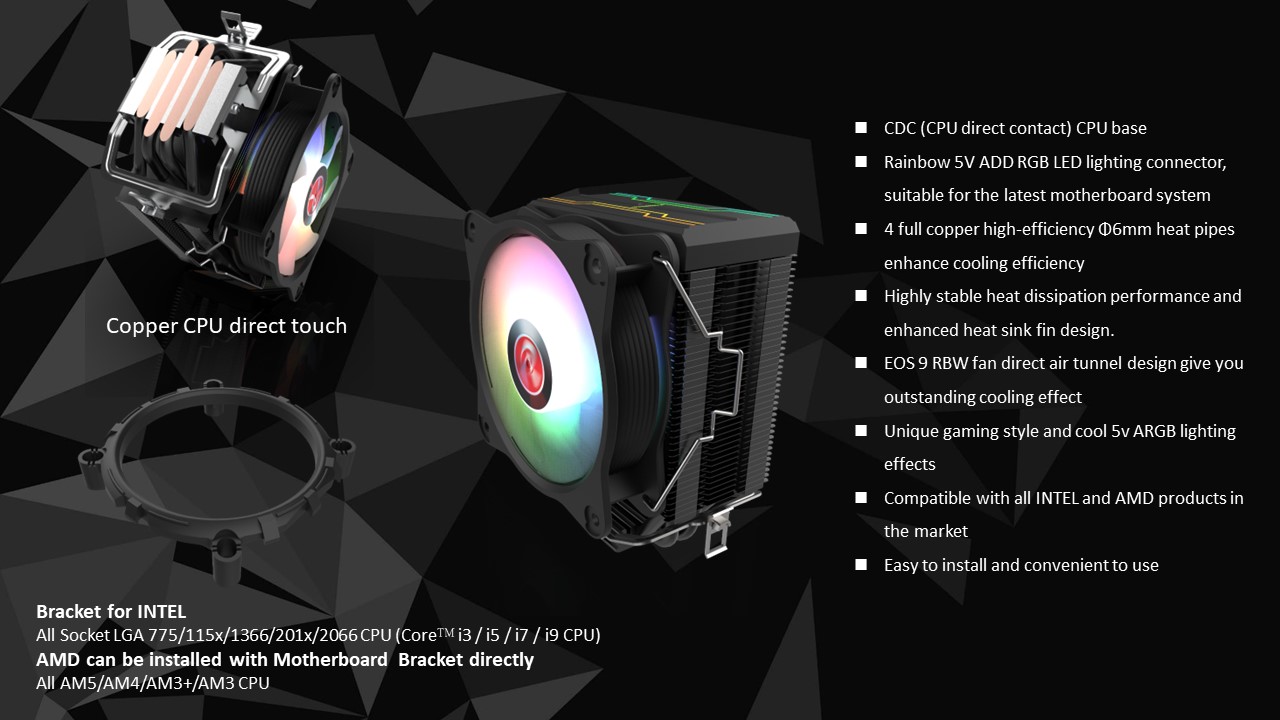

  • CDC (CPU direct contact) CPU base
  • Rainbow 5V ADD RGB LED lighting connector, suitable for the latest motherboard system
  • 4 full copper high-efficiency Φ6mm heat pipes enhance cooling efficiency
  • Highly stable heat dissipation performance and enhanced heat sink fin design
  • EOS 9 RBW fan direct air tunnel design give you outstanding cooling effect

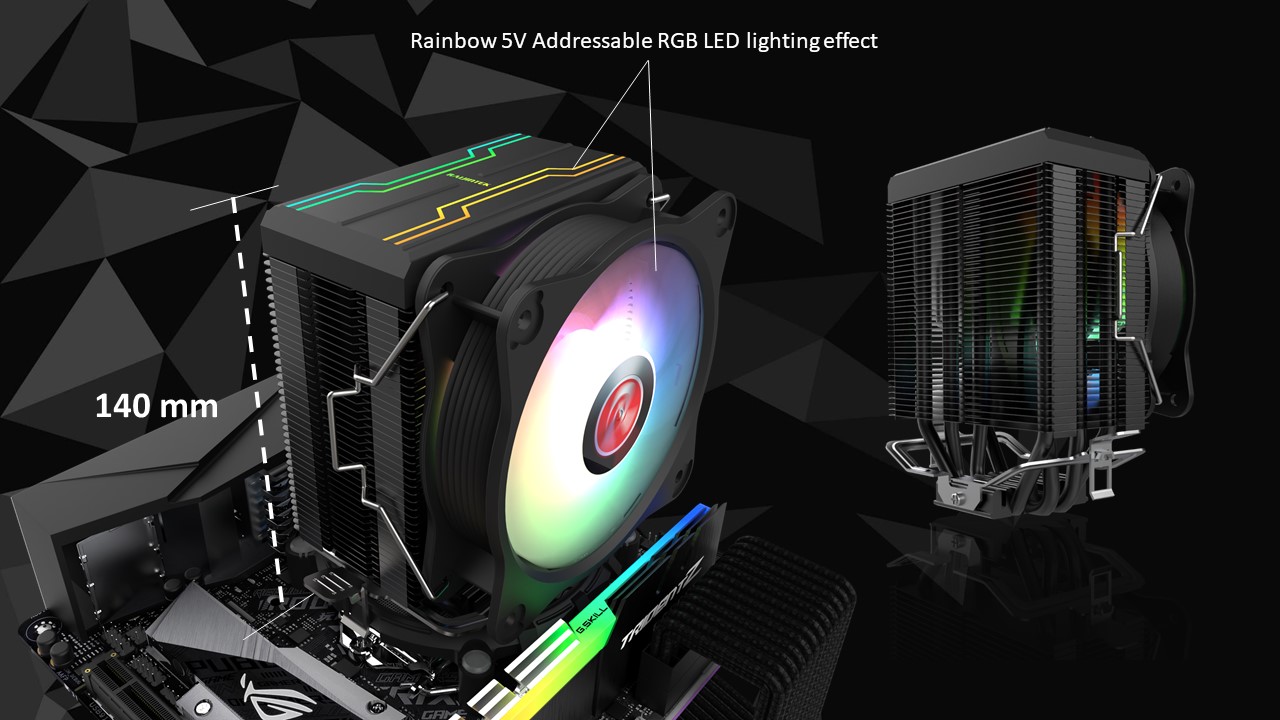

  • Unique gaming style and cool 5v ARGB lighting effects
  • Compatible with all INTEL and AMD products in the market
  • Easy to install and convenient to use
SPECIFICATION
Product Name ELEOS RBW
Product Number 0R10B00213
Dimension [W×D×H] 75×96×140 mm
Weight 580 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 1 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy Black; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 4 pcs
Addressable LED ADD header [Gnd/NA/D/+5V], 2.5 Crimp
LED Q'ty 8 pcs ARGB LED, 5V, 0.6A, 3W
est. TDP 140W
FAN
Dimension [W×H×D] 100×100×25 mm
Voltage Rating 12V
Starting Voltage 5V [Max.]
Speed 800~2000 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 52 CFM [Max.]
Air Pressure 1.9 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22.95 dBA [Max.]
Connector PWM 4 pin, 5V ADD 4 pin
Rated Current 0.26A ±10%
APPLICATION
Intel® Alle Sockel LGA 775 / 115x / 1200 / 1366 / 201x / 2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® Alle AM5 / AM4 / AM3+ / AM3 CPU
  • ELEOS RBW Installation Guide  [ 5.47 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.


ELEOS RBW × 1
Back Plate

Intel Bracket × 1
Crossbar
Intek Push-pin A × 4
Crossbar
Intek Push-pin B × 4

Installation Guide × 1
Package

Package × 1
