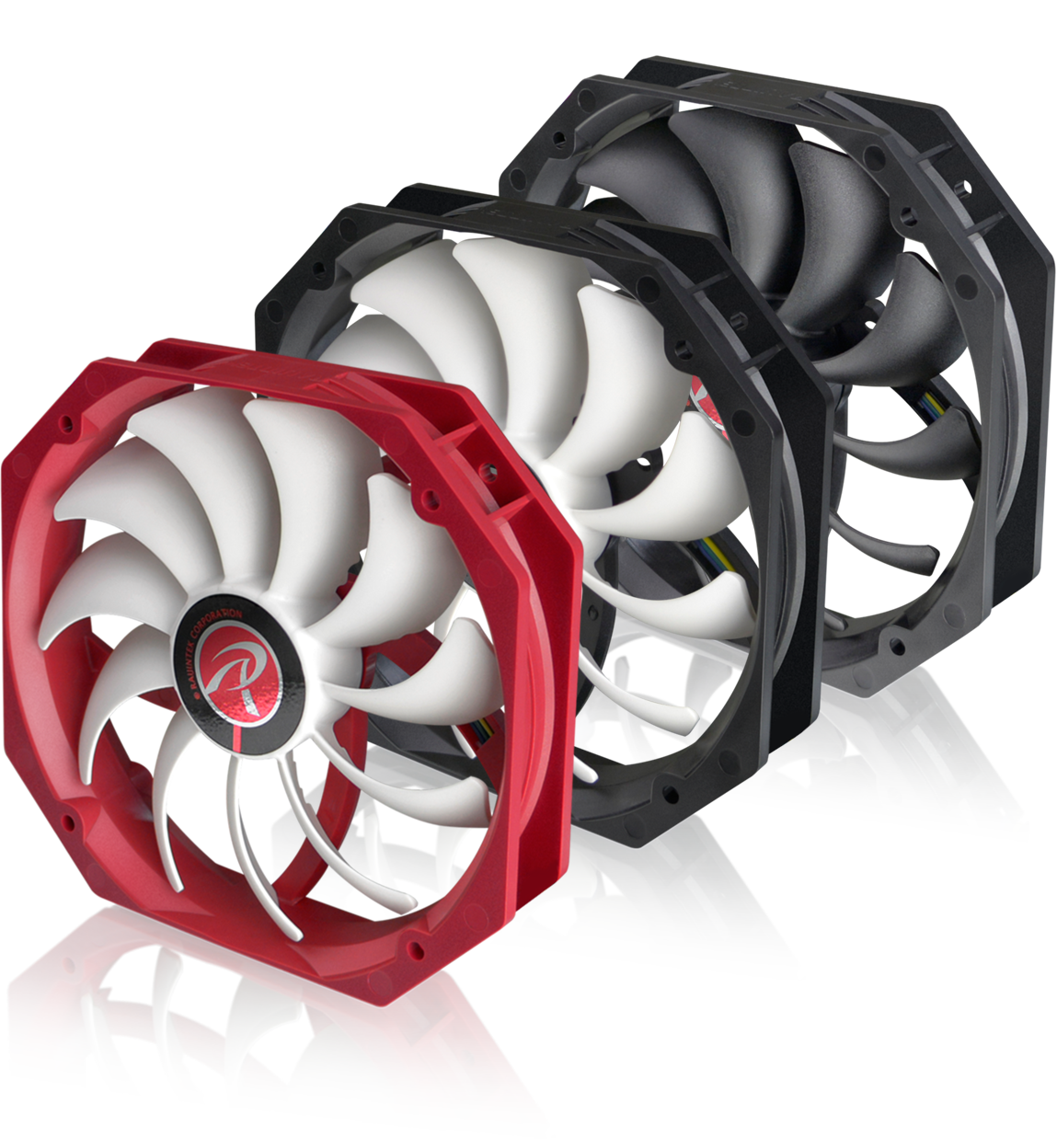

Boreas α

BOREAS α is a new trend design fan, Aero frame design to provide more centered and concentrated airflow, combination with Special 11 blades design to provide efficient airflow. BOREAS α is developed by new trend technology with outstanding airflow, excellent static pressure and outstanding silence. Due to the great combination of technology and elegant design, BOREAS α is a good cooling partner in your device.

  • Special 11 blades design to provide efficient airflow
  • Aero frame design to provide more centered and concentrated airflow
  • Silent advantage from less friction around edges and New IC
  • Solid frame to provide a stable housing
  • Black mesh cable and black connector
  • PWM function
  • Outstanding silent
SPECIFICATION
Product Name Boreas α
Product Number 0R400009~0R400011
Dimension [WxHxD] 140x150x25 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 600~1000 R.P.M. [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 70.2 CFM [Max.]
Air Pressure 0.9 mmH2O [Max.]
Life Expectance 50,000 hrs
Noise Level 23.0 dBA
Connector 4 pin with PWM
Weight 160 g
APPLICATION
All Chassis
All 140mm Coolers

14025 PWM Fan X 1

Anti-vibration Rubber X 4

Screw X 4

Package X 1
