AIDOS II

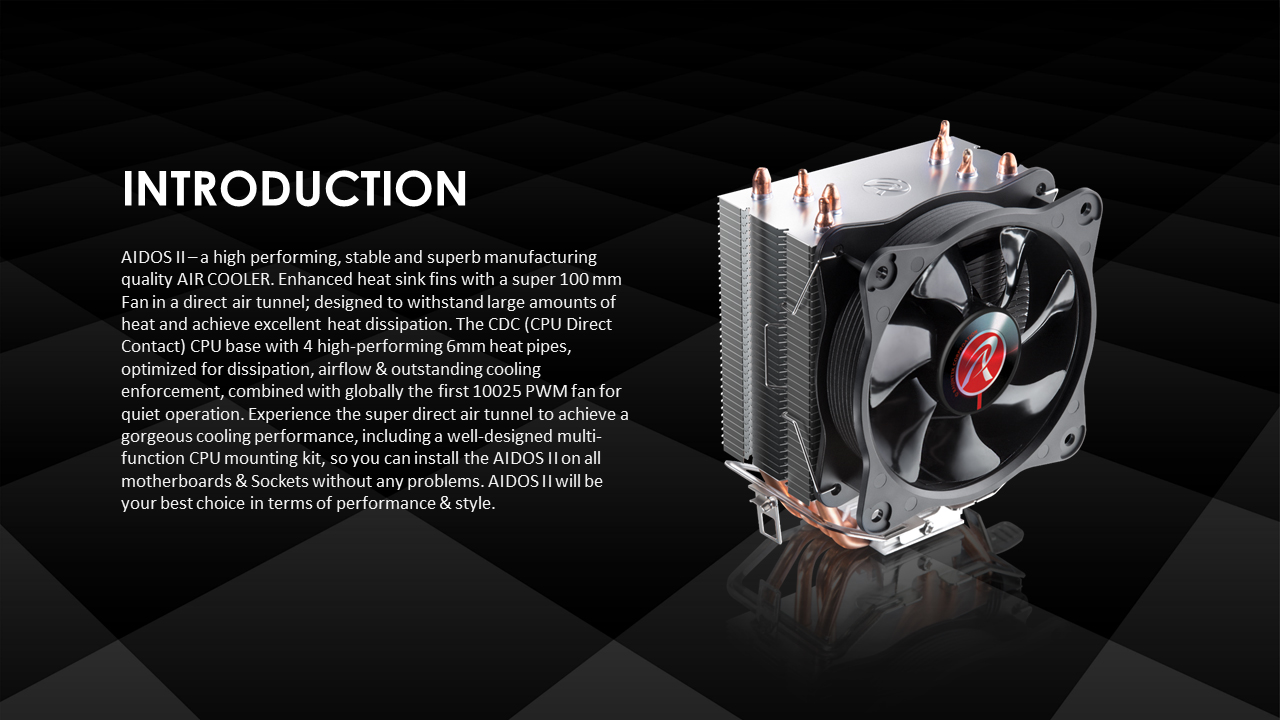

AIDOS II – a high performing, stable and superb manufacturing quality AIR COOLER. Enhanced heat sink fins with a super 100 mm Fan in a direct air tunnel; designed to withstand large amounts of heat and achieve excellent heat dissipation. The CDC (CPU Direct Contact) CPU base with 4 high-performing 6mm heat pipes, optimized for dissipation, airflow & outstanding cooling enforcement, combined with globally the first 10025 PWM fan for quiet operation. Experience the super direct air tunnel to achieve a gorgeous cooling performance, including a well-designed multi-function CPU mounting kit, so you can install the AIDOS II on all motherboards & Sockets without any problems. AIDOS II will be your best choice in terms of performance & style.

AIDOS II






  •

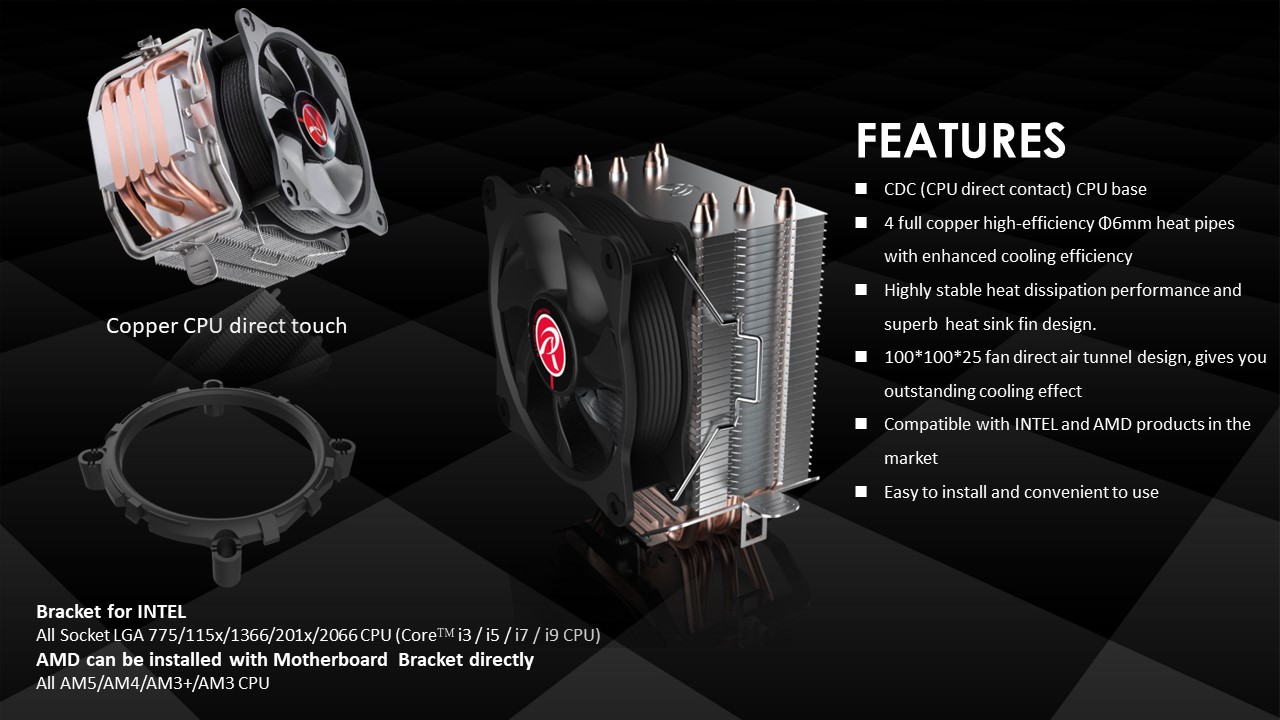

  • CDC (CPU direct contact) CPU base
  • 4 full copper high-efficiency Φ6mm heat pipes with enhanced cooling efficiency
  • Highly stable heat dissipation performance and superb heat sink fin design
  • 100×100×25 fan direct air tunnel design, gives you outstanding cooling effect
  • Compatible with INTEL and AMD products in the market
  • Easy to install and convenient to use
SPECIFICATION
Product Name AIDOS II
Product Number 0R10B00219

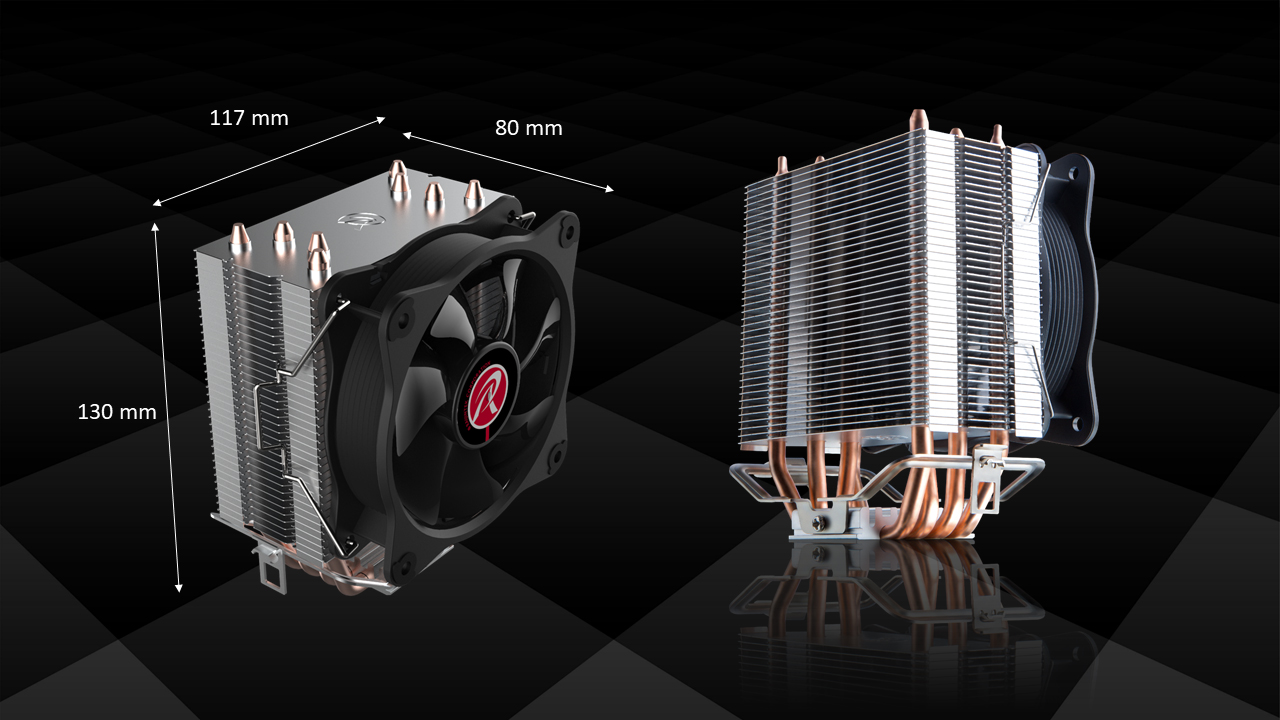

Dimension [W×D×H] 117×80×130 mm
Weight 390 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 1 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 4 pcs
est. TDP 140W

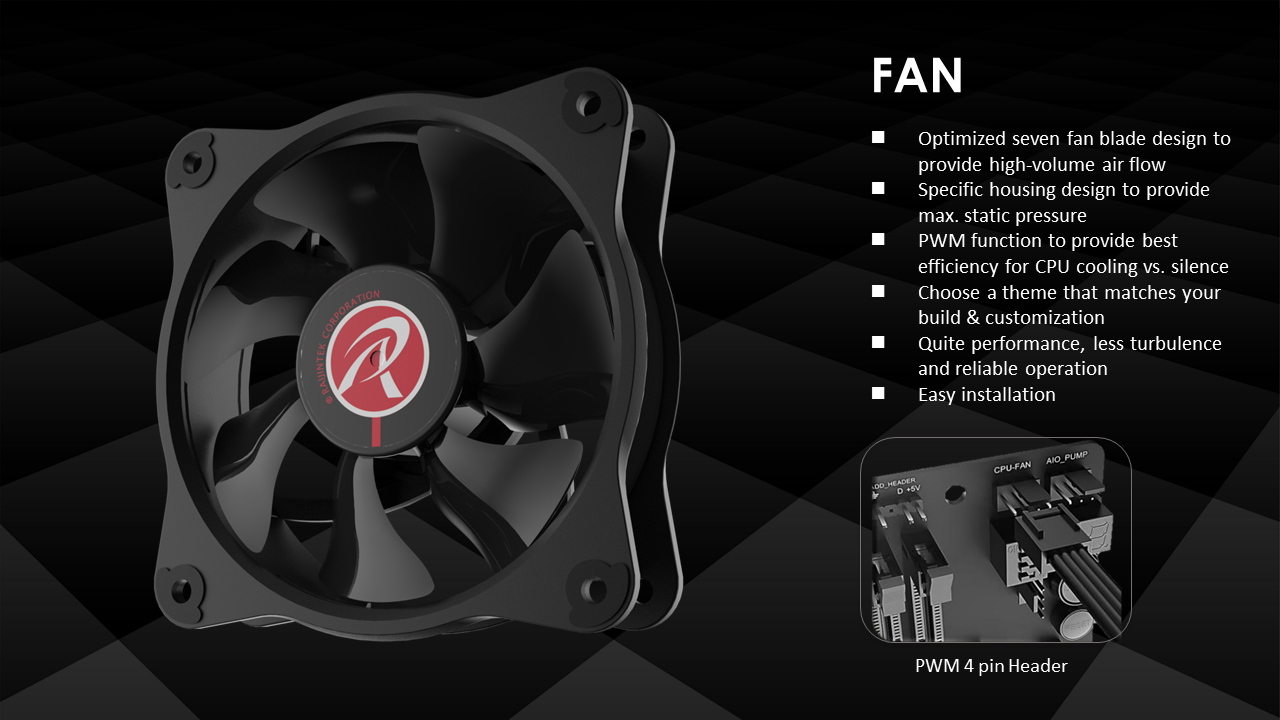

FAN
Dimension [W×H×D] 100×100×25 mm
Voltage Rating 12V
Starting Voltage 5V [Max.]
Speed 800~2000 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 52 CFM [Max.]
Air Pressure 1.9 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22.9 dBA [Max.]
Connector PWM 4 pin header
APPLICATION
Intel® All Socket LGA 115x / 1200 / 1366 / 201x / 2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU

AIDOS II × 1
Back Plate

Bracket × 1
Crossbar
Pushpin-male × 4
Crossbar
Pushpin-female × 4

Thermal Grease × 1

Installation Guide × 1
Package

Package × 1
