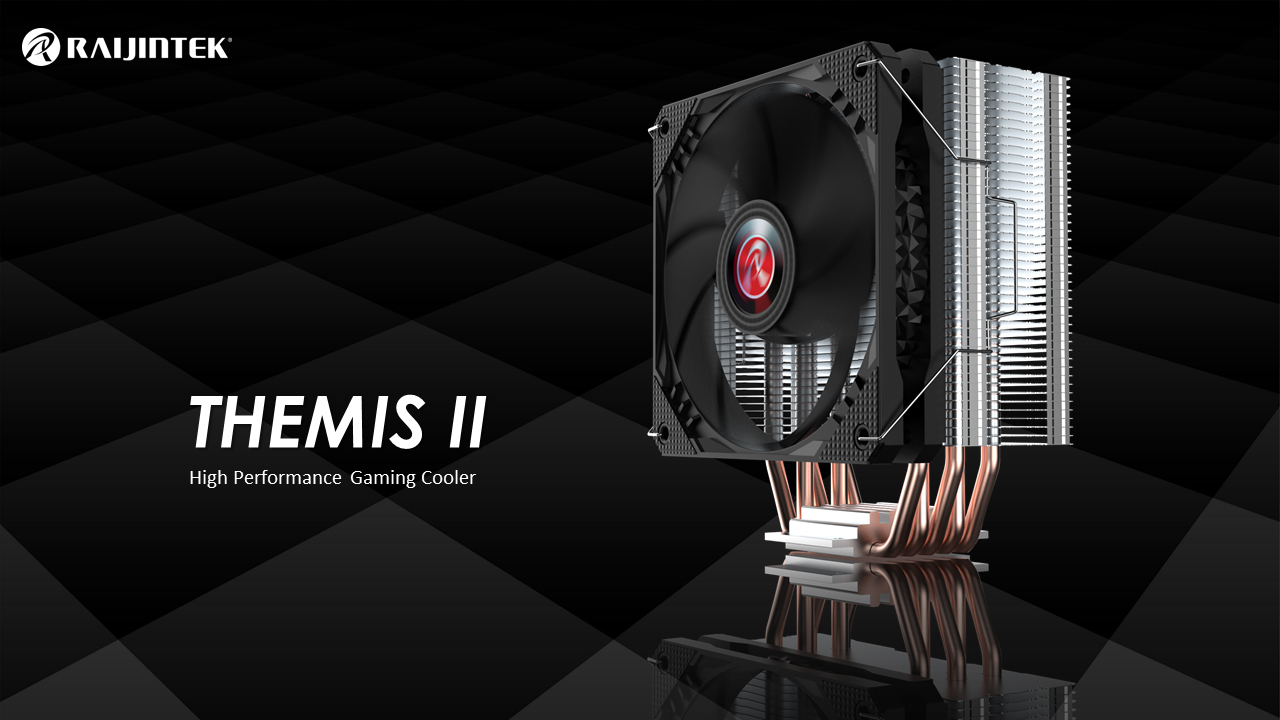

THEMIS II

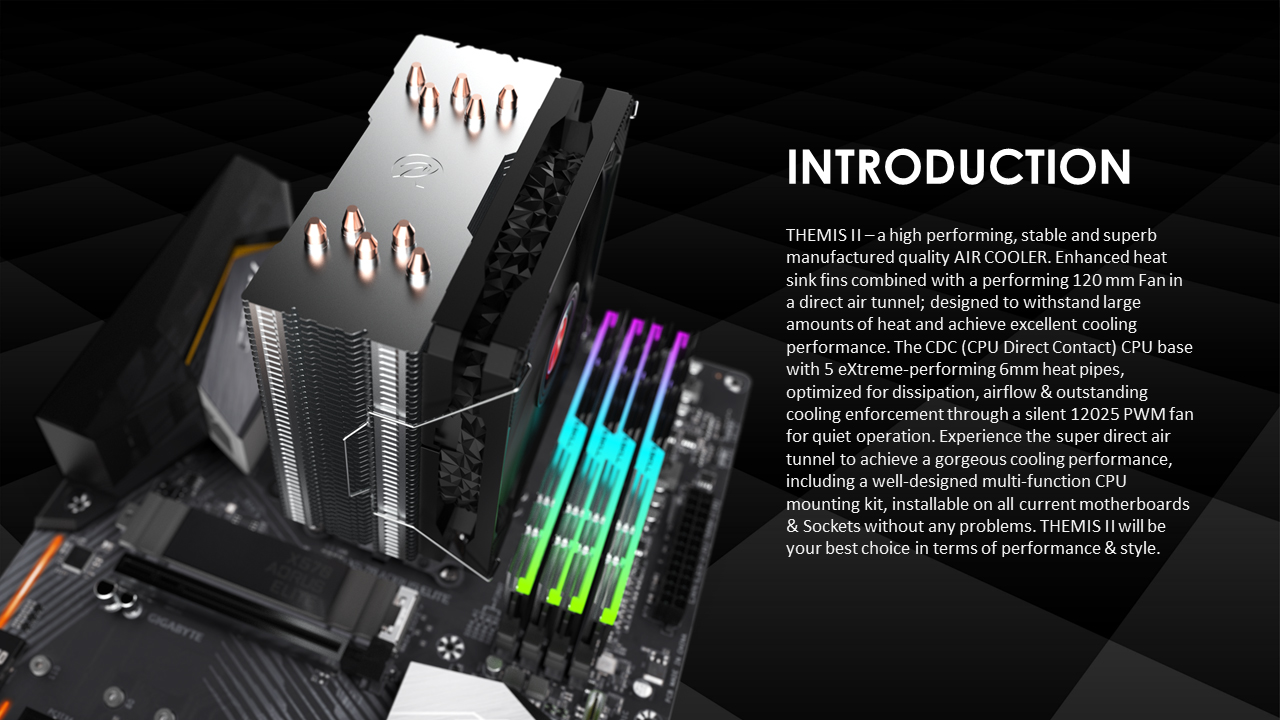

THEMIS II – a high performing, stable and superb manufactured quality AIR COOLER. Enhanced heat sink fins combined with a performing 120 mm Fan in a direct air tunnel; designed to withstand large amounts of heat and achieve excellent cooling performance. The CDC (CPU Direct Contact) CPU base with 5 eXtreme-performing 6mm heat pipes, optimized for dissipation, airflow & outstanding cooling enforcement through a silent 12025 PWM fan for quiet operation. Experience the super direct air tunnel to achieve a gorgeous cooling performance, including a well-designed multi-function CPU mounting kit, installable on all current motherboards & Sockets without any problems. THEMIS II will be your best choice in terms of performance & style.

THEMIS II






  •

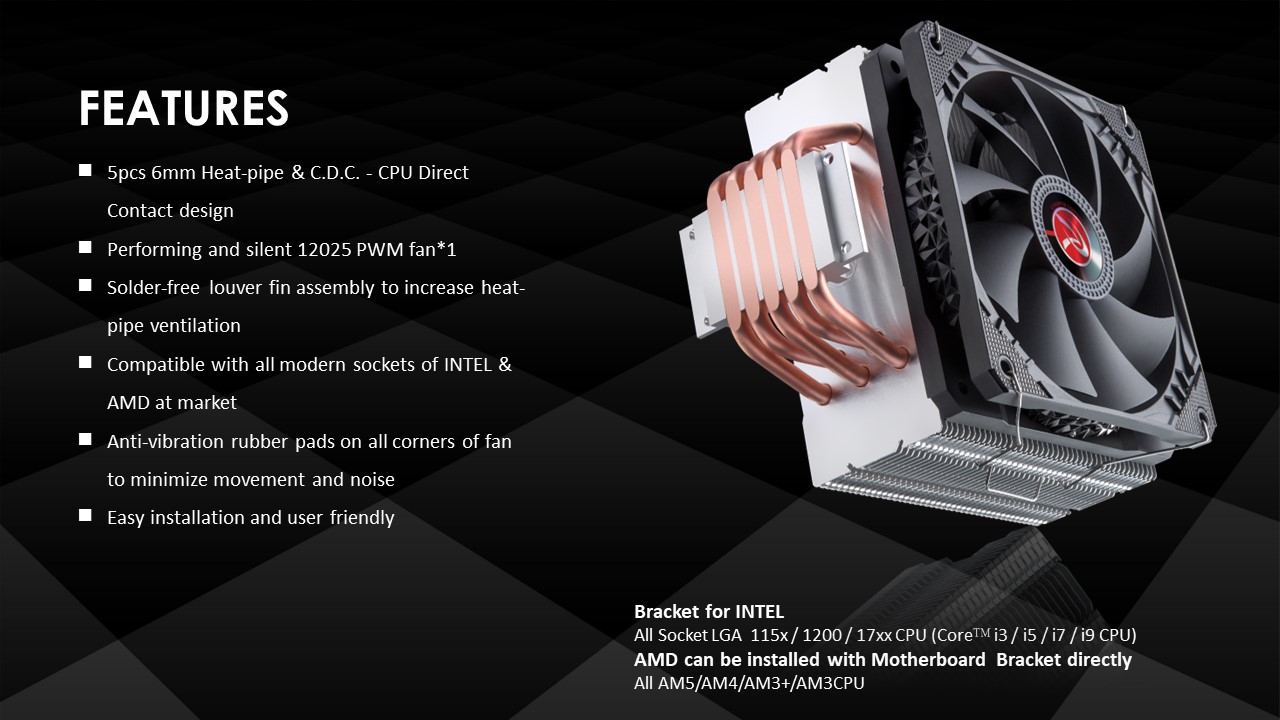

  • 5pcs 6mm Heat-pipe & C.D.C. - CPU Direct Contact design

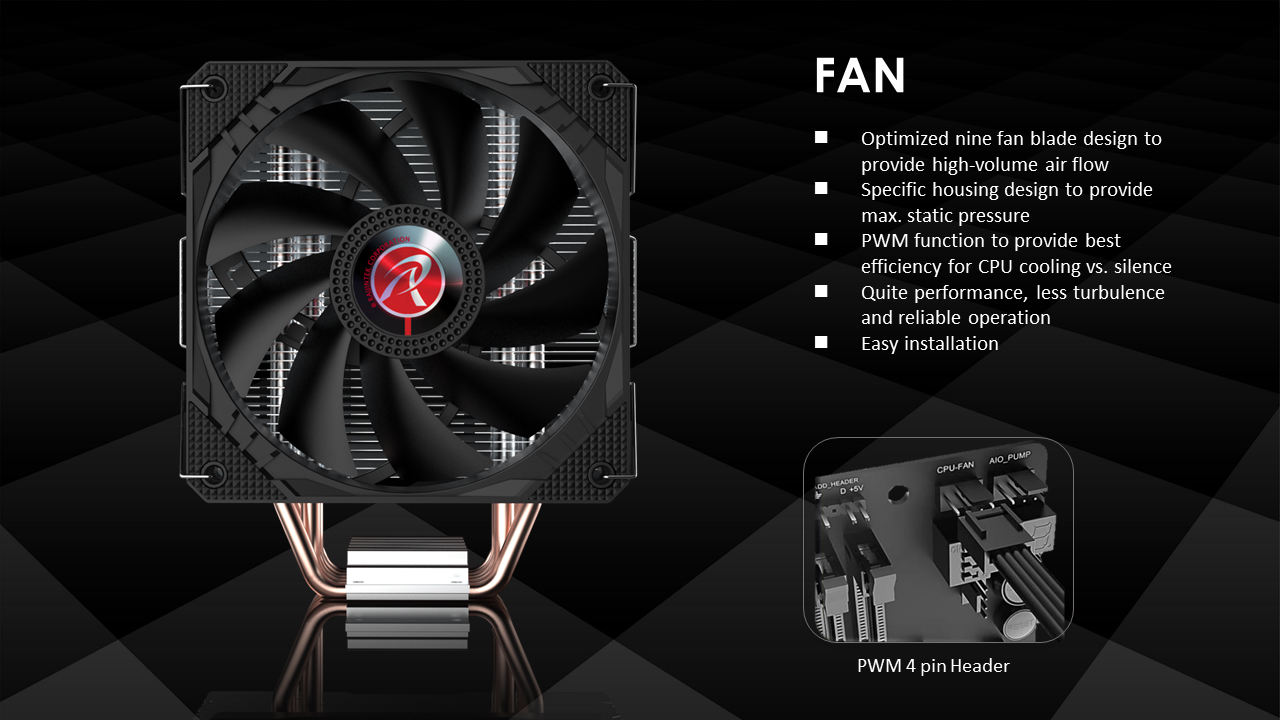

  • Performing and silent 12025 PWM fan × 1
  • Solder-free louver fin assembly to increase heat-pipe ventilation
  • Compatible with all modern sockets of INTEL & AMD at market
  • Anti-vibration rubber pads on all corners of fan to minimize movement and noise
  • Easy installation and user friendly
SPECIFICATION
Product Name THEMIS II
Product Number 0R10B00220

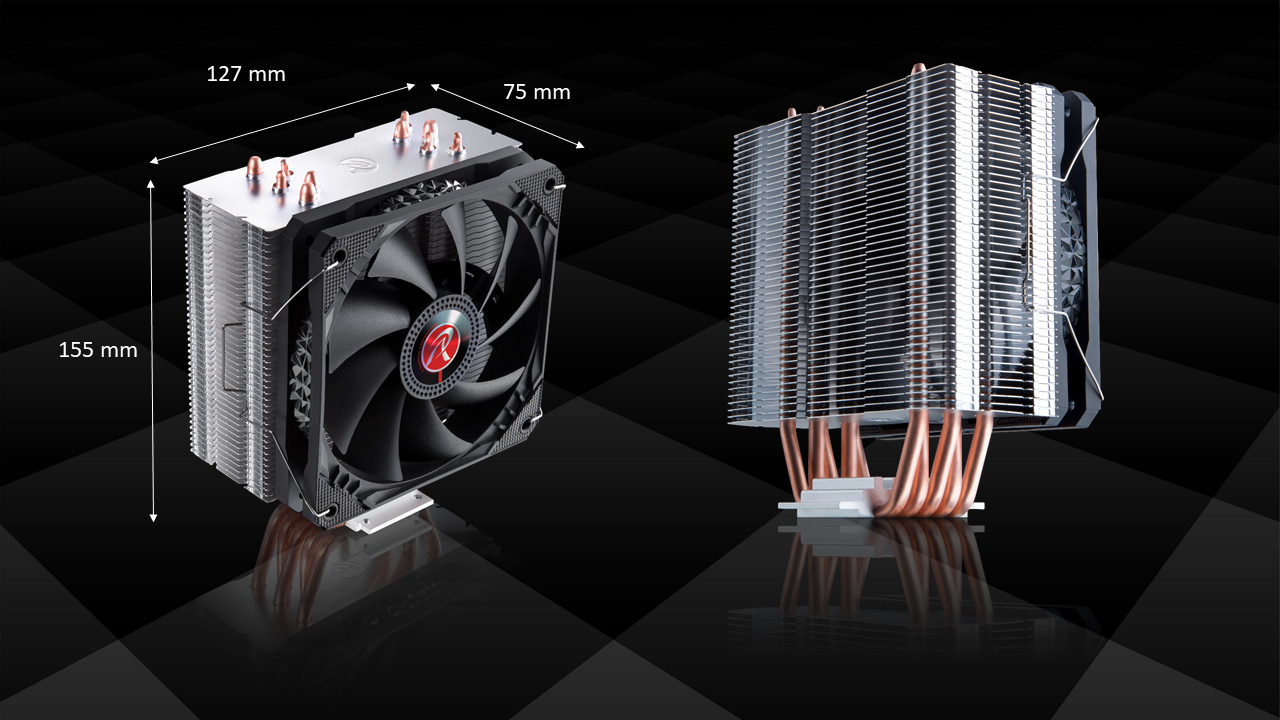

Dimension [W×D×H] 127×75×155 mm
Weight 555 g [Heat Sink & Fan]
Thermal Resistance 0.11 °C/W
Fan Q'ty 1 pcs
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-free fins assembly
Heat-pipe SPEC Φ6mm
Heat-pipe Q'ty 5 pcs
est. TDP 175W
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 5V [Max.]
Speed 800~1600 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 72 CFM [Max.]
Air Pressure 2.16 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 22 dBA [Max.]

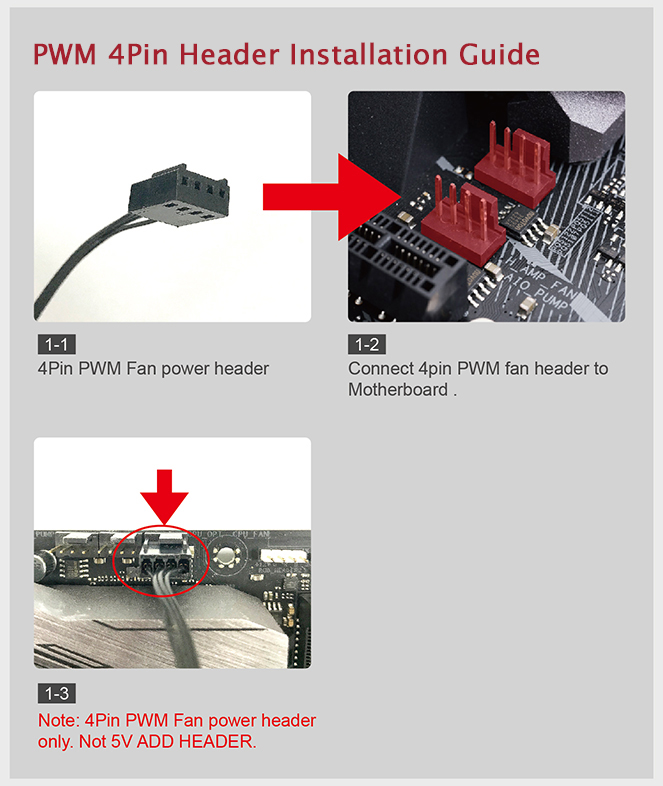

Connector PWM 4 pin header
APPLICATION
Intel® All Socket LGA 115x / 1200 / 17xx CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM5 / AM4 / AM3+ / AM3 CPU

THEMIS II × 1

LGA 1700 Back plate × 1

Intel Back plate × 1

Intel Mounting Clip × 2

AMD Mounting Clip × 2
Crossbar
Screw M3 L5 × 8

Thermal grease × 1

Plastic brush × 1

Installation Guide × 1
Package

Package × 1
