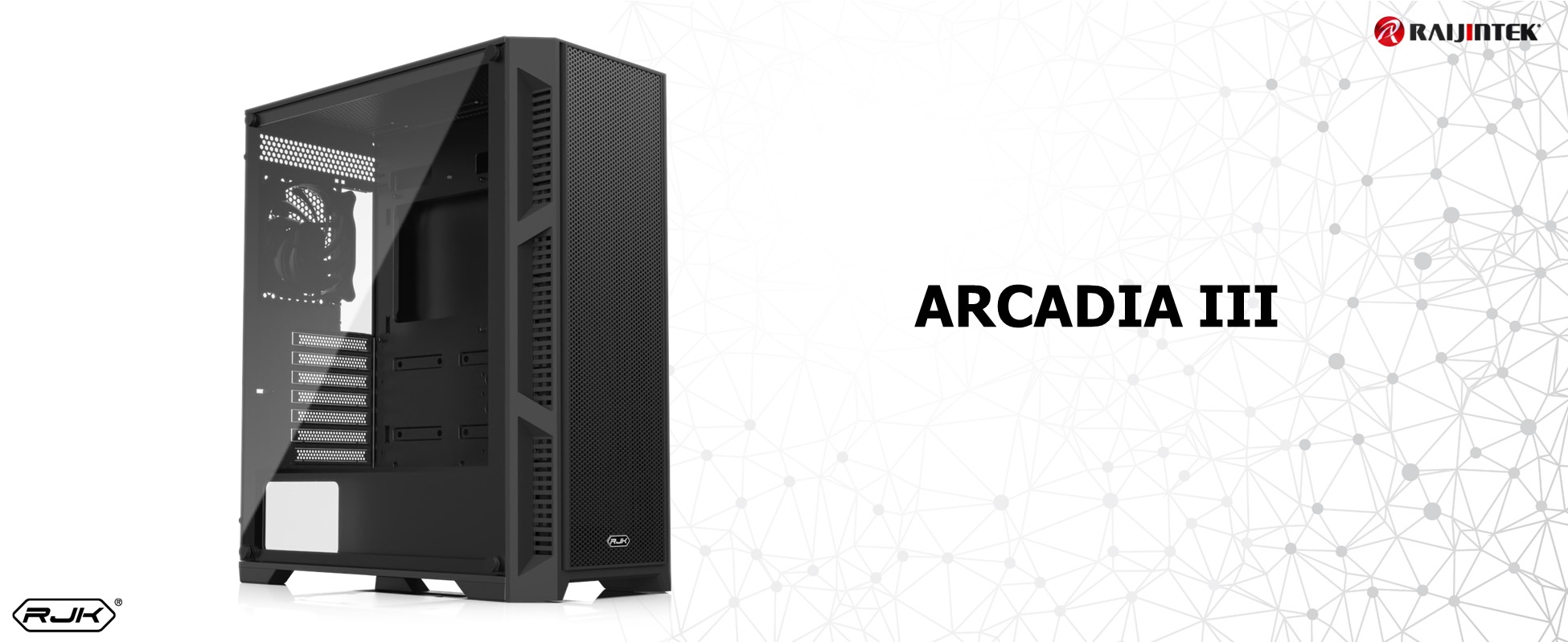

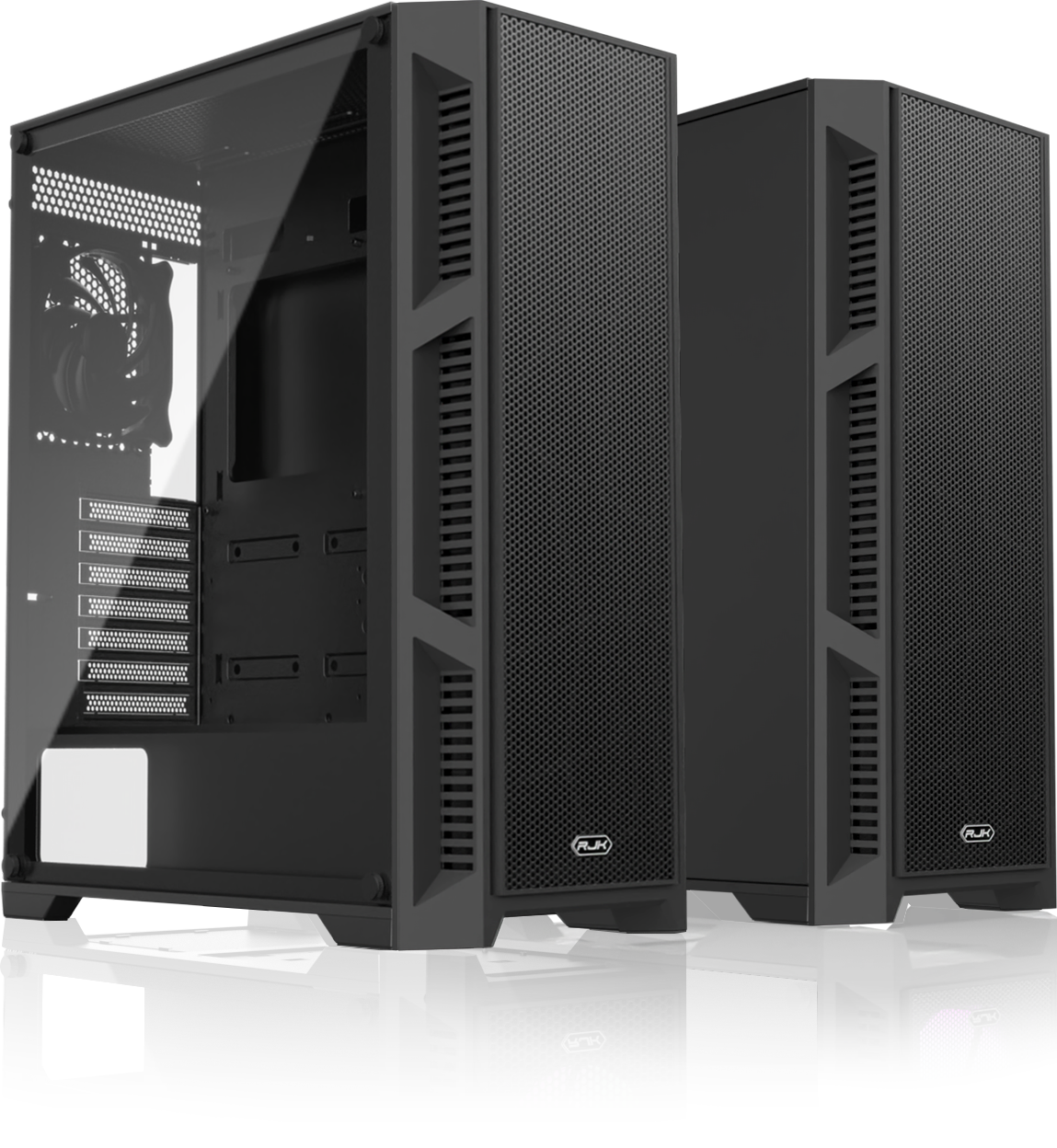

ARCADIA III

Raijintek’s Standard Midi Tower Computer Case, an excellent product that meets the various requirements of modern computer cases. It supports up to 165mm CPU coolers and 360mm AIO liquid coolers, ensuring optimal cooling for computers running at high intensities for long periods of time. Additionally, it supports graphics cards up to 365mm in length and ATX PSUs, allowing you to choose the latest high-end hardware components. With 220mm of cable management space, it's easy to manage cables and maintain hardware. The Raijintek brand's guarantee also ensures quality and reliability. If you're looking for a suitable computer case, the Raijintek Standard Mid Tower Computer Case is a great choice.

ARCADIA III










  •
  • Supports ATX PSU, providing sufficient power supply.
  • CPU cooler support up to 165mm, suitable for most mainstream coolers.
  • Front panel supports AIO water cooling radiator up to 360mm, keeping your computer cool.
  • Top supports up to 280mm water cooling, increasing cooling performance.
  • Supports graphics card length up to 365mm, suitable for most mainstream graphics cards.
  • 220mm PSU cable management space provides sufficient space for your components.
  • High-quality design and manufacturing make your computer look more fashionable and professional.
  • Perfect cooling system keeps your computer in optimal condition.
  • Reasonable internal design makes it easier for you to install and replace components.
SPECIFICATION
Product Name ARCADIA III ARCADIA III - ST
Product Number 0R20B00224 0R20B00231

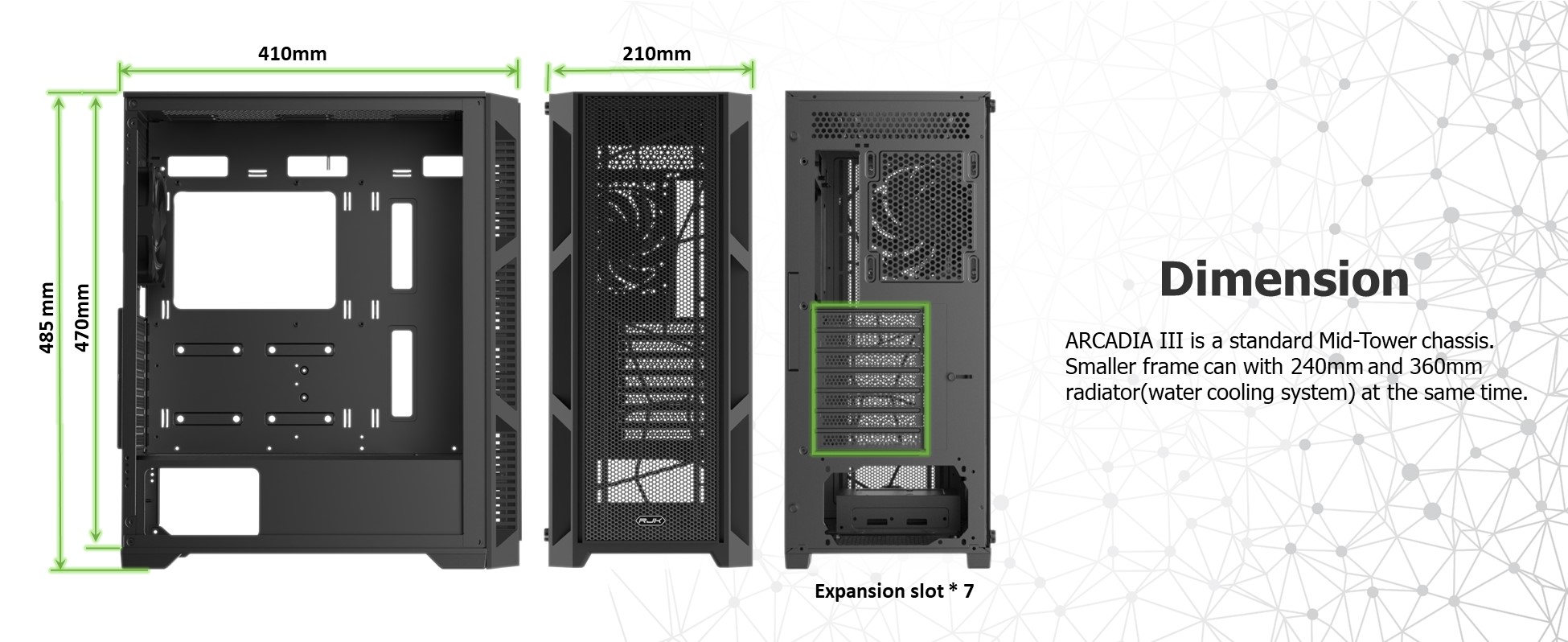

Dimension [W×D×H] 210×410×485 mm 210×410×485 mm
Weight 5.9 kg [N.W.] 4.9 kg [N.W.]
Material SPCC 0.5mm SPCC 0.5mm
Color Coating Black Coating Black

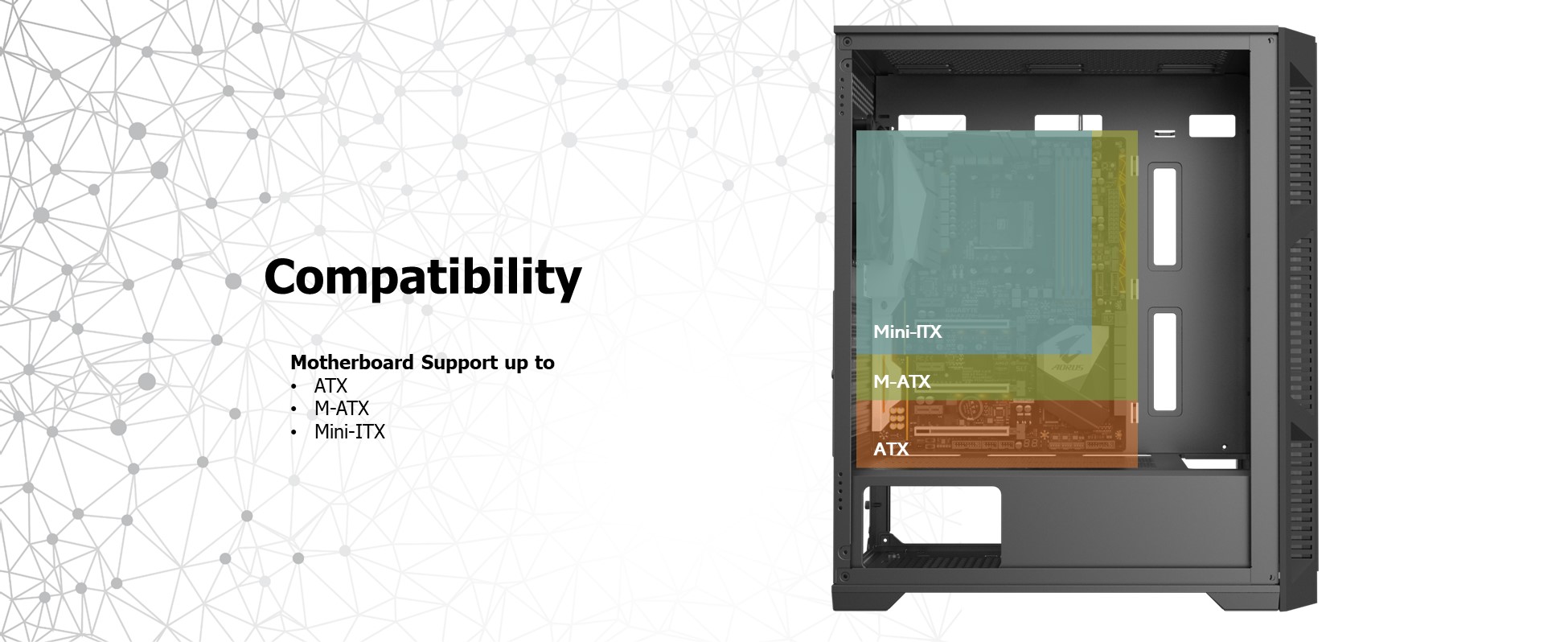

M/B Support ATX; M-ATX; Mini-ITX ATX; M-ATX; Mini-ITX

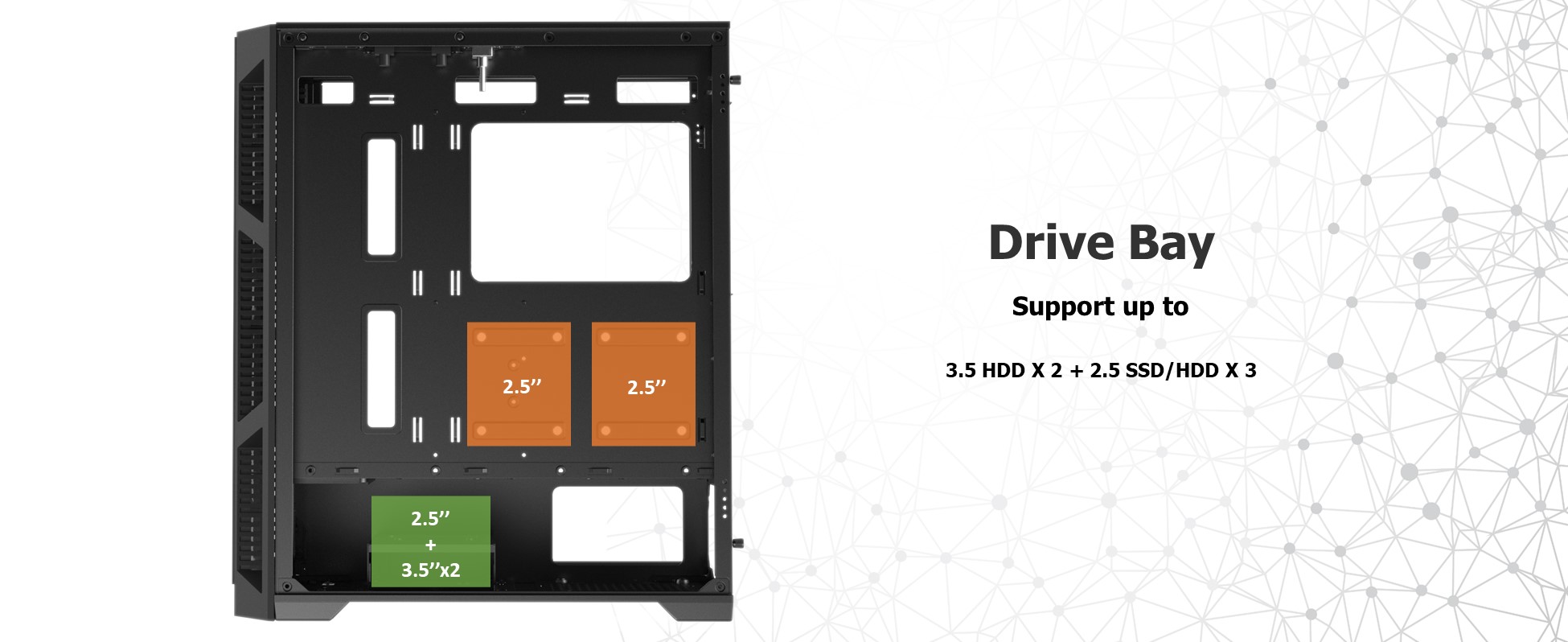

Drive Bay 3.5" × 2 + 2.5" × 3 3.5" × 2 + 2.5" × 3
Expansion Slot PCI Slots ×7 PCI Slots ×7

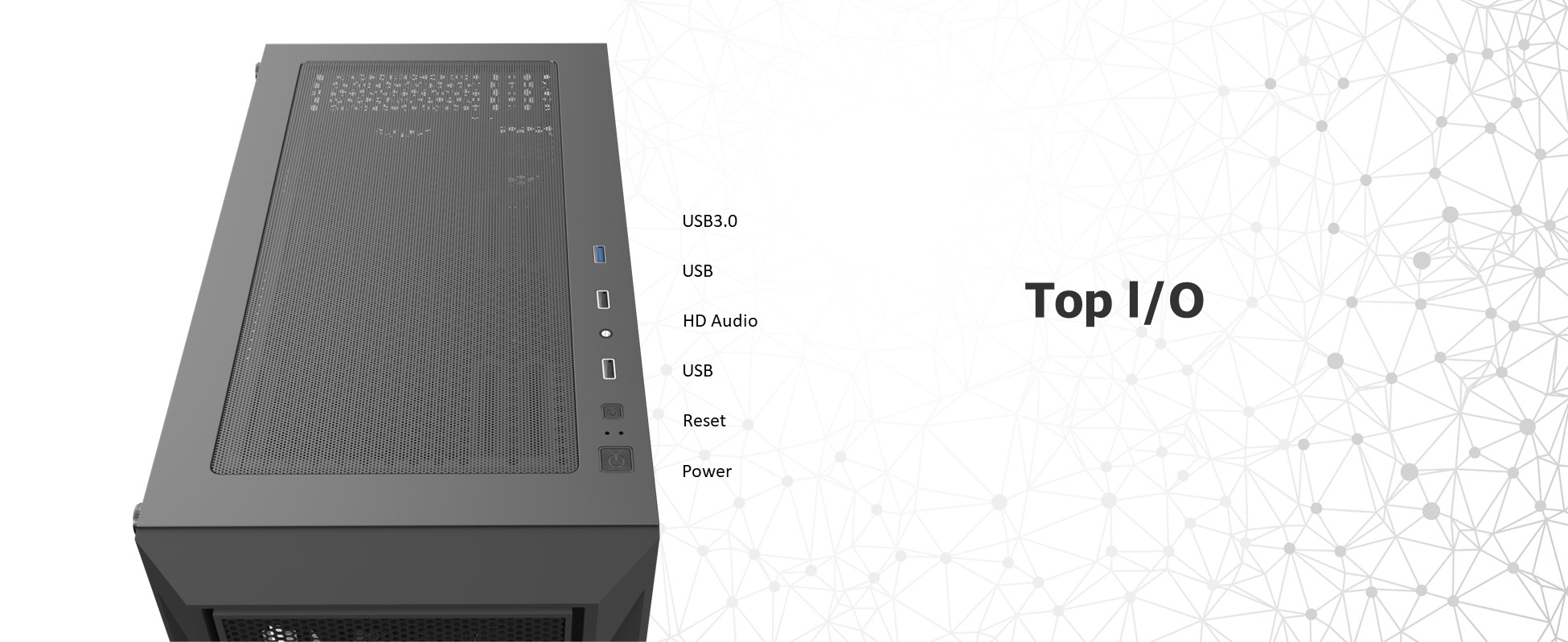

I/O Panel USB3.0×1, USB2.0×2, HD Audio×1 USB3.0×1, USB2.0×2, HD Audio×1

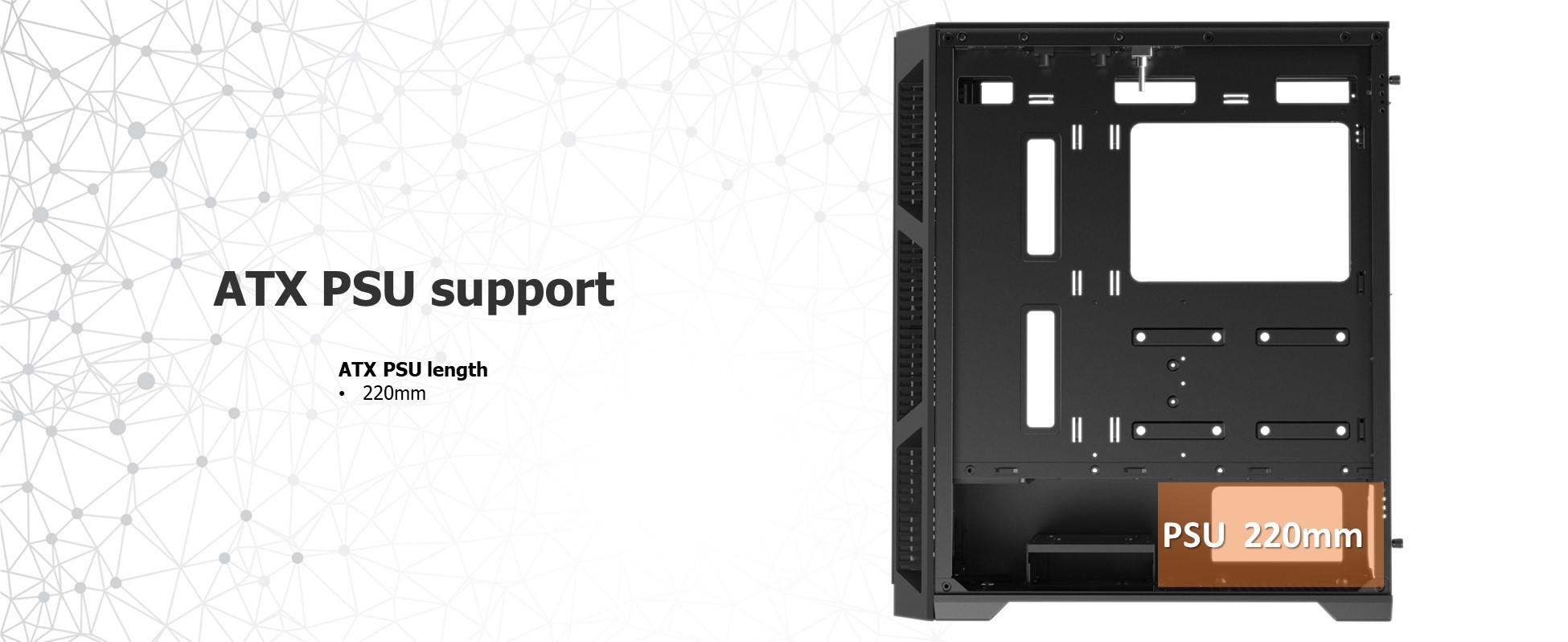

Power Supply ATX PSU [Length: 220mm] ATX PSU [Length: 220mm]
Cooling System Top: 120mm×2 or 140mm×2 [option]
Front: 120mm×3 or 140mm×3 [option]
Rear: 120mm×1 [Pre-installed]
Bottom: 120mm×2 [option]
Top: 120mm×2 or 140mm×2 [option]
Front: 120mm×3 or 140mm×3 [option]
Rear: 120mm×1 [Pre-installed]
Bottom: 120mm×2 [option]

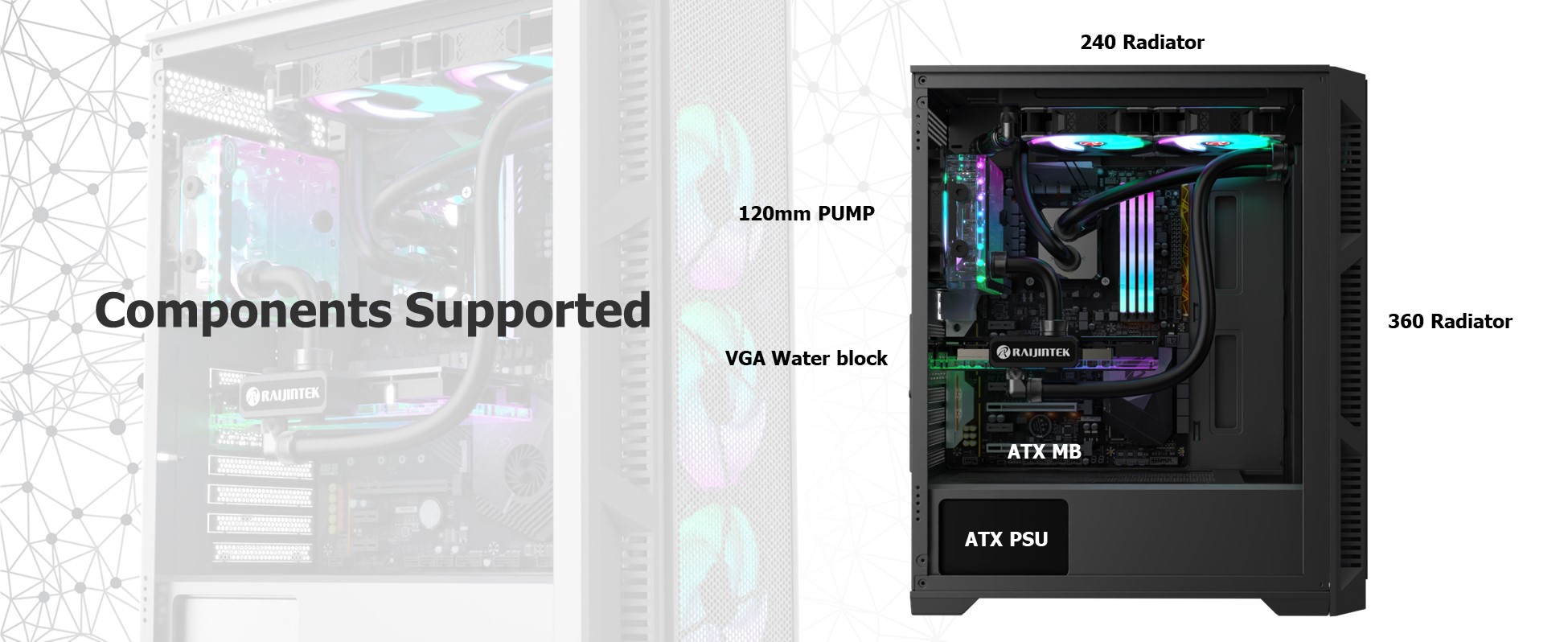

Radiator Q’ty Top: 120/240/280mm Radiator up to 30mm thick [option]
Front: 120/240/280/360mm Radiator up to 30mm thick [option]
Rear: 120mm Radiator up to 30mm thick [option]
Top: 120/240/280mm Radiator up to 30mm thick [option]
Front: 120/240/280/360mm Radiator up to 30mm thick [option]
Rear: 120mm Radiator up to 30mm thick [option]

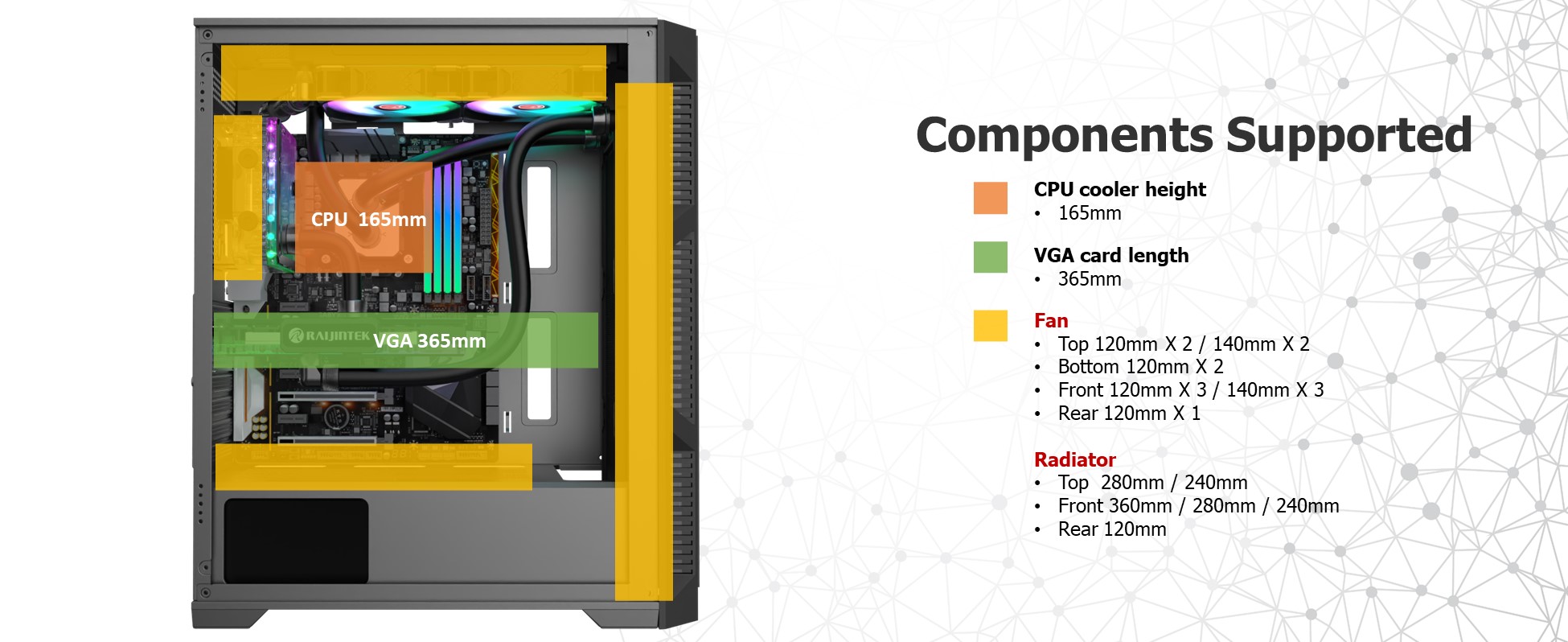

CPU Cooler Height 165mm [Max.] 165mm [Max.]
Graphic Card Length 365mm [Max.] 365mm [Max.]
Side Panel 4.0mm Tempered Glass Steel
Front Panel Mesh Mesh
Pre-installed Fan Q'ty 12025mm rear fan × 1 12025mm rear fan × 1
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 1100±10% R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 43.2 CFM [ft /min]
Air Pressure 1.89 mmH2O [Max.]
Life Expectance 30,000 hrs
Noise Level 19.8 dBA [Max.]
Connector 3 pin header
Rated Current 0.15A±10%MAX
Power Consumption 1.8W±10%MAX
Fan Q'ty 1 pcs

ARCADIA III (ST) × 1

Screw M3 L6.5 × 15
2.5"SSD/MB

Screw #6-32 L6 × 6
PSU

Screw #6-32 L5 × 8
3.5"HDD

Screw M3 L5 × 8


Stand-off × 2
MB

Cable Tie × 5

Installation Guide × 1
