ARCADIA III - MS4

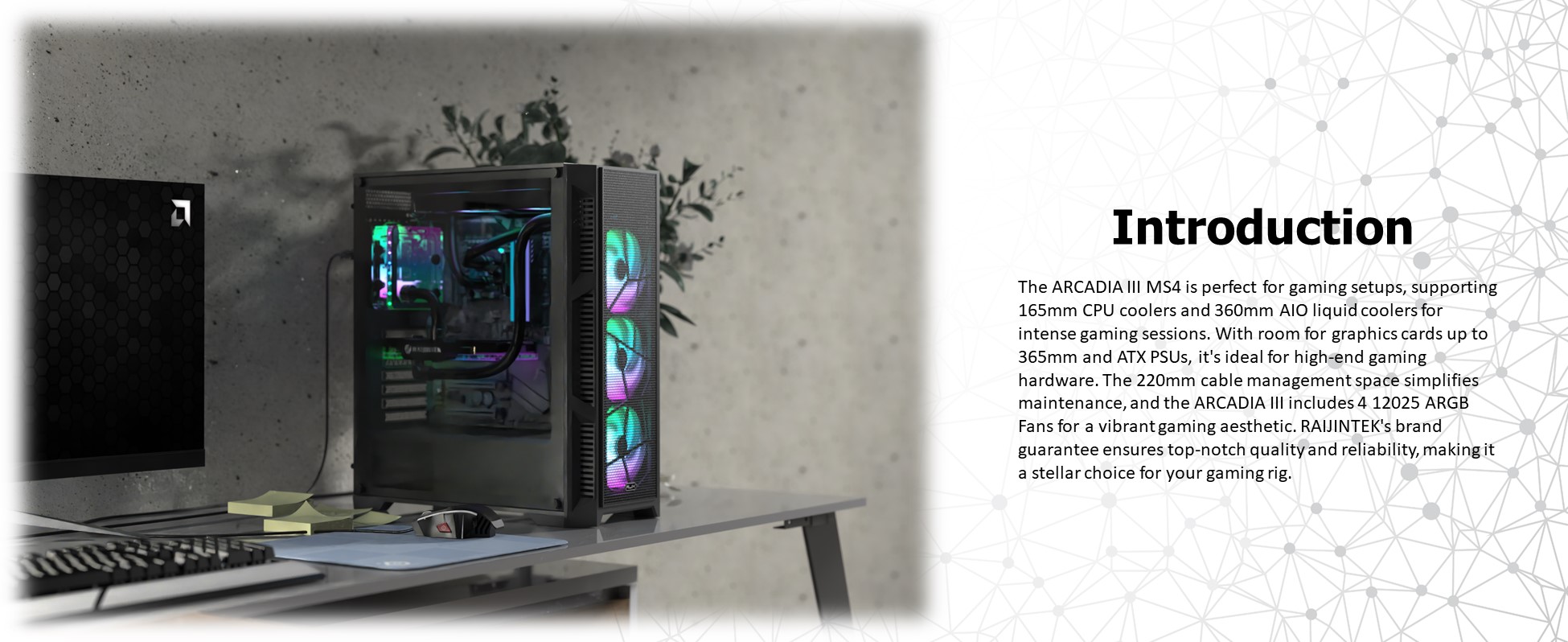

Raijintek’s Standard Midi Tower Computer Case, an excellent product that meets the various requirements of modern computer cases. It supports up to 165mm CPU coolers and 360mm AIO liquid coolers, ensuring optimal cooling for computers running at high intensities for long periods of time. Additionally, it supports graphics cards up to 365mm in length and ATX PSUs, allowing you to choose the latest high-end hardware components. With 220mm of cable management space, it's easy to manage cables and maintain hardware. The Raijintek brand's guarantee also ensures quality and reliability. If you're looking for a suitable computer case, the Raijintek Standard Mid Tower Computer Case is a great choice.

ARCADIA III - MS4












  •
  • 3×12025 ARGB fans pre-installed at front and 1×12025 ARGB fan pre-installed at rear
  • Supports ATX PSU, providing sufficient power supply.
  • CPU cooler support up to 165mm, suitable for most mainstream coolers.
  • Front panel supports AIO water cooling radiator up to 360mm, keeping your computer cool.
  • Top supports up to 280mm water cooling, increasing cooling performance.
  • Supports graphics card length up to 365mm, suitable for most mainstream graphics cards.
  • 220mm PSU cable management space provides sufficient space for your components.
  • High-quality design and manufacturing make your computer look more fashionable and professional.
  • Perfect cooling system keeps your computer in optimal condition.
  • Reasonable internal design makes it easier for you to install and replace components.
SPECIFICATION
Product Name ARCADIA III - MS4
Product Number 0R20B00247

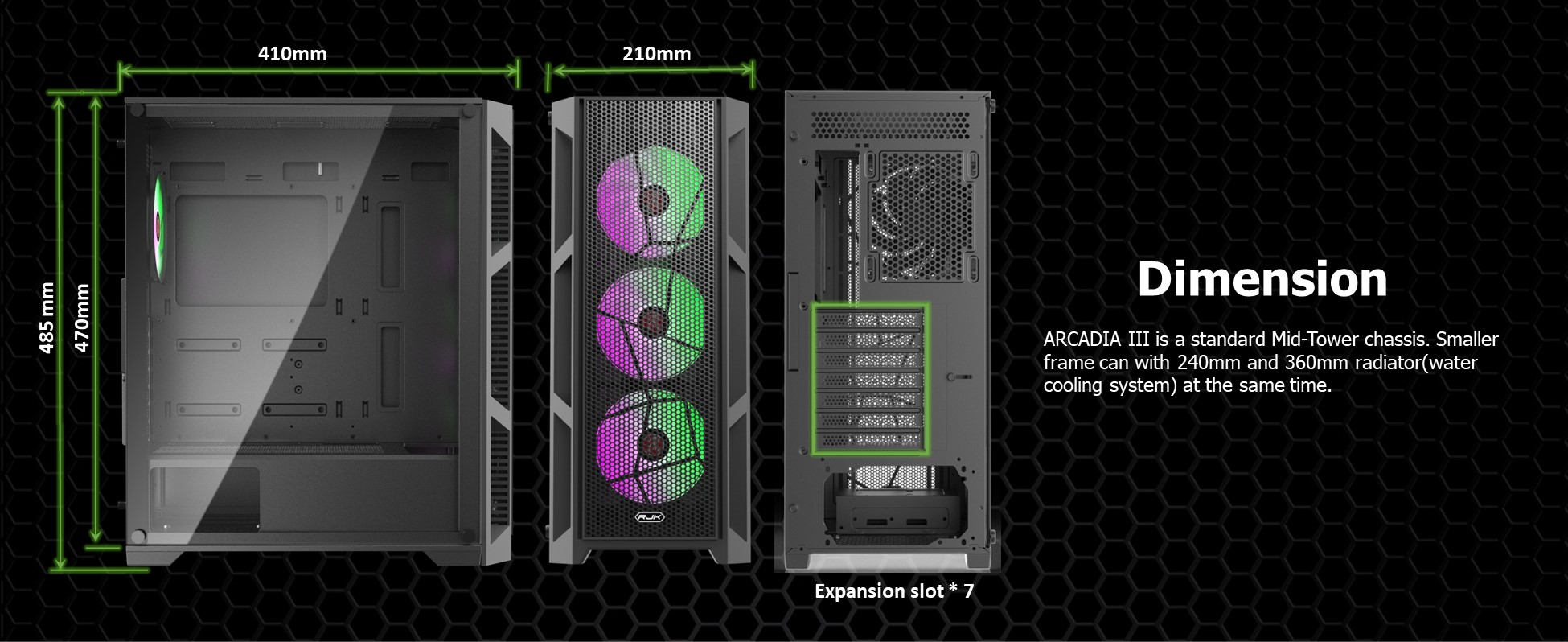

Dimension [W×D×H] 210×410×485 mm
Weight 6.45 kg [N.W.]
Material SPCC 0.5mm
Color Coating Black

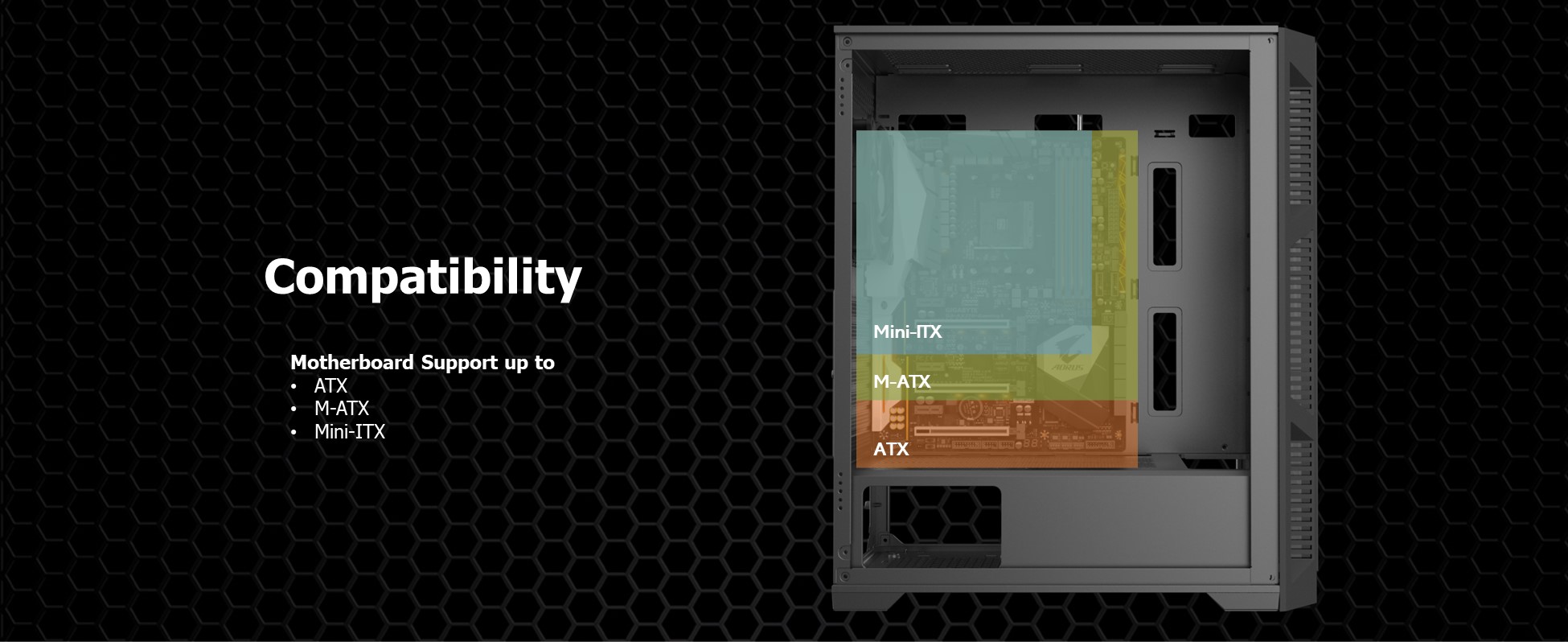

M/B Support ATX; M-ATX; Mini-ITX

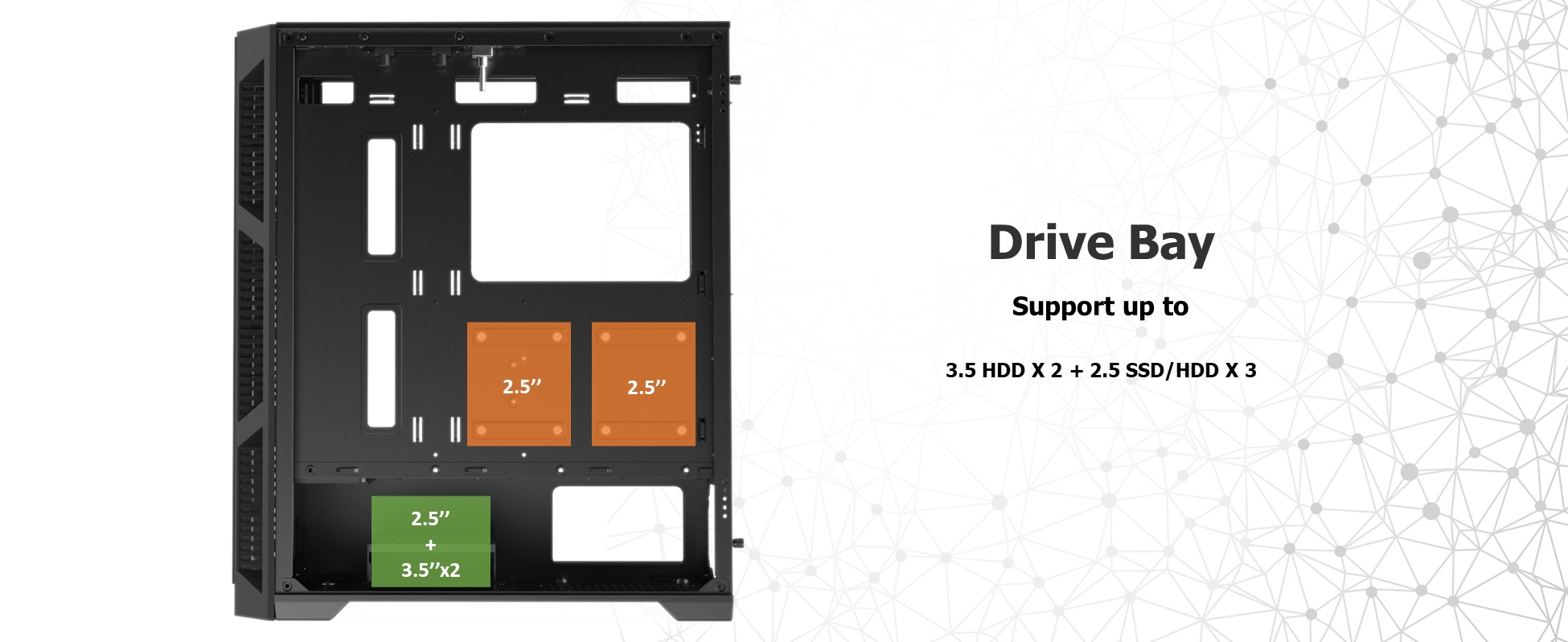

Drive Bay 3.5" × 2 + 2.5" × 3
Expansion Slot PCI Slots ×7

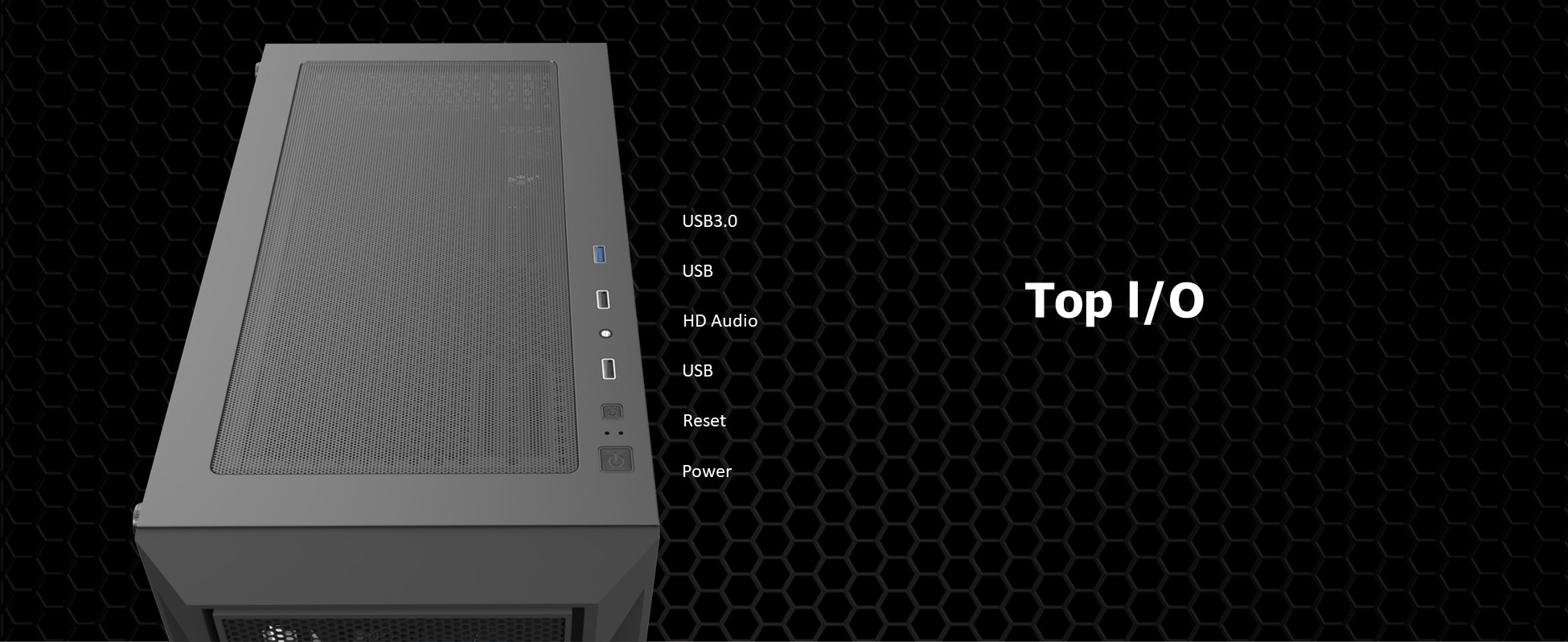

I/O Panel USB3.0×1, USB2.0×2, HD Audio×1

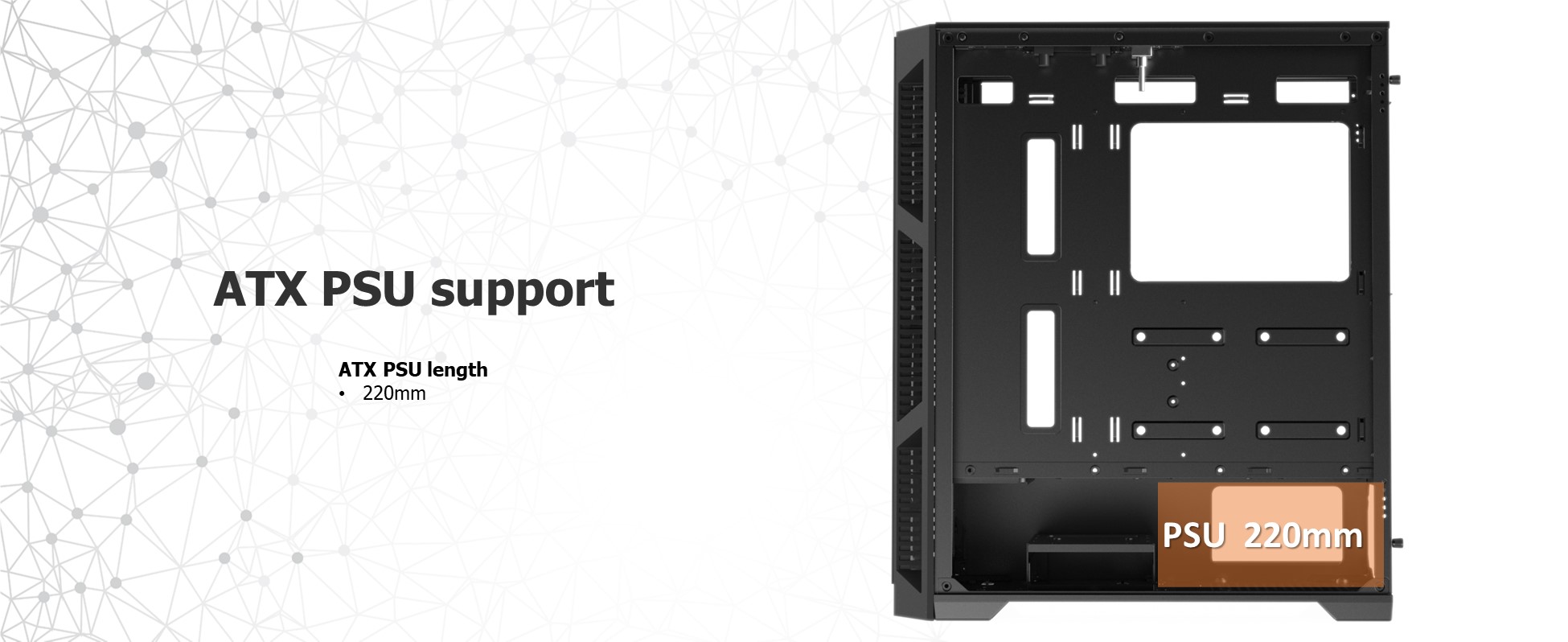

Power Supply ATX PSU [Length: 220mm]

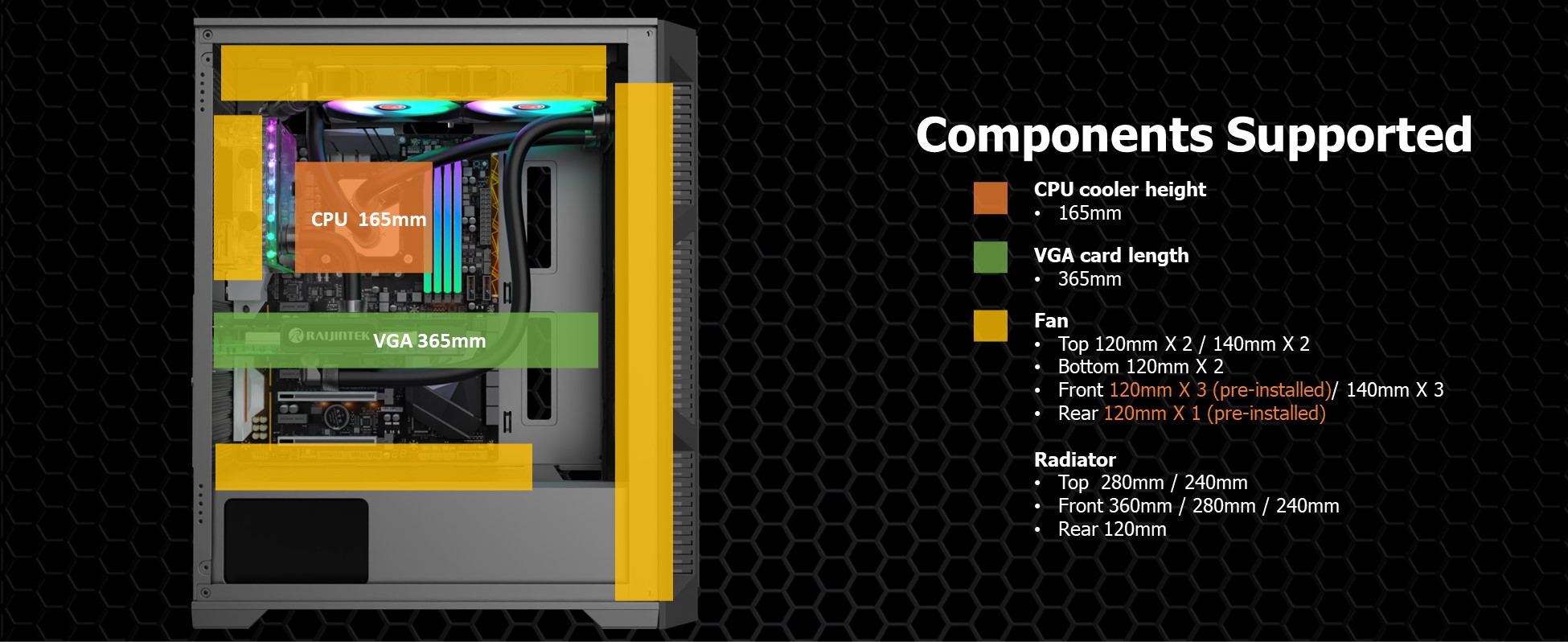

Cooling System Top: 120mm×2 or 140mm×2 [option]
Front: ARGB 120mm×3 [preinstalled] or 140mm×3 [option]
Rear: ARGB 120mm×1 [preinstalled]
Bottom: 120mm×2 [option]

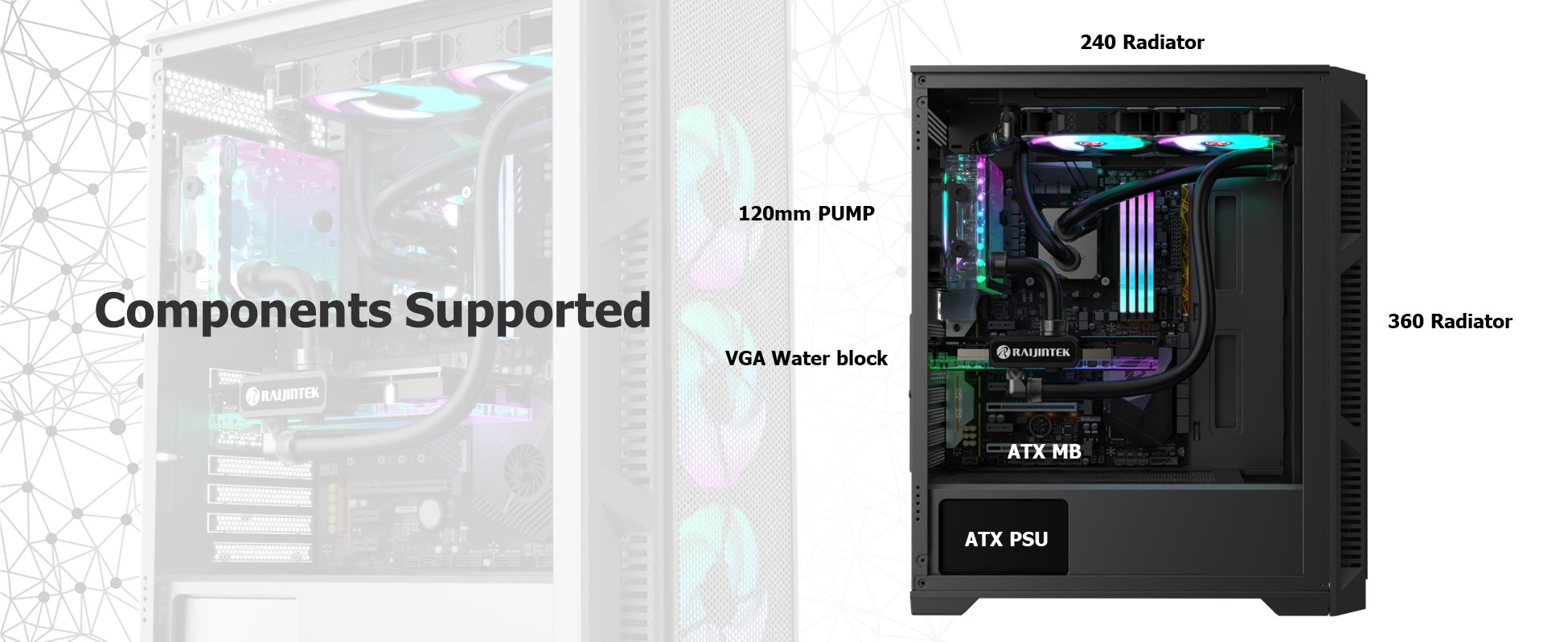

Radiator Q’ty Top: 120/240/280mm Radiator up to 30mm thick [option]
Front: 120/240/280/360mm Radiator up to 30mm thick [option]
Rear: 120mm Radiator up to 30mm thick [option]
CPU Cooler Height 165mm [Max.]
Graphic Card Length 365mm [Max.]
Side Panel 4.0mm Tempered Glass
Front Panel Mesh
Pre-installed Fan Q'ty ARGB 12025mm fan × 4
ARCADIA III - MS4 12025 ARGB FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 1100 ±10% R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 41.3 CFM [Max.]
Air Pressure 0.98 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 18.5 dBA [Max.]
Connector 3 pin; 5V ADD 4 pin header
LED Rated Current 0.12A ±0.02A
Power Consumption 1.44W
Fan Q'ty 4 pcs

ARCADIA III - MS4 × 1

Screw M3 L6.5 × 15
2.5"SSD/MB

Screw #6-32 L6 × 6
PSU

Screw #6-32 L5 × 8
3.5"HDD

Screw M3 L5 × 8


Stand-off × 2
MB

Cable Tie × 5

Installation Guide × 1
