AIDOS

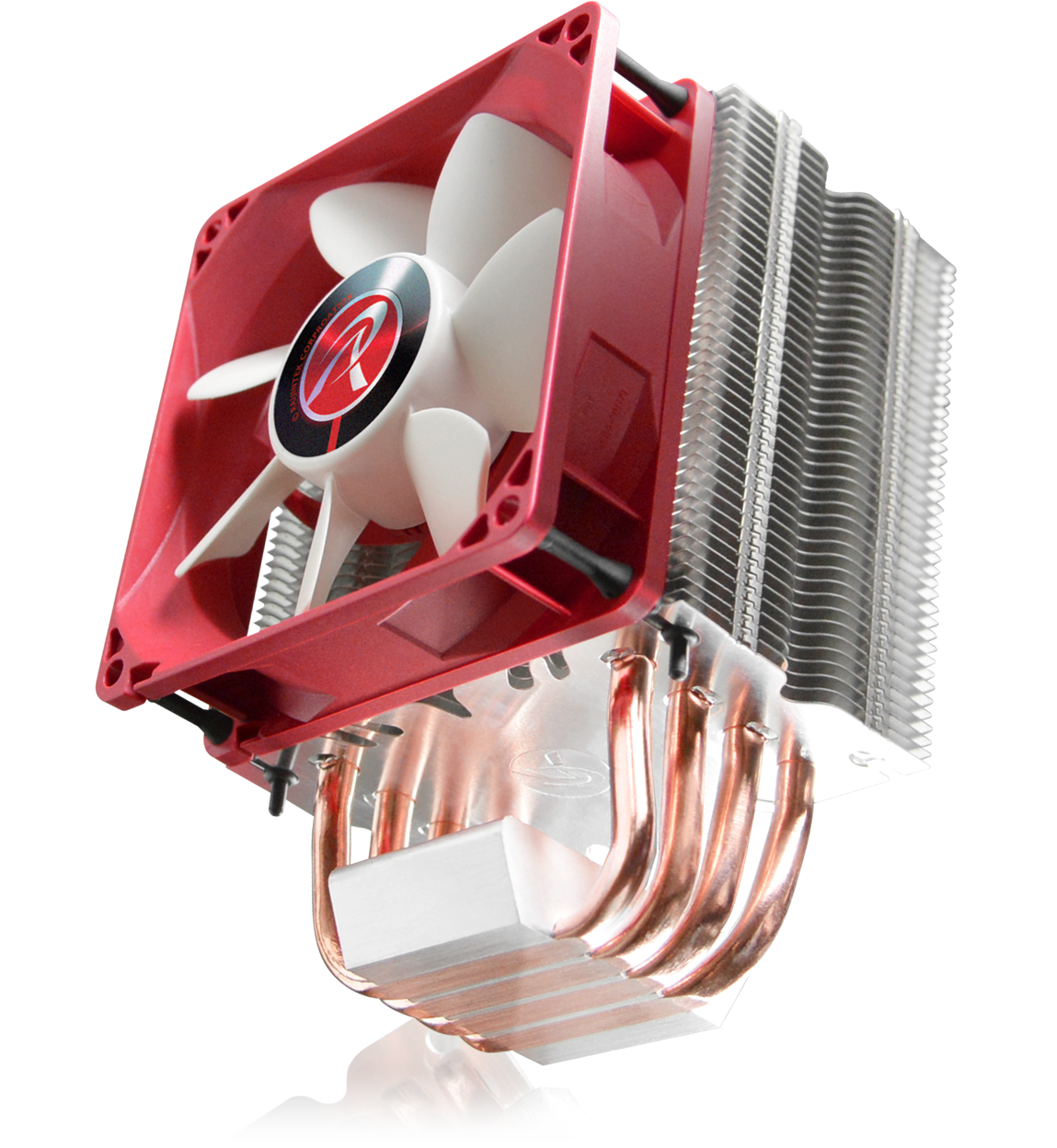

AIDOS "Designed in Germany", is a compact size cooler manufactured by several patents to reach advanced performance, quality and environmental protection. With multiple mounting kits and compact size, AIDOS can fit to most cases/boards, a full package and at a budget price point.

AIDOS
  • Non-Copper base design (C.D.C. - CPU Direct Contact)
  • Patented pressing heat-pipe/fin technology to prevent the risk of heat-pipe damage
  • Patented solder-less louver fin assembly to increase heat-pipe ventilation
  • Green & environmentally friendly with less pollution
  • Compatible with all modern sockets of Intel & AMD at market
  • Anti-Vibration rubber used to minimize movement and noise
  • Incredible performance for price
  • Easy installation and user friendly
SPECIFICATION
Product Name AIDOS / AIDOS BLACK
Product Number 0P105246 [0R10A00077] / 0R100009 [0R10A00009]
Dimension [W×D×H] 95×55×136 mm
Weight 325 g [Heat Sink Only]
Thermal Resistance 0.127 °C/W
Heat Sink
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-less fins assembly
Heat-pipe
SPEC Φ6mm
Q'ty 4 pcs
Fan
Dimension [W×H×D] 92×92×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 1000~2200 RPM [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 22.1~48.6 CFM
Air Pressure 0.73~3.53 mmH2O
Life Expectance 40,000 hrs
Noise Level 28.87 dBA [Max.]
Connector 4 pin with PWM
est. TDP 130W
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 CPU
  • AIDOS Installation Guide  [ 7.45 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink X 1

9225 PWM Fan X 1

Back Plate X 1

Crossbar X 1

Intel Mounting Clip X 2

AMD Mounting Clip X 2

Fan Clip X 2

Anti-vibration Rubber X 5

LGA2011 Screw X 4

Knurled Threaded Screw X 4

M3 Screw X 2

Metal Nut X 4

Plastic Nut X 4

Thermal Grease X 1

Installation Guide X 1

Package X 1
