RAIJINTEK

PAEAN C7 TG4

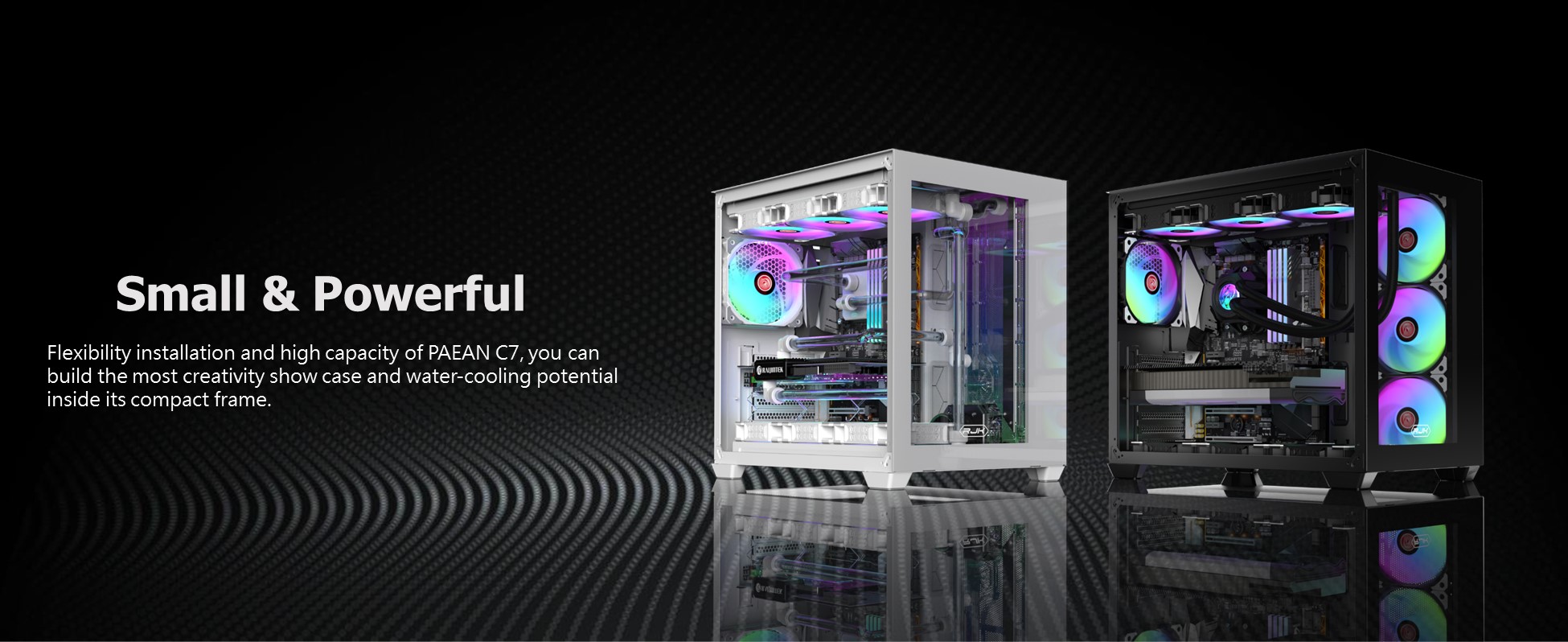

Small & Powerful

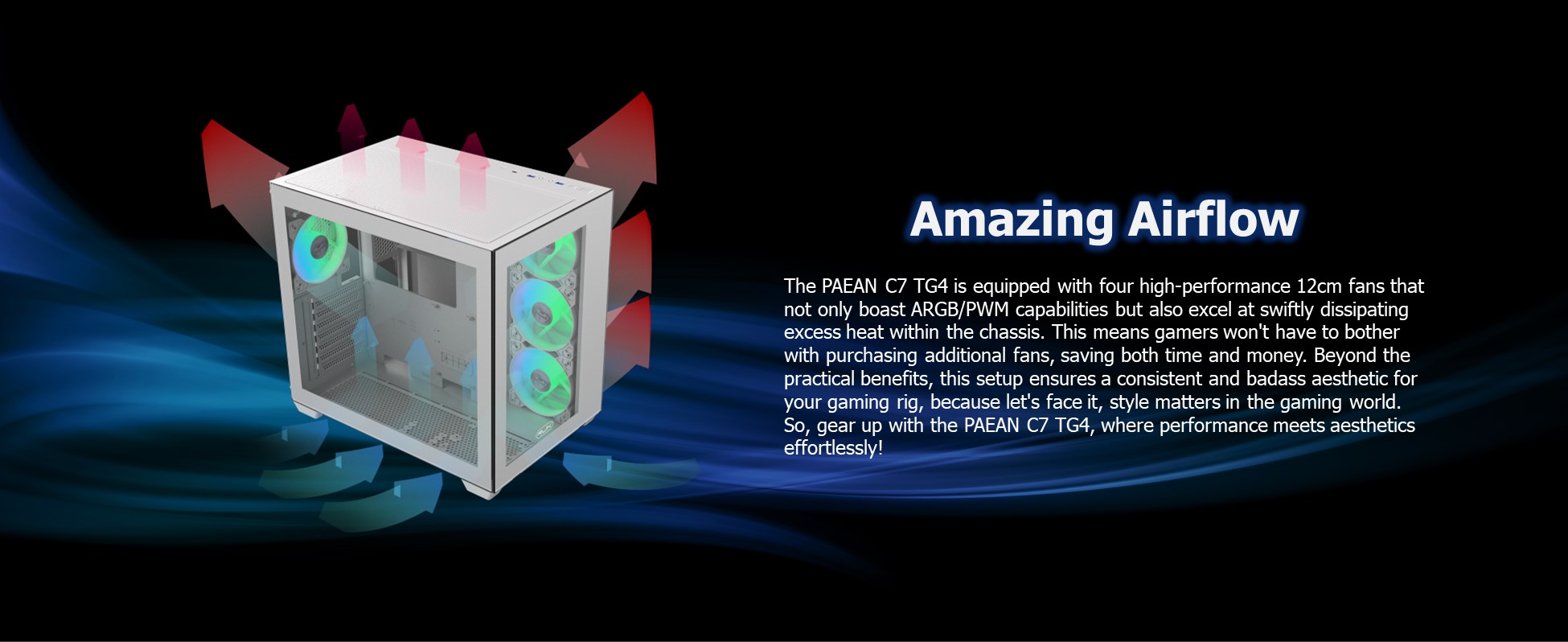

With flexibility in installation and high capacity, you can build the most creative showcase with great water-cooling potential inside its compact frame. 3×12025 ARGB PWM fans pre-installed at motherboard panel and 1×12025 ARGB PWM fan pre-installed at rear.

Feature
Specification
Support
Unboxed
Gallery

3×12025 ARGB PWM fans pre-installed at motherboard panel and 1×12025 ARGB PWM fan pre-installed at rear

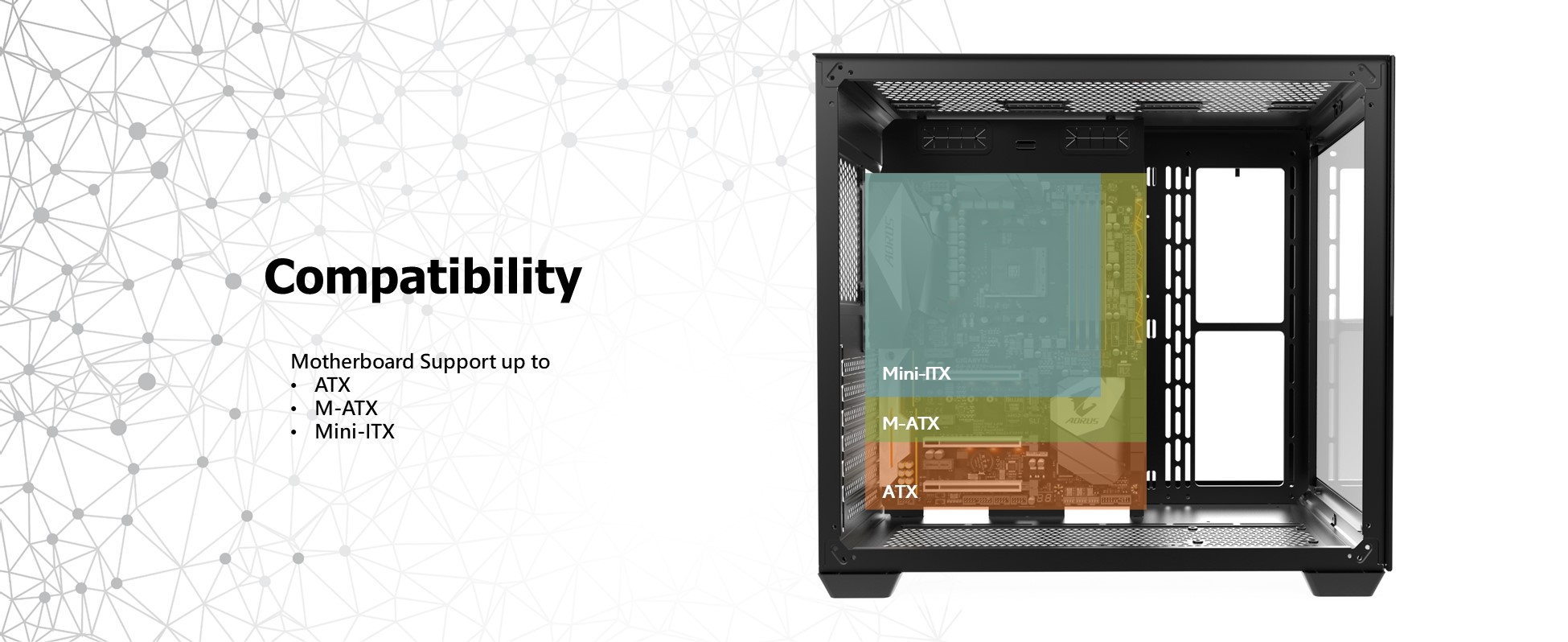

Motherboard Support up to ATX

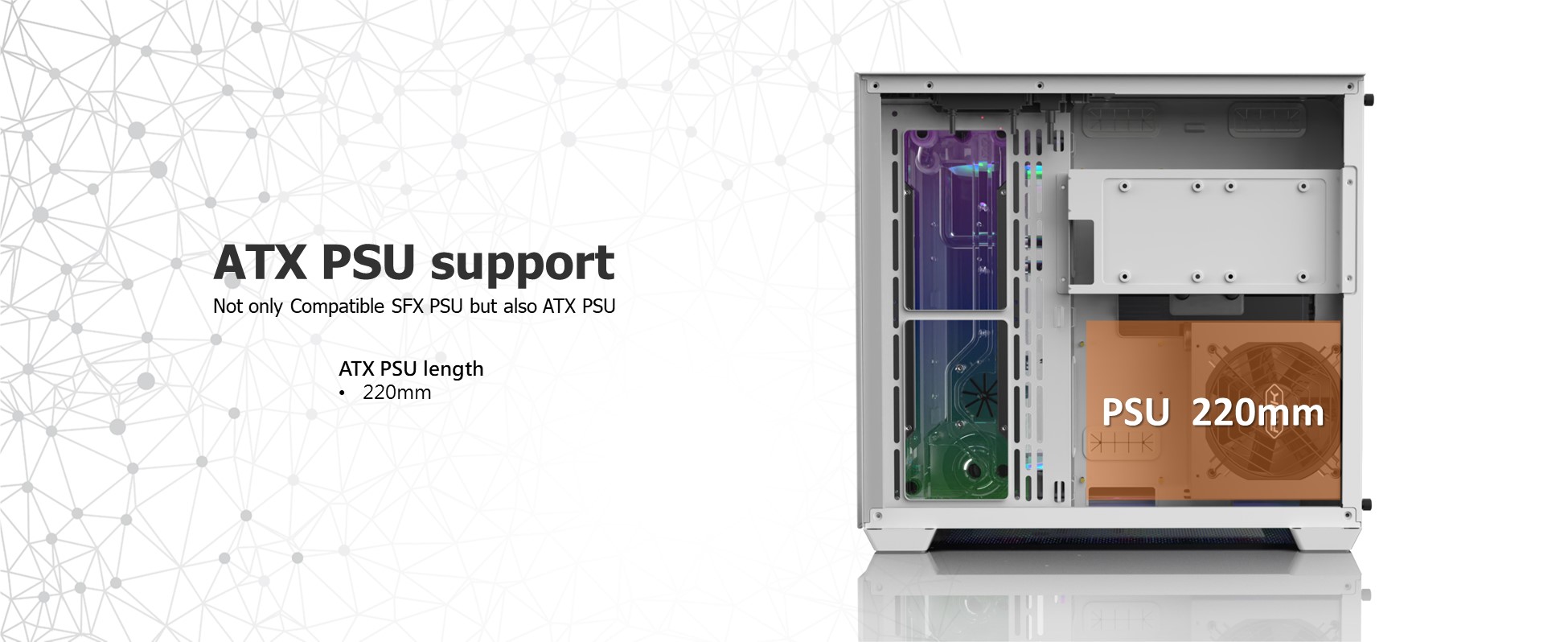

220mm ATX PSU support
VGA card length 410mm

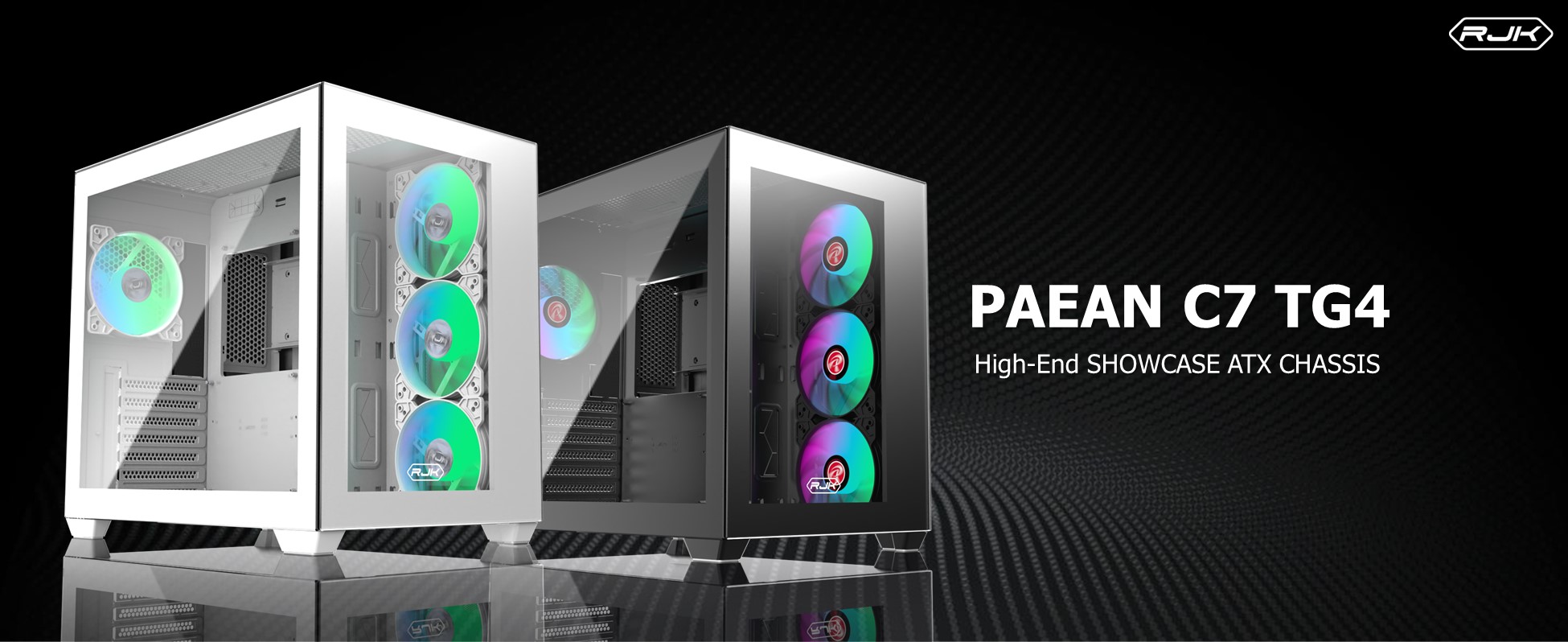

High-End Showcase ATX chassis

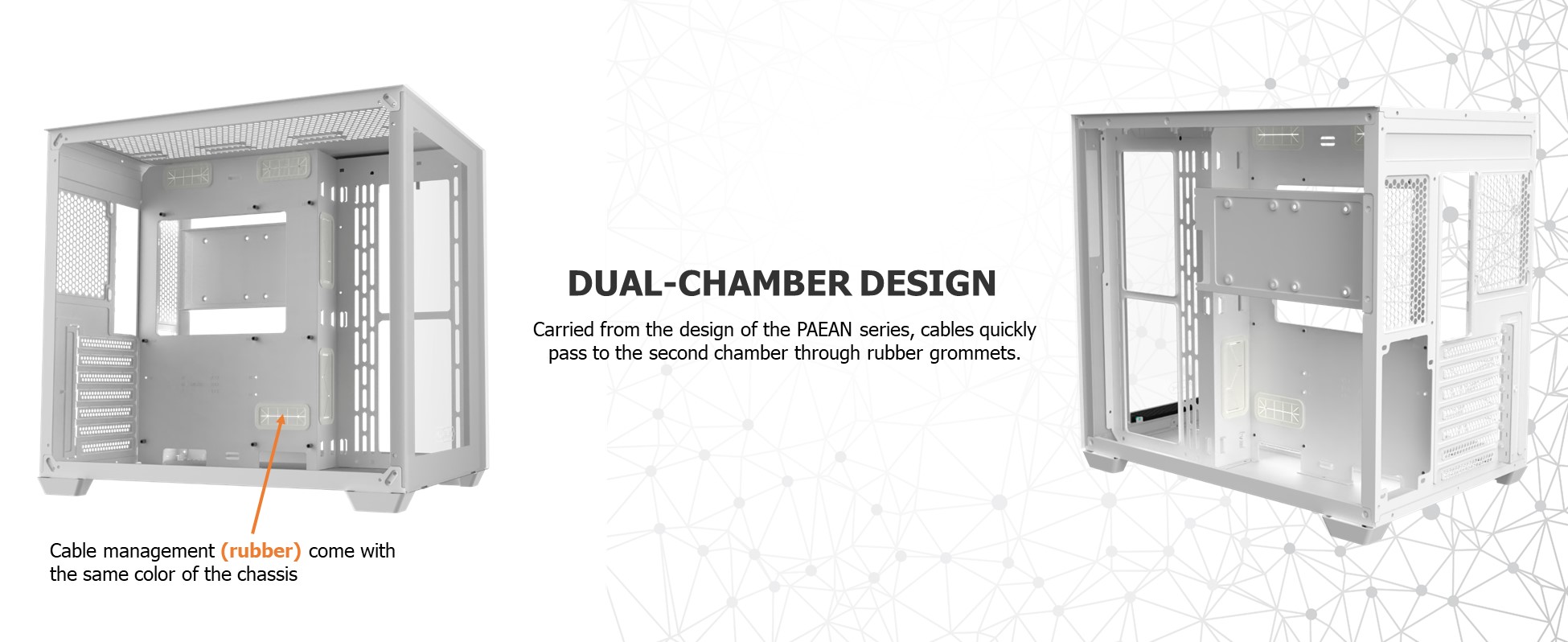

DUAL-chamber design

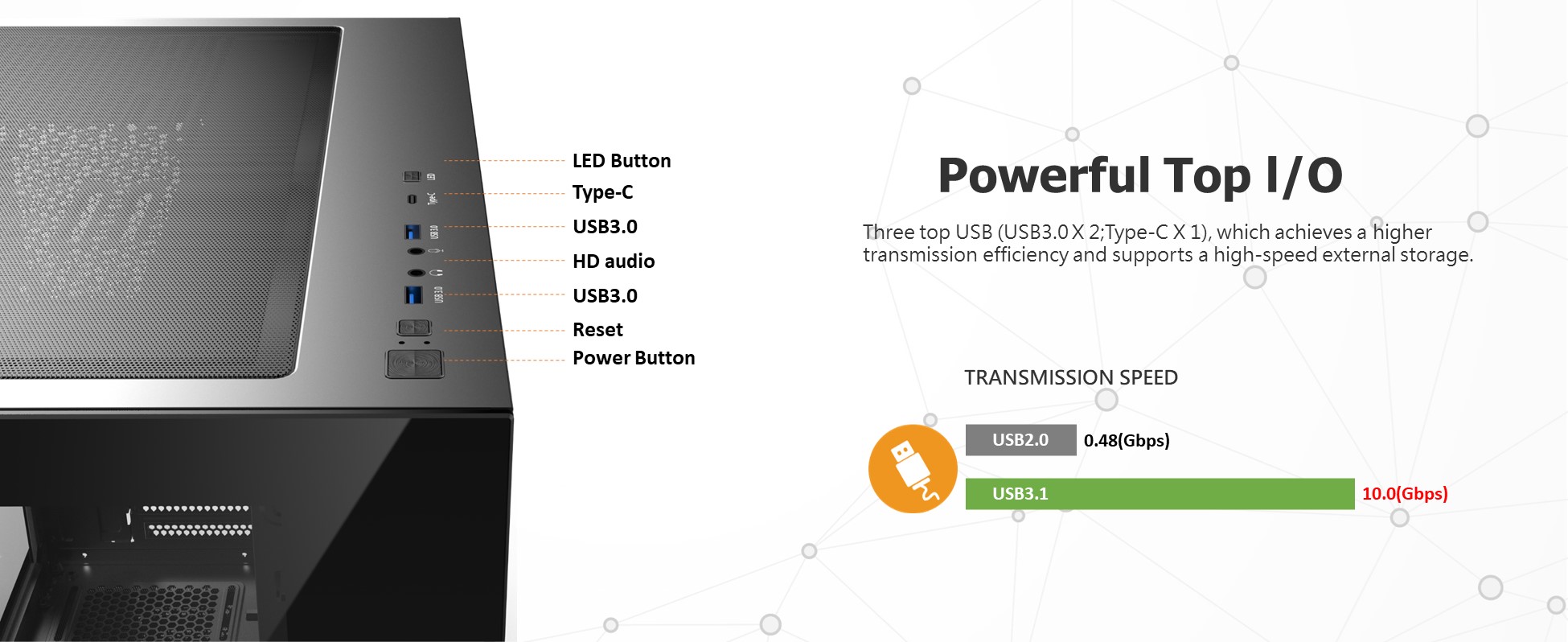

Three top USB (USB3.0 × 2;Type-C × 1)

SPECIFICATION
Product Name	PAEAN C7 BLACK TG4	PAEAN C7 WHITE TG4
Product Number	0R20B00234	0R20B00235

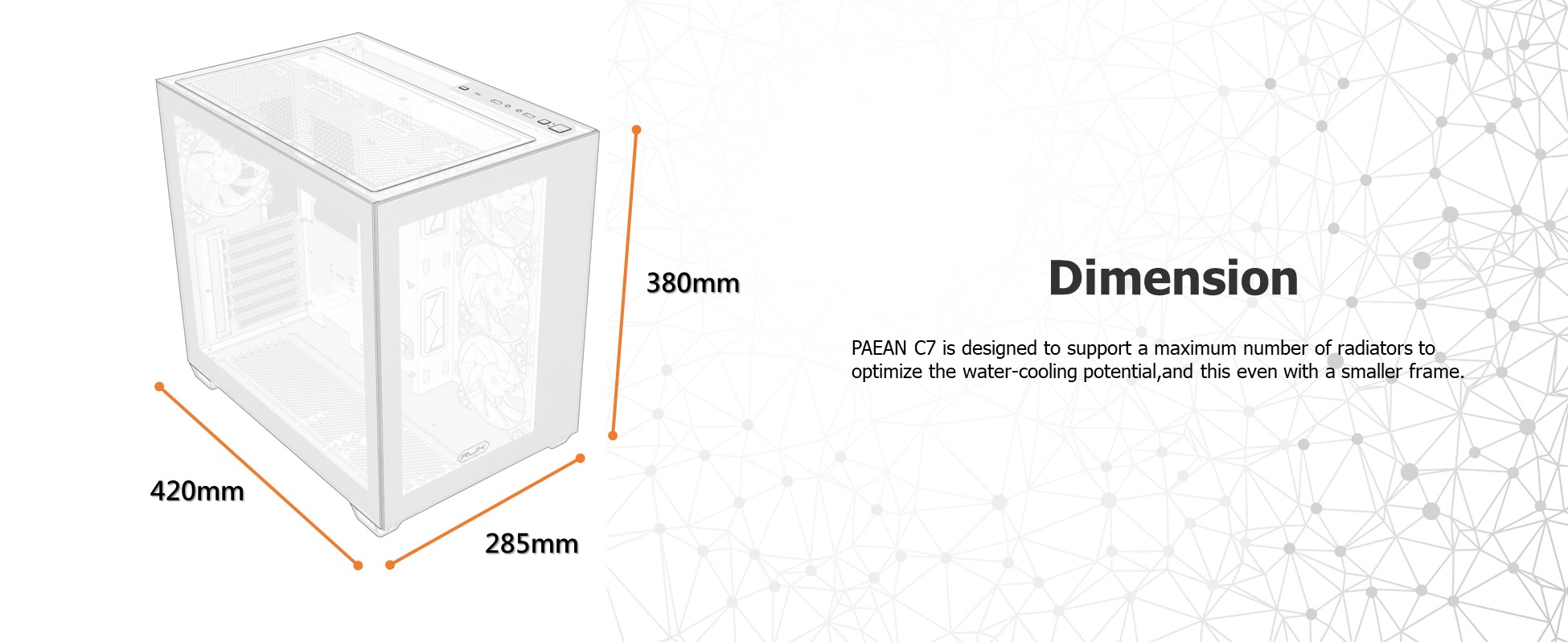

Dimension [W×D×H]	285×420×380 mm	285×420×380 mm
Weight	7.19 kg [N.W.] 8.36 kg [G.W.]	7.19 kg [N.W.] 8.36 kg [G.W.]
Material	SPCC 0.7mm	SPCC 0.7mm
Color	Coating Black	Coating White
M/B Support	ATX / Micro-ATX / MINI-ITX	ATX / Micro-ATX / MINI-ITX

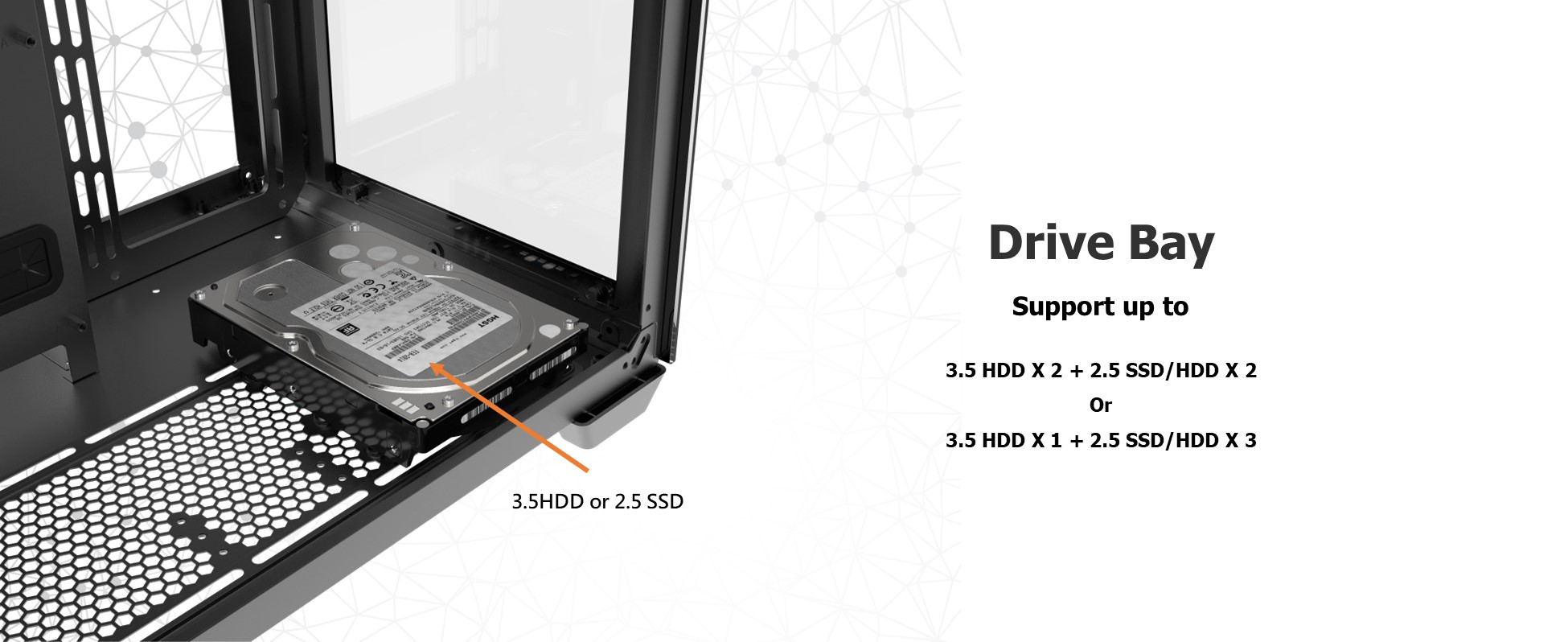

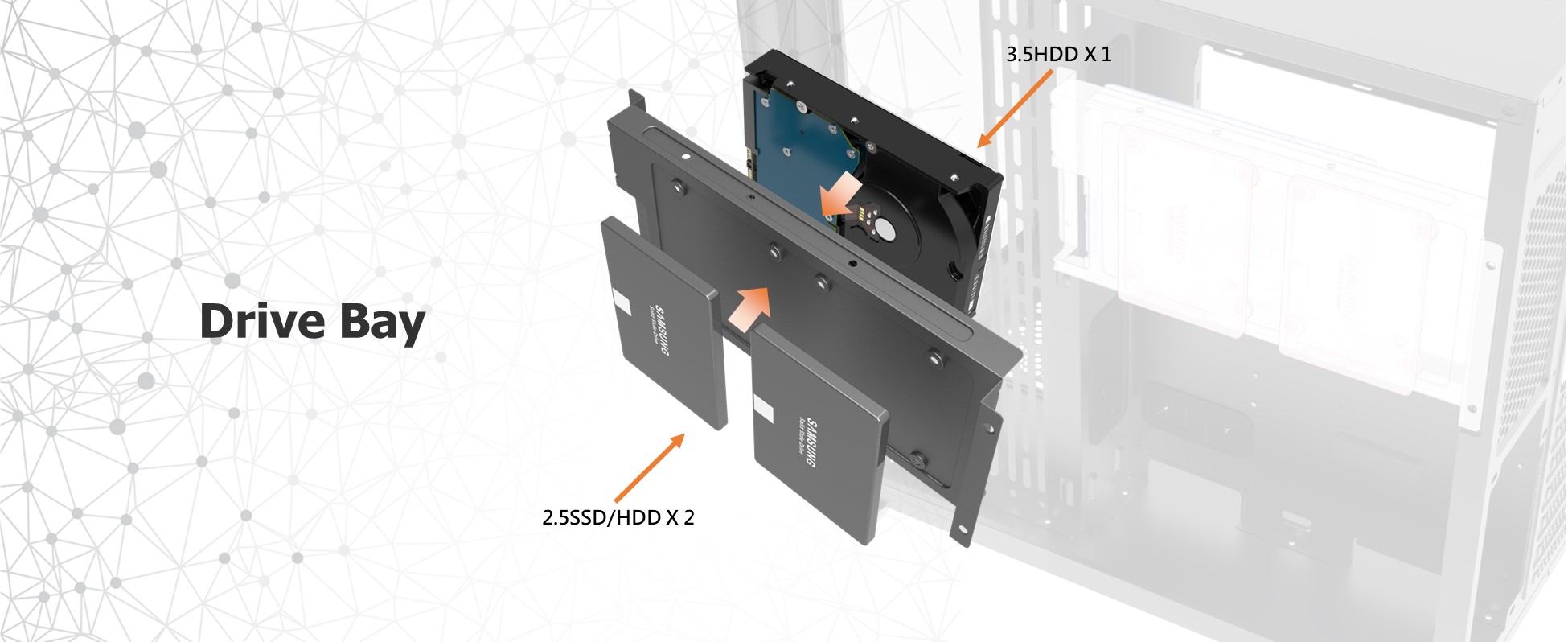

Drive Bay	3.5" HDD×2 + 2.5" SSD×2 or 3.5" HDD×1 + 2.5" SSD×3	3.5" HDD×2 + 2.5" SSD×2 or 3.5" HDD×1 + 2.5" SSD×3
Expansion Slot	PCI Slots ×7	PCI Slots ×7
I/O Panel	USB3.0×2, Type C×1, HD Audio×1	USB3.0×2, Type C×1, HD Audio×1
Power Supply	ATX Power [Length: 240mm]	ATX Power [Length: 240mm]

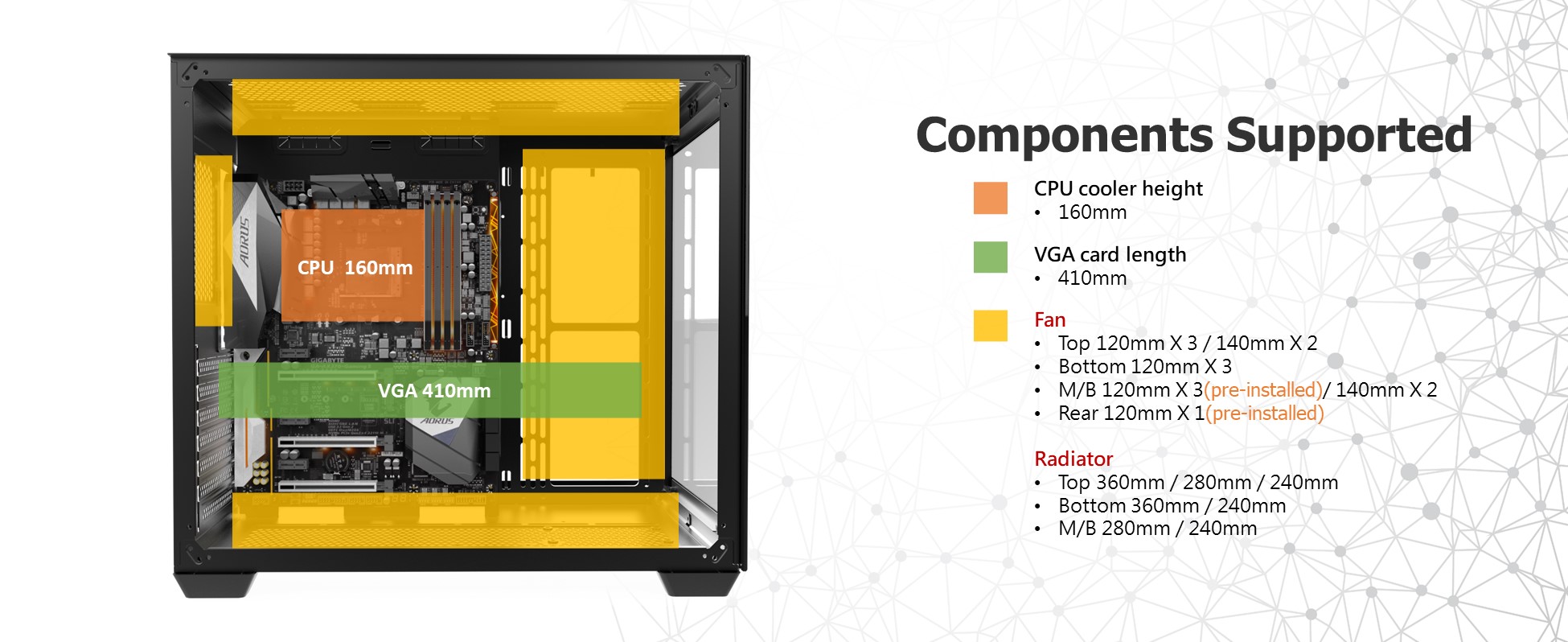

Cooling System	3×12cm fans on bottom panel [option] 3×12cm or 2×14cm fans on top panel [option] 1×12cm ARGB PWM on back panel [Pre-installed] 3×12cm ARGB PWM on motherboard panel [Pre-installed]	3×12cm fans on bottom panel [option] 3×12cm or 2×14cm fans on top panel [option] 1×12cm ARGB PWM on back panel [Pre-installed] 3×12cm ARGB PWM on motherboard panel [Pre-installed]

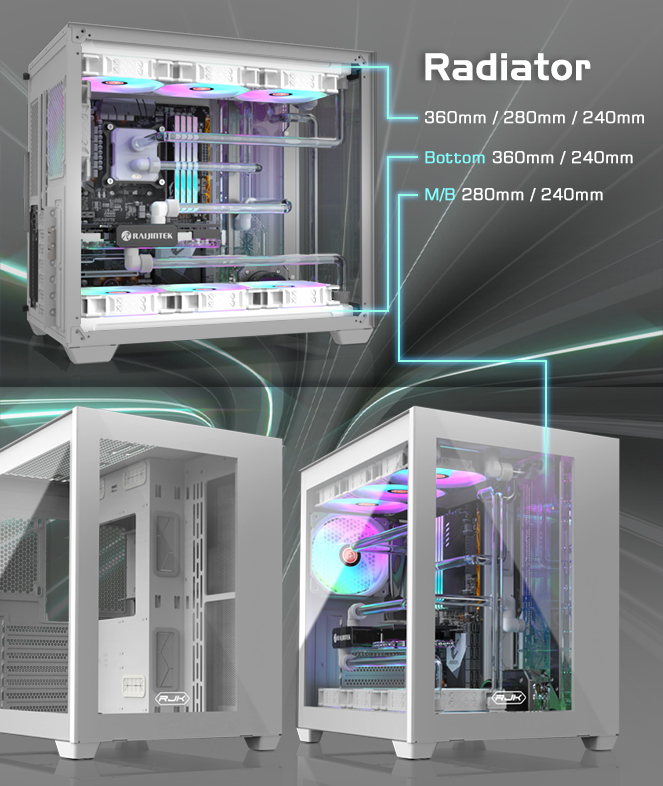

Radiator Q’ty	360 / 280 / 240 / 120mm on top panel [option] 360 / 240 / 120mm on bottom panel [option] 280 / 240 / 120mm on motherboard panel [option]	360 / 280 / 240 / 120mm on top panel [option] 360 / 240 / 120mm on bottom panel [option] 280 / 240 / 120mm on motherboard panel [option]
CPU Cooler Height	160mm [Max.]	160mm [Max.]
Graphic Card Length	410mm [Max.]	410mm [Max.]
Side Panel	4mm Tempered Glass	4mm Tempered Glass

12025 ARGB PWM FAN
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V
Starting Voltage	7V	7V
Speed	800~1500 R.P.M.	800~1500 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing
Air Flow	63 CFM	63 CFM
Air Pressure	1.54 mmH2O [Max.]	1.54 mmH2O [Max.]
Life Expectance	25,000 hrs	25,000 hrs
Noise Level	30.8 dBA [Max.]	30.8 dBA [Max.]
Connector	PWM 4 pin; 5V ADD 4 pin	PWM 4 pin; 5V ADD 4 pin
Rated Current	0.18A±20%	0.18A±20%
Power Consumption	2.16W±20%	2.16W±20%
Fan Q'ty	4 pcs	4 pcs
Color	Black	White
Weight	118 g	118 g
