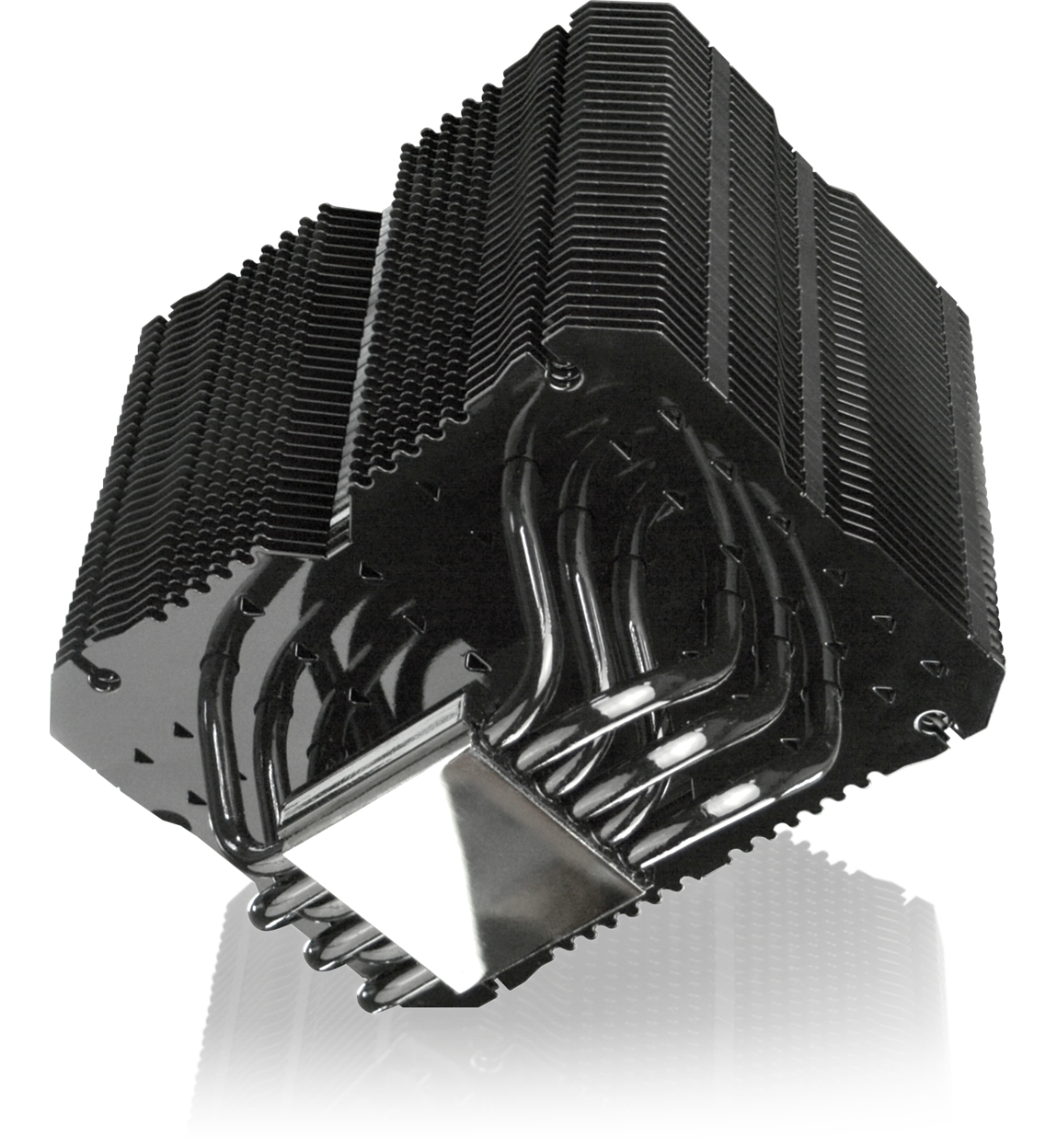

EREBOSS CORE EDITION

EREBOSS CORE EDITION, Designed in Germany, a black coated heatsink, is manufactured to provide users an awesome performance. Nickel copper base, 6 efficient 6mm Heat-pipes and ultra large dissipating area fin bring outstanding cooling efficiency. With multiple mounting kits, giant dissipating fin area and outstanding performance, EREBOSS CORE EDITION is your best choice of cooling partner.

EREBOSS CORE EDITION
  • Nickel copper base, 6 efficient 6mm Heat-pipes and ultra large dissipating area fin
  • Multiple mounting kits for INTEL 775/201x/1366/115x(Core™ i3 / i5 / i7 CPU) & AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
  • New specially engineered holes on fins to provide excellent air flow and cooling efficiency
  • Option to install dual fans and fan clips attached
  • User friendly design - Multiple socket compatibility
  • Fan suggested: Aeolus α - low noise, outstanding air flow and pressure
SPECIFICATION
Product Name EREBOSS CORE EDITION
Product Number 0R100015 [0R10A00015]
Dimension [W×D×H] 140×110.5×160 mm
Weight 808 g [Heat Sink Only]
Thermal Resistance 0.11 °C/W
Heat Sink
Base Material Nickel Copper Base
Fin Material Aluminum Alloy; Solder-free fins assembly
Heat-pipe
SPEC Φ6mm
Q'ty 6 pcs
est. TDP 180W
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 CPU

Heat-Sink X 1

Back Plate X 1

Crossbar X 1
Intel Mounting Clips
Intel Mounting Clip X 2

AMD Mounting Clip X 2

Fan Clip X 8

Anti-vibration rubber tape / pad X 4

LGA2011 Screw X 4


Knurled Threaded Screw X 4

M3 Screw X 2

Metal Nut X 4

Plastic Nut X 4

Thermal Grease X 1

Installation Guide X 1

Screwdriver X 1

Package X 1
