MORPHEUS CORE EDITION

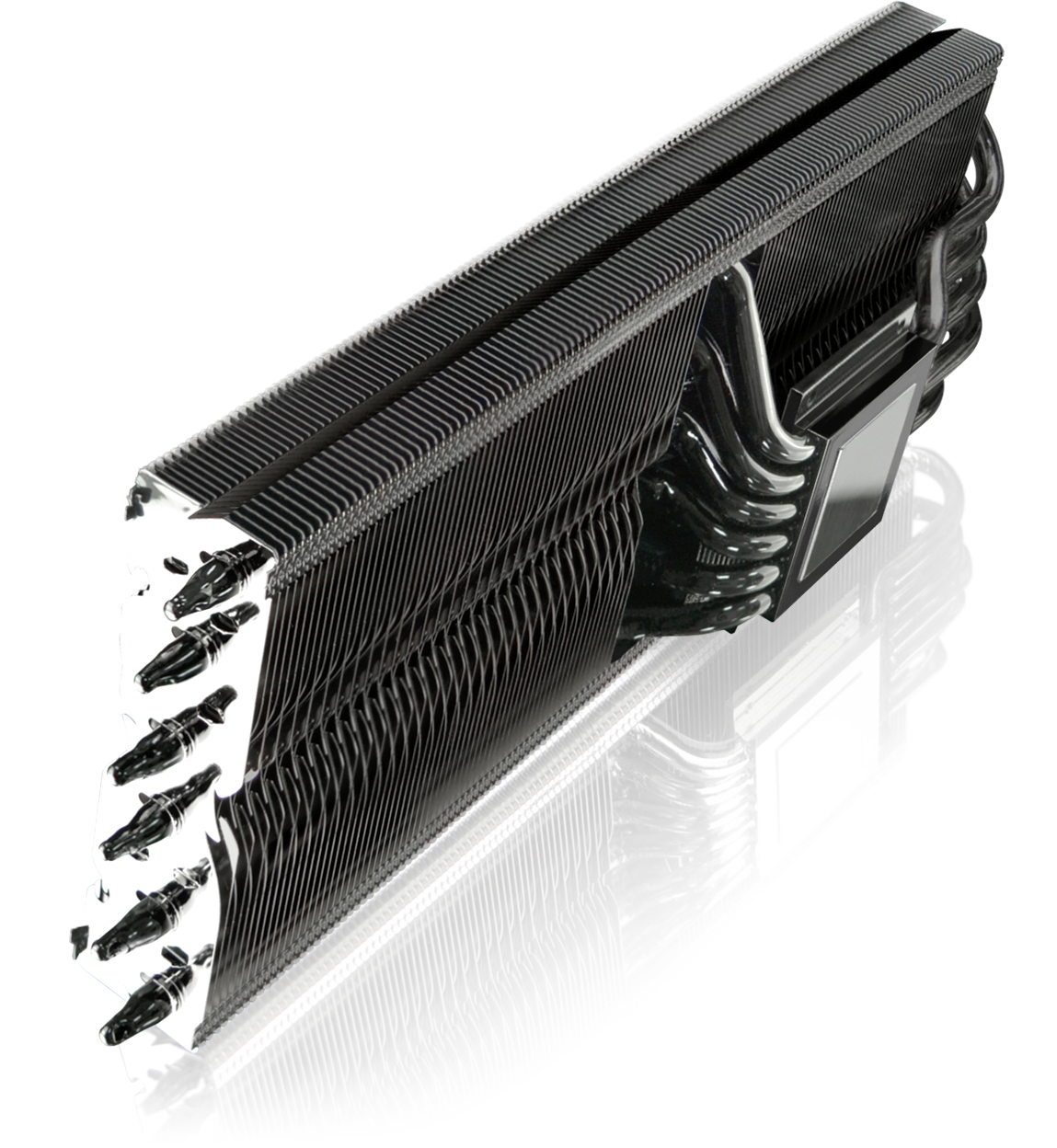

MORPHEUS CORE EDITION, whole heatsink black coated, a superior high-end VGA cooler, designed to meet cooling capacity up to 360 Watts of TDP. Morpheus comes with 12 copper heat-pipes, 129 fins, mirror copper base, and the option to install 2*120mm fans; those outstanding combination and design provide best acceleration of heat dissipation process to assure your VGA board running under optimal temperature. Additionally, Morpheus comes with 24 RAM heat-sinks & 1 big VRM heat-sink. Moreover, Morpheus is multi-compatible with most modern nVidia & AMD (Hawaii & Curacao) GPU's.
MORPHEUS CORE EDITION
  • Cooling capacity up to 360 watts TDP
  • 12 pcs copper heat-pipes and 129 pcs fins for efficient heat dissipation
  • 24pcs heat-sink for RAM & 1 big heat-sink for VRM
  • High compatibility with modern & future VGA cards
  • Thermal adhesive to lower RAM and VRM temperature significantly and assure proper bond
  • Compatible with AMD Hawaii chip (R9 290/290x) and Curacao chip (HD 7850, 7870 xt; R9 270/270x)
  • Compatible with nVIDIA GTX Series Chip: 650, 650Ti, 660, 660Ti, 680, 760, 770, 780, 780Ti
  • Supports two 120mm fans (4 fan clips in the box)
  • Whole heatsink black coated
SPECIFICATION
Product Name MORPHEUS CORE EDITION
Product Number 0R100022
Dimension [W×D×H] 254×98×44 mm
Weight 515 g [Heat Sink Only]
Thermal Resistance 0.135 °C/W [With Raijintek 12025 fan*2]
Heat Sink
Base Material Mirror copper base
Fin Material Aluminum Alloy; Solder assembly
Heat-pipe
SPEC Φ6mm
Q'ty 12 pcs
Heat-sink for RAM & VRM
A type: 9pcs 13.4(W) × 11(H) × 15(D) mm
B type: 9pcs 13.4(W) × 5(H) × 15(D) mm
C type: 6pcs 5.9(W) × 11(H) × 20(D) mm
VRM type 28(W) × 18.5(H) × 94(D) mm
TDP 250W
APPLICATION
AMD® Hawaii chip: R9 290/290x
Curacao chip: HD 7850、7870 xt; R9 270/270x
nVIDIA® GTX Series 650, 650Ti, 660, 660Ti, 680, 760, 770, 780, 780Ti

Heat-Sink X 1

VRM Heat-sink X 1

Mounting Clip X 2

Chip Heat-sink A X 9
Intel Mounting Clips
Chip Heat-sink B X 9

Chip Heat-sink C X 5

Chip Heat-sink E X 3

Fan Rubber Pad X 2

M3 Screw X 4

Hexagonal Screw X 4

Spring Screw X 4

Plastic Myla X 4

Thermal Pad X 3

Thermal Twin Adhesive A X 40

Thermal Twin Adhesive C X 20

12025 Fan Clip X 4

Thermal Grease X 1

Installation Guide X 1

Package X 1
