RAIJINTEK

RAI-PM5

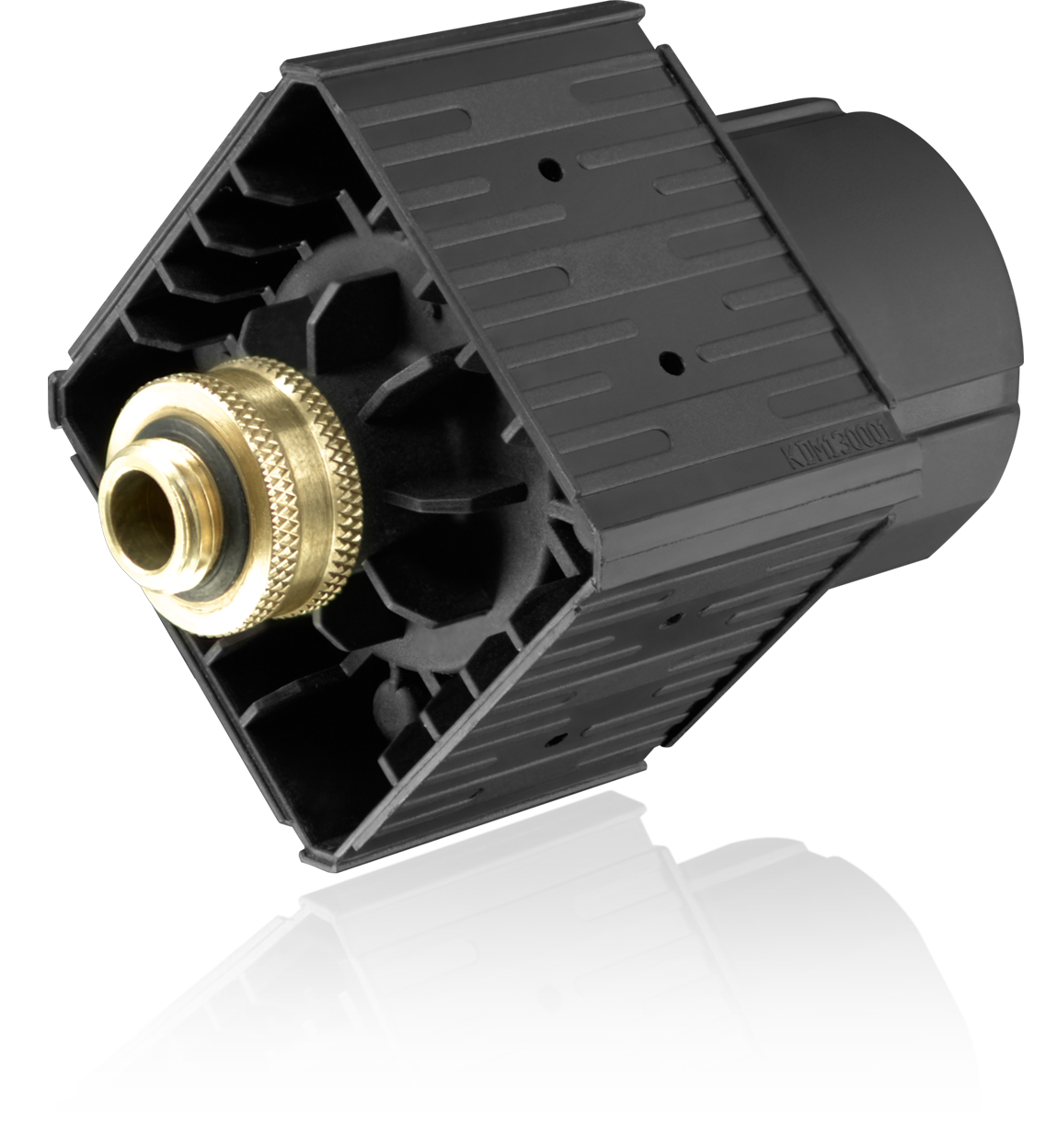

RAIJINTEK superior PUMP product, RAI-PM5, is a high level solution for enthusiasts and custom PC builder to create a super water cooling system. RAI-PM5 features a super flow discharge of 480 L/H and Head-lift of 15 feet (4.5 meters) at maximum speed, thus it is the best heart for your liquid cooling loop. Not only providing the best performance, but RAI-PM5 also operates steadily and silently. Support bracket provides users a sturdy, reliable, direction option and friendly installation.

Feature
Specification
Support
Unboxed
Review

Super flow discharge 480 L/H
Superior head-lift 15 feet [4.5 meter]
Support bracket to provide sturdy, reliable and friendly installation
Easy mounting and connection in multiple locations
Operating steadily and silently
Advanced building liquid loop - CPU, GPU, radiator and more DIY components
Compatible with RAIJINTEK ALTLANTIS series, Reservoir, Water Blocks, Tubes

SPECIFICATION
Product Name	RAI-PM5
Product Number	0R400021
Dimension [W×D×H]	53×53×85 mm
Screw Threads	G 1/4"
Weight	240 g
Bearing Type	Graphite Pipe & Ceramic Axis
Maximum head	15 feet [4.5m]
Maximum discharge	480 L/Hour
Noise Level	20 dBA
Life Expectancy	50,000 hrs
Speed	3000 R.P.M. at 12VDC
Voltage Rating	8 ~ 12 V
Power Consumption	4 ~ 10 W
Connector	3 Pin

RAI-PM5 Installation Guide [ 6.08 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

RAI-PM5 × 1

Bracket × 1

Speed Controller × 1

M4 L13 Screw × 4

Metal nut × 4

M2 L3 screw × 4

Installation Guide × 1

Package × 1
