NESTOR

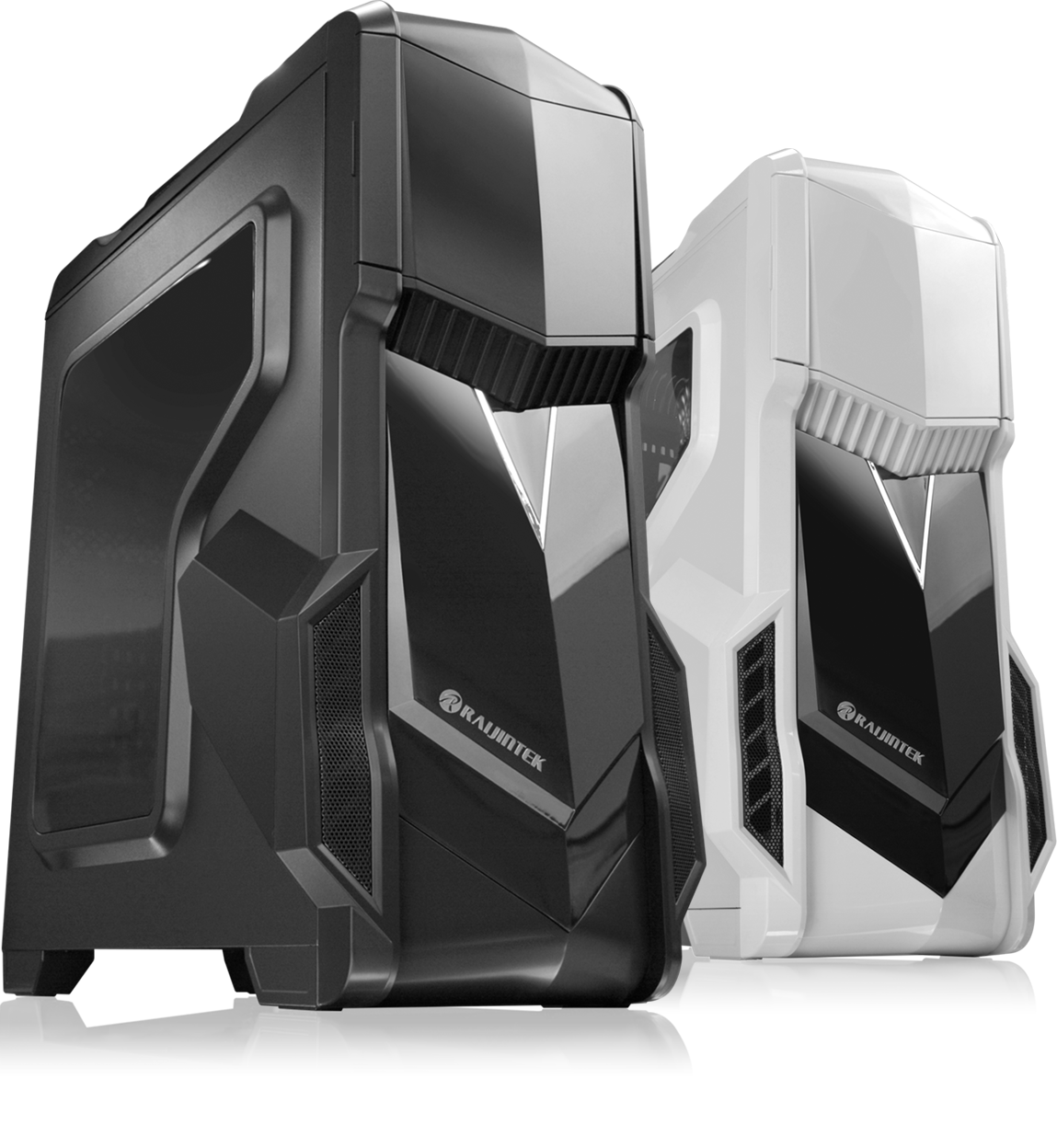

NESTOR - RAIJINTEK’s new Midi Tower chassis of silence series, pure innovation meets classic black design. NESTOR pre-installs 2*120mm fan at the front, and 1*120mm fan at the rear. Additionally, NESTOR supports 240/280mm radiator at the front and supports 240mm radiator on the top, a max CPU cooler height up to 170mm, a max VGA length up to 340mm and regular ATX / EPS PSU Compatibility. Elegance in combination of special technical features, such as tool free designs, extreme expansion, complete black coating, an unbelievable price and a rigid chassis quality.
NESTOR
  • 2×USB 3.0 super speed port
  • Dust-control filter for PSU
  • Supports 170mm height cooler
  • Supports VGA card up 340mm
  • Elegant and classic design with airflow efficiently and massively
  • Sport car theory of inlet air design for superior airflow
  • Tool-free system for PSU and 3.5"HDDs
  • Supports up to 5 fans and 5 HDDs (3.5" + 2.5")
  • Whole black coated interior
  • Accommodate an internal 240 mm radiator at the top and 240/280mm radiator at the front
SPECIFICATION
Product Name NESTOR / NESTOR WHITE
Product Number 0R200042 / 0R200041
Dimension [W×D×H] 239×461×529 mm
Weight 5.3 kg [N.W.] 6.5 kg [G.W.]
Material SPCC 0.5mm
Color Matt Black / White
M/B Support ATX / Micro ATX
Drive Bay External 5.25" ×1
Internal 3.5" ×2 [Tool-Free, Removable] or 2.5"×2
2.5" ×3
Expansion Slot PCI Slots ×7
I/O Panel USB3.0×2, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount]
CoolingSystem Front Fan: 120mm/140mm×2 [2×120mm pre-installed] or 240mm/280mm radiator [option]
Rear Fan: 120mm×1 [pre-installed]
Top Fan: 120mm×2 [option] or 240mm radiator [option]
CPU Cooler Height 170mm [Max.]
Graphic Card Length 340mm [Max.]
Side Panel Style Window
  • NESTOR Installation Guide  [ 3.3 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

NESTOR

12025 Fan × 3

Screw M3 – 5mm × 36
Motherboard/2.5"HDD/ODD

Screw #6-32 × 10
Power Supply/PCI Card

Alarm × 1
Motherboard Alarm

Cable Tie × 9
Settle Cable

Installation Guide × 1
