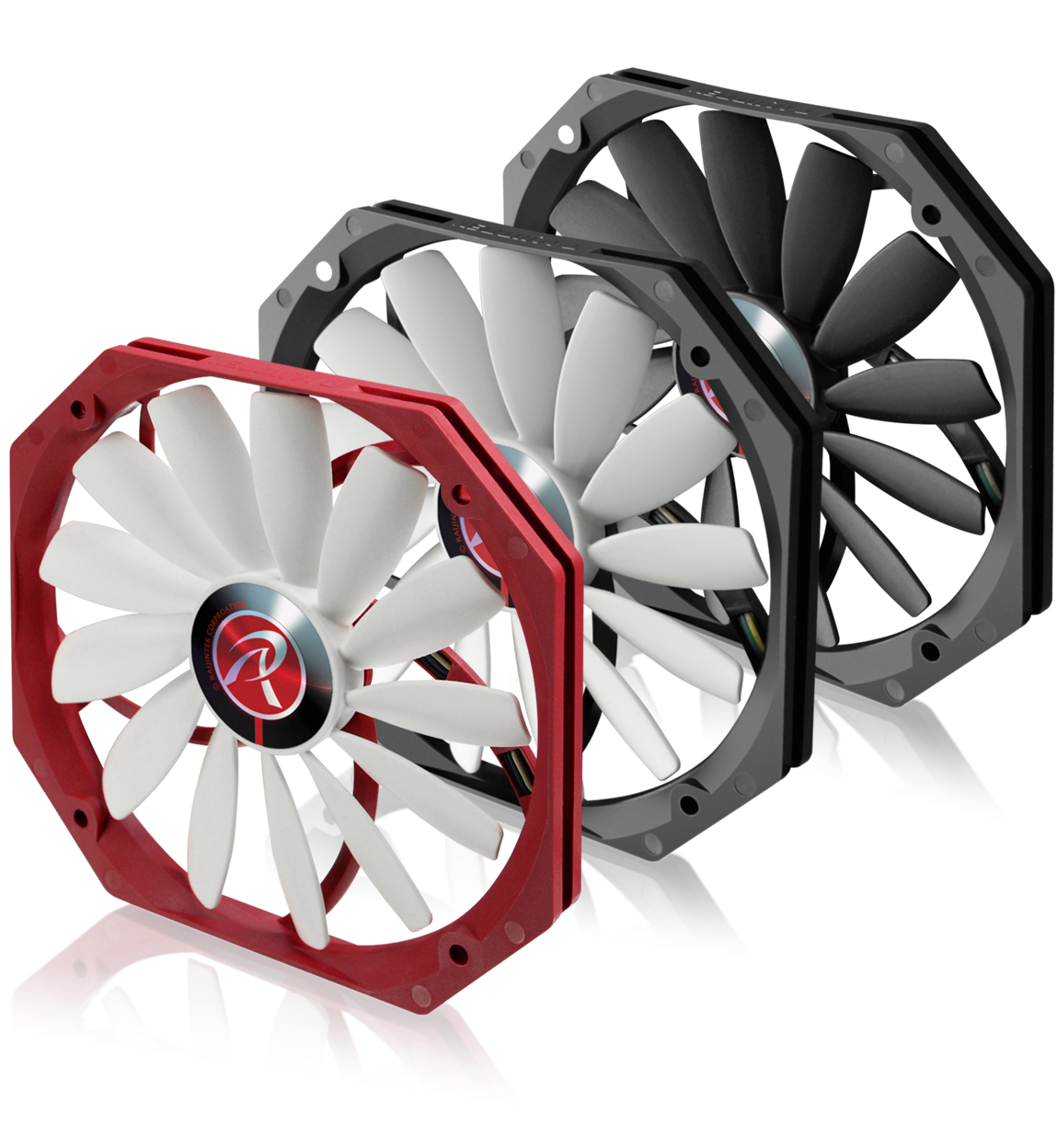

Aeolus α

Aeolus α, world's top slim high performance fan series, is a new technology fan which is not only of 13mm height, but also extremely performing . Aeolus α is developed by latest technology with outstanding airflow, excellent static pressure, super silence, but also elegant. Due to the great combination of technology and elegant design, Aeolus is your best choice and saves space usage in your device.

Aeolus α
  • World's Top Slim type fan - 13mm thickness
  • Save space, not to interfere other components
  • Slim, but outperforming other 14025mm fan
  • Specific housing & blade design, to provide outstanding airflow
  • PWM function
  • Able to mount on 120mm fan holes
  • Super silent
  • Easy installation
SPECIFICATION
Product Name Aeolus α
Product Number 0R400001~0R400003
Dimension [WxHxD] 140x150x13 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 650~1400 R.P.M. [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 44.43~56.55 CFM
Air Pressure 0.76~1.24 mmH2O
Life Expectance 40,000 hrs
Noise Level 28 dBA
Connector 4 pin with PWM
APPLICATION
All Chassis
All 140mm Coolers

14013 PWM Fan X 1

Anti-vibration Rubber X 4

Screw X 4

Package X 1
