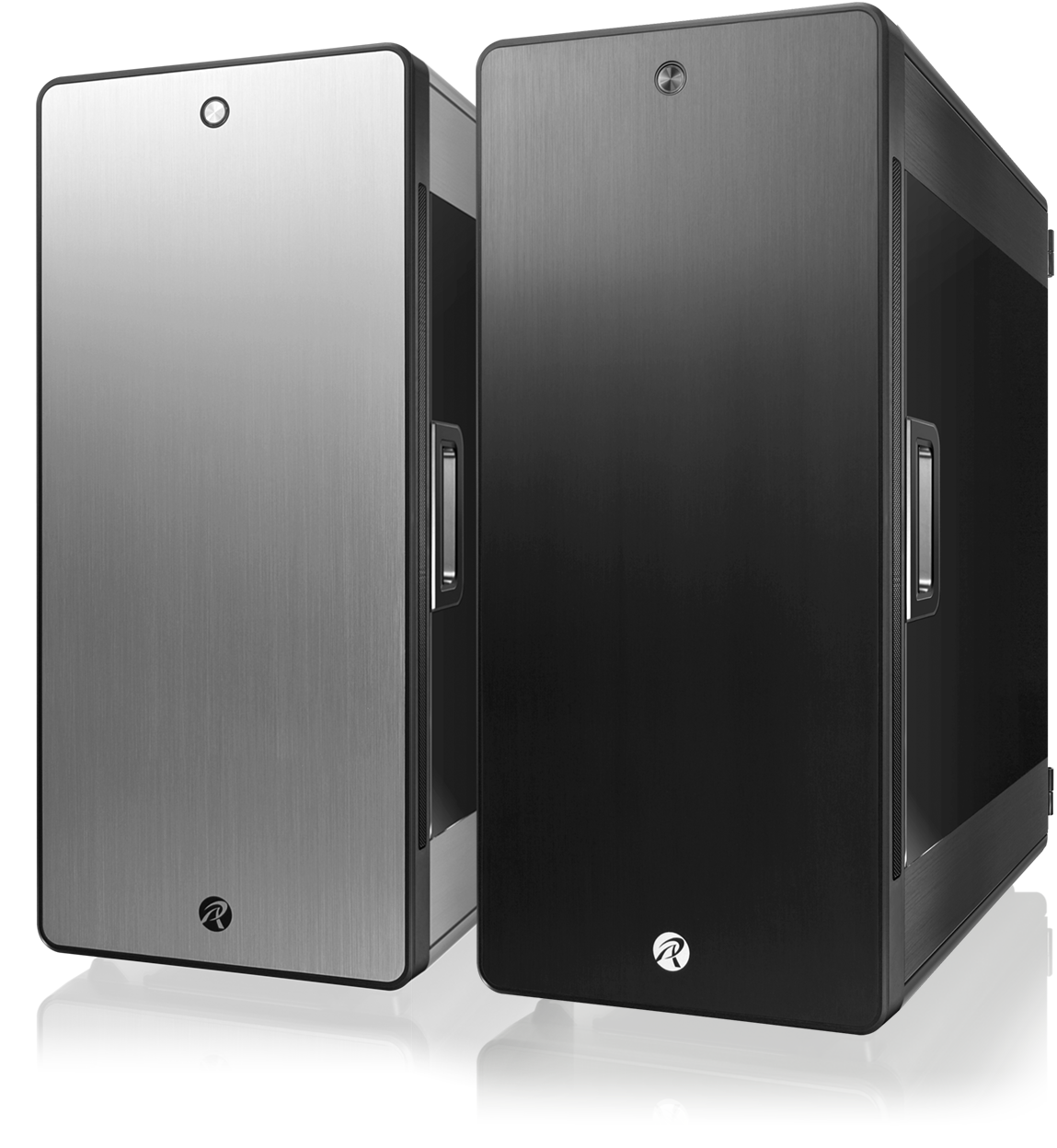

RAIJINTEK

ASTERION PLUS

ASTERION series – RAIJINTEK E-ATX aluminum series. Gorgeous possible fan installation for the best cooling performing ever, ASTERION series supports up to E-ATX motherboard, maximum seven fans, including 3×120mm fan option (2pcs 12025 O-Type LED fan pre-install) at front, 3×120mm fan option on the top and pre-install 12025 O-Type LED fan (140mm fan option) fan at rear. Additionally, ASTERION series supports 240/280/360mm radiator in front and top, also superior features include such as, tool-free for the easier installation, a max CPU cooler height up to 180mm, a max VGA length up to 340mm and regular ATX/EPS PSU compatibility.

Feature
Specification
Support
Unboxed
Review
Gallery

Aluminum chassis series for E-ATX/ATX/Micro ATX/Mini ITX
Slim DVD drive bay at front top
Aluminum color hair-silk anodized appearance design
4×USB 3.0 super speed port
3pcs 12025 O-Type LED fan pre-installed
Whole black coated interior
Dust-control filters at bottom

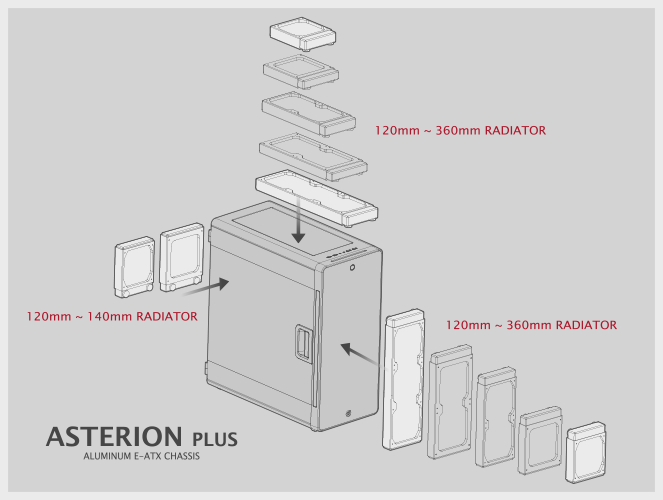

Accommodate an internal 360 mm radiator at the front and top
Rear tubing holes for water cooling
Tool-free system for PSU and 3.5"HDDs
Supports up to 7 fans and 6 HDDs (3.5" + 2.5")
Supports 180mm height cooler
Supports VGA card up 340mm
Acrylic Side-Opening Window Side Panel

SPECIFICATION
Product Name	ASTERION PLUS
Product Number	0R200049 / 0R200050
Dimension [W×D×H]	230×491×525 mm
Weight	8.5 kg [N.W.] 10.3 kg [G.W.]
Material	Aluminum [Surface]; SPCC 1.0mm [Internal]
Color	Black/Silver; Hair-silk Anodized
M/B Support	E-ATX/ATX/MICRO ATX/MINI ITX
Drive Bay	Internal 3.5" ×3 or 2.5" ×3 [Tool-Free, Removable] Internal 2.5" ×3 Slim DVD×1
Expansion Slot	PCI Slots ×8
I/O Panel	USB3.0×4, HD Audio×1
Power Supply	PS/2 [Internal Bottom-mount]
CoolingSystem	Front Fan: 140mm×2 or 120mm×3 [120mm×2 Pre-installed] or 240/280/360mm Radiator [Option] Rear Fan: 140mm×1 or 120mm×1 [Pre-installed] Top Fan: 140mm×2 or 120mm×3 or 240/280/360mm Radiator [Option]
CPU Cooler Height	180mm [Max.]
Graphic Card Length	340mm [Max.]
Side Panel Style	Acrylic Side-Opening Window

ASTERION PLUS Installation Guide [ 4.85 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.
