LETO

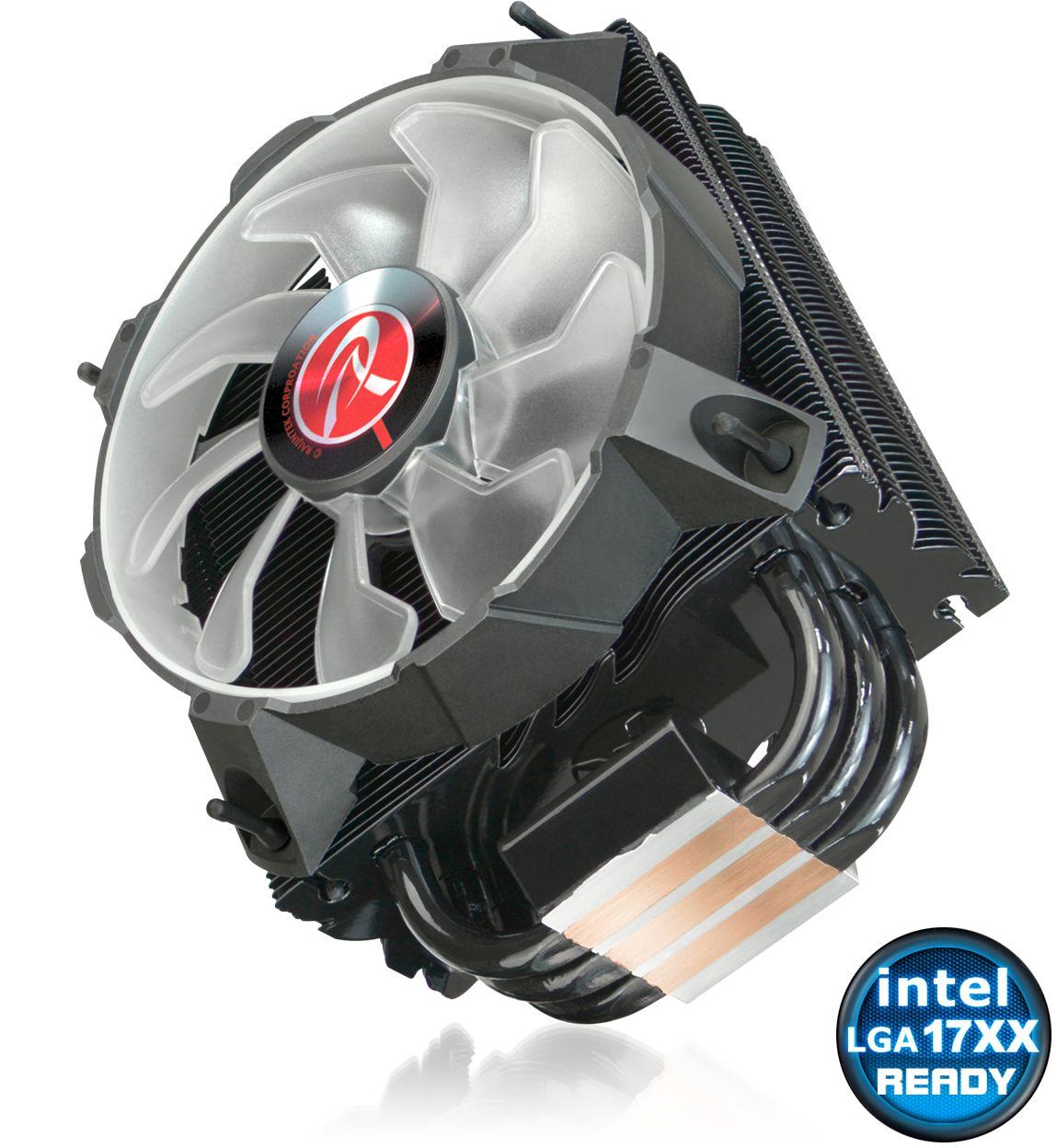

LETO series, RAIJINTEK’s 120mm slim-type CPU cooler, is "Designed in Germany“, manufactured by several patents to reach advanced performance, high quality & workmanship. It is a slim type 120mm cooler (D: 50mm) and height is 159mm, very suitable for most ATX chassis. With performing 12025 LED PWM fan, Anti-vibration rubbers and supporting all modern sockets, LETO is your professional choice and a budget price of cooling .

LETO
  • 120mm slim type CPU cooler – D: 50mm & H: 159mm
  • C.D.C. - CPU Direct Contact design
  • Performing and silent 12025 LED PWM fan
  • Whole heatsink black coated
  • Patented pressing heat-pipe/fin technology to prevent the risk of heat-pipe damage
  • Patented solder-less louver fin assembly to increase heat-pipe ventilation
  • Green & environmentally friendly with less pollution
  • Compatible with all modern sockets of Intel & AMD at market
  • Anti-Vibration rubber used to minimize movement and noise
  • Easy installation and user friendly
SPECIFICATION
Product Name LETO W / LETO R / LETO B
Product Number 0R100061 [0R10A00061] / 0R100062 [0R10A00062] / 0R100063 [0R10A00063]
Dimension [W×D×H] 122×76×157 mm
Weight 570 g [Heat Sink Only]
Thermal Resistance 0.13 °C/W
Heat Sink
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-less fins assembly
Heat-pipe
SPEC Φ8mm
Q'ty 3 pcs
Fan
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 800~1800 RPM [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 67 CFM [Max.]
Air Pressure 1.2 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 29 dBA [Max.]
Connector 4 pin with PWM
LED 8pcs White / Red / Blue
est. TDP 150W
APPLICATION
Intel® All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 CPU
  • LETO W/R/B Installation Guide  [ 6.79 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.
Heat-Sink

Heat-Sink × 1
12025 PWM Fan

12025 PWM Fan × 1
Back Plate

Back Plate × 1
Crossbar
Crossbar × 1
Intel Mounting Clips
Intel Mounting Clip × 2
AMD Mounting Clips
AMD Mounting Clip × 2

Fan Clip × 2
Anti-vibration Rubbers
Anti-vibration Rubber × 5
LGA2011 Screws
LGA2011 Screw × 4
Knurled Threaded Screws
Knurled Threaded Screw × 4
M3 Screws
M3 Screw × 2
Metal Nuts
Metal Nut × 4
Plastic Nuts
Plastic Nut × 4
Thermal Grease
Thermal Grease × 1

Installation Guide × 1
Package

Package × 1
