AURAS 12

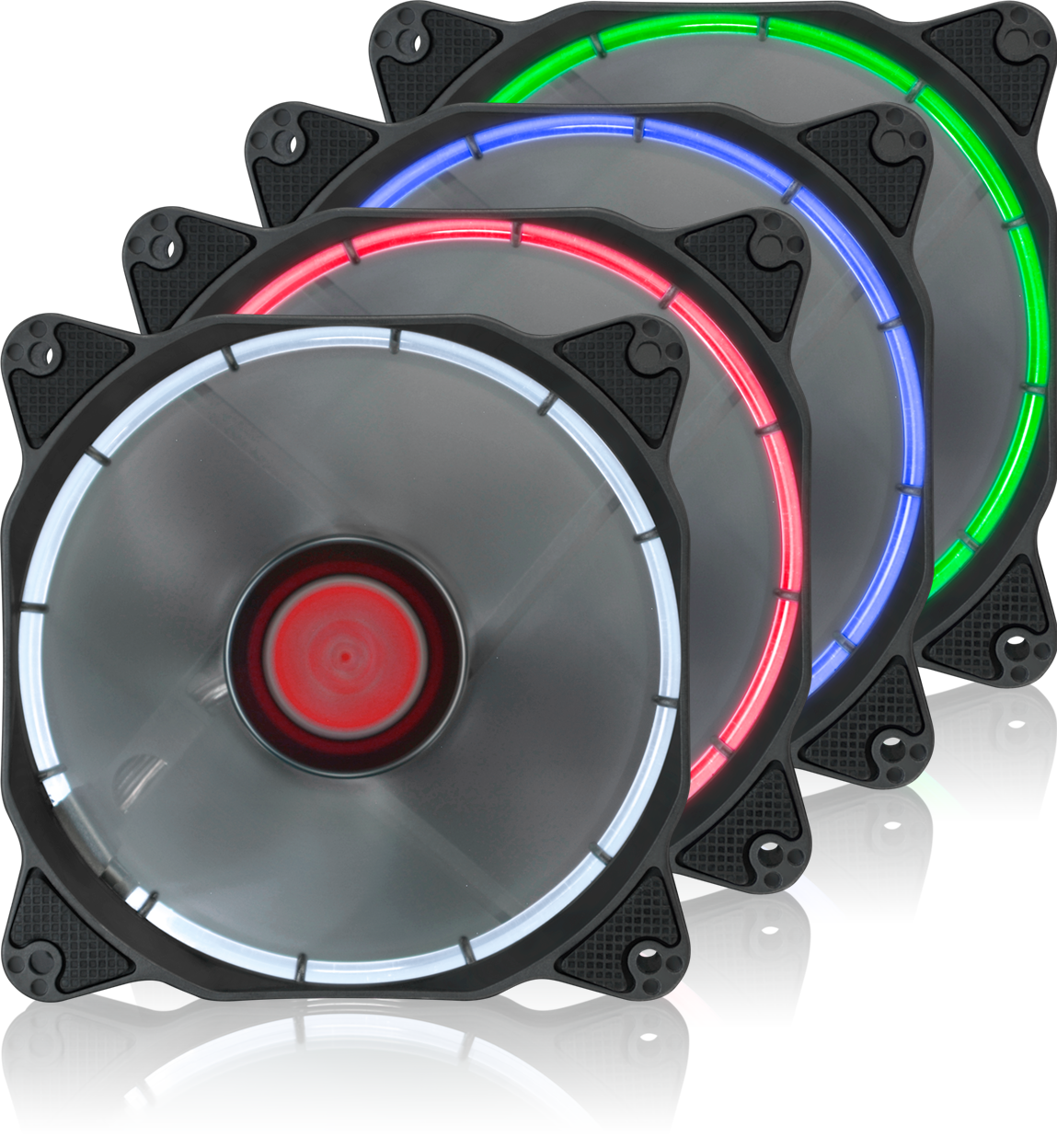

RAIJINTEK first LED/RGB fan, AURAS 12 fan series, is a 12025 mm O-type LED fan and RGB type is 256 multi-colors. On controller box (RGB type), users can easily adjust fan speed as well as fan colors by clicking “MODE”, “LOCK”, and “SPEED” button. Anti-vibration rubber pads are used in all four corners to minimize movement and noise. The optimized fan blade and housing design provides outstanding air flow, enhances static pressure and cooling performance. O-type LED ring brings visible color and brightness uniformity from all directions and adds spot light to the chassis.

AURAS 12
  • O-type LED brings visible color & brightness uniformity from all direction
  • Anti-vibration rubber pads in all four corners to minimize movement and noise
  • Specific housing design to provide max. static pressure
  • Optimized fan blade design to provide outstanding air flow
  • PWM function (AURAS 12 standard, from 800-1800 RPM)
  • Y-CABLE (4pin) attached (AURAS 12 standard)
SPECIFICATION
Product Name AURAS 12 Standard
Product Number 0R400033~0R400036
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 6 V
Speed 800~1800 R.P.M. [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 59.7 CFM [Max.]
Air Pressure 1.62 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 32.2 dBA [Max.]
Connector 4 pin with PWM
LED Colors White / Red / Blue / Green
Weight 300g

12025 Fan × 2

Y-cable × 1

Screw × 8

Package × 1
