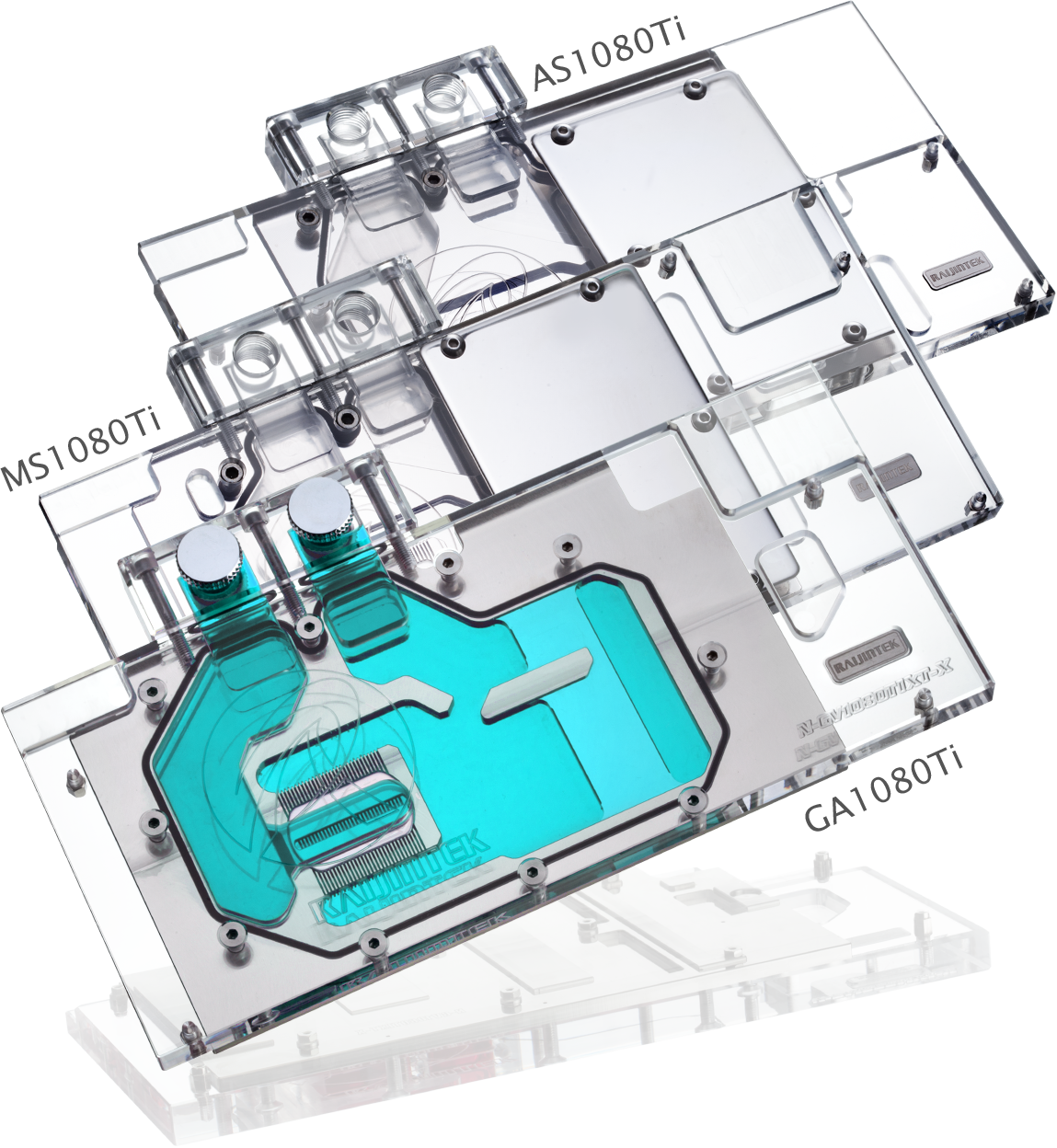

SAMOS GTX1080Ti
SAMOS series product, RAIJINTEK Water Block for Graphic card, is made of copper to cover fully graphic card water block for GTX1080Ti. Copper Water block base is manufactured by CNC, 0.5mm internal fin construction, and 11.5mm thickness transparent Acrylic cover. With G1/4 fittings, a universal mounting mechanism, tool-less installation and micro-channel structure, SAMOS AS1080Ti/MS1080Ti/GA1080Ti is not only a high-performing cooling product for gaming and overclockers, but also a user friendly for custom PC builders.
SAMOS GTX1080Ti
  • Mirror-Finished Copper Base
  • Manufactured with RAIJINTEK high-quality standard, the specially machined copper base has a mirror finish with anti-corrosive mating surface to the GPU that provides exceptional heat transfer for the most demanding use conditions.
  • High Water Flow Design
  • The coolant flow path includes all critical components. Proper cooling of these components contributes to overclocking stability and reliable operation. The block covers the entire PCB, leaving no components exposed to possible damage during handling.
  • Unique Micro-Channel Structure
  • Featuring a compact form factor with 0.5mm micro-channel fin construction guarantees optimal clearance and extreme heat dissipation. The copper base is compatible with most G1/4 fittings.
SPECIFICATION
Product Name SAMOS AS1080Ti SAMOS MS1080Ti SAMOS GA1080Ti
Product Number 0R100064 0R100065 0R100068
Dimension [H×W×L] 20×135×240 mm 22×156×249 mm 20.2×136×242 mm
Screw Threads G 1/4" G 1/4" G 1/4"
Weight 0.95 kg [N.W.] 1.17 kg [G.W.] 1.065 kg [N.W.] 1.305 kg [G.W.] 0.985 kg [N.W.] 1.285 kg [G.W.]
Material Copper + Acrylic Copper + Acrylic Copper + Acrylic
APPLICATION
SAMOS AS1080Ti ROG-STRIX-GTX1080TI-O11G-GAMING
ROG-POSEIDON-GTX1080TI-P11G-GAMING
ROG-STRIX-GTX1080TI-11G-GAMING
SAMOS MS1080Ti GeForce GTX 1080Ti series: GAMING X 11G / GAMING 11G / ARMOR 11G OC / ARMOR 11G
SAMOS GA1080Ti AORUS Geforce GTX 1080Ti Waterforce Xtreme Edition 11G /
Waterforce WB Xtreme Edition 11G Xtreme Edition 11G / 11G

VGA Water Block × 1

Back Plate × 1

Screw M2 L10 × 6

AS1080Ti × 7

MS1080Ti × 9

GA1080Ti × 5

AS1080Ti × 7

MS1080Ti × 9

GA1080Ti × 5

Thermal Pad × 4

Plastic myla × 4

Thermal Grease × 1

Installation Guide × 1

Package × 1
