RAIJINTEK

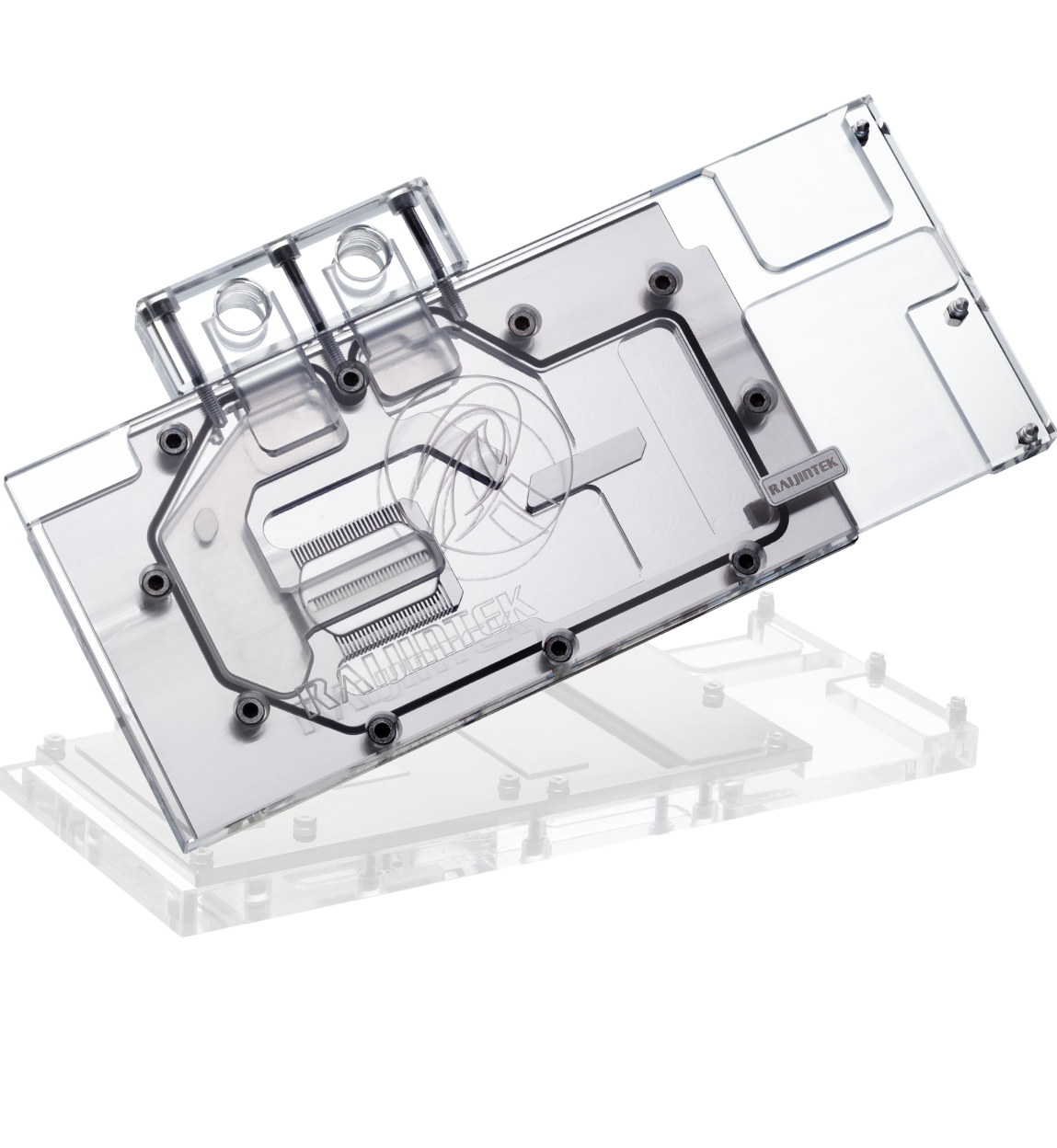

SAMOS TITAN XP

SAMOS series product, RAIJINTEK Water Block for Graphic card, is made of copper to cover fully graphic card water block for nVIDIA TITAN XP. Copper Water block base is manufactured by CNC, 0.5mm internal fin construction, and 11.5mm thickness transparent Acrylic cover. With G1/4 fittings, a universal mounting mechanism, tool-less installation and micro-channel structure, SAMOS TITAN XP is not only a high-performing cooling product for gaming and overclockers, but also a user friendly for custom PC builders.

Feature
Specification
Support
Unboxed

Mirror-Finished Copper Base
Manufactured with RAIJINTEK high-quality standard, the specially machined copper base has a mirror finish with anti-corrosive mating surface to the GPU that provides exceptional heat transfer for the most demanding use conditions.
High Water Flow Design
The coolant flow path includes all critical components. Proper cooling of these components contributes to overclocking stability and reliable operation. The block covers the entire PCB, leaving no components exposed to possible damage during handling.
Unique Micro-Channel Structure
Featuring a compact form factor with 0.5mm micro-channel fin construction guarantees optimal clearance and extreme heat dissipation. The copper base is compatible with most G1/4 fittings.

SPECIFICATION
Product Name	SAMOS TITAN XP
Product Number	0R100067
Dimension [H×W×L]	20×127×239 mm
Screw Threads	G 1/4"
Weight	0.985 kg [N.W.] 1.135 kg [G.W.]
Material	Copper + Acrylic
