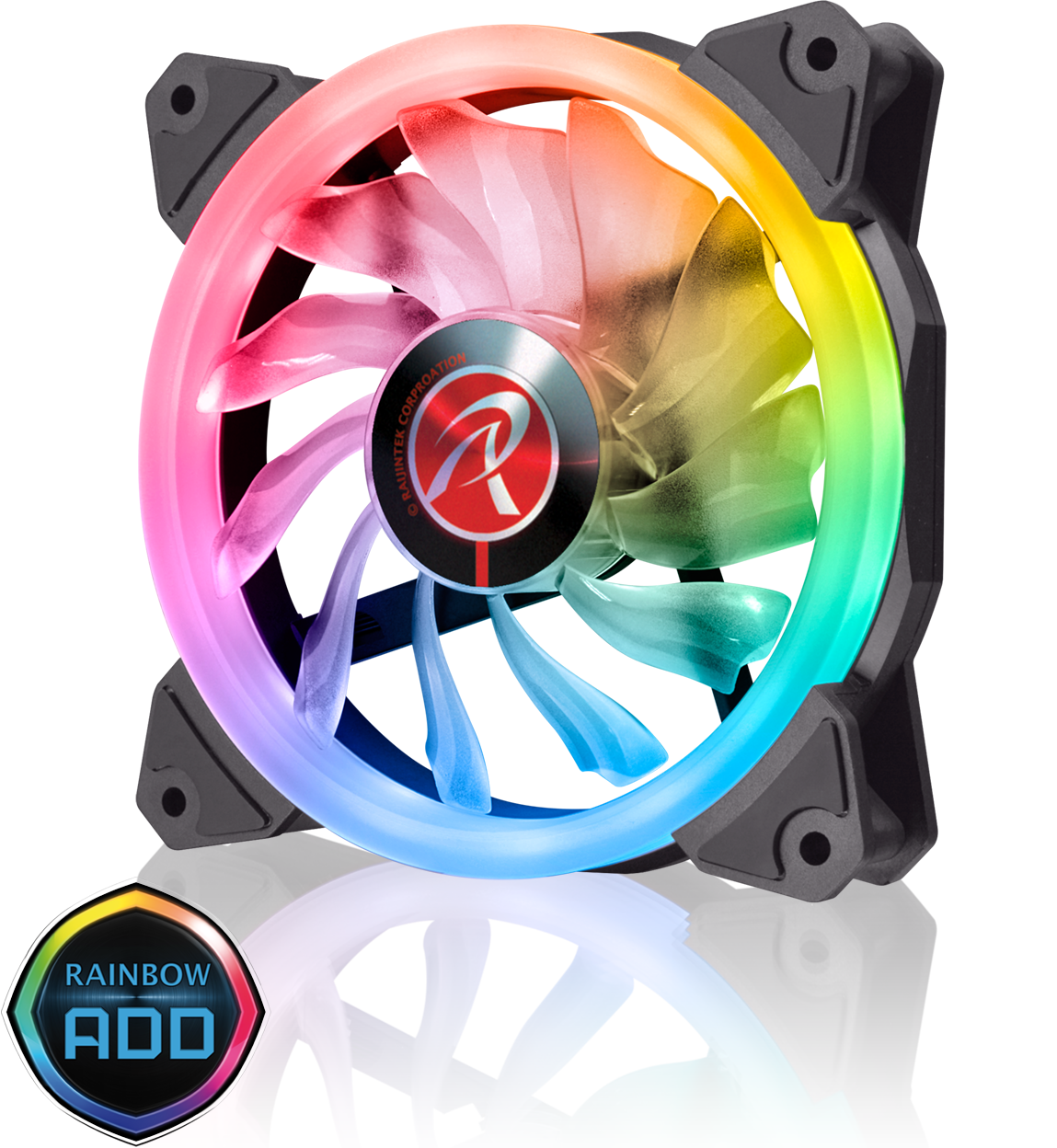

IRIS 12 RAINBOW RGB
RAIJINTEK IRIS 12 Rainbow RGB series, 12025 O-Type RGB PWM fan, continues company's innovative design and providing advanced features & additional value to end users. With 6 port RGB LED hub and remote controller (for 2 & 3 pack), you can set your IRIS 12 Rainbow RGB fans to stun with fading, breathing, blinking and single color LED modes. The IRIS 12 series combines optimized Eleven fan blade design to provide high-volume air delivery with less noise and turbulence, O-type LED ring and 15pcs LEDs to brings visible color and brightness uniformity from all directions, Hydraulic Bearing with Low-Noise Design, and Anti-Vibration rubber pads on all corners. Standard with LEDs incorporated with transparent frame and blades, IRIS 12 series is not only insuring your case to be the center of attraction and a spot light to chassis, but its optimized fan blade and housing design also provide outstanding air flow and cooling performance for your PC’s motherboard and CPU.
IRIS 12 RAINBOW RGB
  • Rainbow RGB with fading, breathing, blinking and single color LED modes
  • 6 port RGB LED hub and remote controller (for 2 & 3 pack)
  • O-type LED brings visible color & brightness uniformity from all direction
  • Anti-vibration rubber pads on all corners to minimize movement and noise
  • Optimized Eleven fan blade design to provide high-volume air flow
  • Specific housing design to provide max. static pressure
  • PWM function to provide best efficiency for CPU cooling
  • Individually controlled RGB LED lighting
  • Choose a theme that matches your build & customization
  • 15pcs LEDs to provide vivid Illumination
  • Quite performance, less turbulence and reliable operation
  • Easy installation
SPECIFICATION
Product Name IRIS 12 RGB 256-1 IRIS 12 RGB 256-2 IRIS 12 RGB 256-3
Product Number OR400043 OR400044 OR400045
Dimension [W×H×D] 120×120×25 mm 120×120×25 mm 120×120×25 mm
Voltage Rating 12V 12V 12V
Starting Voltage 6 V 6 V 6 V
Speed 800~1800 R.P.M. 800~1800 R.P.M. 800~1800 R.P.M.
Bearing Type Hydraulic Bearing Hydraulic Bearing Hydraulic Bearing
Air Flow 42.17 CFM [Max.] 42.17 CFM [Max.] 42.17 CFM [Max.]
Air Pressure 1.7 mmH2O [Max.] 1.7 mmH2O [Max.] 1.7 mmH2O [Max.]
Life Expectance 40,000 hrs 40,000 hrs 40,000 hrs
Noise Level 26.5 dBA [Max.] 24.8 dBA [Max.] 26.5 dBA [Max.]
Connector PWM 4 pin, RGB 4 pin PWM 4 pin, RGB 4 pin PWM 4 pin, RGB 4 pin
Weight 190g 420g 595g
Accessories Screw × 4 Screw × 8

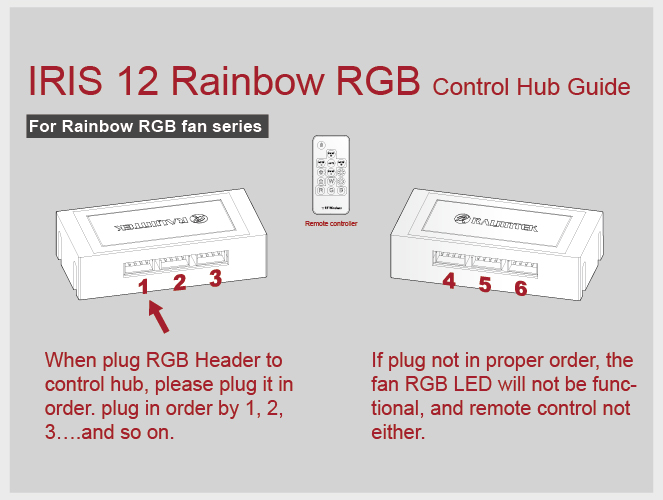

6 port RGB LED hub × 1
Remote controller × 1
Screw × 12
6 port RGB LED hub × 1
Remote controller × 1
  • Remote controller function

  • 1.On/off: Power on/off
    2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
    3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
    4.MODE (+): Forward to next mode
    5.MODE (-): Backward to previous mode
    6.AUTO: Automatically cycles all modes, 10 seconds for each mode
    7.W: Single White LED
    8.R: Single Red LED
    9.G: Single Green LED
    10.B: Single Blue LED
  • Rainbow RGB

  • 20 modes: 13 Dynamic color modes & 7 Static color modes
    Memory function: While power on, the mode and speed are at previous status
    Voltage rating: 12V
    Connecting 6 fans will get best effect for Dynamic modes
  • Color Modes

  • Mode 1: Dynamic 6 colors rotating with transition effect
    Mode 2: Dynamic lighting rotation to each other with transition effect
    Mode 3: Dynamic 6 colors rotating without transition effect
    Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
    Mode 5: Dynamic 7 single colors switch by water-flow effect
    Mode 6: Dynamic 7 shinning colors switch by water-flow effect
    Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
    Mode 8-13: Dynamic 7 colors by water-flow rotating
    Mode 14-20: Static single LED color

IRIS 12 Rainbow RGB ×1 ×2 ×3


6 port RGB LED hub × 1
[for 2 & 3 pack]

Controller × 1
[for 2 & 3 pack]

Screw ×4 ×8 ×12


Rainbow RGB LED Connector×1

Package × 1
