PAEAN M

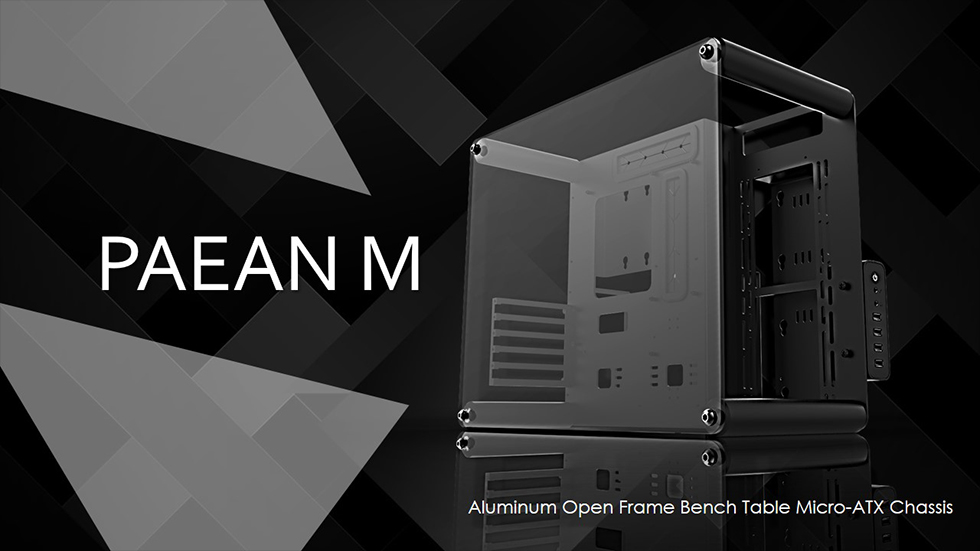

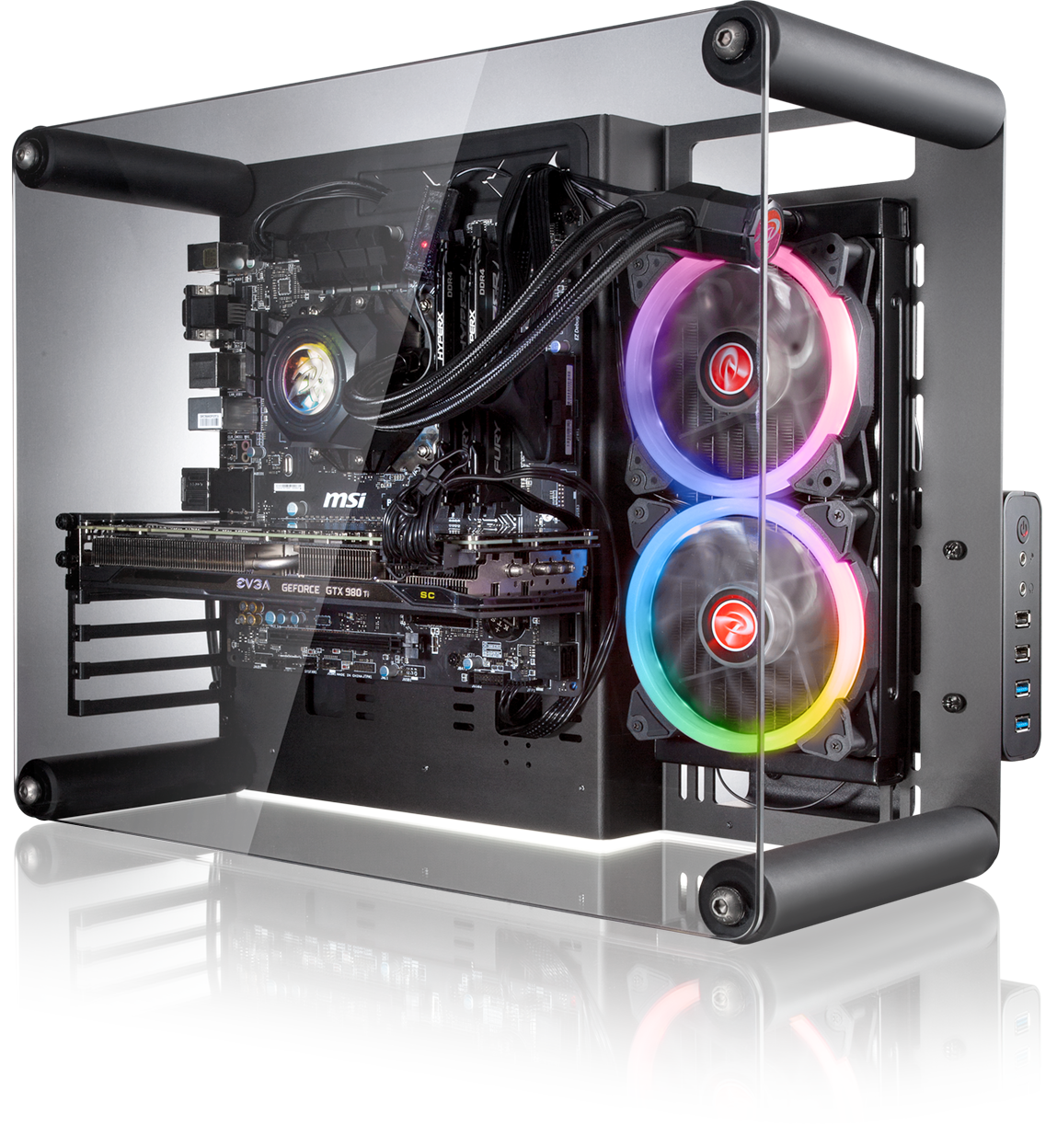

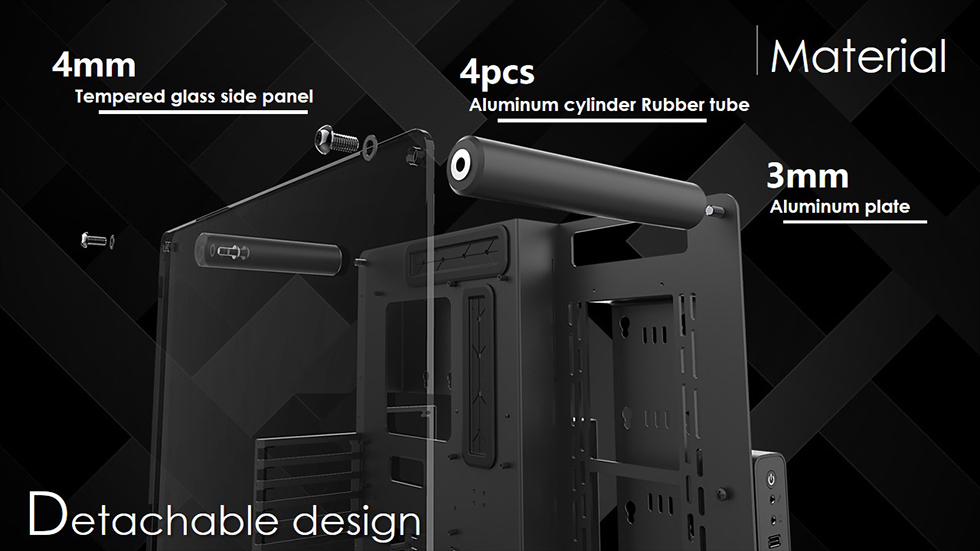

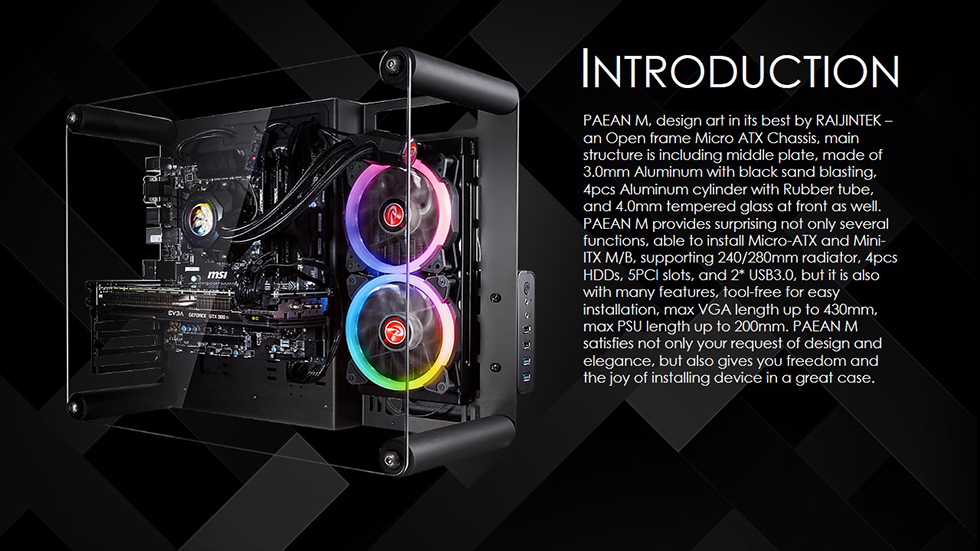

PAEAN M, design art in its best by RAIJINTEK – an Open frame Micro ATX Chassis, main structure is including middle plate, made of 3.0mm Aluminum with black sand blasting, 4pcs Aluminum cylinder with Rubber tube, and 4.0mm tempered glass at front as well. PAEAN M provides surprising not only several functions, able to install Micro-ATX and Mini-ITX M/B, supporting 240/280mm radiator, 4pcs HDDs, 5PCI slots, and 2* USB3.0, but it is also with many features, tool-free for easy installation, max VGA length up to 430mm, max PSU length up to 200mm. PAEAN M satisfies not only your request of design and elegance, but also gives you freedom and the joy of installing device in a great case.

PAEAN M PAEAN M












  •
  • Black and blasting anodized appearance design
  • Entire Coating black internally design
  • Compatible with ATX PSU
  • Compatible with max. VGA length up to 430mm
  • Supports max. 140mm height CPU coolers
  • 2×USB3.0+ 2×USB2.0 ports
  • Supports to install 1×3.5" HDD and 3×2.5" HDD
  • Anti-vibration rubber for HDD installation

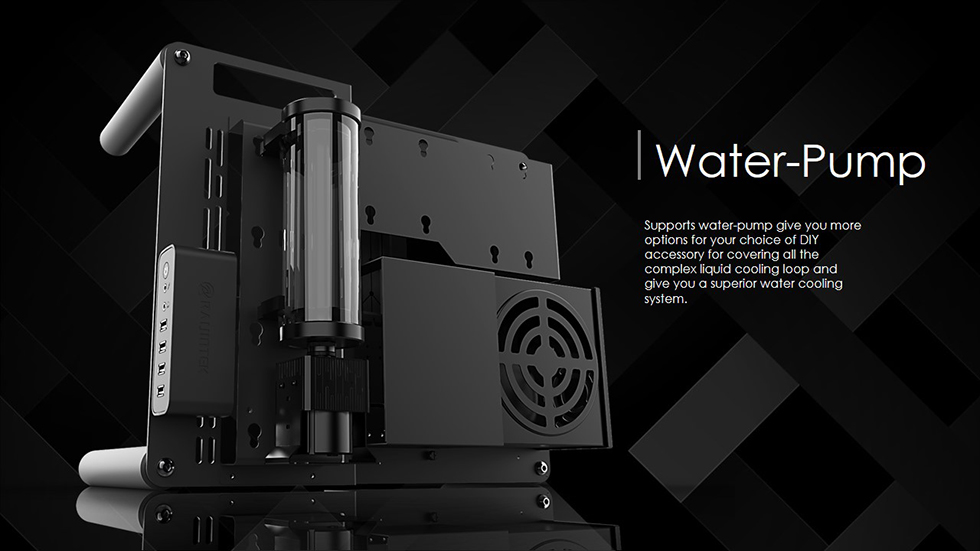

  • Modern design with much options of Water cooling system
  • Sturdy and reliable chassis body Chassis body: 3.0mm aluminum+1.0mm SGCC
  • Accommodate an internal 240/280 mm radiator
  • High quality 4.0mm tempered glass side panels
  • Tool-free easy installation for all systems

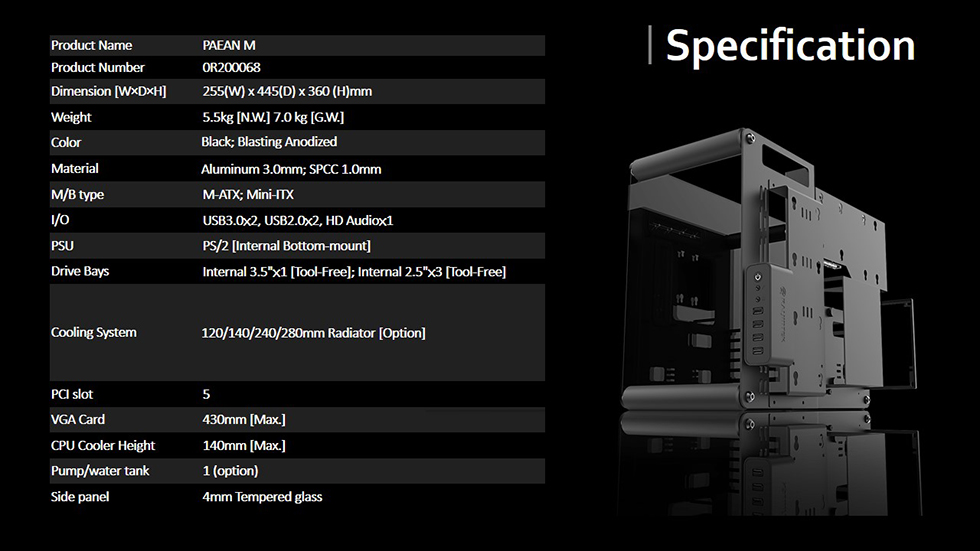

SPECIFICATION
Product Name PAEAN M
Product Number 0R200068
Dimension [W×D×H] 255×445×360 mm
Weight 5.5 kg [N.W.] 7.0 kg [G.W.]
Material Aluminum 3.0mm; SPCC 1.0mm
Color Black; Blasting Anodized

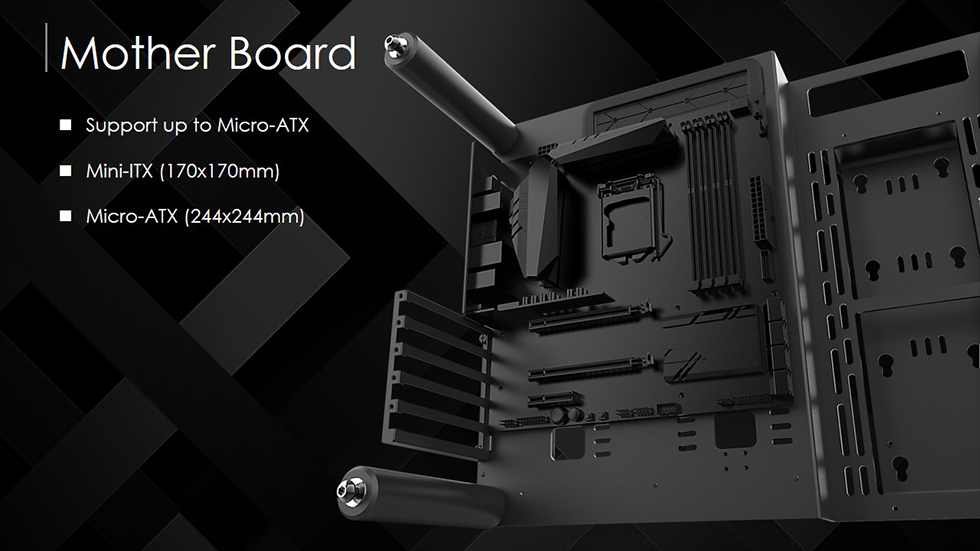

M/B Support MICRO ATX/MINI ITX

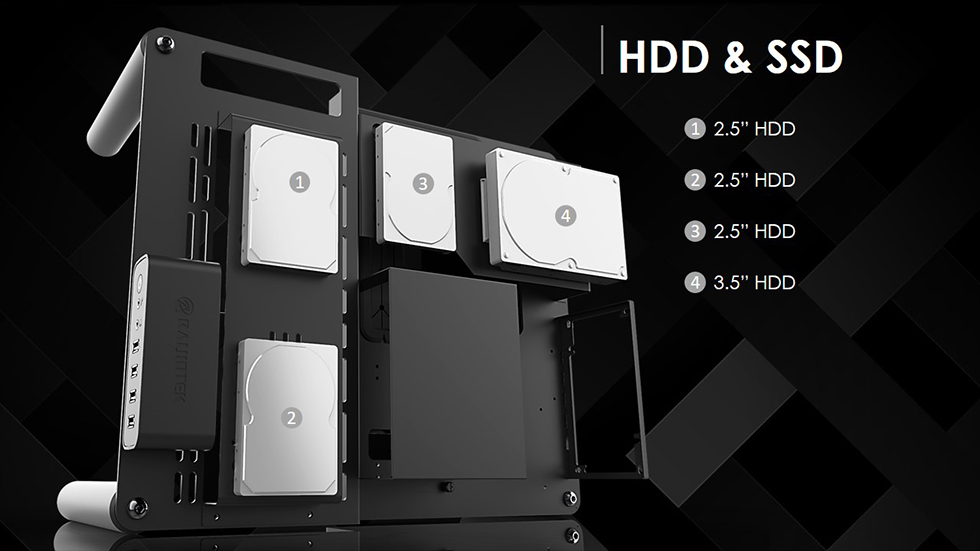

Drive Bay Internal 3.5"×1 [Tool-Free]; Internal 2.5"×3 [Tool-Free]
Expansion Slot PCI Slots ×5

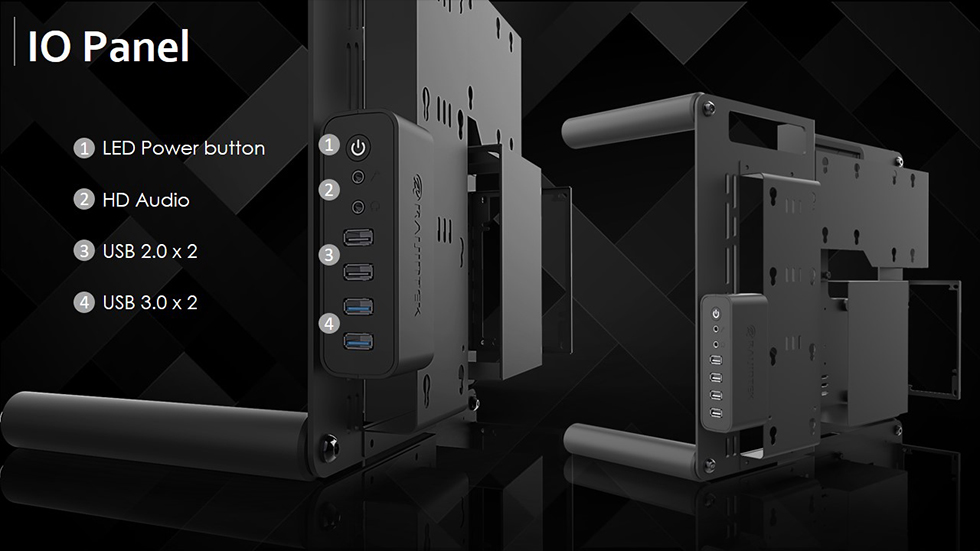

I/O Panel USB3.0×2, USB2.0×2, HD Audio×1

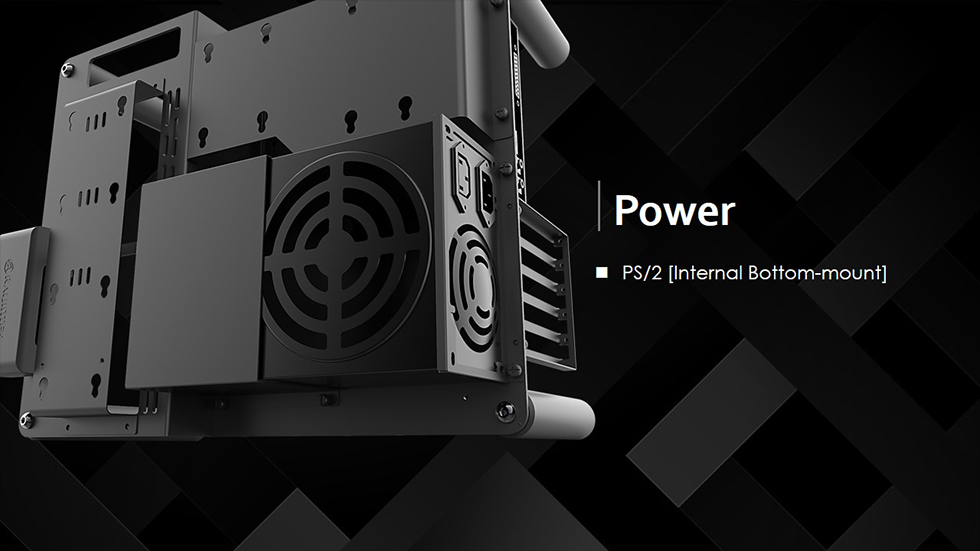

Power Supply PS/2 [Internal Bottom-mount]

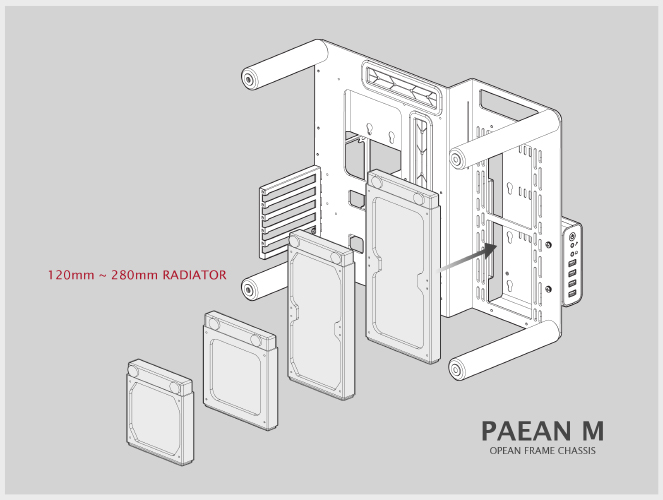

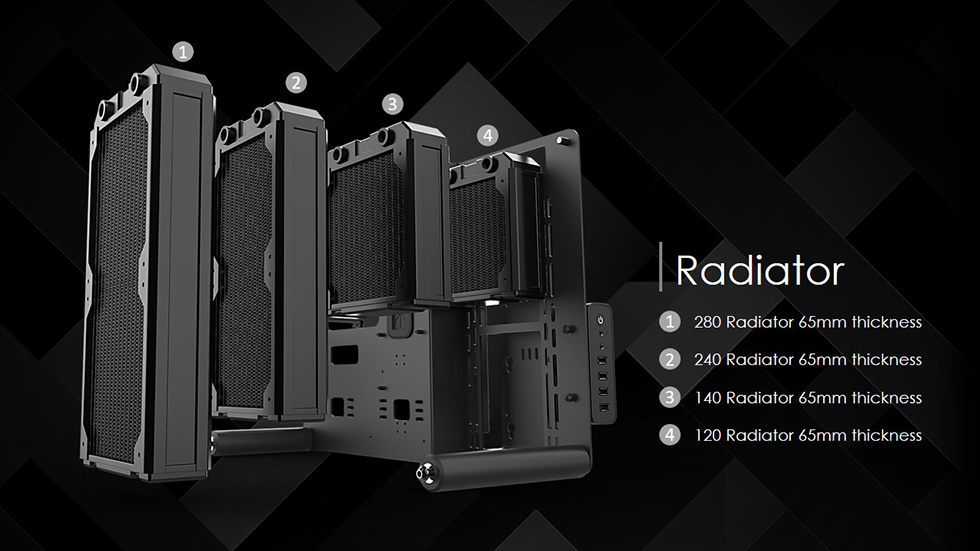

Cooling System 120/140/240/280mm Radiator [Option]
CPU Cooler Height 140mm [Max.]

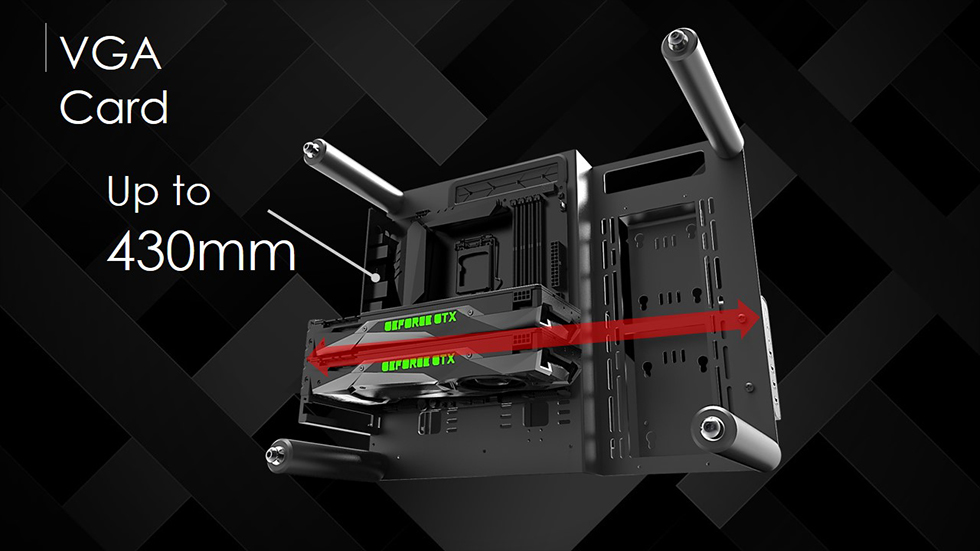

Graphic Card Length 430mm [Max.]
Side Panel Style 4mm Tempered Glass
  • PAEAN M Installation Guide  [ 4.79 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish, Polish and Portuguese.

M/B frame plate × 1

Bracket of M/B frame plate × 4

PCI back bracket × 1


PSU back bracket × 1


PSU bracket × 1

HDD Cadge × 1

HDD Cadge × 1

I/O module × 1

Tempered Glass Side Panel × 1

Screw #6-32 L6 × 9
Motherboard

Screw #6-32 L5 × 25

Screw M3 L9 × 12
2.5"HDD

Screw #6-32 L9 × 4
3.5"HDD

Stand-off × 9
Motherboard

Screw M3 L10 × 2
Fasten I/O module

Screw M8 L16 × 8
Side Panel

Cable Tie × 3
Settle Cable

PSU Rubber × 2
PSU Anti-vibration

Allen Key × 1
Install side panel

Installation Guide × 1
