RAIJINTEK

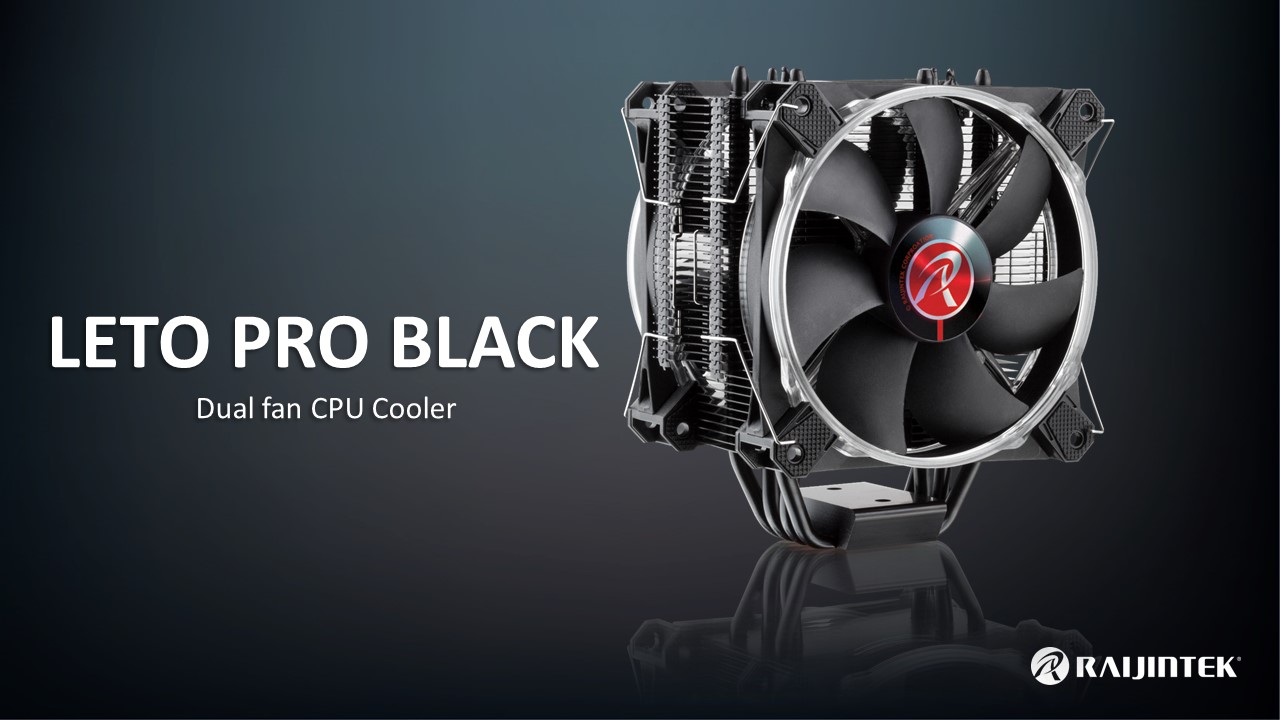

LETO PRO BLACK

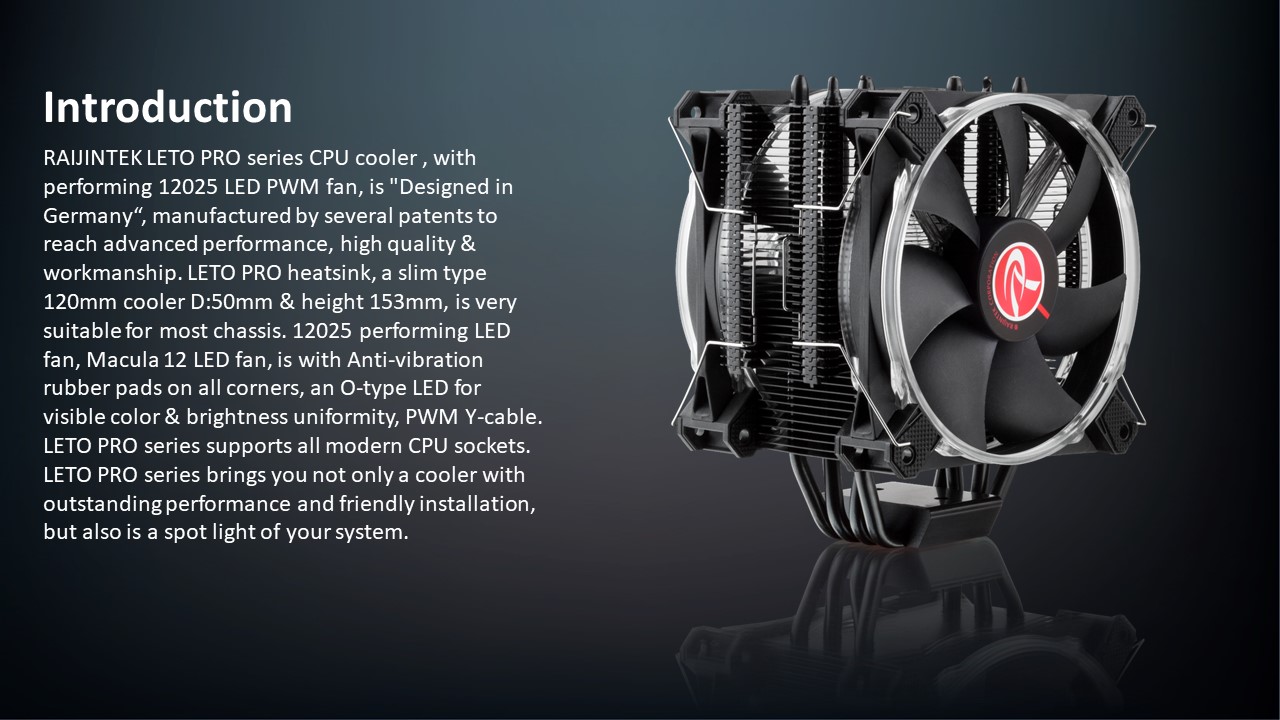

RAIJINTEK LETO PRO series CPU cooler , with performing 12025 LED PWM fan, is "Designed in Germany“, manufactured by several patents to reach advanced performance, high quality & workmanship. LETO PRO heatsink, a slim type 120mm cooler D:50mm & height 153mm, is very suitable for most chassis. 12025 performing LED fan, Macula 12 LED fan, is with Anti-vibration rubber pads on all corners, an O-type LED for visible color & brightness uniformity, PWM Y-cable. LETO PRO series supports all modern CPU sockets. LETO PRO series brings you not only a cooler with outstanding performance and friendly installation, but also is a spot light of your system.

Feature
Specification
Support
Unboxed
Gallery

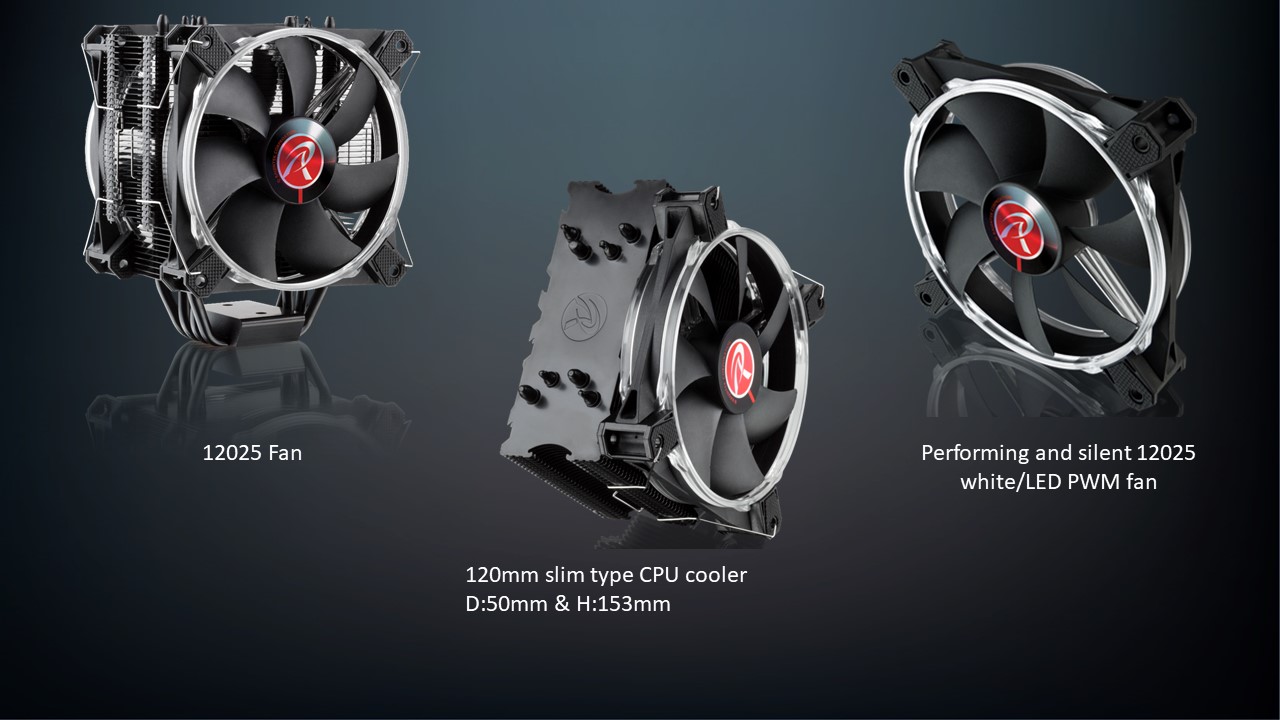

120mm slim type CPU cooler – D:50mm & H:153mm

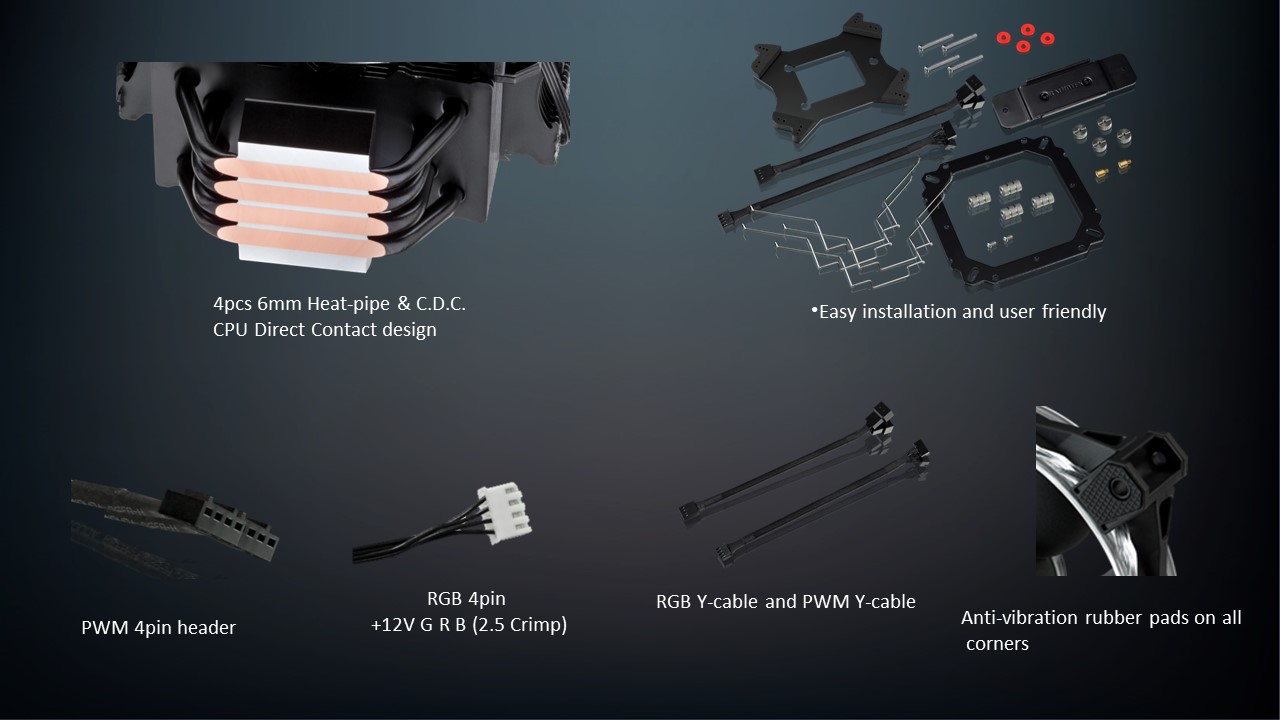

4pcs 6mm Heat-pipe & C.D.C. - CPU Direct Contact design
Performing and silent 12025 LED PWM fan
PWM Y-cable
Solder-free louver fin assembly to increase heat-pipe ventilation
Compatible with all modern sockets of INTEL & AMD at market
Anti-vibration rubber pads on all corners of fan to minimize movement and noise
Easy installation and user friendly

SPECIFICATION
Product Name	LETO PRO BLACK
Product Number	0R100073 [0R10A00073]
Dimension [W×D×H]	127×101×155 mm
Weight	925 g [Heat Sink & Fan]
Thermal Resistance	0.11 °C/W
Base Material	CPU Direct Contact [C.D.C.]
Fin Material	Aluminum Alloy; Solder-free fins assembly
Heat-pipe SPEC	Φ6mm
Heat-pipe Q'ty	4 pcs
Fan Dimension [W×H×D]	120×120×25 mm
Voltage Rating	12V
Starting Voltage	7.5V [Max.]
Speed	800~1800 R.P.M.
Bearing Type	Sleeve Bearing
Air Flow	56 CFM [Max.]
Air Pressure	1.6 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	25 dBA [Max.]
Connector	PWM 4 pin
LED	White
Fan Q'ty	2 pcs
est. TDP	165W

APPLICATION
Intel®	All Socket LGA 1700 / 2066 / 201x / 1366 / 115x / 1200 / 775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD®	All AM5 / AM4 / AM3+ / AM3 CPU

LETO PRO BLACK Installation Guide [ 6.79 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Korean and Portuguese.
