RAIJINTEK

RHEA

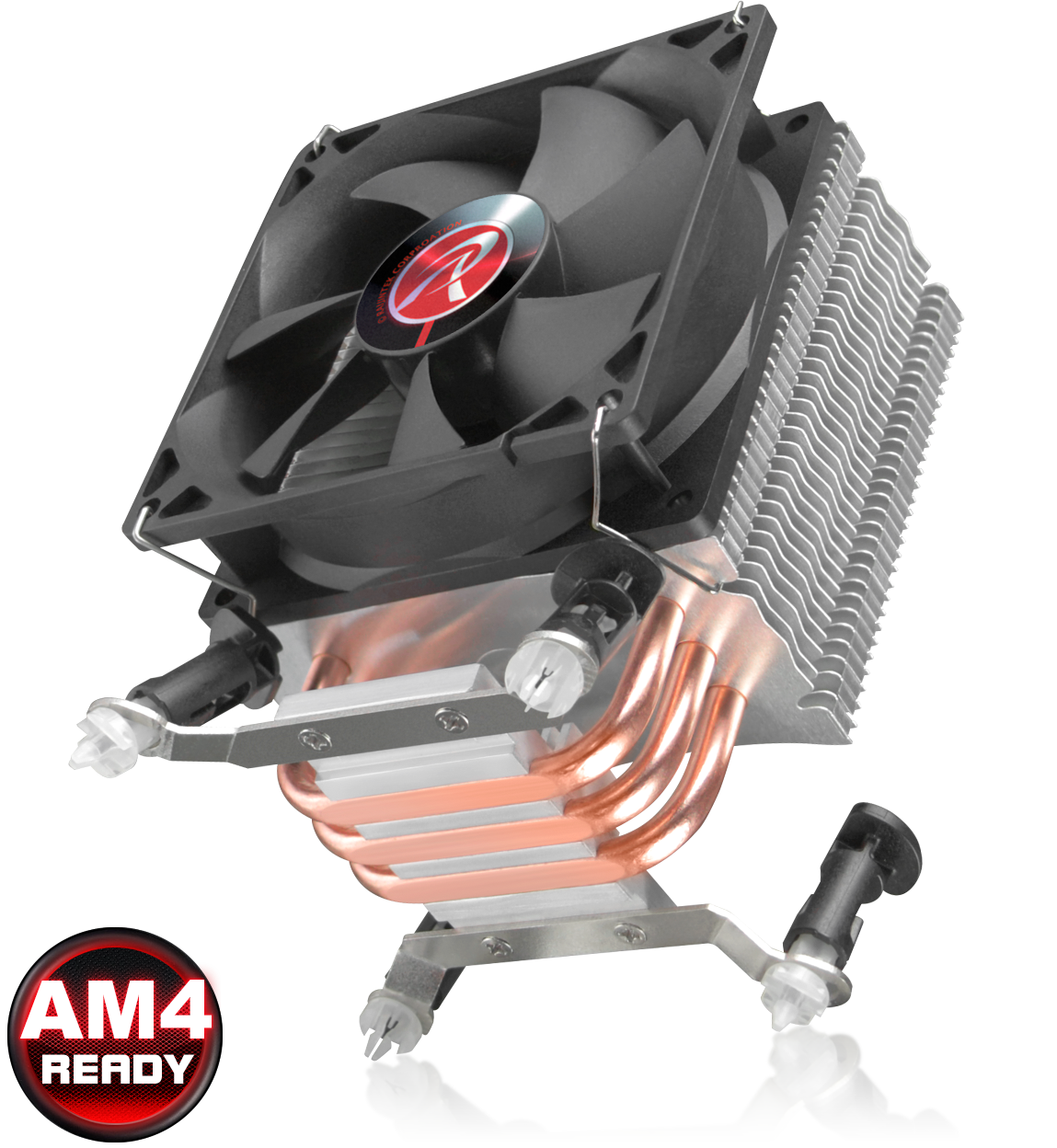

RHEA, Raijintek's compact size performance cooler, is a cooler with C.D.C. (CPU Direct Contact)and designed by German Engineers. With 3pcs of Φ6 mm heat-pipes and light material fins, plus a powerful but quiet 92mm fan, Rhea supports nowadays most popular Intel LGA 1150/ 1155/1156 Socket & AMD all AM2/AM3/AM4 CPU’s and is easy to install in seconds for users.

Feature
Specification
Support
Unboxed
Review

Non-Copper base design (C.D.C. - CPU Direct Contact)
92mm highly efficient PWM fan
3pcs high performance U type heat-pipe
Light weight and 130 mm height for most desktop system
Compatible with Intel LGA 1150/ 1155/1156 Socket & AMD all AM2/AM3/AM4 CPU
Point of view of budget price
Easy installation and user friendly

SPECIFICATION

Product Name

RHEA

Product Number

0R100005 [0R10A00005]

Dimension [WxDxH]

93x59x130 mm

Weight

250 g [Heat Sink Only]

Thermal Resistance

0.18 °C/W

Heat Sink

Base Material	CPU Direct Contact [C.D.C.]
Fin Material	Aluminum Alloy; Solder-free fins assembly

Heat-pipe

SPEC	Φ6mm
Q'ty	3 pcs

Fan

Dimension [WxHxD]	92x92x25 mm
Voltage Rating	12V
Starting Voltage	7V
Speed	800~2200 RPM [PWM controlled]
Bearing Type	Sleeve Bearing
Air Flow	33.6 CFM [Max.]
Air Pressure	1.67 mmH2O [Max.]
Life Expectance	40,000 hrs
Noise Level	27.9 dBA [Max.]
Connector	4 pin with PWM

est. TDP

100W

APPLICATION
Intel®	Socket LGA 1150/1155/1156/1200 CPU
AMD®	All AM2/AM3/AM4 CPU

RHEA Installation Guide [ 1.76 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Heat-Sink X 1

9225 PWM Fan × 1

AMD Mounting Clip × 1

Fan Clip × 2

Thermal Grease × 1

Installation Guide × 1

Package × 1
