CWB-RGB

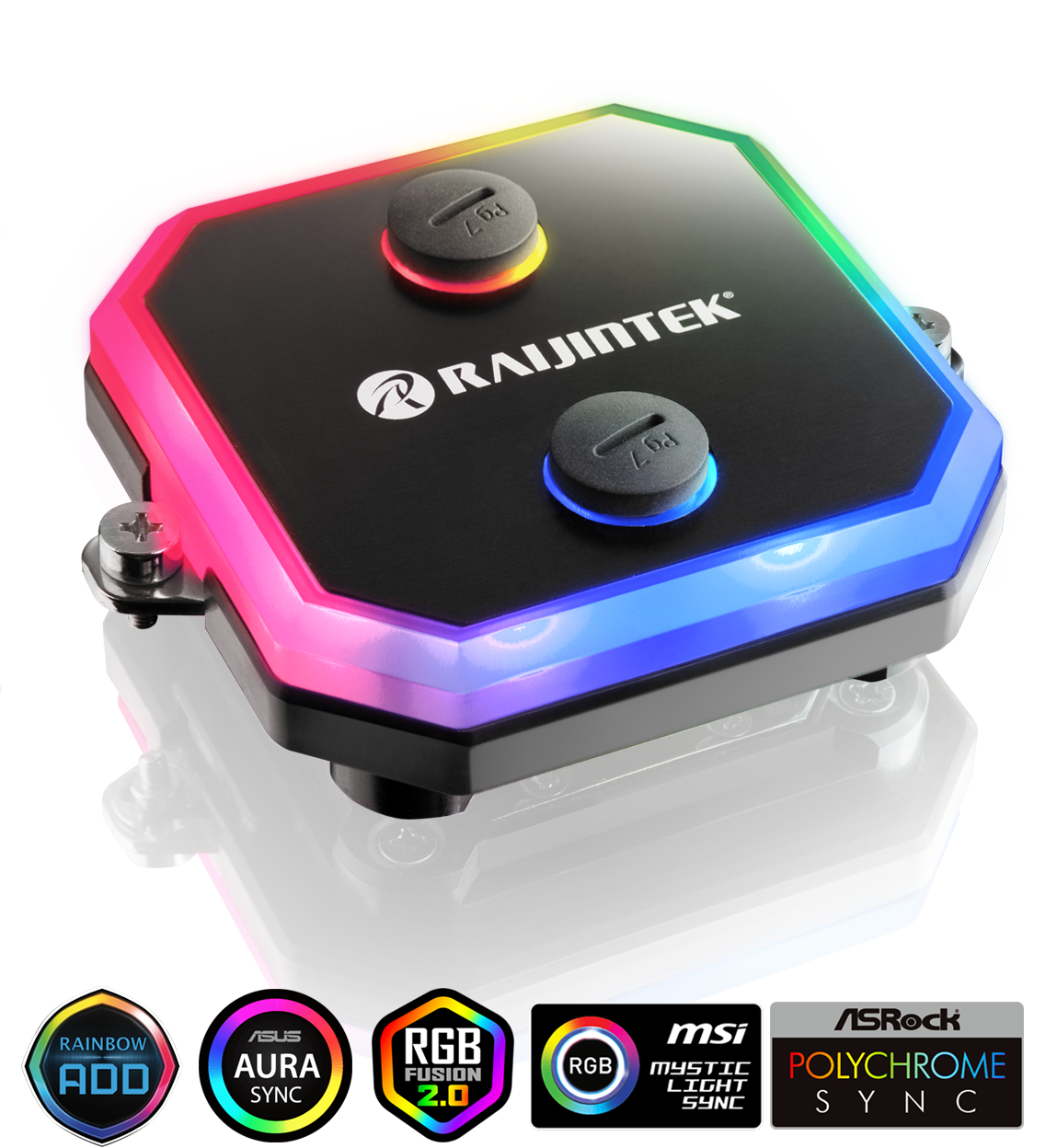

RAIJINTEK's CPU water block with Rainbow LED (Addressable) light, CWB-RGB, made of full copper material which was melted by alloying. With adapting 3D micro-fin structure and alloying brazing, With control hub and 12 ADD LEDs, it comes with 184 LED modes which can fulfill everyone choose easily. CWB-RGB provides outstanding heat transfer efficiency and enhances thermal performance. Not only whole product was nickel-plated, but the high quality polished mirror base ensures excellent surface contact with the heat source. The solid universal back-plate not only prevents M/B distortion, but also has high compatible installation for all present modern CPU. User friendly installation, gorgeous Rainbow (addressable) LED light, outstanding thermal performance, high compatibility with modern CPU, unique design and nickel-plated, CWB-RGB is your best partner and solution for water cooling.

CWB-RGB
  • Rainbow RGB (Addressable) LED light
  • Control hub with 3 function button with SATA connecting cable
  • 3D micro-structure flow tunnel inside
  • Full copper material melted by alloying brazing
  • Nickel-plated & mirror polishing treatment
  • G1/4" thread able to upgrade water cooling system easily connected to all components
  • High compatible universal solid back-plate to prevent M/B distortion
  • Operating steady & silent & User friendly installation
  • High compatible installation for all present modern CPU
SPECIFICATION
Product Name CWB-RGB
Product Number 0R400054 [0R40A00054]
Dimension [W×D×H] 94×77×26.1 mm
Screw Threads G 1/4"
Material Full copper block, nickel-plated
Nylon + PMMA
Weight 180 g
Power Input 5V/3A [Max.]
RGB header RGB 4pin [Gnd/NA/D/+5V, 2.5 Crimp]
APPLICATION
Intel® All Socket LGA 775/115x/1200/1366/201x/2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU
  • CWB-RGB Installation Guide  [ 3.73 MB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

  •

  •

  •
  • Operation instructions of keys

  • 1.This controller has a total of 3 keys (▲, ▼, and M) and 1 indicator light
    2.The M key can switch the light type mode and speed mode, and the ▲ and ▼ can select light type or adjust the speed.
    3.After connecting to the power or turning on the machine, preset the rainbow rotation mode. The indicator light is green (light type mode). Press ▲ or ▼ at this time to select the light type. Press M to switch to speed mode
    4.In speed mode the indicator light is blue. Press ▲ or ▼ at this time to adjust the display speed. Press M to switch to light type mode
    5.Press ▲ for 3 seconds in any mode to enter the automatic mode (cyan light). Press ▲ or ▼ key to stop at the current light type and return to the light type mode
    6.Press ▼ for 3 seconds in any mode to return to the default rainbow rotation mode
    7.Press M for 3 seconds in any mode to turn off the machine. When the machine is off, press M to turn on the machine and return to the pre-shut off status.
    8.When the machine is shut off or the power source is pulled off (disconnected), the current light type and speed status will be recorded in the memory. Once the machine is turned on again, it will return to the original status.
  • 1.Light type 1: (default) Rainbow rotation.
    2.Light types 2~8: Single LED color (use of ▲ and ▼ to adjust the brightness). The color sequence is white, cyan, purple, yellow, blue, red and green.
    3.Light type 9: RGB 256-color - automatically changes colors.
    4.Light type 10: Seven-color breathing lights - automatically changes colors. The color sequence is white, cyan, purple, yellow, blue, red and green.
    5.Light type 11: Seven-color flash lights - automatically changes colors. The color sequence is white, cyan, purple, yellow, blue, red and green.
    6.Light types 12~184: Various rainbow light types.

CWB-RGB × 1

Back plate × 1

Bracket × 1
Intel Mounting Clips
Plastic myla × 5

Plastic brush × 1

Thermal grease × 1

Metal nut × 4

M4×6mm Screw × 4

M4×13mm Screw × 4

Installation Guide × 1

Package × 1
