CWB-TR4 RBW

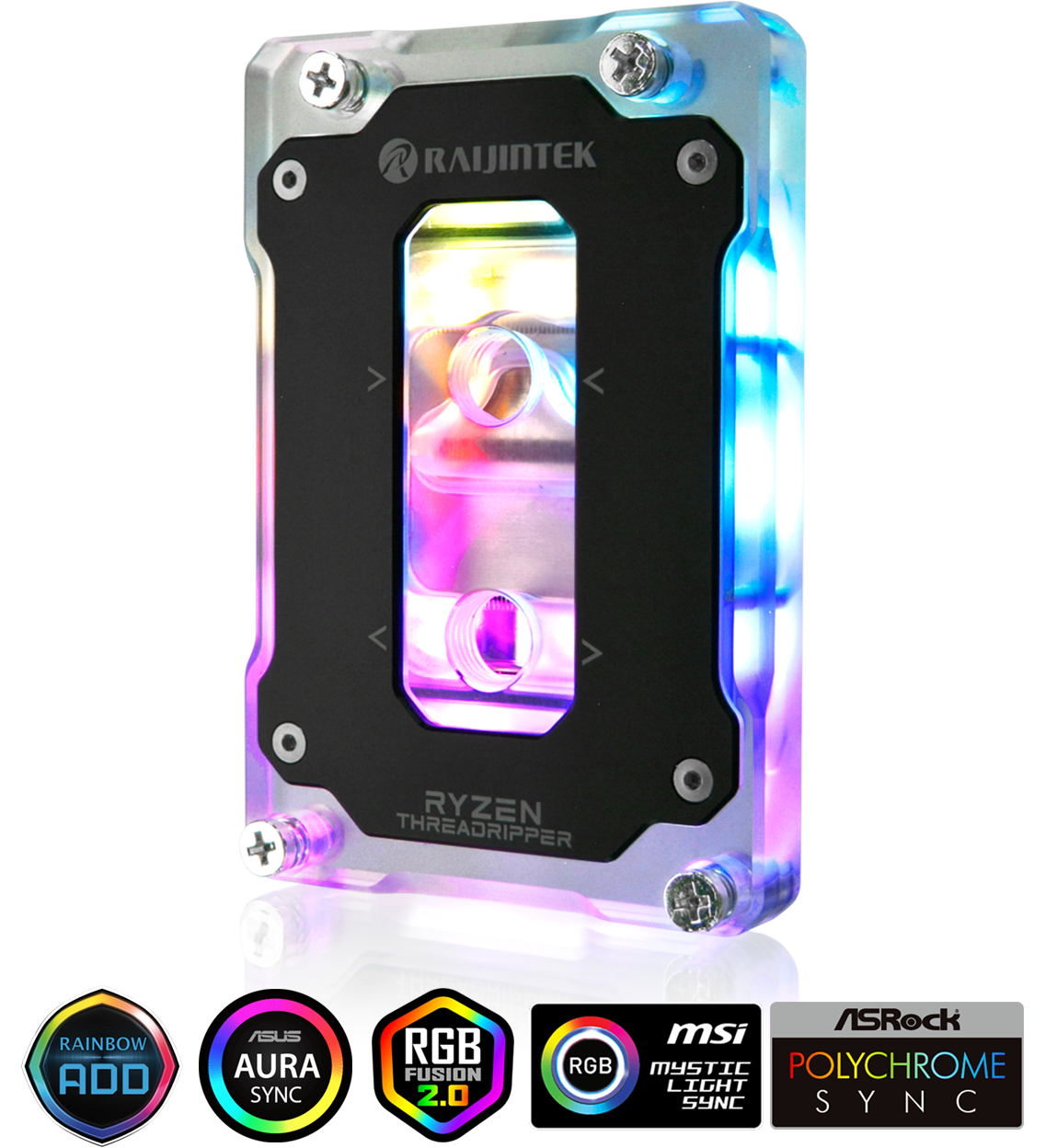

RAIJINTEK's TR4 CPU water block with Addressable LED, CWB-TR4 RBW, made of full copper material which was melted by alloying. With adapting 3D micro-fin structure and alloying brazing, CWB-TR4 RBW provides outstanding heat transfer efficiency and enhances thermal performance. Not only whole product was nickel-plated, but the high quality polished mirror base ensures excellent surface contact with the heat source. User friendly installation, gorgeous Addressable LED light, outstanding thermal performance, compatibility with AMD TR4 CPU, unique design and nickel-plated, CWB-TR4 RBW is your best partner and solution for water cooling.

CWB-TR4 RBW
  • Addressable LED (Rainbow) light
  • 3D micro-structure flow tunnel inside
  • Full copper material melted by alloying brazing
  • Nickel-plated & mirror polishing treatment
  • G1/4” thread able to upgrade water cooling system easily connected to all components
  • Operating steady & silent & User friendly installation
  • Compatible installation for AMD TR4 CPU
SPECIFICATION
Product Name CWB-TR4 RBW
Product Number 0R40B00084
Dimension [L×W×H] 118×80×19.6 mm
Screw Threads G 1/4"
Material Full copper block, nickel-plated, PMMA
Weight 334 g
Power Input 5V/3A [Max.]
ADD header +5V (Gnd/NA/D/+5V), 2.5 Crimp
APPLICATION
AMD® TR4-SP3 CPU
  • CWB-TR4 RBW Installation Guide  [ 284 KB ]
    This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

CWB-TR4 RBW × 1

Plastic brush × 1

Thermal grease × 1

Installation Guide × 1

Package × 1
