RAIJINTEK

SCYLLA PRO

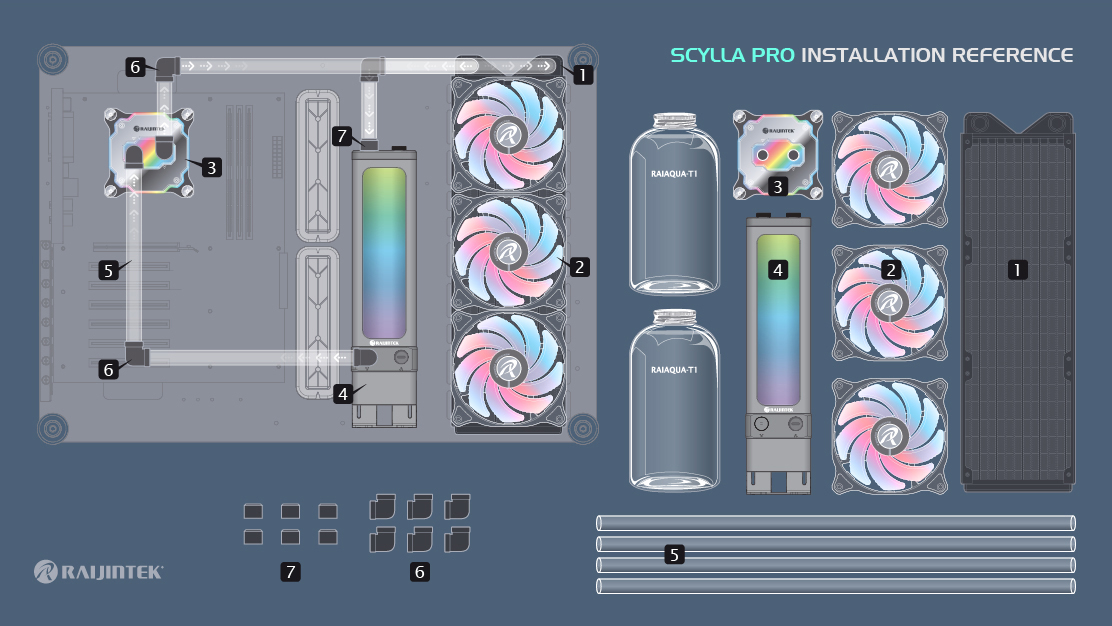

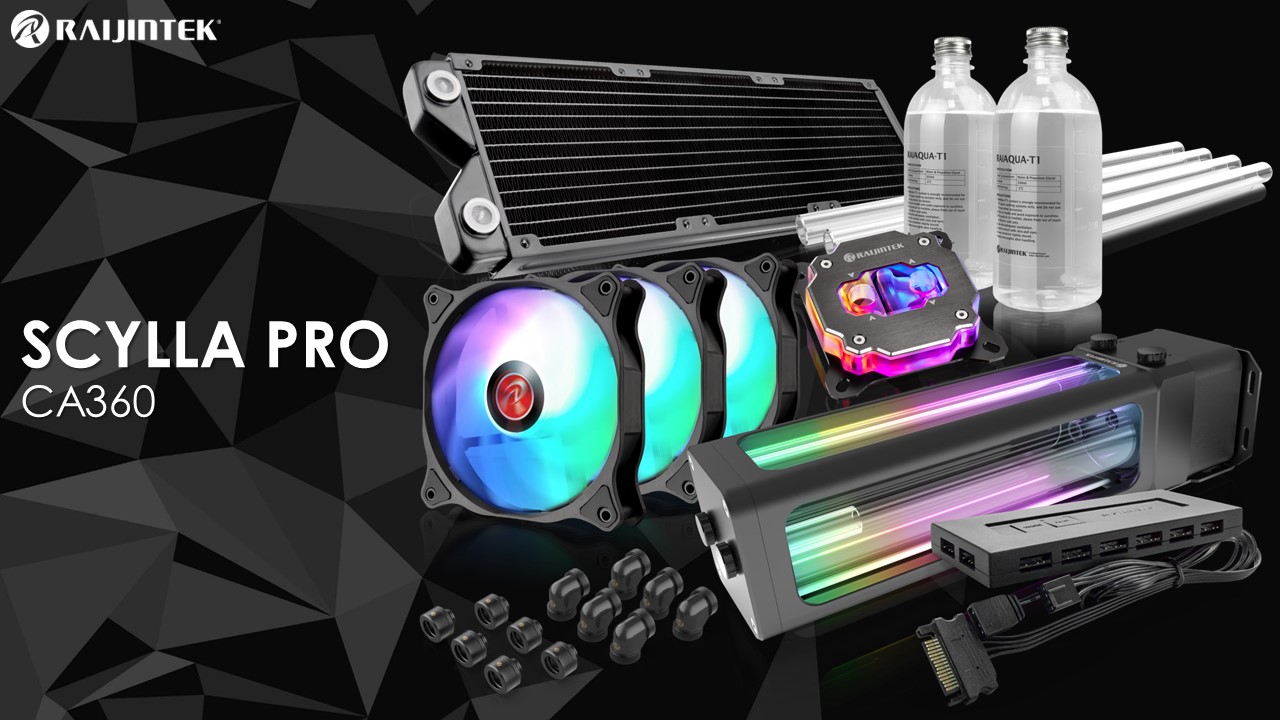

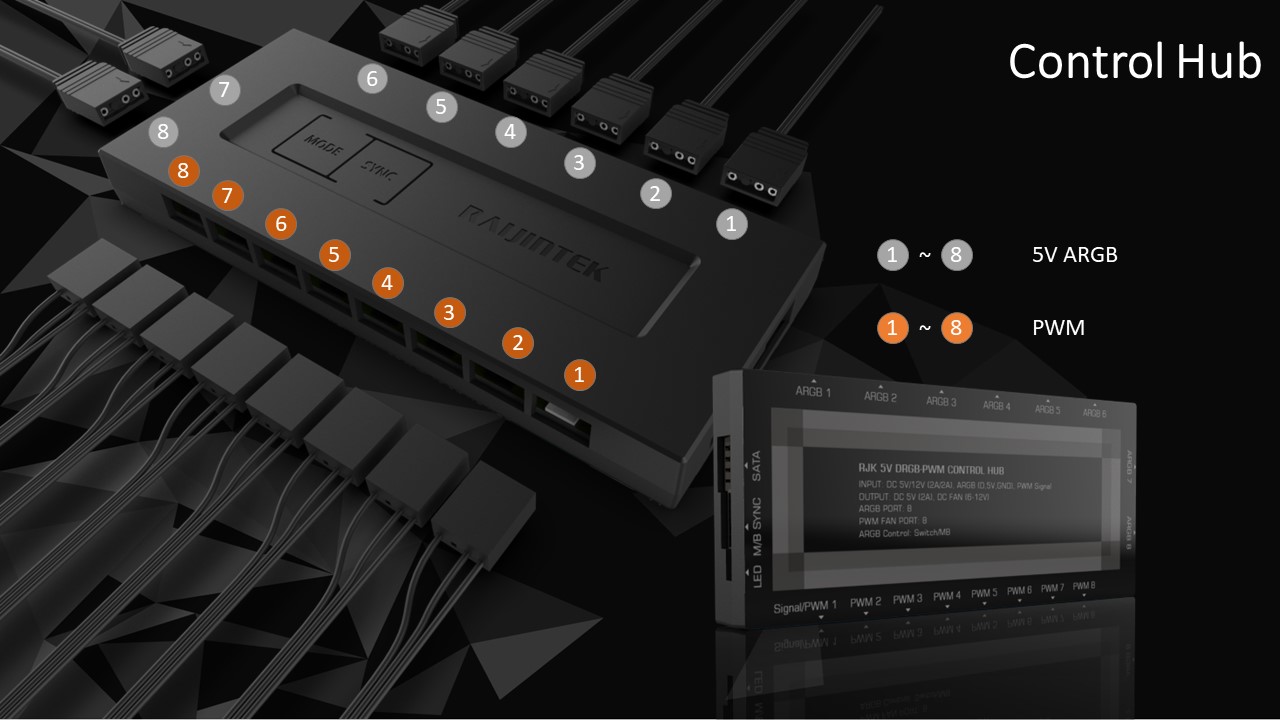

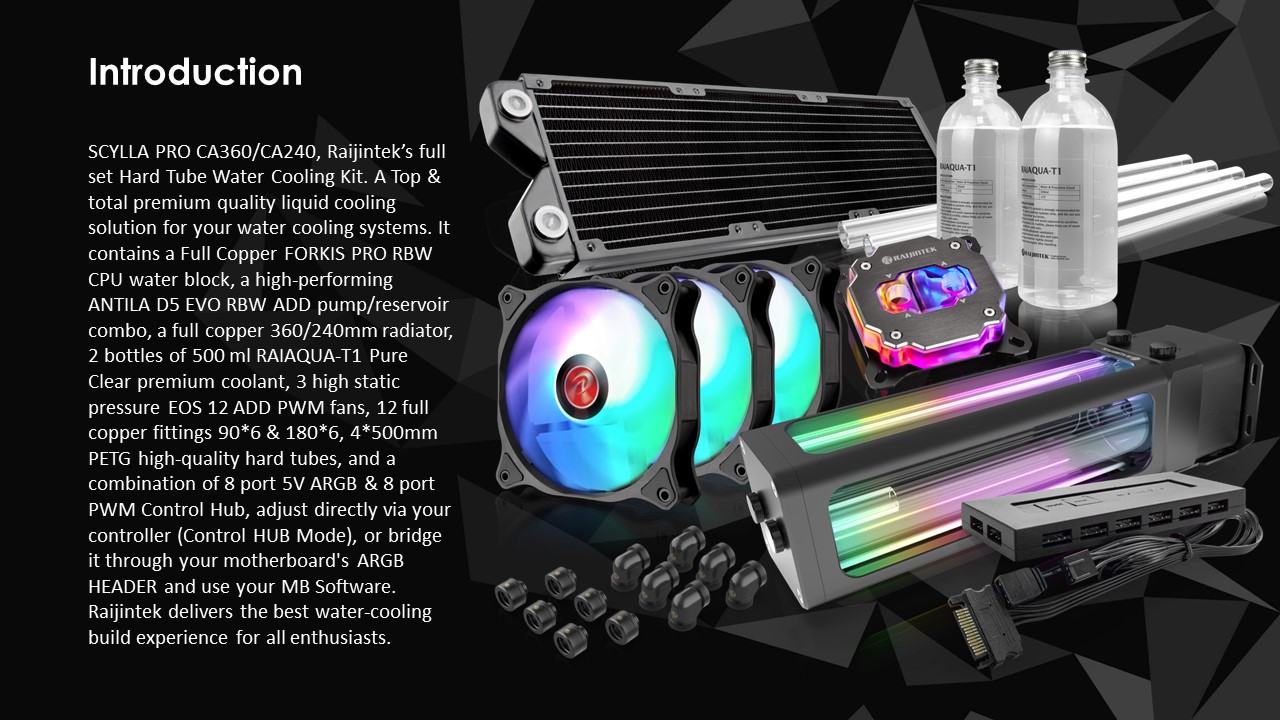

SCYLLA PRO CA360/CA240, Raijintek’s full set Hard Tube Water Cooling Kit. A Top & total premium quality liquid cooling solution for your water cooling systems. It contains a Full Copper FORKIS PRO RBW CPU water block, a high-performing ANTILA D5 EVO RBW ADD pump/reservoir combo, a full copper 360/240mm radiator, 2 bottles of 500 ml RAIAQUA-T1 Pure Clear premium coolant, 3 high static pressure EOS 12 ADD PWM fans, 12 full copper fittings 90*6 & 180*6, 4*500mm PETG high-quality hard tubes, and a combination of 8 port 5V ARGB & 8 port PWM Control Hub, adjust directly via your controller (Control HUB Mode), or bridge it through your motherboard's ARGB HEADER and use your MB Software. Raijintek delivers the best water-cooling build experience for all enthusiasts.

Feature
Specification
Support
Unboxed
Review
Gallery

SPECIFICATION
Product Name	SCYLLA PRO CA360	SCYLLA PRO CA240
Product Number	0R10B00216	0R10B00215
est. TDP	500W	440W

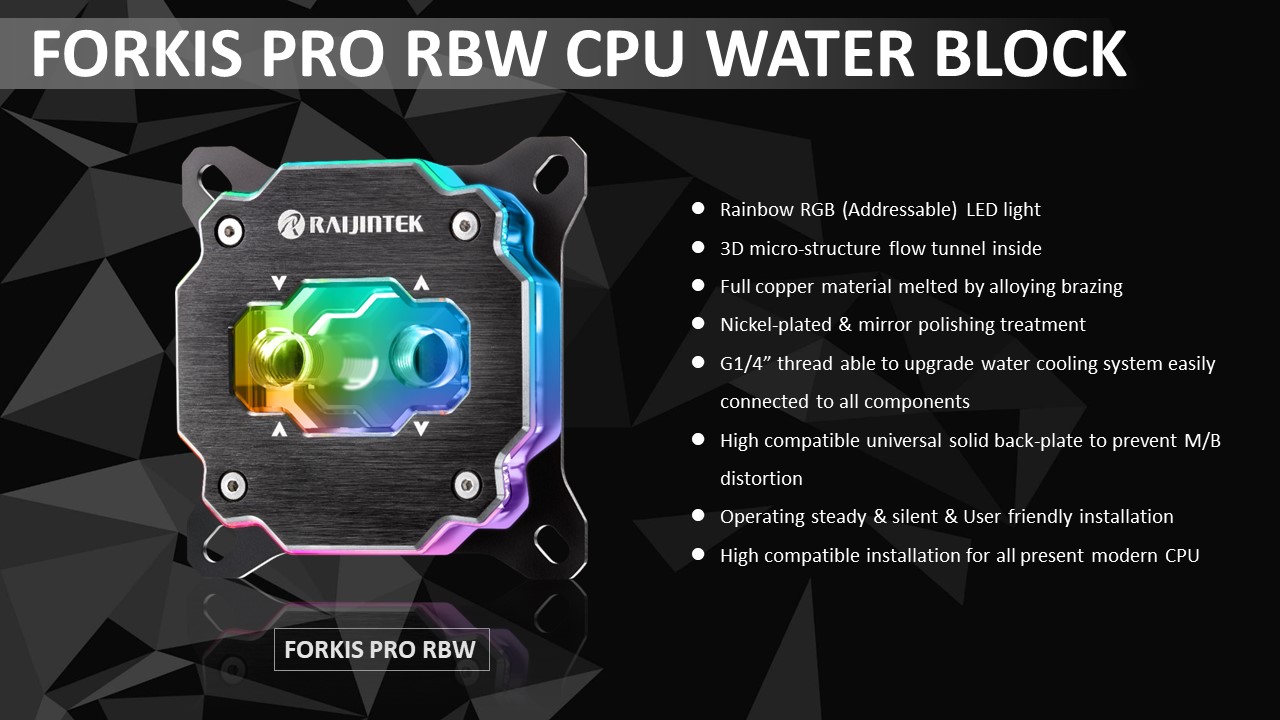

FORKIS PRO RBW SPECIFICATION
Product Name	FORKIS PRO RBW
Q'ty	1 pcs
Dimension [W×D×H]	82×82×16 mm
Screw Threads	G 1/4"
Material	Full copper block, nickel-plated, Aluminum + PMMA
Weight	495 g [w/o clip]
Power Input	5V/3A [Max.]

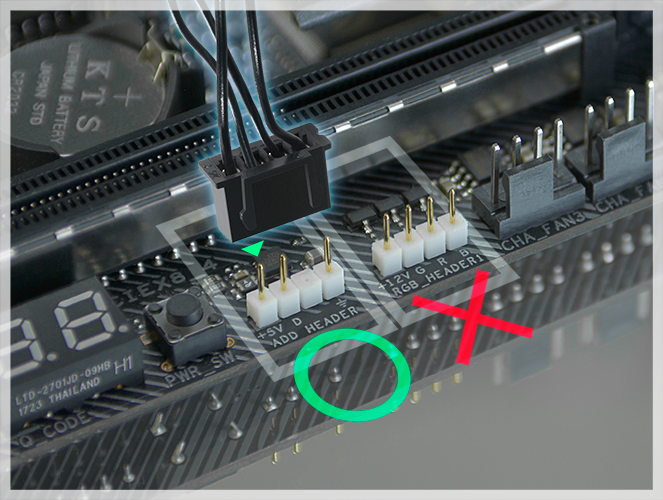

RGB header	RGB 4pin [Gnd/NA/D/+5V, 2.5 Crimp]
Application - Intel	All Socket LGA 17xx / 115x / 1200 / 1366 / 201x / 2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
Application - AMD	All AM5 / AM4 / AM3+ / AM3 CPU

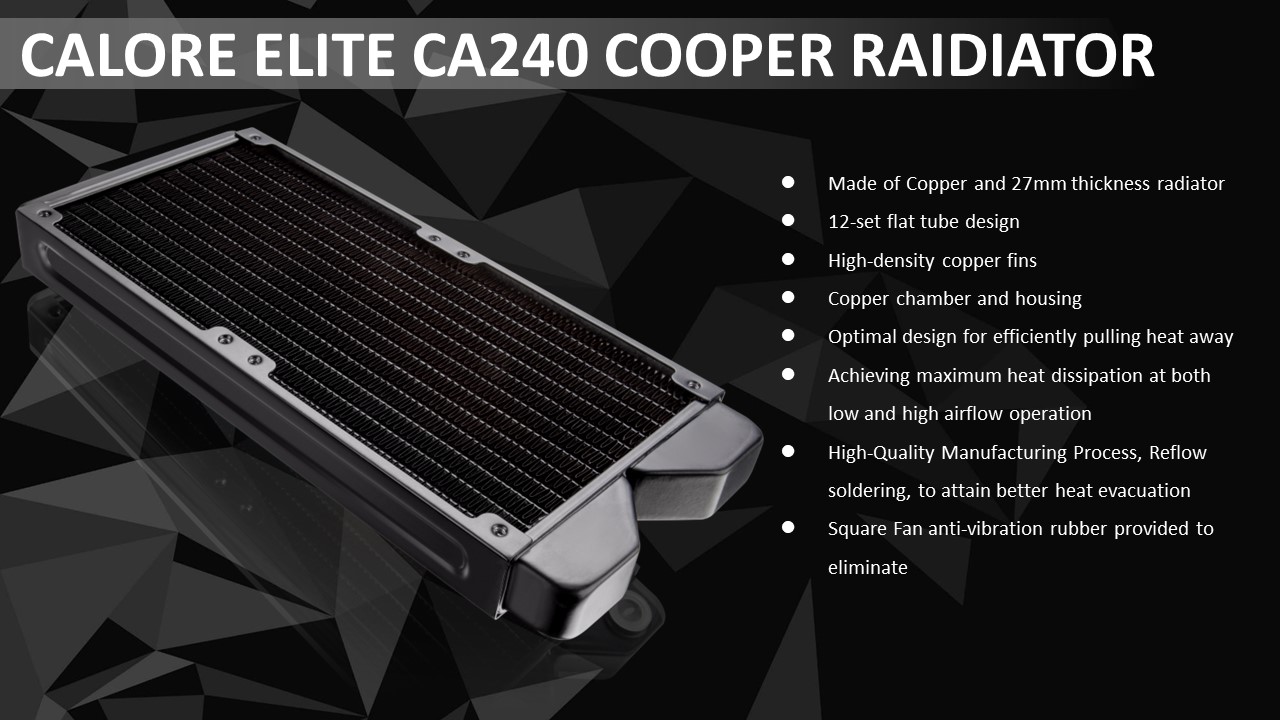

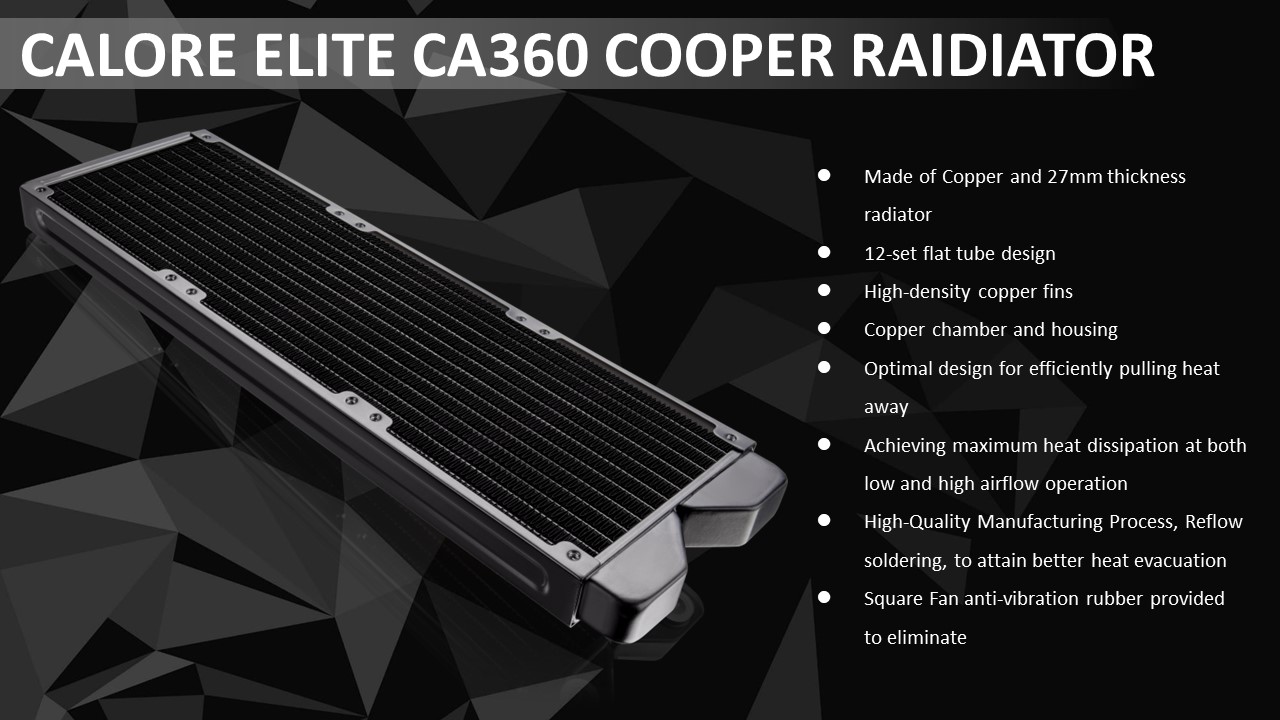

CALORE ELITE CA360 / CA240 SPECIFICATION
Product Name	CALORE ELITE CA360	CALORE ELITE CA240
Q'ty	1 pcs	1 pcs
Dimension [W×D×H]	393×120×27 mm	273×120×27 mm
Flat Tube	12 sets ; 1.5×16 mm	12 sets ; 1.5×16 mm
FPI (Fin per inch)	17	17
Tube row	13	13
Screw Threads	G 1/4"	G 1/4"
Port	2	2
Material	Copper	Copper
Weight	796 g	571 g
Surface	Black coated	Black coated

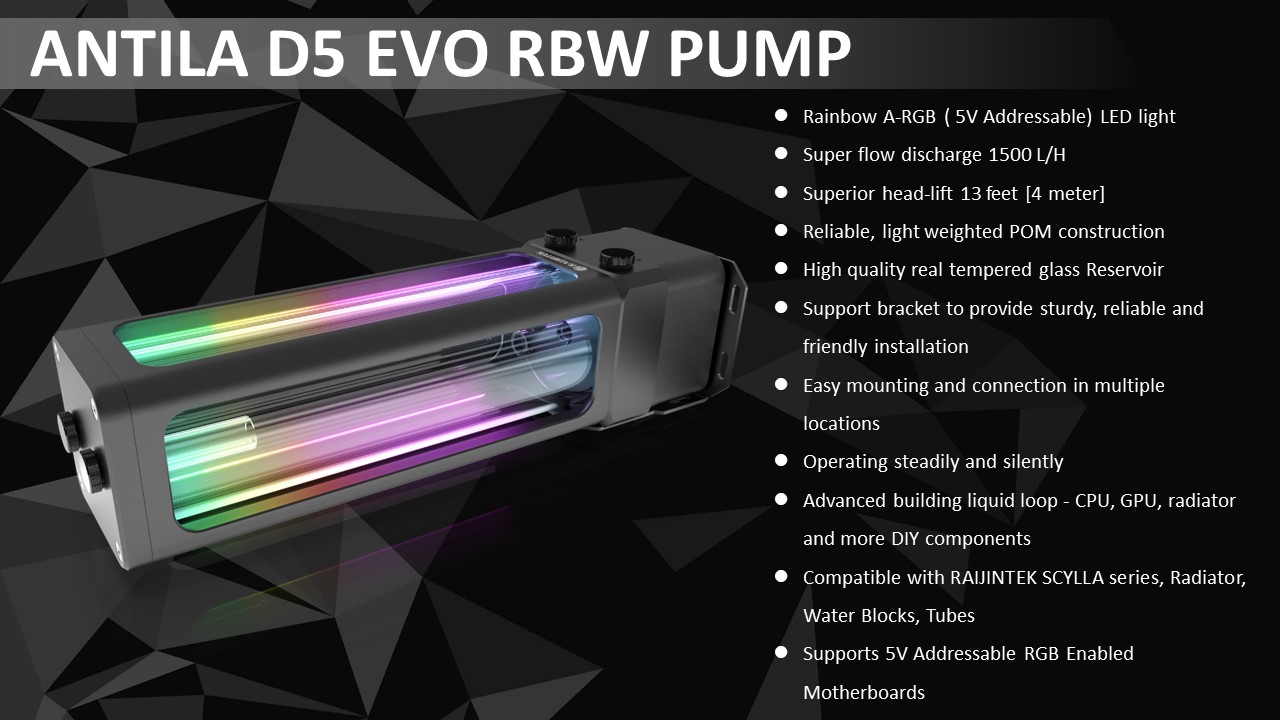

ANTILA D5 EVO RBW SPECIFICATION
Product Name	ANTILA D5 EVO RBW
Q'ty	1 pcs
Dimension [W×H×D]	80×95×305 mm [with Bracket]
Reservoir Dimension	60×60×220 mm
Material	POM + Glass + Aluminum + Steel
Weight	1260 g
Screw Threads	G 1/4"
Bearing type	Ceramic Bearing
Maximum Head	4 meter
Maximum Discharge	1500 L/H
Maximum Pressure	50 PSI
Life Expectance	50,000 hrs
Noise Level	40 dBA [Max.]
Speed	P1 : 1,800 RPM P2 : 2,500 RPM P3 : 3,300 RPM P4 : 4,000 RPM P5 : 4,800 RPM
Voltage Rating	DC12V
Input Current	2.5A ±10%
Connector	SATA 2510-3P [NA / NA / Fg ]
Addressable LED	12 LED Rainbow (4pin header, 2510 spec) – Addressable LED
LED Control Method	Motherboard control / Remote control (by using Raijintek control hub)
LED Input Connector	4-PIN header (2.5 Crimp)
LED Voltage Rating	5V
Lighting Mode	By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub

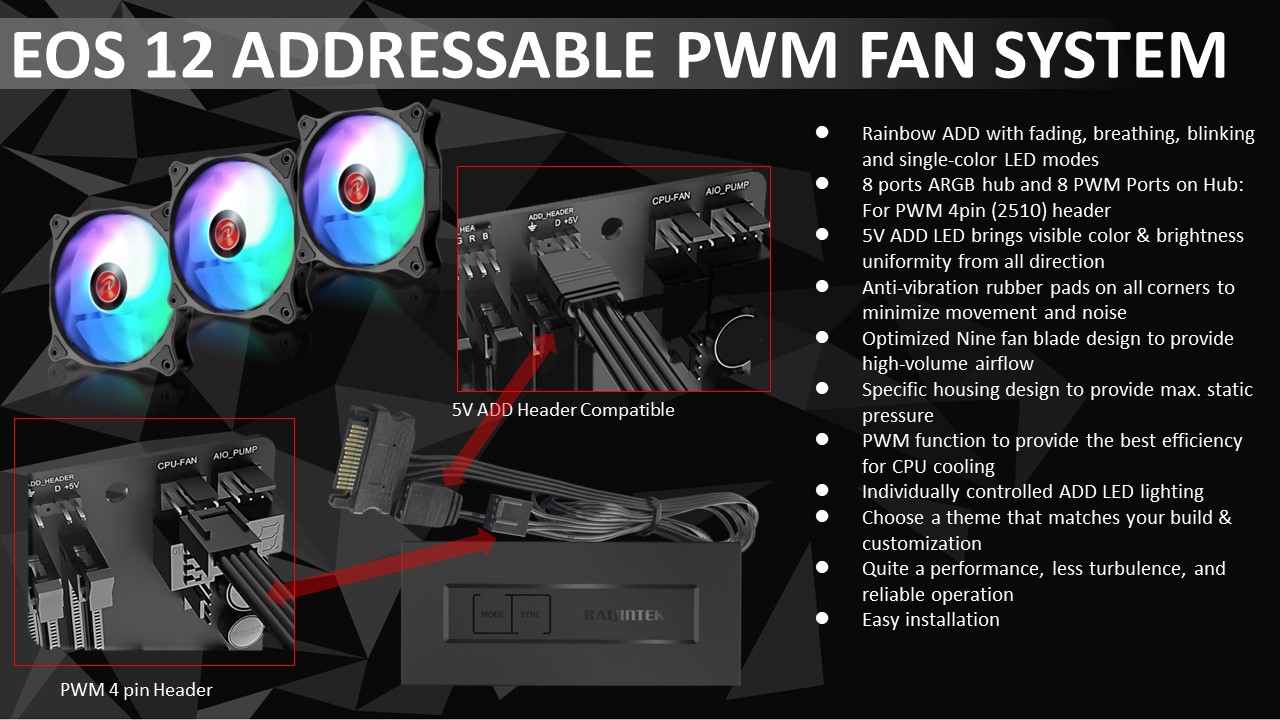

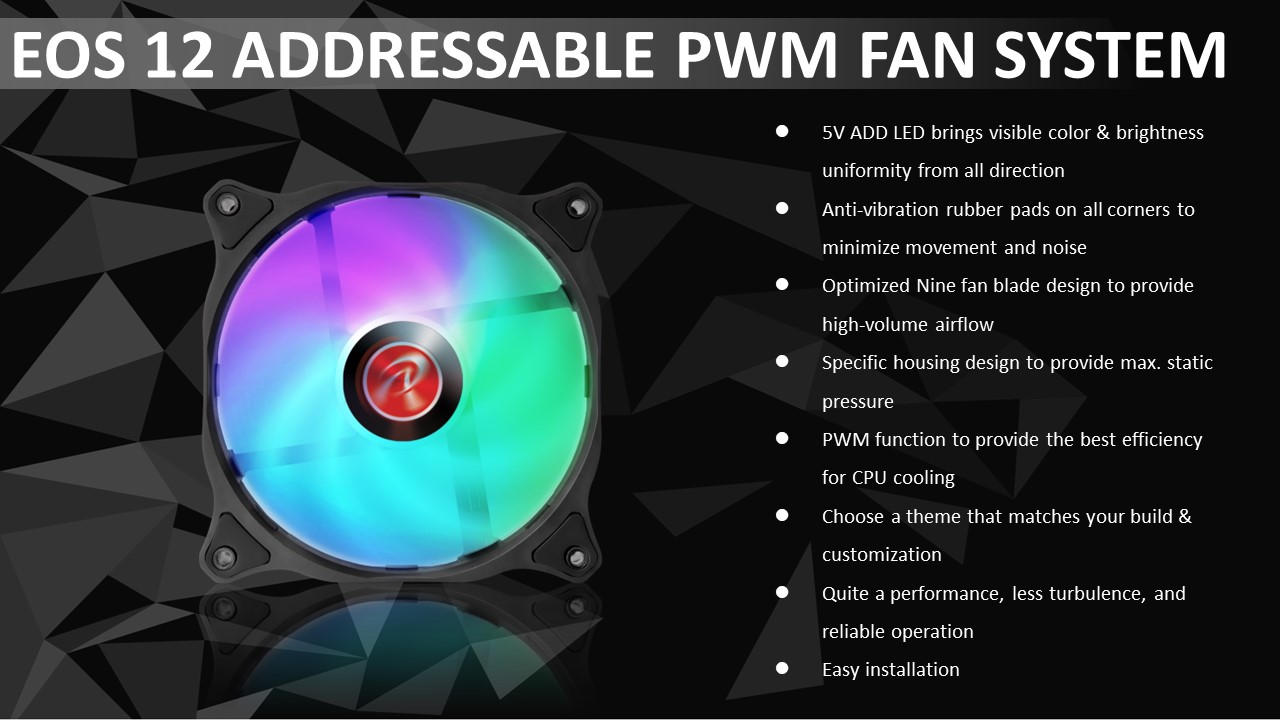

EOS 12 RBW ADD SPECIFICATION
Product Name	EOS 12 RBW ADD-3	EOS 12 RBW ADD-2
Q'ty	3 pcs	2 pcs
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V
Starting Voltage	7 V	7 V
Rated Current	0.17A±20%	0.17A±20%
Power consumption	2.1W±20%	2.1W±20%
Speed	800~1800 R.P.M.	800~1800 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing
Air Flow	75 CFM [Max.]	75 CFM [Max.]
Air Pressure	2.3 mmH2O [Max.]	2.3 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs
Noise Level	28 dBA [Max.]	28 dBA [Max.]
Connector	5V ADD Header PWM 4 pin Header	5V ADD Header PWM 4 pin Header
Weight	390g	260g
Accessories	Screw × 12 RJK 5V DRGB-PWM Control Hub × 1	Screw × 8 RJK 5V DRGB-PWM Control Hub × 1

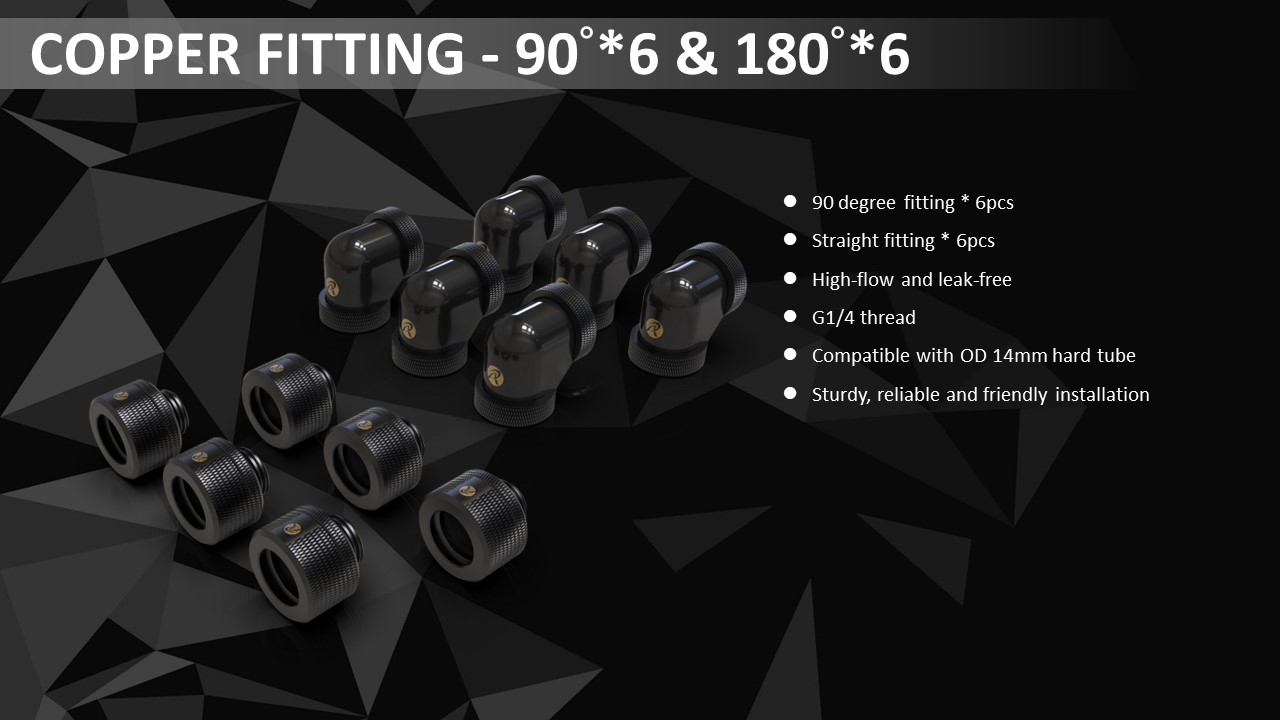

Copper Fitting SPECIFICATION
Copper Fitting 180° Q'ty	6 pcs
Copper Fitting 90° Q'ty	6 pcs
Material	Brass
Screw Threads	G 1/4"

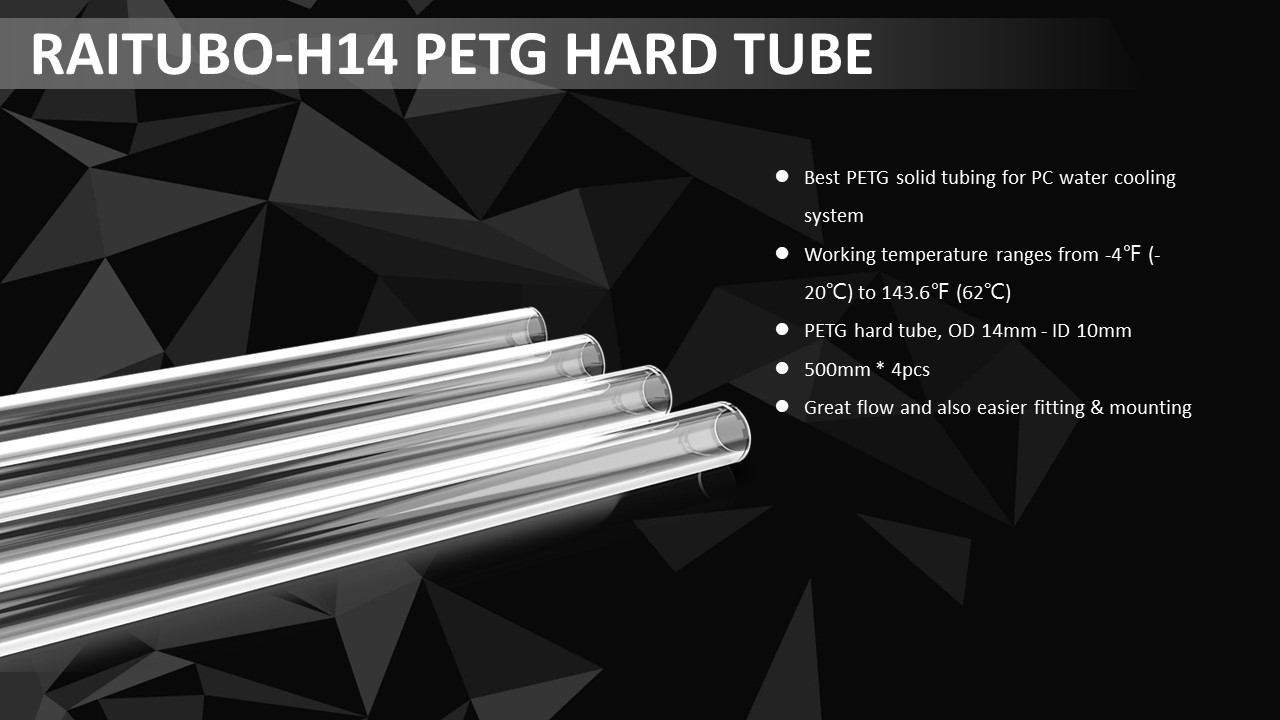

RAITUBO-H14 SPECIFICATION
Product Name	RAITUBO-H14
Q'ty	4 pcs
Diameter	ID 10mm ; OD 14mm
Material	PETG
Length	500 mm
Color	Transparent

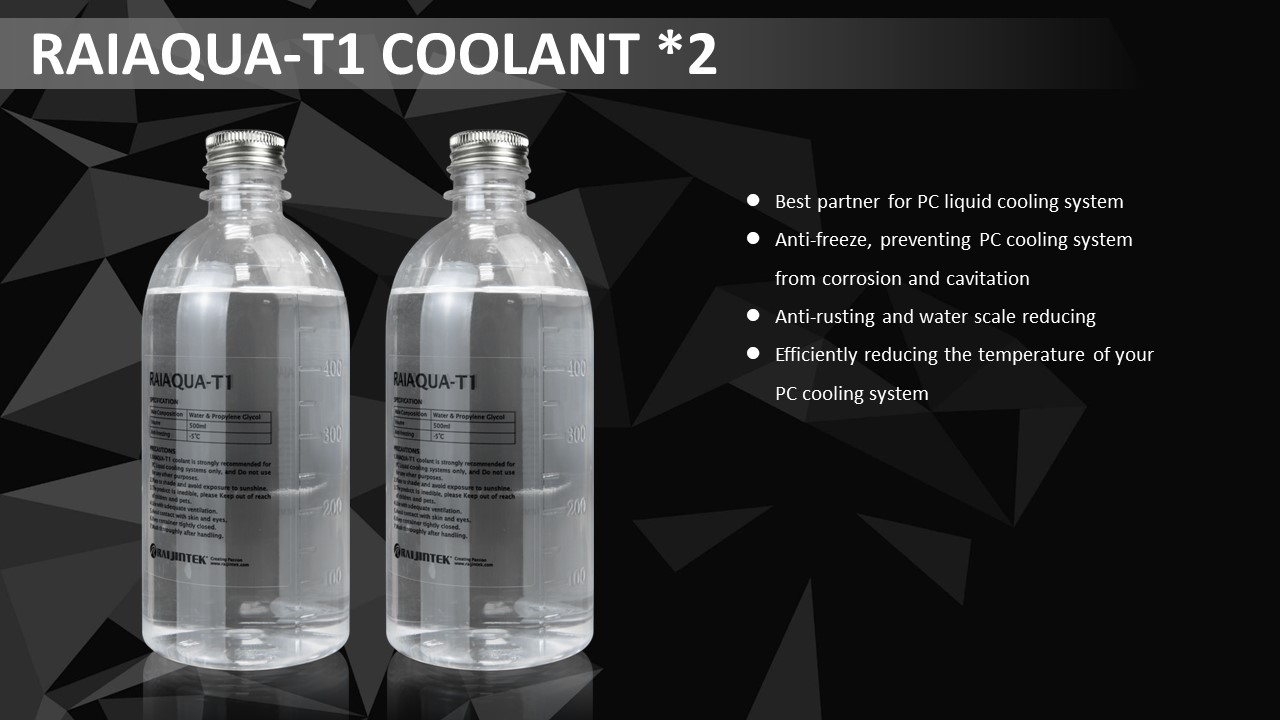

RAIAQUA-T1 SPECIFICATION
Product Name	RAIAQUA-T1
Q'ty	2 bottles
Volume	500 ml
Main composition	Water 95% & Propylene glycol 5%
Anti-freezing temperature	-5°C
Color	Transparent

FORKIS Installation Guide [ 4.74 MB ]

FORKIS Intel 1700 Installation Guide [ 1.36 MB ]

ANTILA D5 EVO RBW Installation Guide [ 6.48 MB ]

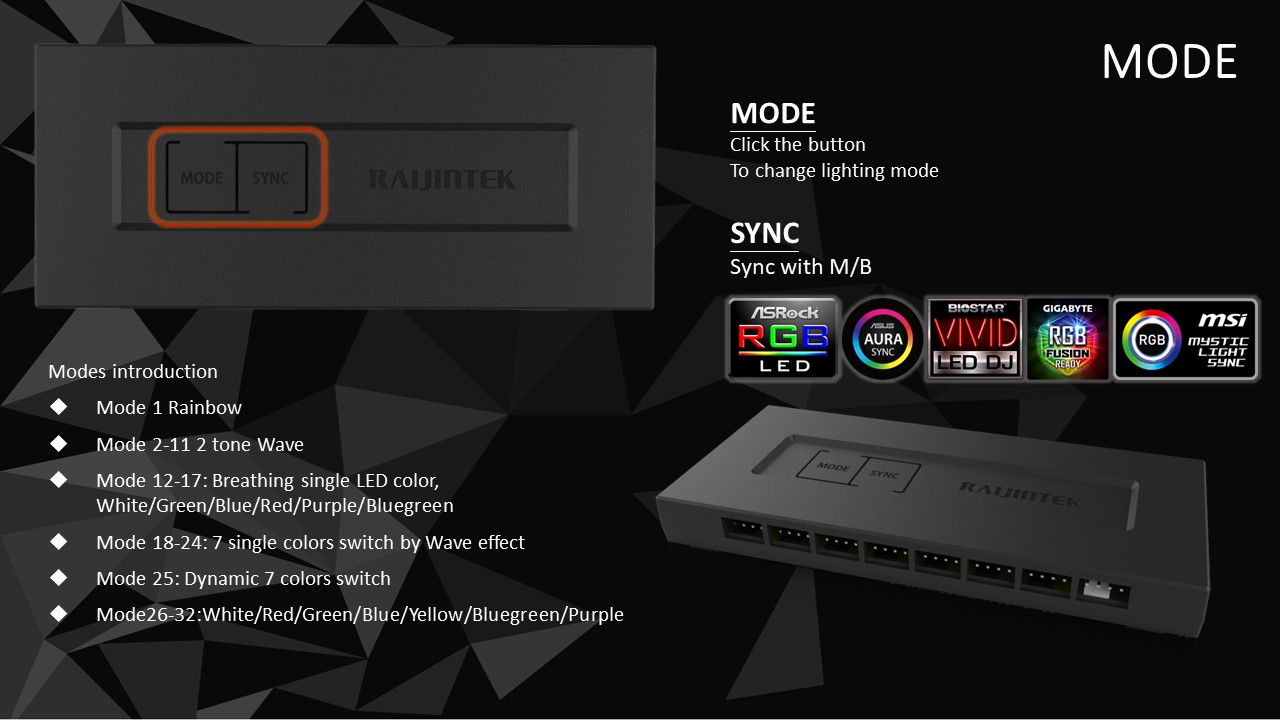

MODE Function
Mode 1: Rainbow
Mode 2-11: 2 tone Wave
Mode 12-17: Breathing single LED color, White/Green/Blue/Red/Purple/Bluegreen
Mode 18-24: 7 single colors switch by Wave effect
Mode 25: Dynamic 7 colors switch
Mode 26-32: White/Red/Green/Blue/Yellow/Bluegreen/Purple
