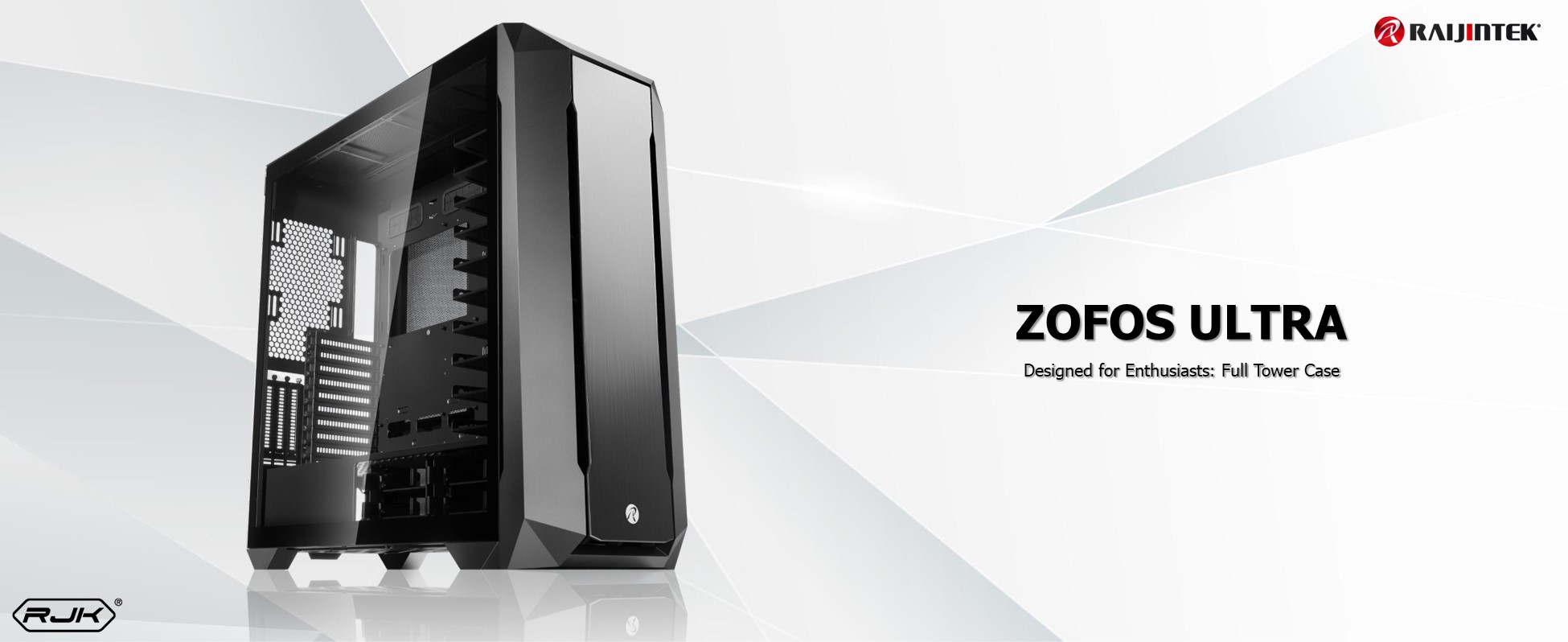

ZOFOS ULTRA

Introducing the ZOFOS ULTRA Full Tower Case - the pinnacle of premium PC chassis, tailored to satisfy the needs of high-performance enthusiasts. With its cutting-edge features and sleek design, this powerhouse provides an optimal environment to showcase your components in style. Boasting an astonishing capacity, it supports up to 14 × 3.5" (2.5") HDDs and 3 × 2.5" HDDs, offering an abundance of storage options for all your digital treasures. Experience the perfect fusion of unrivaled functionality, captivating design, and exceptional cooling performance, ensuring an extraordinary user experience that will elevate your high-performance PC builds to new heights. Upgrade to the ZOFOS ULTRA and unleash your PC's true potential!

ZOFOS ULTRA













  •

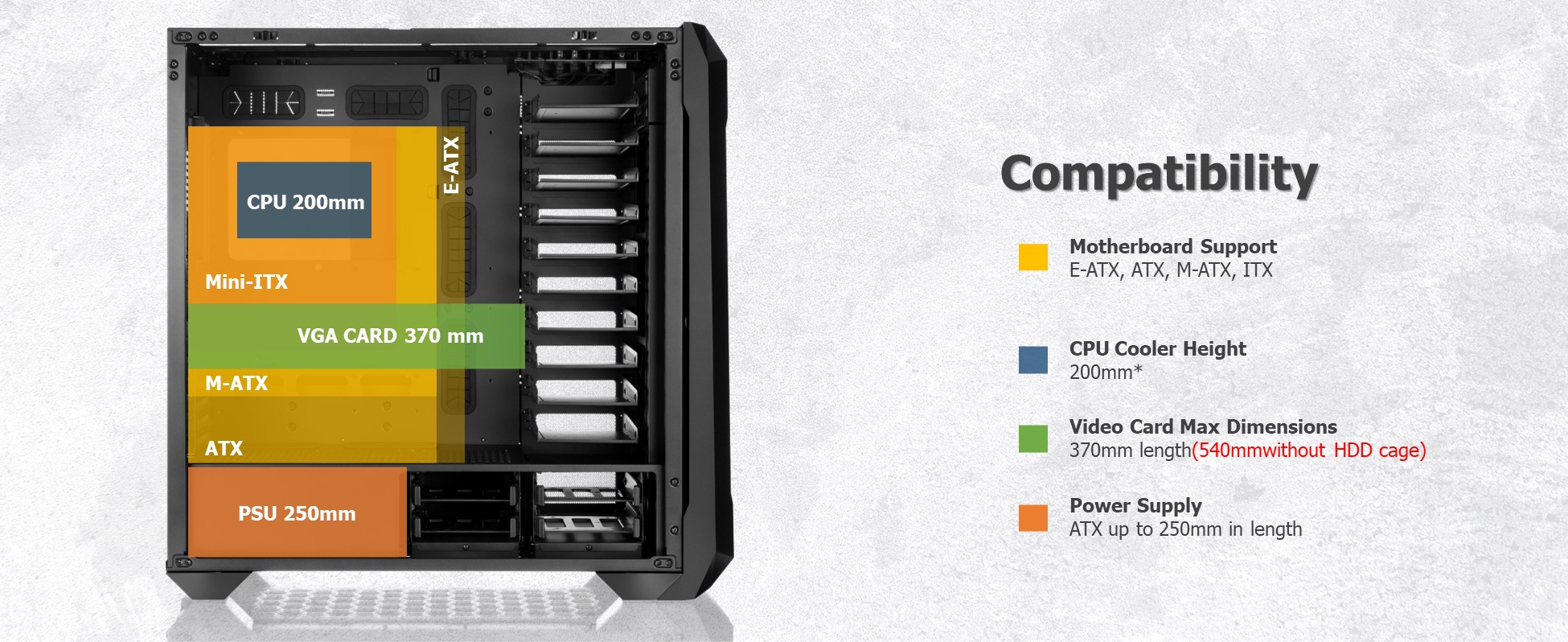

  • Motherboard Support: E-ATX, ATX, M-ATX, ITX
  • CPU Cooler Height: 200mm
  • Video Card Max Dimensions: 370mm length (540mmwithout HDD cage)
  • Power Supply: ATX up to 250mm in length

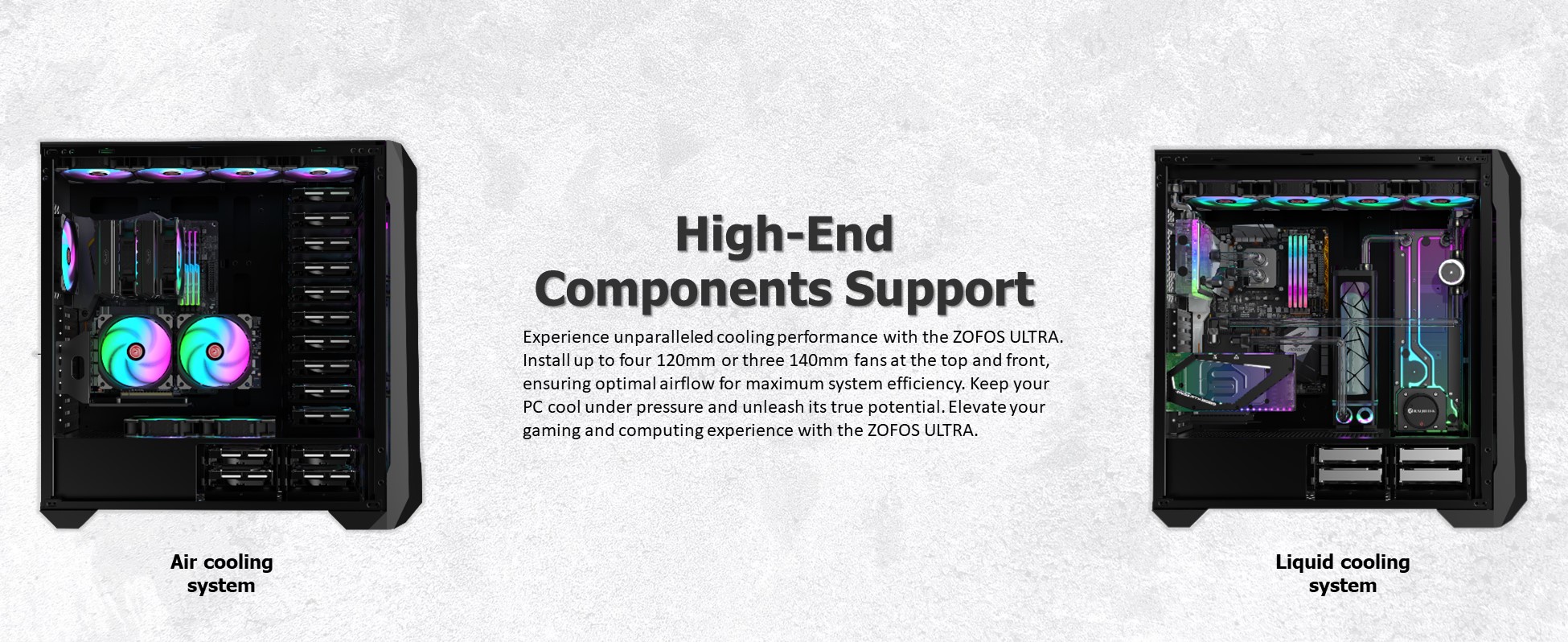

  • Capable of accommodating up to 15 120mm fans
  • Unleash Lighting Creativity

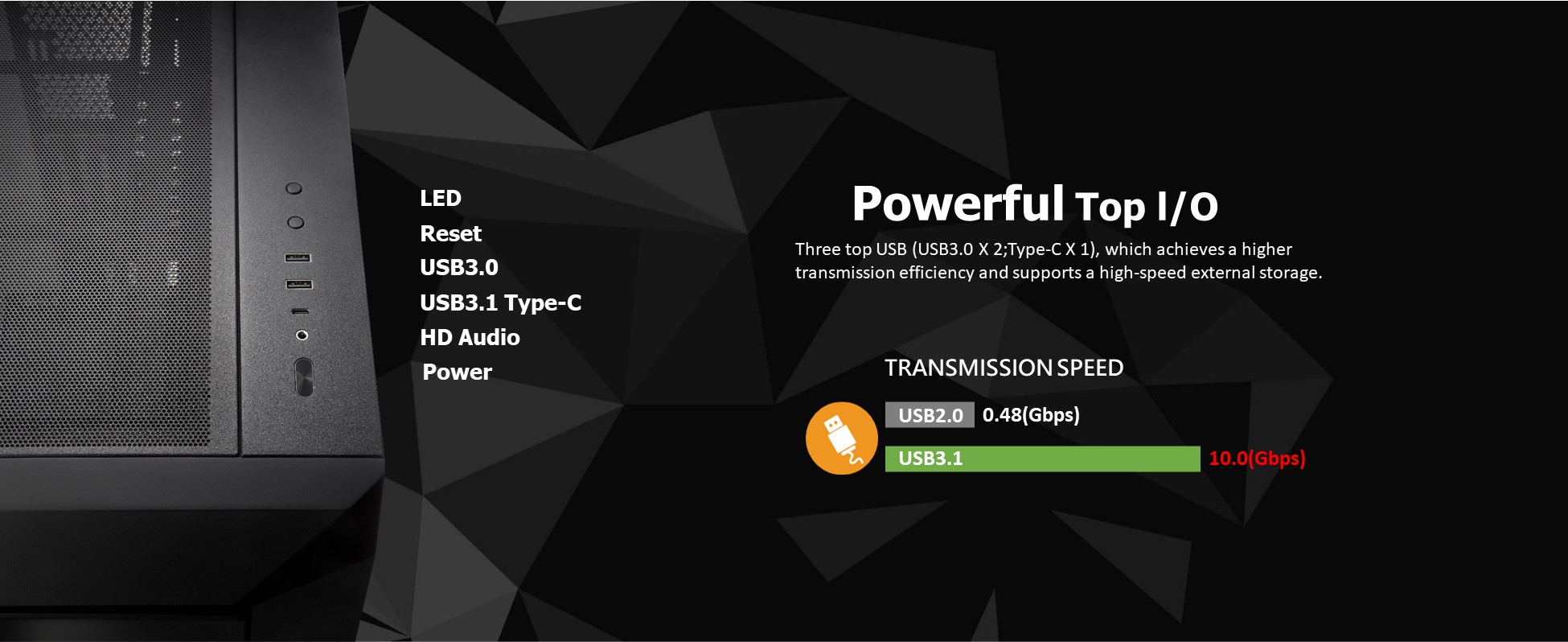

  • Three top USB (USB3.0 × 2; Type-C × 1)
SPECIFICATION
Product Name ZOFOS ULTRA
Product Number 0R20B00237

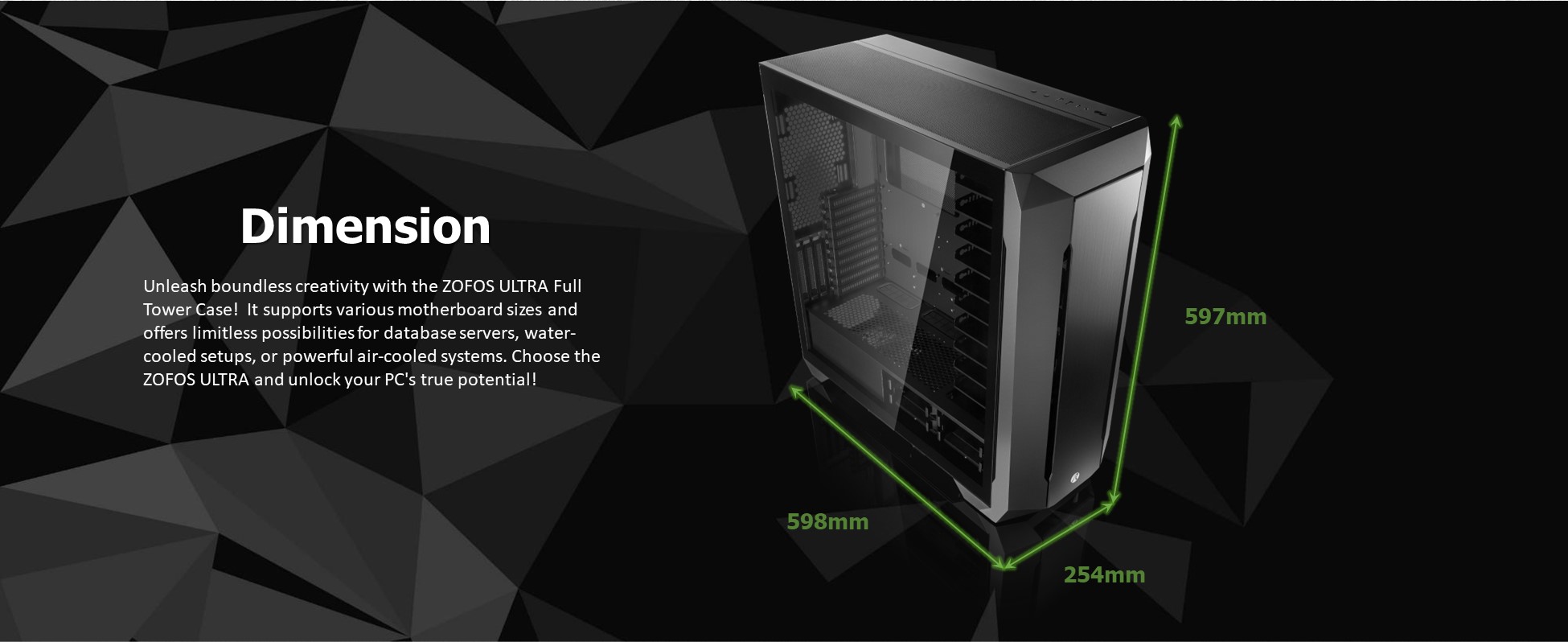

Dimension [W×D×H] 254×598×597 mm
Weight 17 kg [N.W.] 20.64 kg [G.W.]
Material SPCC 1.0mm
Color Matt Black
M/B Support EEB / E-ATX / ATX / MICRO ATX / MINI-ITX

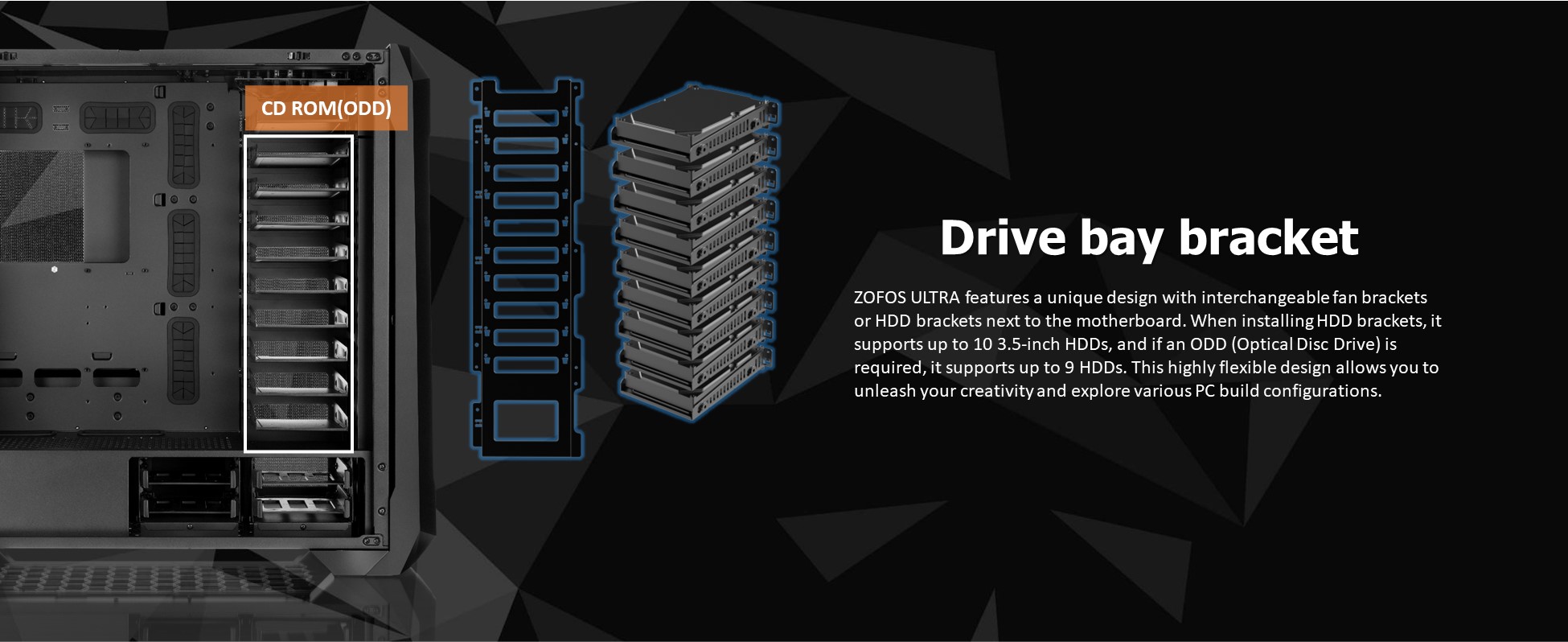

Drive Bay 5.25"×1, 3.5"×14 or 2.5"×14 [Removeable], 2.5"×3
Expansion Slot PCI Slots × 10
I/O Panel USB3.0×2, Type-C×1, HD Audio×1
Power Supply PS/2 [Internal Bottom-Mount]

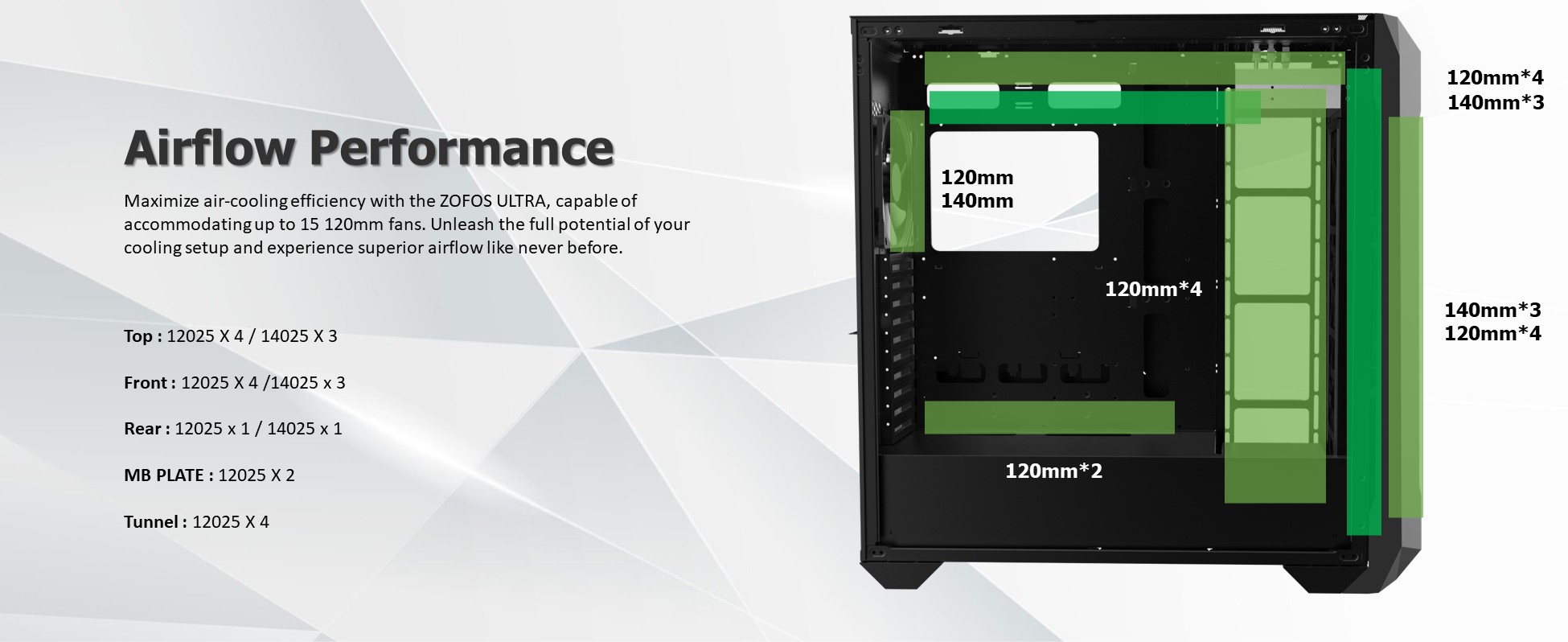

Fan Q'ty Top: 4×120 or 3×140mm [option]
Front: 4×120 or 3×140mm [option]
Rear: 1×120 or 1×140mm [option]
Bottom: 2×120mm [option]

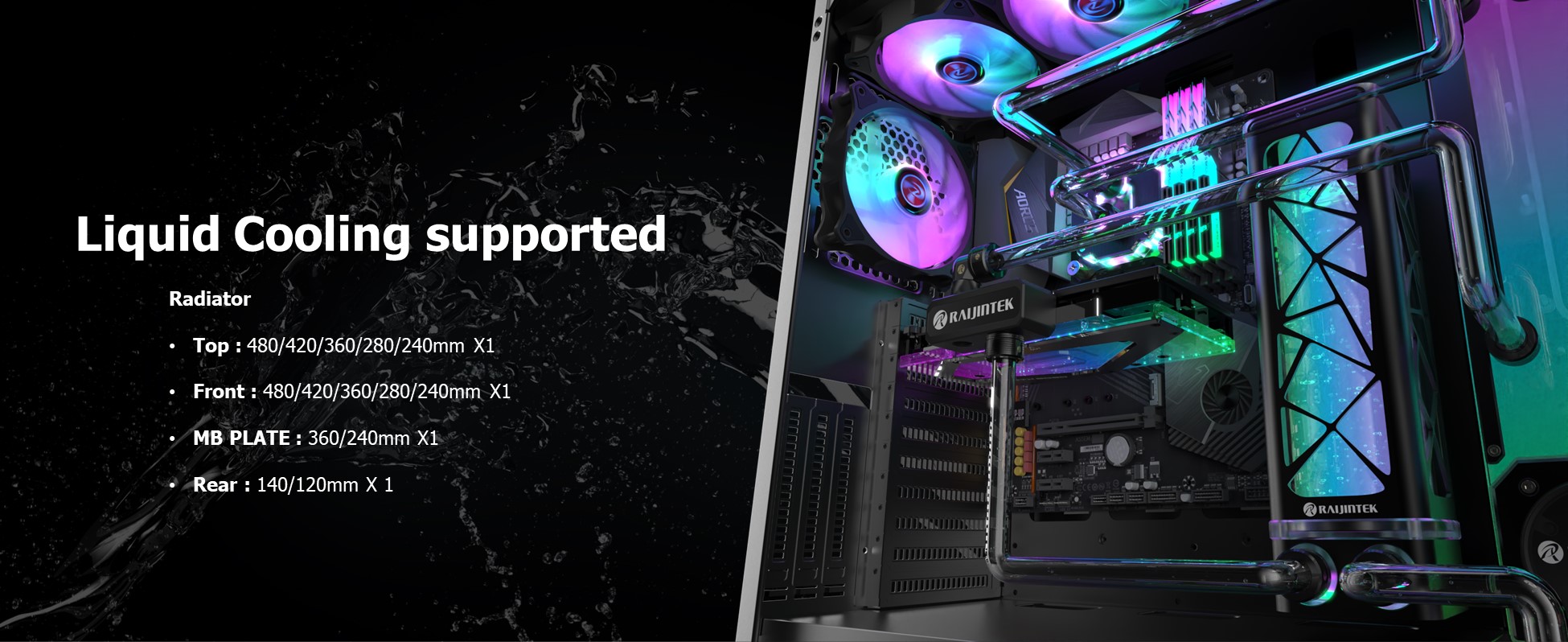

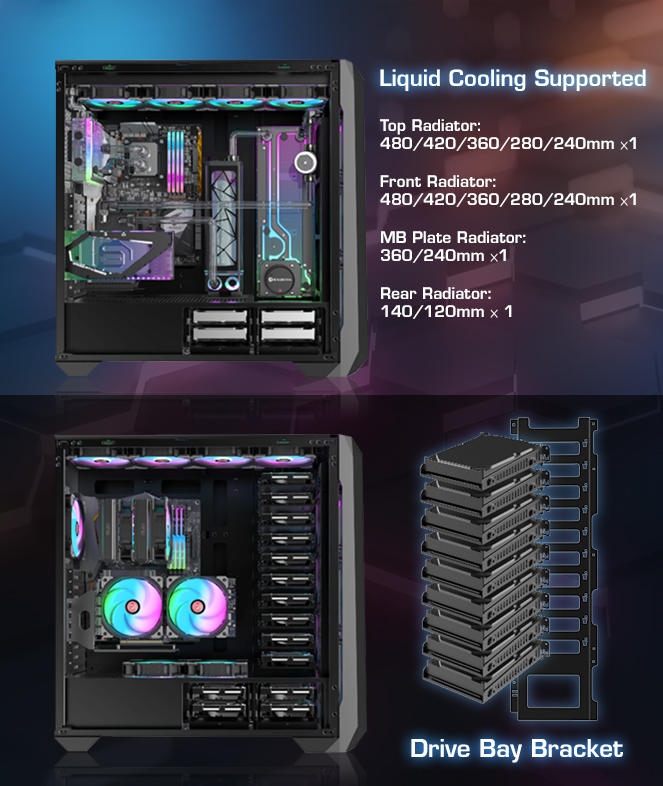

Radiator Q'ty Top: 280/360/420/480mm Radiator up to 30mm thick [option]
Front: 280/360/420/480mm Radiator up to 30mm thick [option]
Rear: 120/140mm Radiator up to 30mm thick [option]
Bottom: 240mm Radiator up to 30mm thick [option]
CPU Cooler Height 190mm [Max.]
Graphic Card Length 370mm [Max.]
Side Panel Style 4mm Tempered Glass

ZOFOS ULTRA × 1

Screw M3 L6 × 45
2.5"SSD/MB

Screw #6-32 L8 × 5
PSU

Screw #6-32 L7 × 20
3.5"HDD

Stand-off × 3
MB

Screw M3 L30 × 8
Fan

Stand-off Driver Tool × 1
MB Stand-off

Screw M3 L5 × 40
HDD Anti Vibration

Cable Tie × 10

Installation Guide × 1
