RAIJINTEK

PHORCYS EVO CD360/240

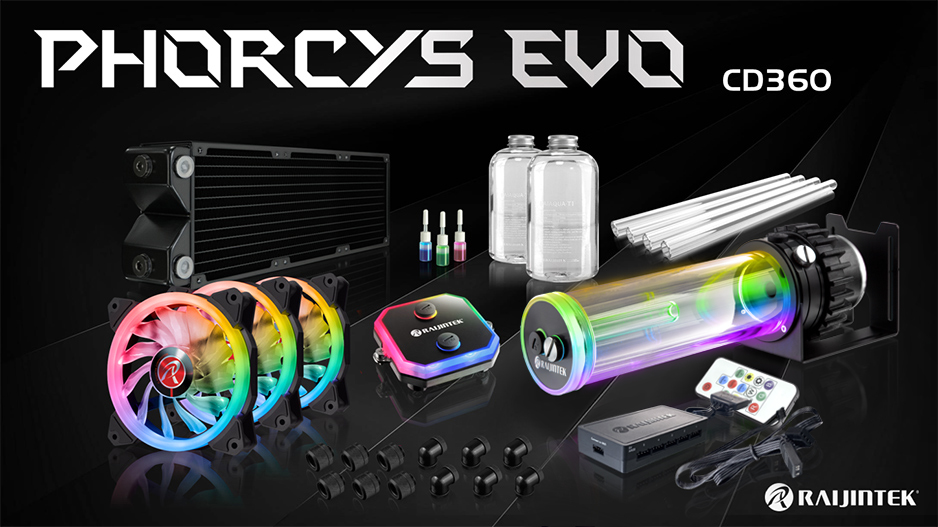

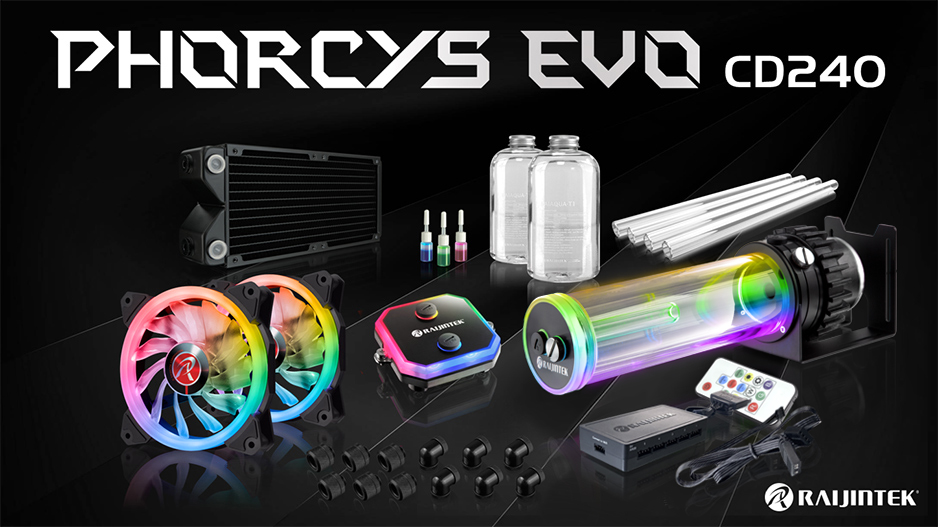

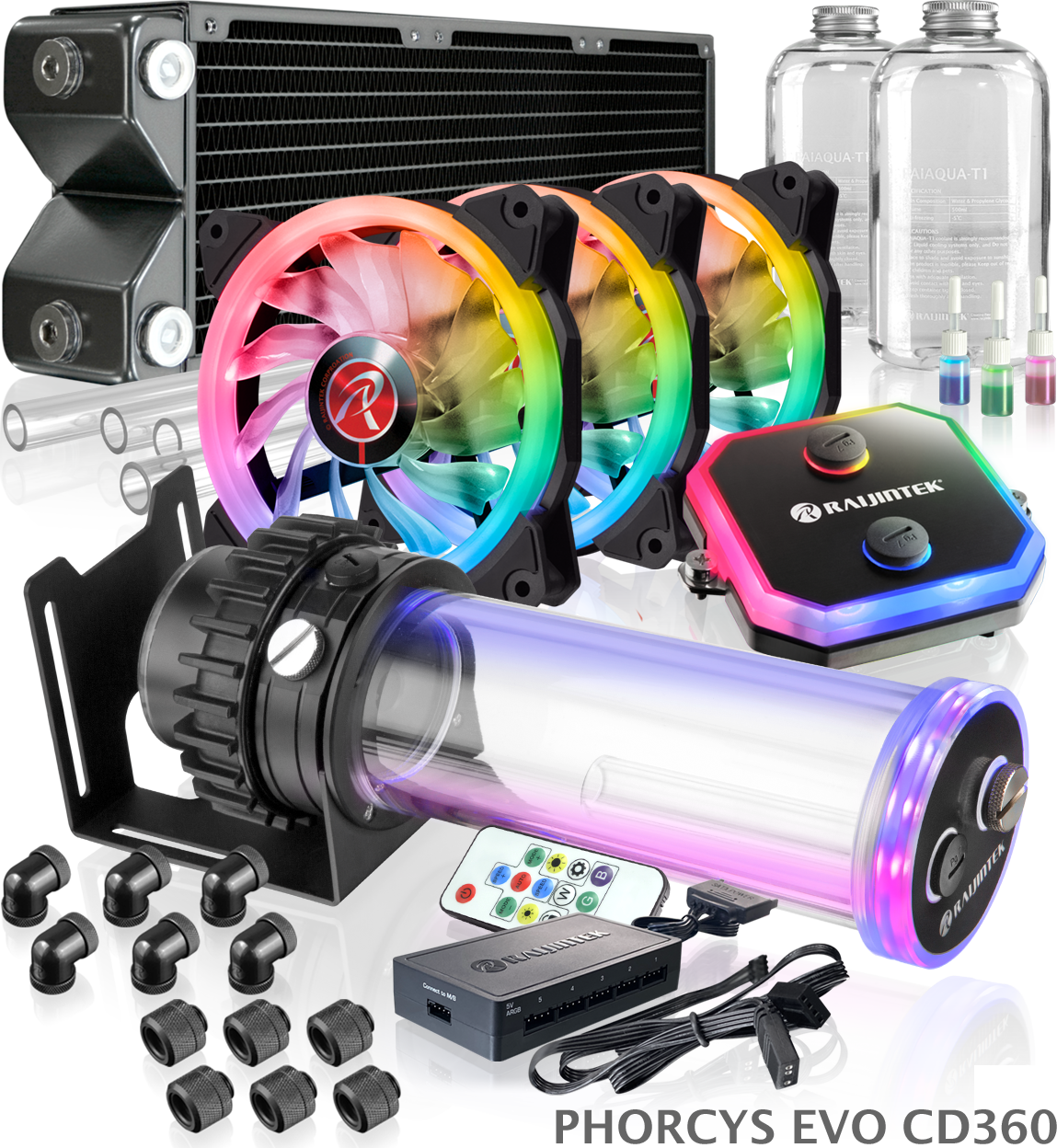

PHORCYS EVO CD360 / CD240, Raijintek's full set Hard Tube Water Cooling Kit, Top premium quality liquid cooling total solution for your water-cooling systems. Inside you will find a Full Copper CWB-RGB CPU water block, a performance ANTILA D5 RBW ADD pump/reservoir, a full copper 360 or 240 mm radiator, 2 bottles of 500 mml RAIAQUA-T1 Pure Clear premium coolant, 3 or 2 high static pressure IRIS 12 ADD PWM fans, 12 full copper fittings 90°×6 & 180°×6, 4×500mm PETG high quality hard tubes, and a 8 Port 5V Addressable (Rainbow) Control Hub with Remote controller, M/B connecting cable for Synchronize with your M/B or remotely-control by remote, 6 bottles of Green dye (10ml), Red dye (10ml), Blue dye (10ml), Raijintek deliver the best water-cooling build experience for all the enthusiast.

Feature
Specification
Support
Unboxed
Review
Gallery

SPECIFICATION
Product Name	PHORCYS EVO CD360	PHORCYS EVO CD240
Product Number	0R10B00108	0R10B00107
est. TDP	500W	440W

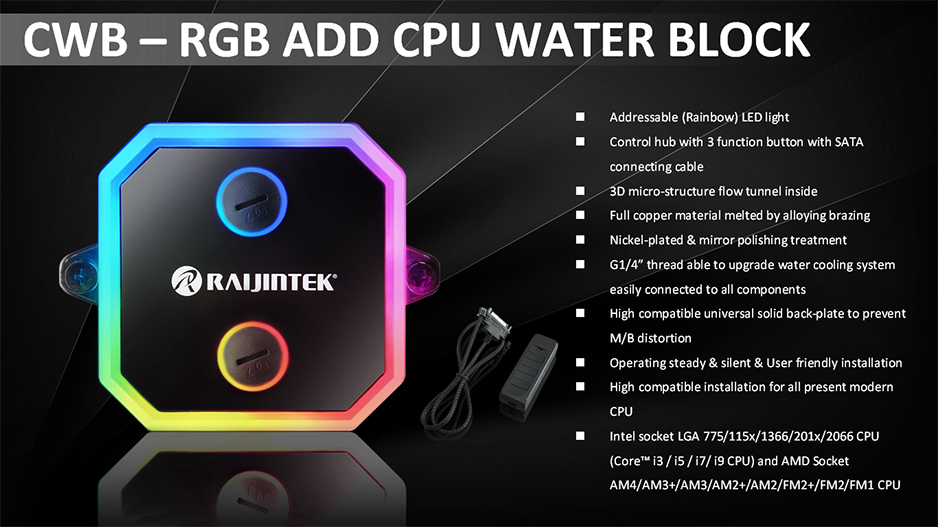

CWB-RGB SPECIFICATION
Product Name	CWB-RGB
Q'ty	1 pcs
Dimension [W×D×H]	94×77×26.1 mm
Screw Threads	G 1/4"
Material	Full copper block, nickel-plated Nylon + PMMA
Weight	180 g
Power Input	5V/3A [Max.]
RGB header	RGB 4pin [Gnd/NA/D/+5V, 2.5 Crimp]
Application - Intel	All Socket LGA 775/115x/1200/1366/201x/2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
Application - AMD	All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU

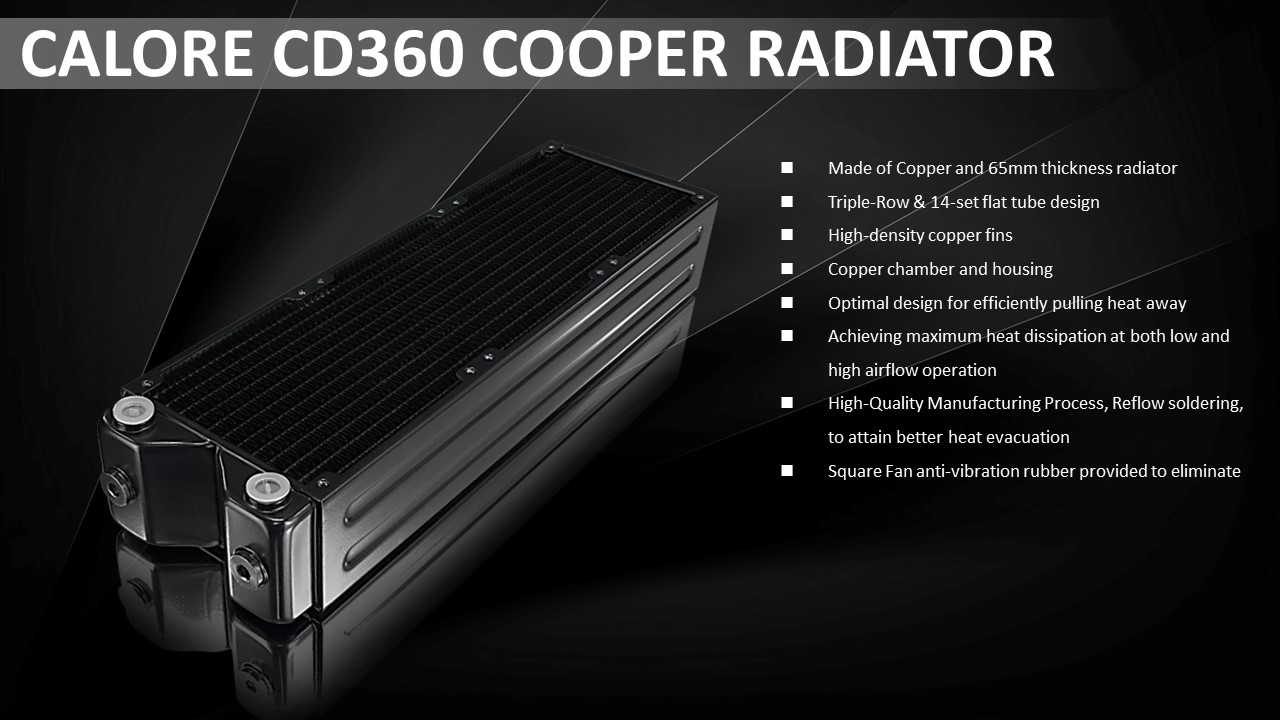

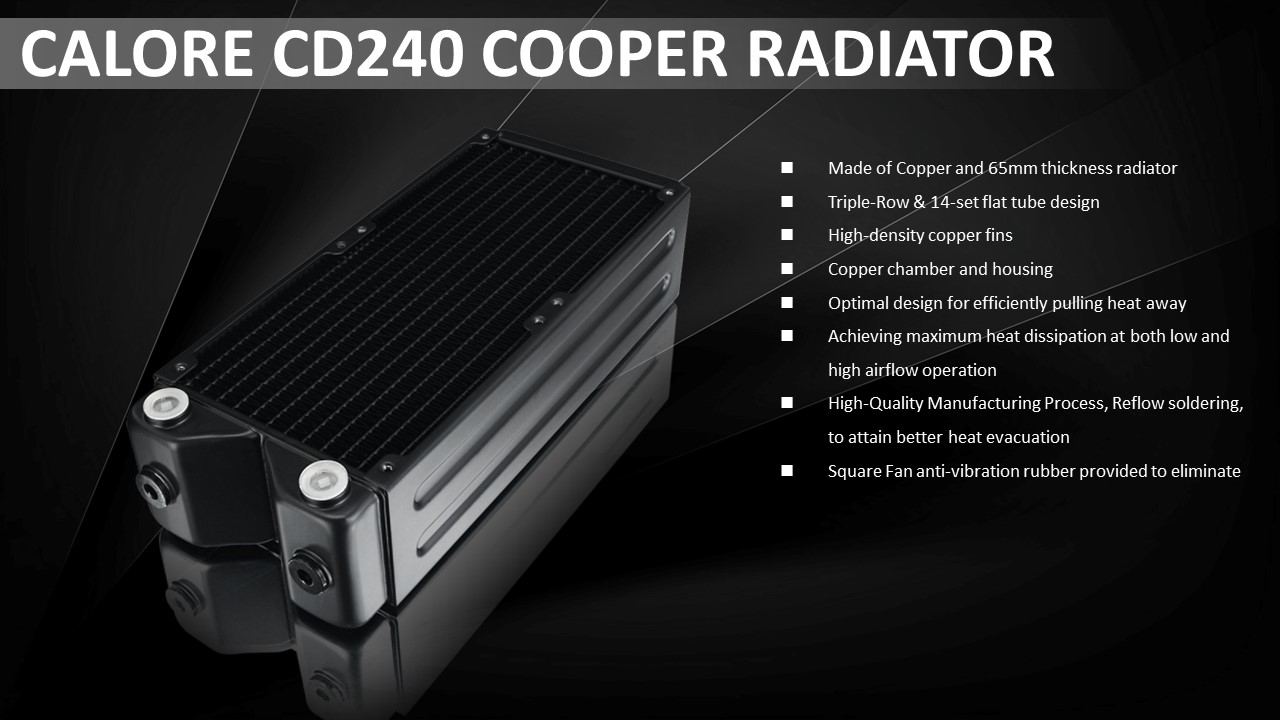

CALORE C360D / C240D SPECIFICATION
Product Name	CALORE C360D	CALORE C240D
Q'ty	1 pcs	1 pcs
Dimension [W×D×H]	403.5×119×65.5 mm	282.5×119×65.5 mm
Flat Tube	14 set ; 360×13×2mm	14 set ; 240×13×2mm
FPI (Fin per inch)	14	14
Tube row	3	3
Screw Threads	G 1/4"	G 1/4"
Port	5	5
Material	Copper	Copper
Weight	1653 g	1191 g
Surface	Black coated	Black coated

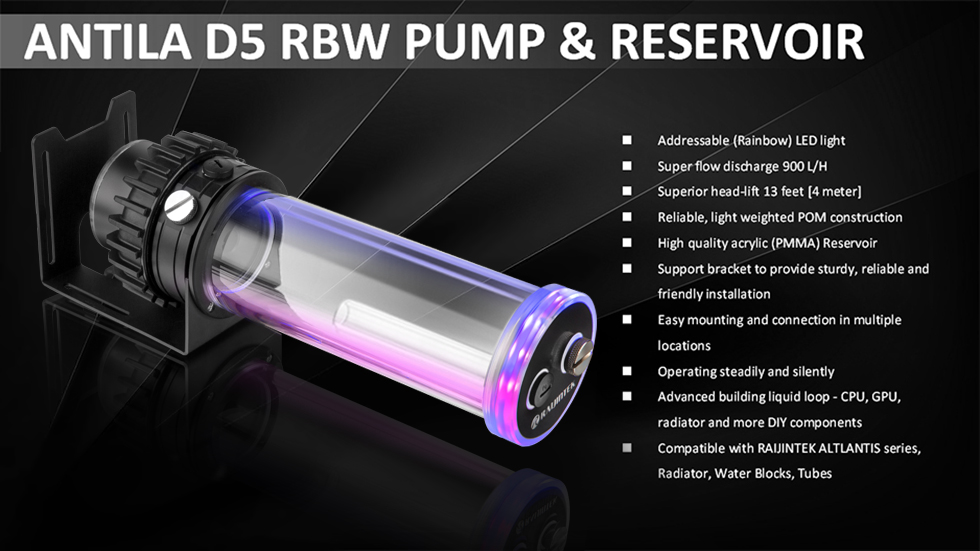

ANTILA D5 RBW SPECIFICATION
Product Name	ANTILA D5 RBW
Q'ty	1 pcs
Dimension [W×H×D]	87.4×280.6×91.2 mm [with Bracket]
Reservoir Dimension	Φ64×205[H] mm
Material	POM + PMMA (Crystal clear)
Weight	790 g
Screw Threads	G 1/4"
Bearing type	Ceramic Bearing
Maximum Head	3.85m
Maximum Discharge	900 L/H
Maximum Pressure	50 PSI
Life Expectance	50,000 hrs
Noise Level	30 dBA [Max.]
Speed	P1 : 1,800 RPM P2 : 2,500 RPM P3 : 3,200 RPM P4 : 3,900 RPM P5 : 4,500 RPM
Voltage Rating	DC12V
Input Current	1.8 A ± 10%
Connector	2606-H-03P [-12V/+12V] / 2510-4P [NA / NA / Fg / PWM]
Addressable LED	21 LED Rainbow (4pin header, 2510 spec) – Addressable LED

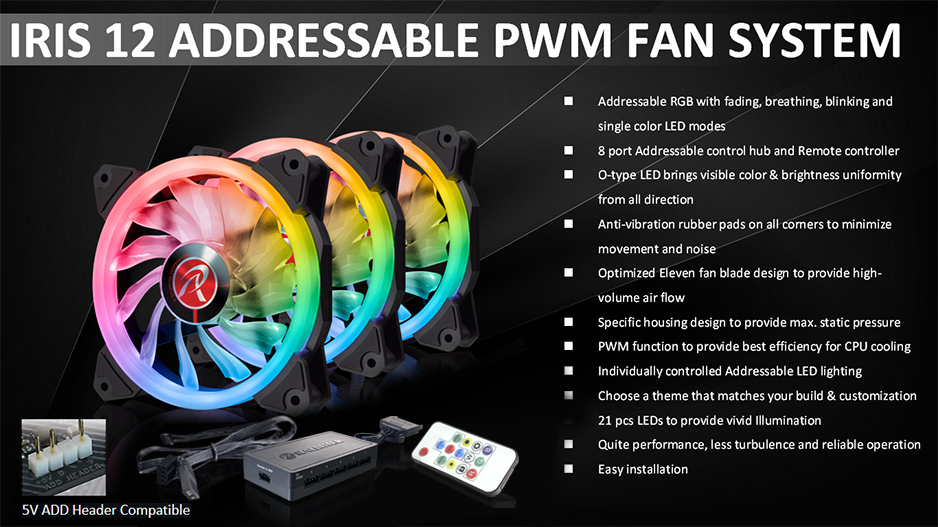

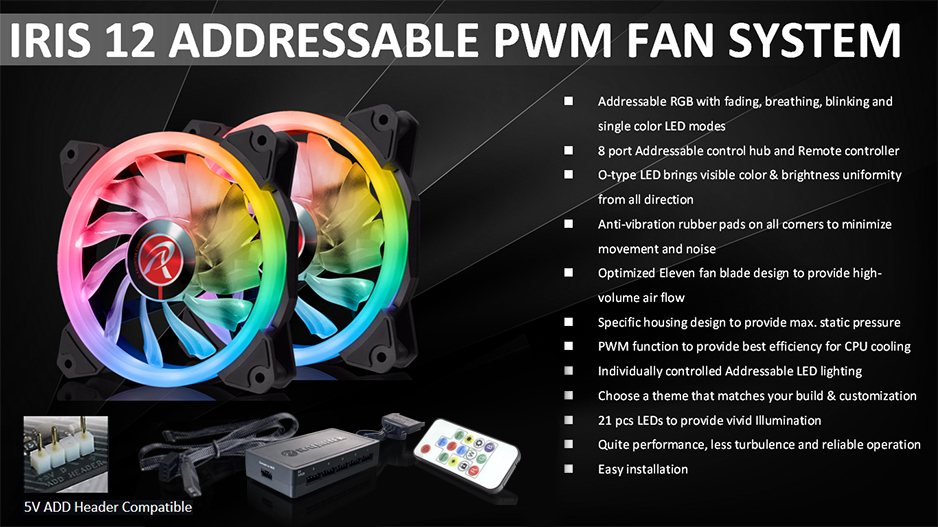

IRIS 12 RBW ADD SPECIFICATION
Product Name	IRIS 12 RBW ADD-3	IRIS 12 RBW ADD-2
Q'ty	3 pcs	2 pcs
Dimension [W×H×D]	120×120×25 mm	120×120×25 mm
Voltage Rating	12V	12V
Starting Voltage	6 V	6 V
Rated Current	0.12A ±10%	0.12A ±10%
Power consumption	1.44W ±10%	1.44W ±10%
Speed	400~1800 R.P.M.	400~1800 R.P.M.
Bearing Type	Hydraulic Bearing	Hydraulic Bearing
Air Flow	35.8 CFM [Max.]	35.8 CFM [Max.]
Air Pressure	1.16 mmH2O [Max.]	1.16 mmH2O [Max.]
Life Expectance	40,000 hrs	40,000 hrs
Noise Level	28 dBA [Max.]	28 dBA [Max.]
Connector	5V ADD Header PWM 4 pin Header	5V ADD Header PWM 4 pin Header
Weight	595g	420g
Accessories	Screw × 12 ARGB-PWM control hub × 1 Remote controller × 1	Screw × 8 ARGB-PWM control hub × 1 Remote controller × 1

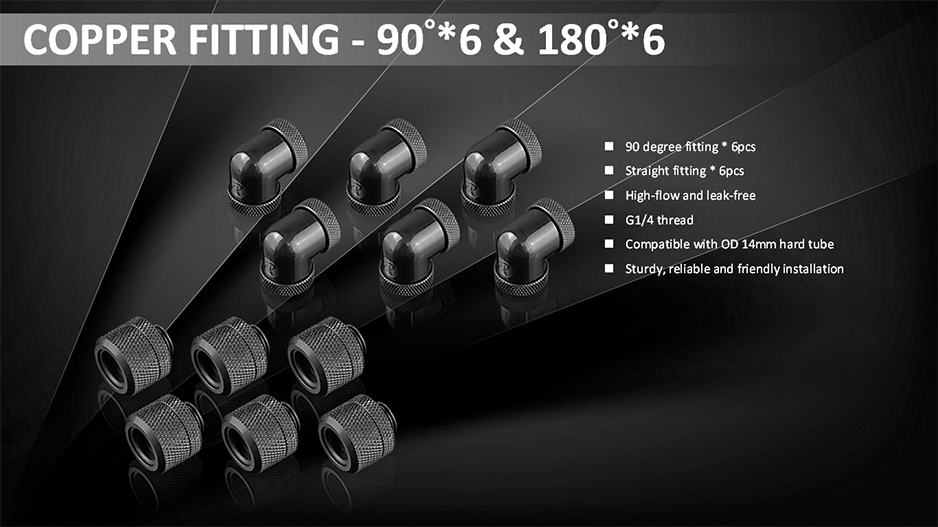

Copper Fitting SPECIFICATION
Copper Fitting 180° Q'ty	6 pcs
Copper Fitting 90° Q'ty	6 pcs
Material	Full copper
Screw Threads	G 1/4"

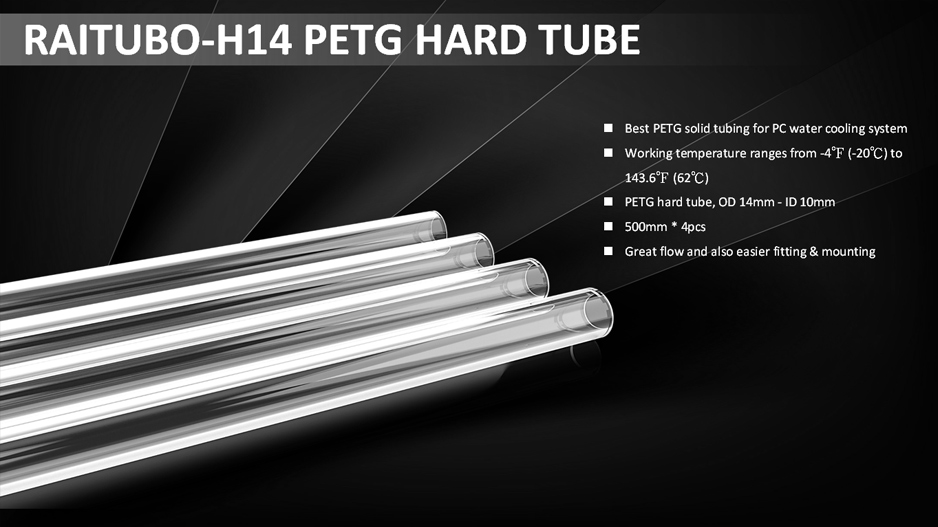

RAITUBO-H14 SPECIFICATION
Product Name	RAITUBO-H14
Q'ty	4 pcs
Diameter	ID 10mm ; OD 14mm
Material	PETG
Length	500 mm
Color	Transparent

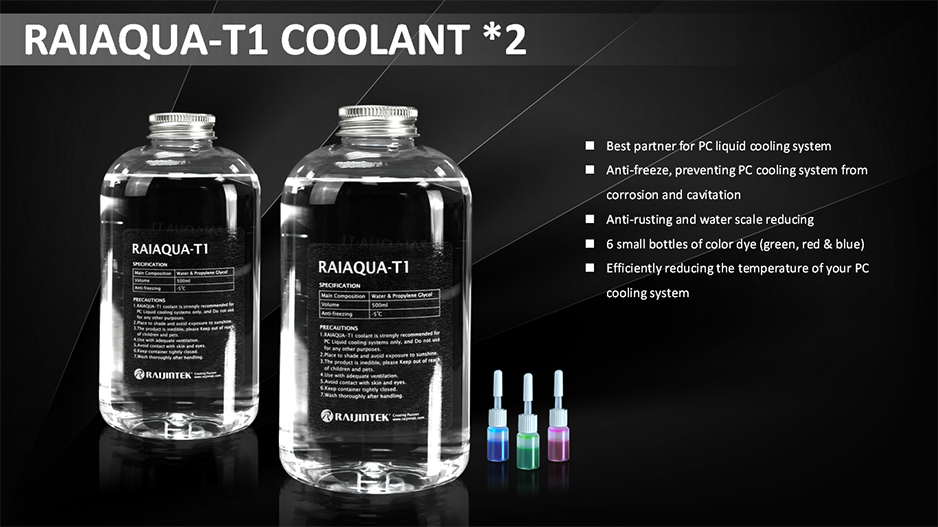

RAIAQUA-T1 SPECIFICATION
Product Name	RAIAQUA-T1
Q'ty	2 bottles
Volume	500 ml
Main composition	Water 95% & Propylene glycol 5%
Anti-freezing temperature	-5°C
Color	Transparent
Accessories	10ml×2 Green / Red / Blue dye, Dropper×2

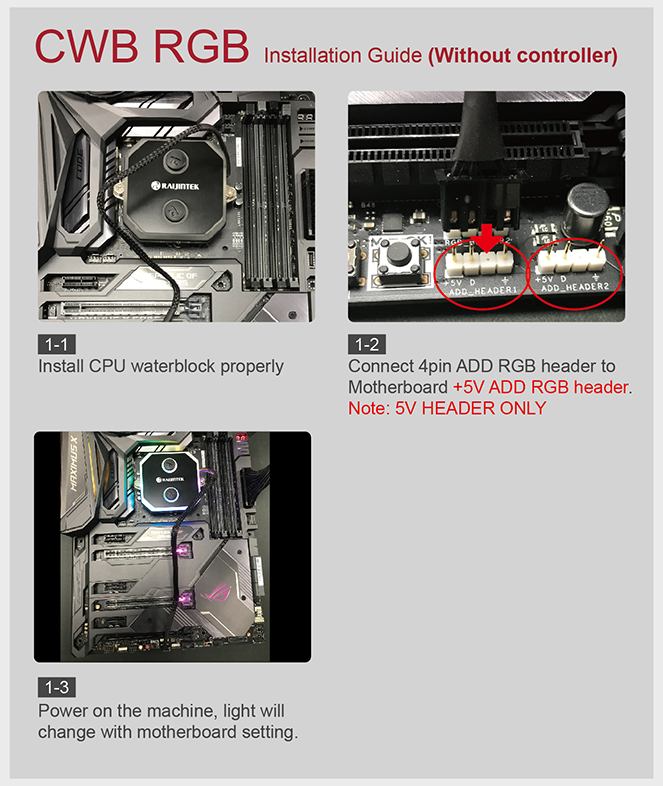

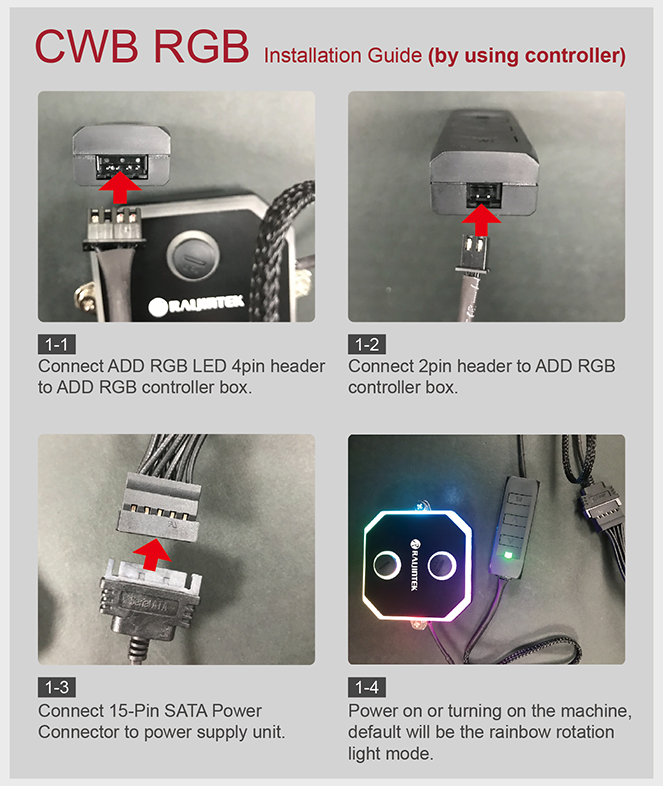

CWB-RGB Installation Guide [ 3.73 MB ]
This version includes English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Turkish and Portuguese.

Operation instructions of keys
1.This controller has a total of 3 keys (▲, ▼, and M) and 1 indicator light
2.The M key can switch the light type mode and speed mode, and the ▲ and ▼ can select light type or adjust the speed.
3.After connecting to the power or turning on the machine, preset the rainbow rotation mode. The indicator light is green (light type mode). Press ▲ or ▼ at this time to select the light type. Press M to switch to speed mode
4.In speed mode the indicator light is blue. Press ▲ or ▼ at this time to adjust the display speed. Press M to switch to light type mode
5.Press ▲ for 3 seconds in any mode to enter the automatic mode (cyan light). Press ▲ or ▼ key to stop at the current light type and return to the light type mode
6.Press ▼ for 3 seconds in any mode to return to the default rainbow rotation mode
7.Press M for 3 seconds in any mode to turn off the machine. When the machine is off, press M to turn on the machine and return to the pre-shut off status.
8.When the machine is shut off or the power source is pulled off (disconnected), the current light type and speed status will be recorded in the memory. Once the machine is turned on again, it will return to the original status.

1.Light type 1: (default) Rainbow rotation.
2.Light types 2~8: Single LED color (use of ▲ and ▼ to adjust the brightness). The color sequence is white, cyan, purple, yellow, blue, red and green.
3.Light type 9: RGB 256-color - automatically changes colors.
4.Light type 10: Seven-color breathing lights - automatically changes colors. The color sequence is white, cyan, purple, yellow, blue, red and green.
5.Light type 11: Seven-color flash lights - automatically changes colors. The color sequence is white, cyan, purple, yellow, blue, red and green.
6.Light types 12~184: Various rainbow light types.

Remote controller function
1.On/off: Power on/off
2.SPEED (+): While Dynamic color mode, increase the speed of color change; Not for Static mode
3.SPEED (-): While Dynamic color mode, decrease the speed of color change; Not for Static mode
4.MODE (+): Forward to next mode
5.MODE (-): Backward to previous mode
6.AUTO: Automatically cycles all modes, 10 seconds for each mode
7.W: Single White LED
8.R: Single Red LED
9.G: Single Green LED
10.B: Single Blue LED

Rainbow RGB
20 modes: 13 Dynamic color modes & 7 Static color modes
Memory function: While power on, the mode and speed are at previous status
Voltage rating: 12V
Connecting 6 fans will get best effect for Dynamic modes

IRIS 12 RBW ADD Color Modes
Mode 1: Dynamic 6 colors rotating with transition effect
Mode 2: Dynamic lighting rotation to each other with transition effect
Mode 3: Dynamic 6 colors rotating without transition effect
Mode 4: Dynamic 7 colors switch by water-flow rotating with low brightness effect on background color
Mode 5: Dynamic 7 single colors switch by water-flow effect
Mode 6: Dynamic 7 shinning colors switch by water-flow effect
Mode 7: Dynamic 7 colors switch by water-flow rotating with covering background color effect
Mode 8-13: Dynamic 7 colors by water-flow rotating
Mode 14-20: Static single LED color
