| AGOS ULTRA |
|
AGOS ULTRA - второе поколение серии AGOS - средняя линейка продуктов в семействе RAIJINTEK Mid-Tower. AGOS ULTRA поставляется с новой конфигурацией. Каждая деталь и сырье были специально подобраны для обеспечения роскошного опыта для пользователей этого высококлассного продукта. AGOS ULTRA поддерживает материнские платы формата E-ATX и видеокарты длиной до 400 мм, а также полноразмерные блоки питания формата ATX (235 мм). AGOS - лучший выбор для начала работы с вашим дизайном. |
             |
|
AGOS ULTRA TG4/MS4 SPECIFICATION |
||
| Product Name | AGOS ULTRA TG4 | AGOS ULTRA MS4 |
| Product Number | 0R20B00225 | 0R20B00226 |

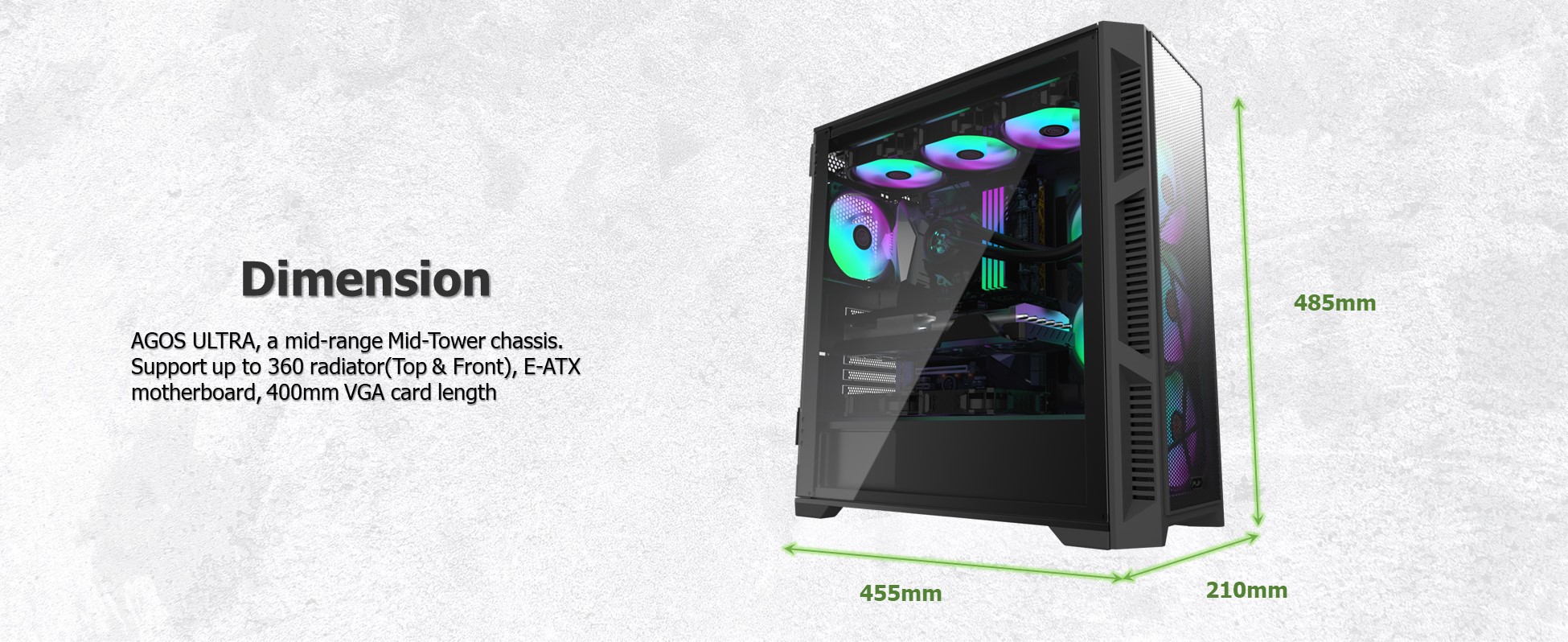

| Dimension [W×D×H] | 210×455×485 mm | 210×455×485 mm |
| Weight | 7.5 kg [N.W.] | 6.9 kg [N.W.] |
| Material | SPCC 0.5/0.6 mm | SPCC 0.5/0.6 mm |
| Color | Coating Black | Coating Black |

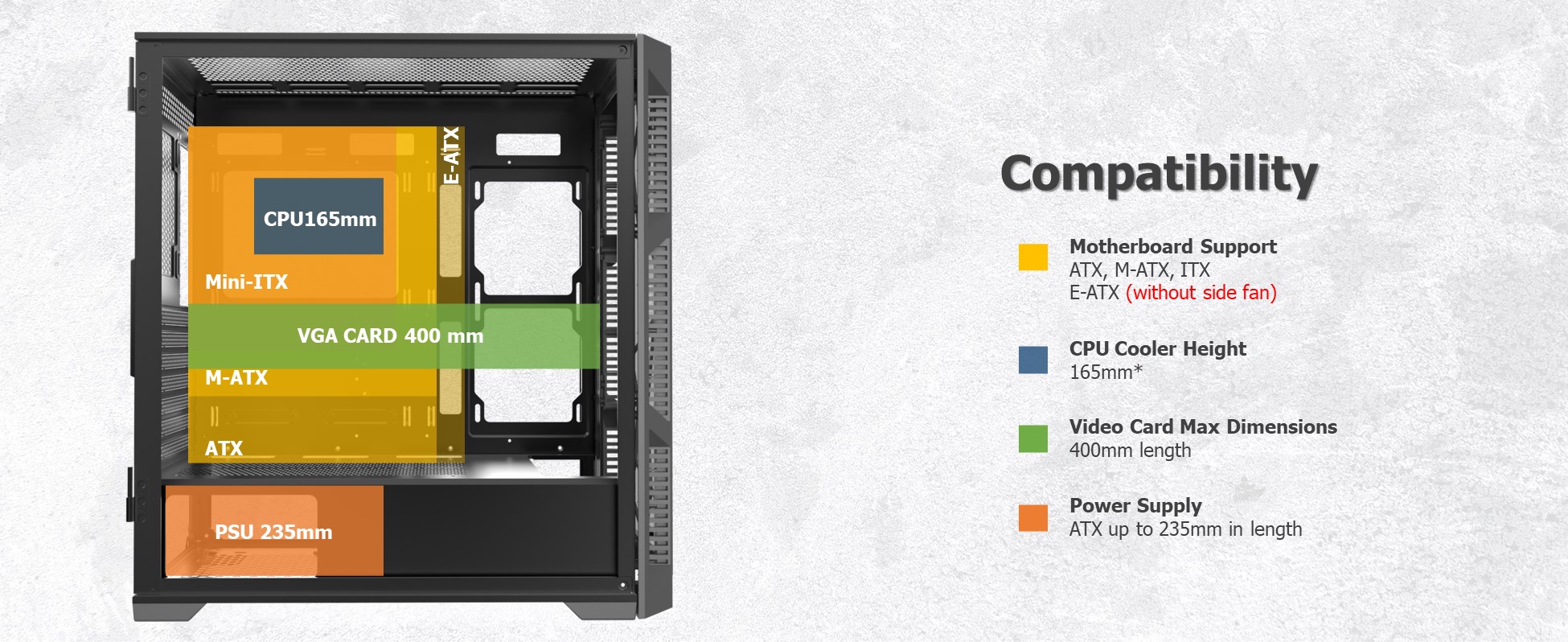

| M/B Support | E-ATX; ATX; M-ATX; Mini-ITX | E-ATX; ATX; M-ATX; Mini-ITX |

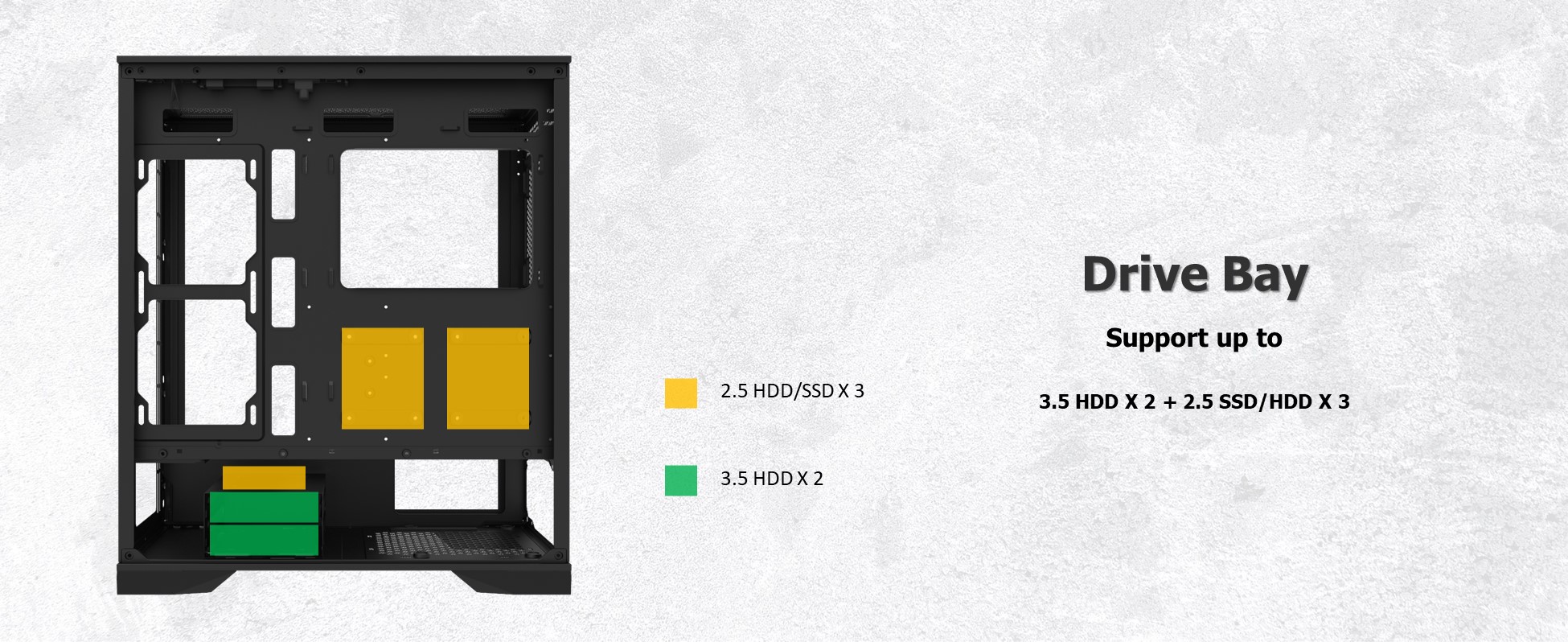

| Drive Bay | 3.5" × 2 + 2.5" × 3 | 3.5" × 2 + 2.5" × 3 |
| Expansion Slot | PCI Slots ×7 | PCI Slots ×7 |

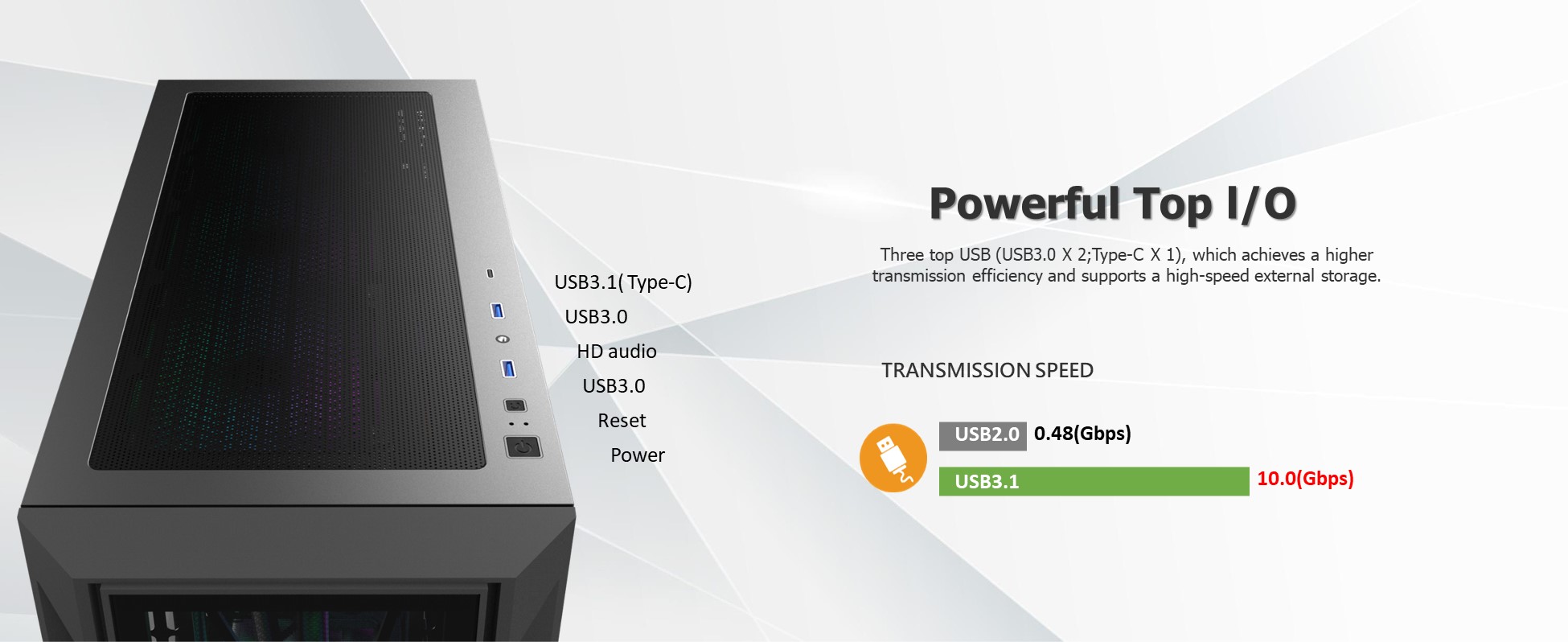

| I/O Panel | Type C×1, USB3.0×2, HD Audio×1 | Type C×1, USB3.0×2, HD Audio×1 |
| Power Supply | ATX PSU [Length: 235mm] | ATX PSU [Length: 235mm] |

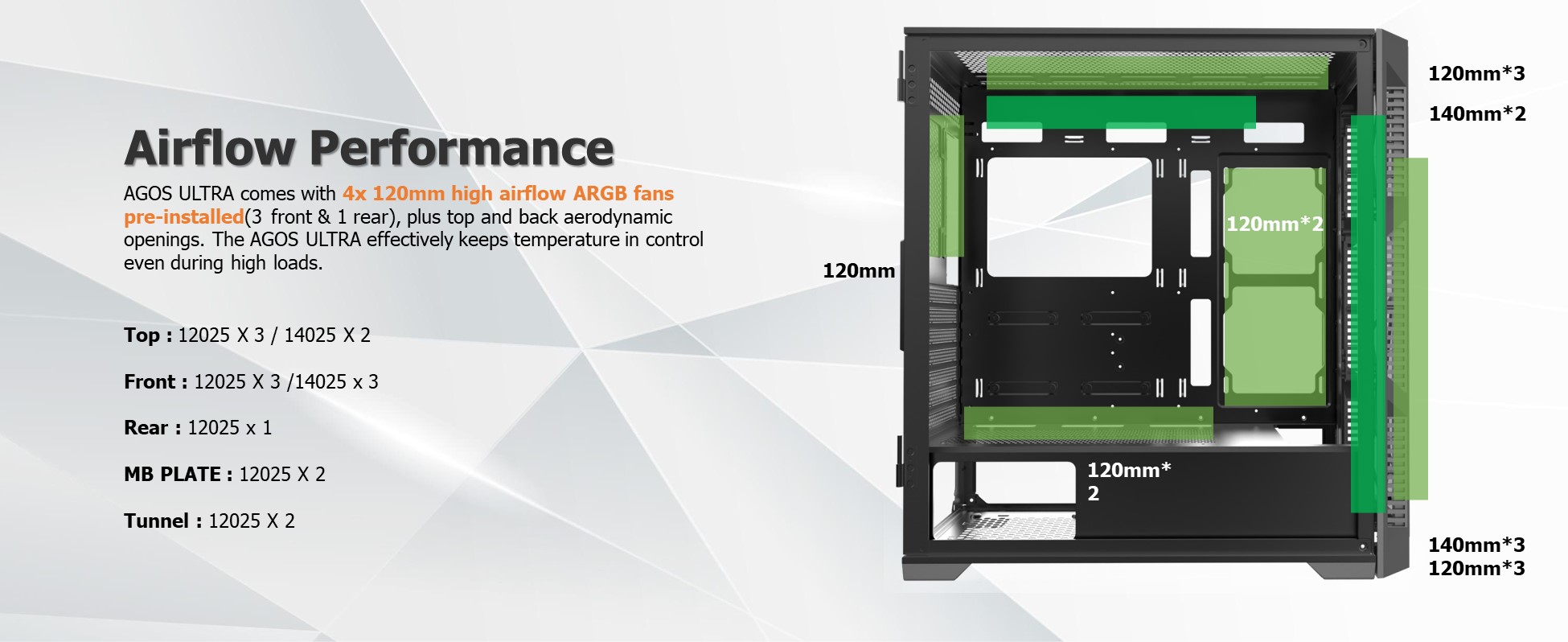

| Cooling System | Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |
Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |

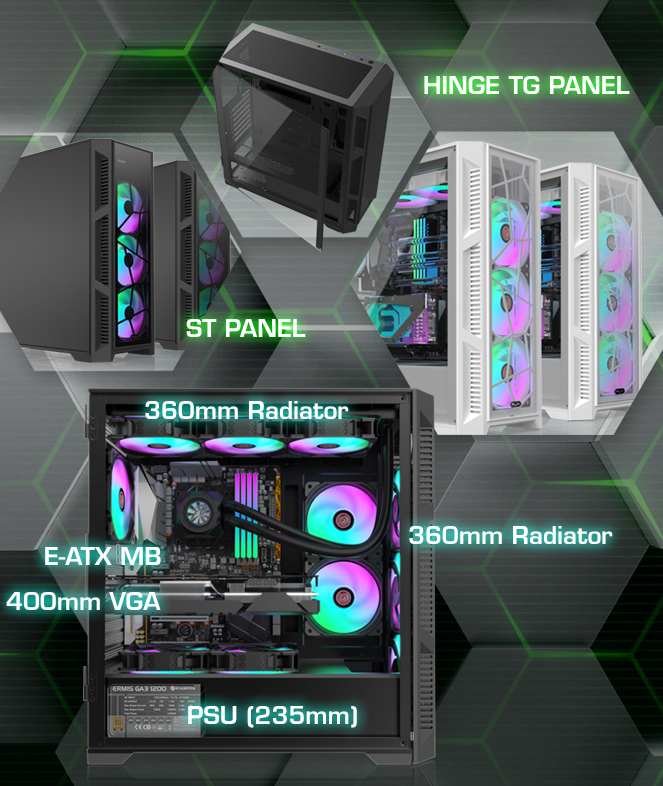

| Radiator Q’ty | Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
| CPU Cooler Height | 165mm [Max.] | 165mm [Max.] |
| Graphic Card Length | 400mm [Max.] | 400mm [Max.] |

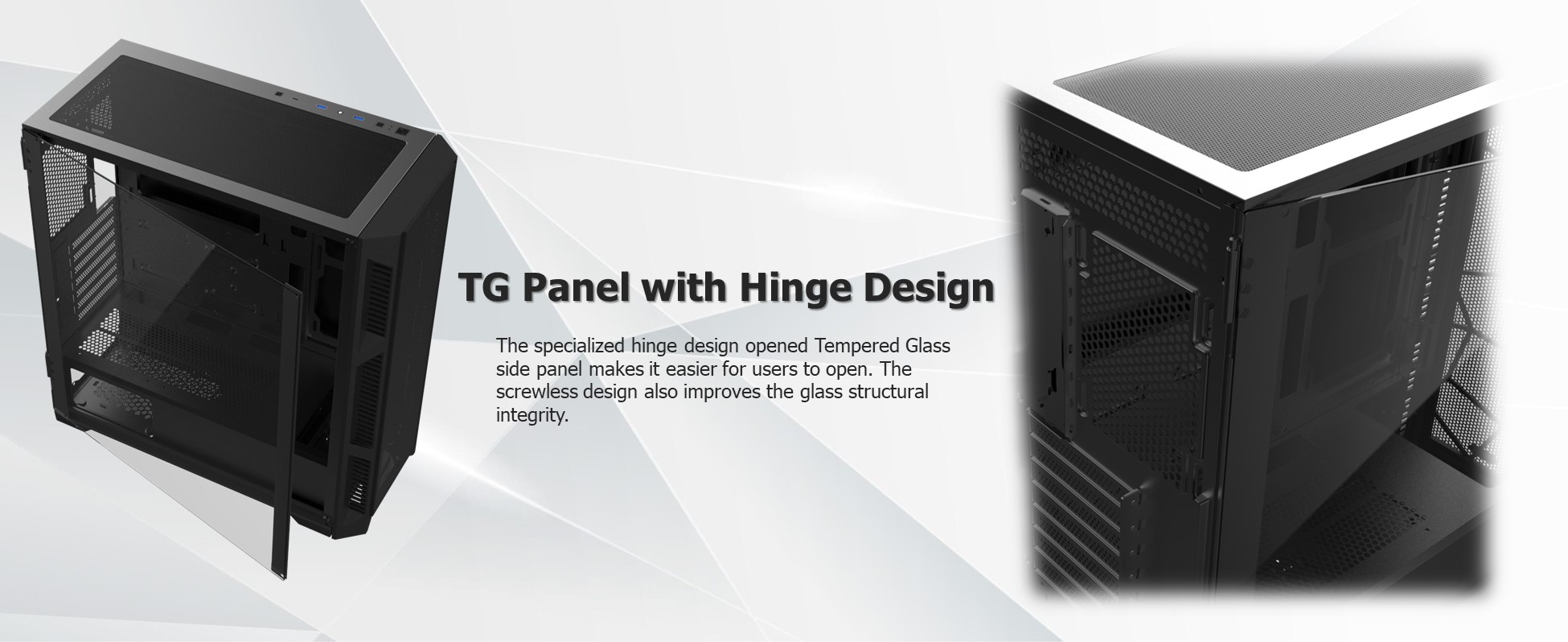

| Side Panel | 4.0mm Tempered Glass | 4.0mm Tempered Glass |
| Front Panel | 4.0mm Tempered Glass | Mesh |
| Pre-installed Fan Q'ty | 12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |
12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |

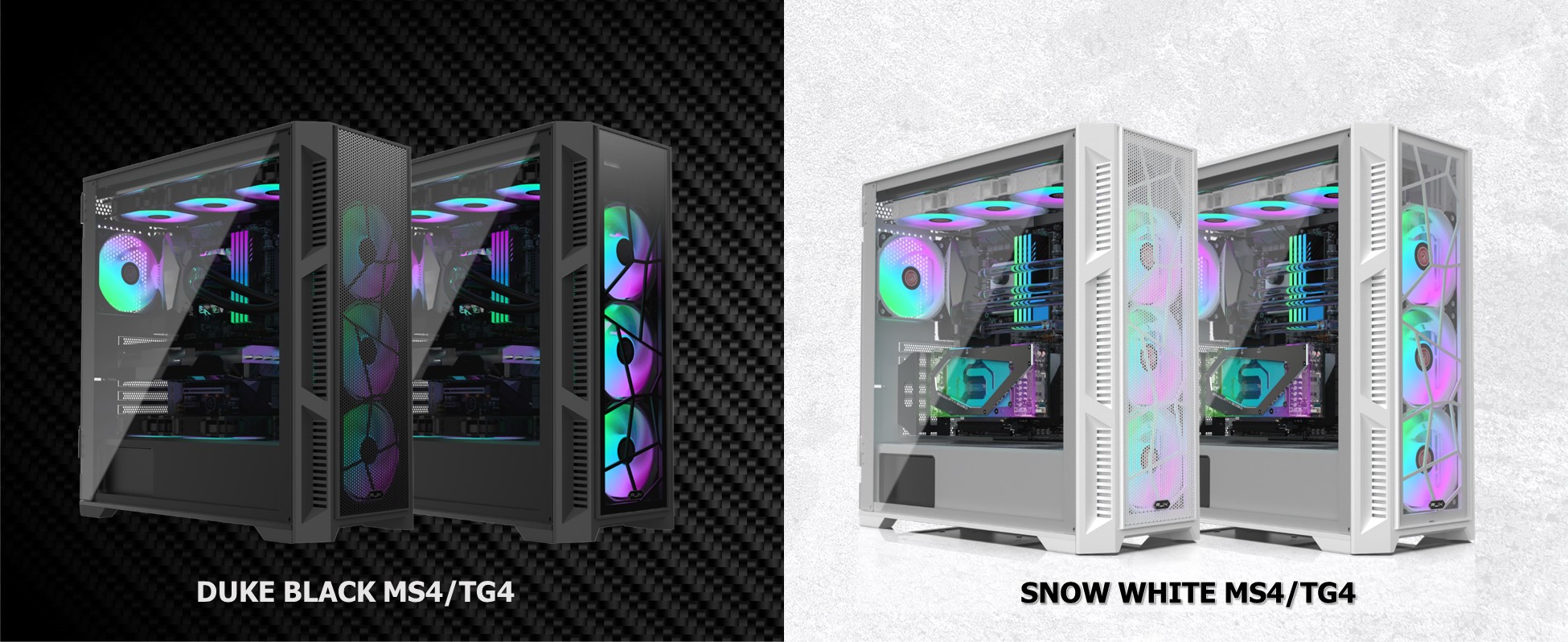

AGOS ULTRA WHITE TG4/MS4 SPECIFICATION |
||
| Product Name | AGOS ULTRA WHITE TG4 | AGOS ULTRA WHITE MS4 |
| Product Number | 0R20B00227 | 0R20B00228 |
| Dimension [W×D×H] | 210×455×485 mm | 210×455×485 mm |
| Weight | 7.5 kg [N.W.] | 6.9 kg [N.W.] |
| Material | SPCC 0.5/0.6 mm | SPCC 0.5/0.6 mm |
| Color | Coating White | Coating White |
| M/B Support | E-ATX; ATX; M-ATX; Mini-ITX | E-ATX; ATX; M-ATX; Mini-ITX |
| Drive Bay | 3.5" × 2 + 2.5" × 3 | 3.5" × 2 + 2.5" × 3 |
| Expansion Slot | PCI Slots ×7 | PCI Slots ×7 |
| I/O Panel | Type C×1, USB3.0×2, HD Audio×1 | Type C×1, USB3.0×2, HD Audio×1 |
| Power Supply | ATX PSU [Length: 235mm] | ATX PSU [Length: 235mm] |
| Cooling System | Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |
Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |
| Radiator Q’ty | Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
| CPU Cooler Height | 165mm [Max.] | 165mm [Max.] |
| Graphic Card Length | 400mm [Max.] | 400mm [Max.] |
| Side Panel | 4.0mm Tempered Glass | 4.0mm Tempered Glass |
| Front Panel | 4.0mm Tempered Glass | Mesh |
| Pre-installed Fan Q'ty | 12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |
12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |
AGOS ULTRA TG4/MS4 -ST SPECIFICATION |
||
| Product Name | AGOS ULTRA TG4 -ST | AGOS ULTRA MS4 -ST |
| Product Number | 0R20B00232 | 0R20B00233 |
| Dimension [W×D×H] | 210×455×485 mm | 210×455×485 mm |
| Weight | 7.5 kg [N.W.] | 6.9 kg [N.W.] |
| Material | SPCC 0.5/0.6 mm | SPCC 0.5/0.6 mm |
| Color | Coating Black | Coating Black |
| M/B Support | E-ATX; ATX; M-ATX; Mini-ITX | E-ATX; ATX; M-ATX; Mini-ITX |
| Drive Bay | 3.5" × 2 + 2.5" × 3 | 3.5" × 2 + 2.5" × 3 |
| Expansion Slot | PCI Slots ×7 | PCI Slots ×7 |
| I/O Panel | Type C×1, USB3.0×2, HD Audio×1 | Type C×1, USB3.0×2, HD Audio×1 |
| Power Supply | ATX PSU [Length: 235mm] | ATX PSU [Length: 235mm] |
| Cooling System | Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |
Top: 120mm×3 or 140mm×2 [option] Front: 120mm×3 [Pre-installed] or 140mm×3 [option] Rear: 120mm×1 [Pre-installed] MB plate: 120mm×2 [option] Tunnel: 120mm×2 [option] |
| Radiator Q’ty | Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
Top: 280/360mm Radiator up to 30mm thick [option] Front: 280/360mm Radiator up to 30mm thick [option] MB plate: 120/240mm Radiator up to 30mm thick [option] Rear: 120mm Radiator up to 30mm thick [option] |
| CPU Cooler Height | 165mm [Max.] | 165mm [Max.] |
| Graphic Card Length | 400mm [Max.] | 400mm [Max.] |
| Side Panel | Steel | Steel |
| Front Panel | 4.0mm Tempered Glass | Mesh |
| Pre-installed Fan Q'ty | 12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |
12025mm front ARGB fan × 3 12025mm rear ARGB fan × 1 |
FAN |
|
| Dimension [W×H×D] | 120×120×25 mm |
| Voltage Rating | 12V |
| Starting Voltage | 7V |
| Speed | 1100±10% R.P.M. |
| Bearing Type | Hydraulic Bearing |
| Air Flow | 43.2 CFM [ft /min] |
| Air Pressure | 1.89 mmH2O [Max.] |
| Life Expectance | 30,000 hrs |
| Noise Level | 19.8 dBA [Max.] |
| Connector | 3 pin; 5V ADD 4 pin header |
| Rated Current | 0.15A±10% |
| Power Consumption | 1.8W±10% |
| Fan Q'ty | 4 pcs |
AGOS ULTRA Installation Guide [ 14.6 MB ]
 |
)
)
)
)
)
)
)
)
)

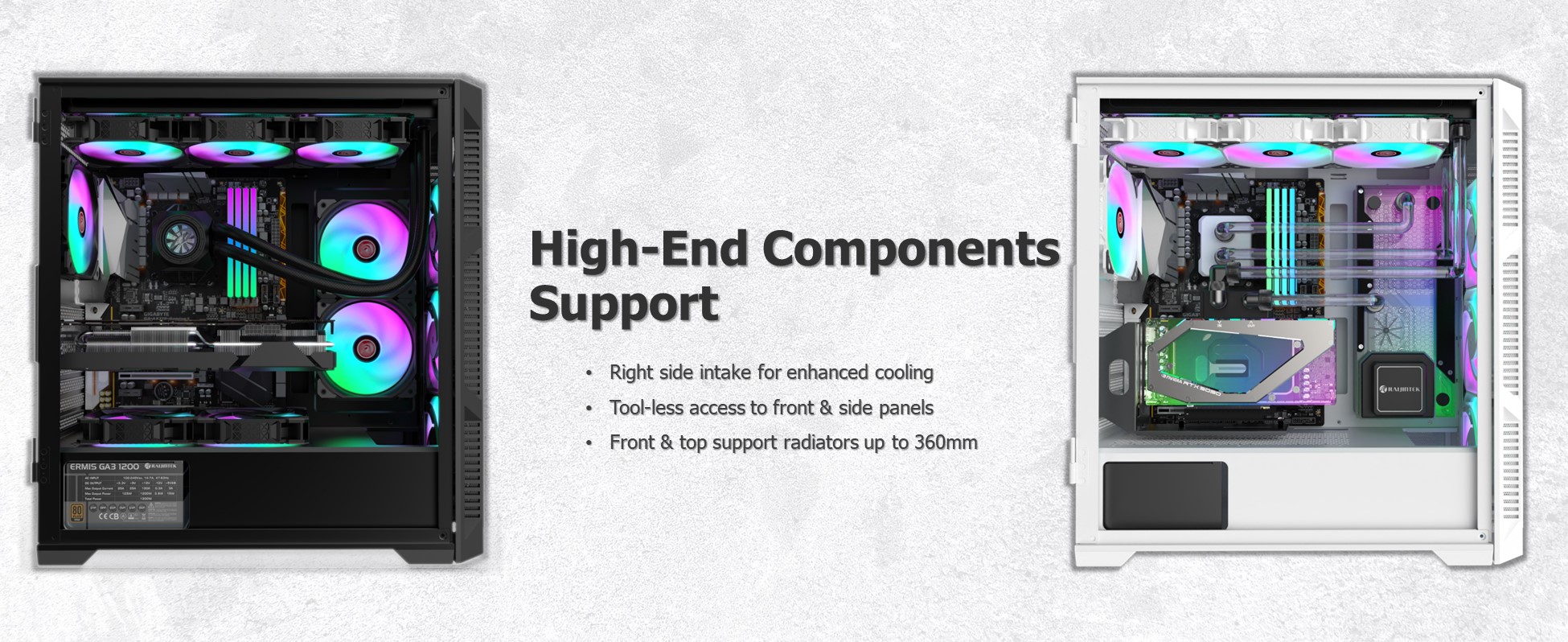

Правый вход для усиленного охлаждения
